Nissan Versa Note. Manual - part 464





HOW TO USE THIS MANUAL

GI-5

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

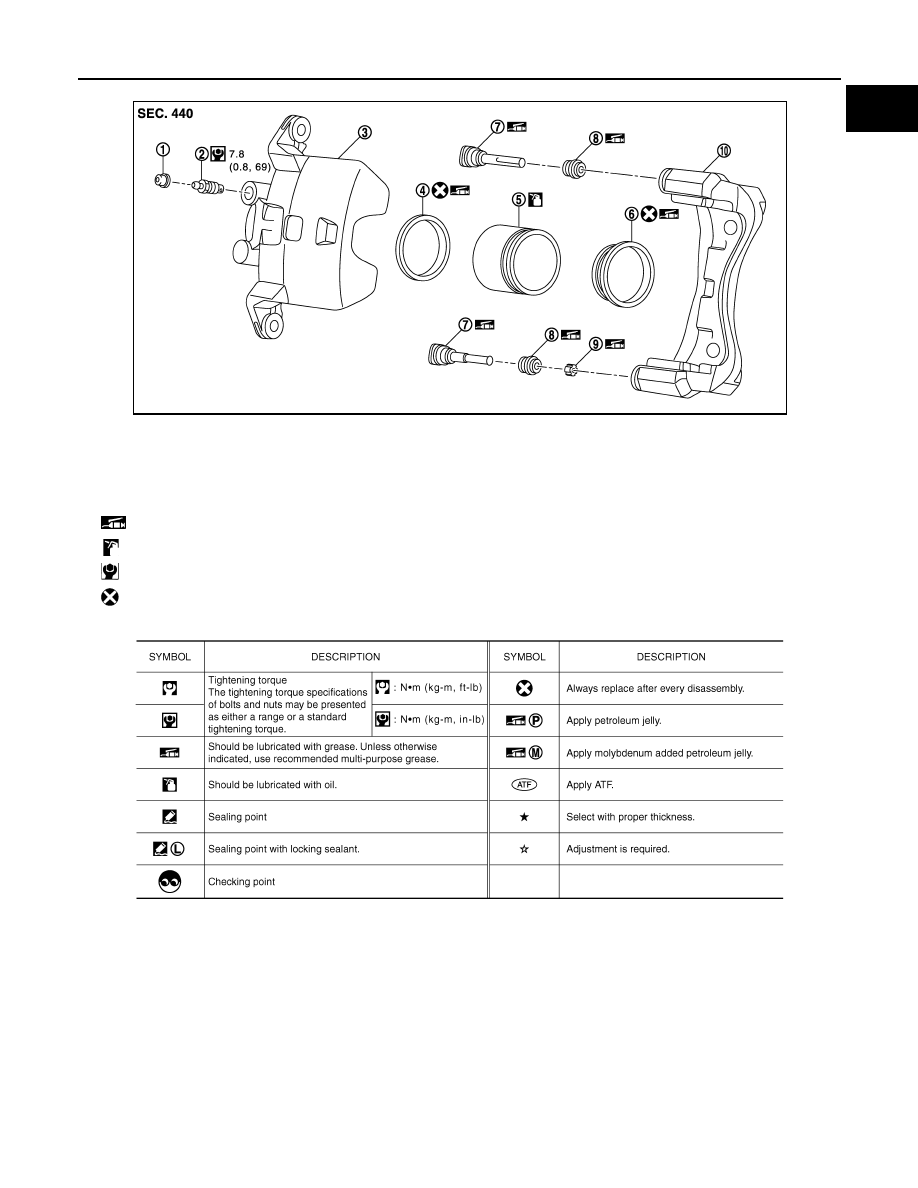

SYMBOLS

1.

Cap

2.

Bleeder valve

3.

Cylinder body

4.

Piston seal

5.

Piston

6.

Piston boot

7.

Sliding pin

8.

Sliding pin boot

9.

Bushing

10. Torque member

: Apply rubber grease.

: Apply brake fluid.

: N·m (kg-m, in-lb)

: Always replace after every disassembly

JPFIA0511GB

SAIA0749E

GI-6

< HOW TO USE THIS MANUAL >

HOW TO FOLLOW TROUBLE DIAGNOSES

HOW TO FOLLOW TROUBLE DIAGNOSES

Description

INFOID:0000000009472949

NOTICE:

Trouble diagnoses indicate work procedures required to diagnose problems effectively. Observe the following

instructions before diagnosing.

• Before performing trouble diagnoses, read the “Work Flow” in each section.

• After repairs, re-check that the problem has been completely eliminated.

• Refer to Component Parts and Harness Connector Location for the Systems described in each section for

identification/location of components and harness connectors.

• When checking circuit continuity, ignition switch should be OFF.

• Refer to the Circuit Diagram for quick pinpoint check.

If you need to check circuit continuity between harness connectors in more detail, such as when a sub-har-

ness is used, refer to Wiring Diagram in each individual section and Harness Layout in PG section for identi-

fication of harness connectors.

• Before checking voltage at connectors, check battery voltage.

• After accomplishing the Diagnosis Procedures and Electrical Components Inspection, make sure that all

harness connectors are reconnected as they were.

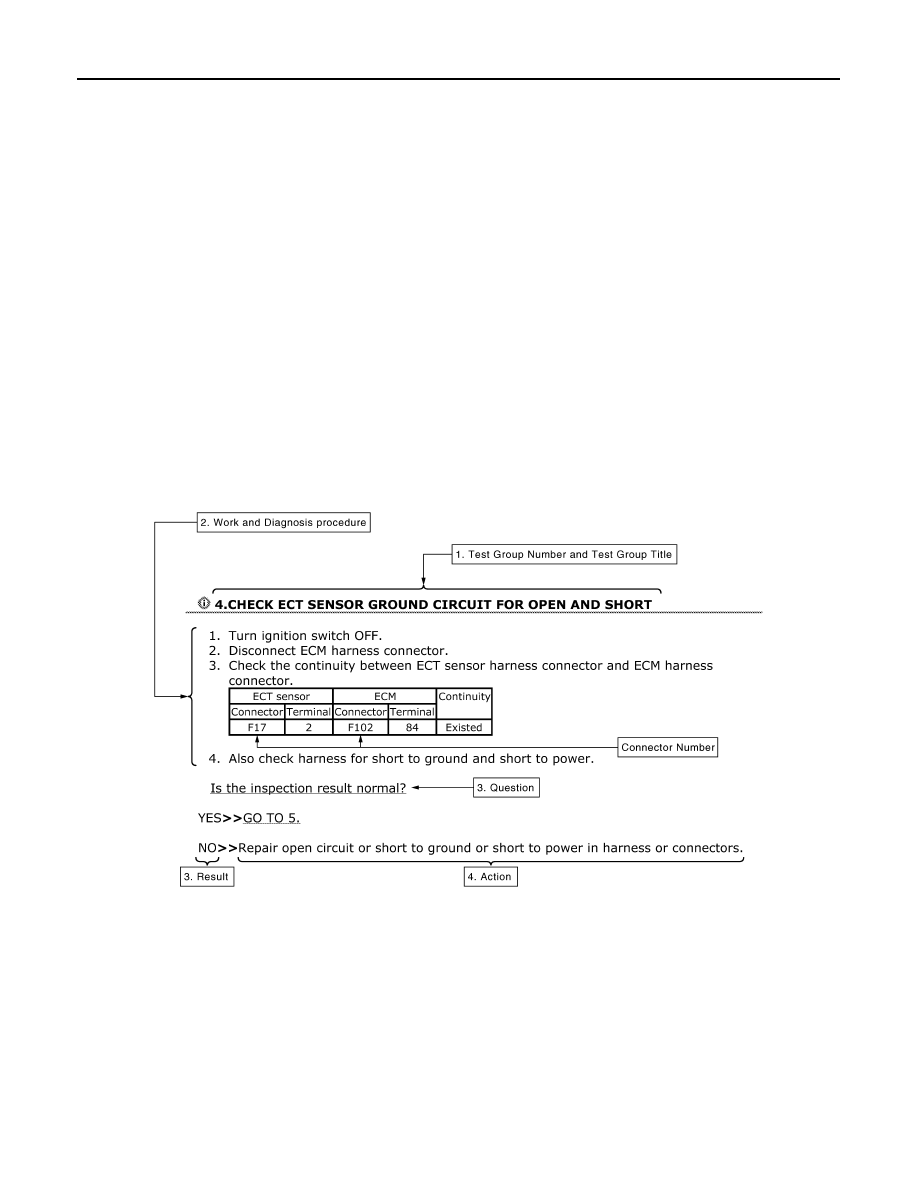

How to Follow Test Groups in Trouble Diagnosis

INFOID:0000000009472950

1. Test group number and test group title

• Test group number and test group title are shown in the upper portion of each test group.

2. Work and diagnosis procedure

• Start to diagnose a problem using procedures indicated in enclosed test groups.

3. Questions and results

• Questions and required results are indicated in test group.

4. Action

• Next action for each test group is indicated based on result of each question.

JPAIA0021GB

HOW TO FOLLOW TROUBLE DIAGNOSES

GI-7

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

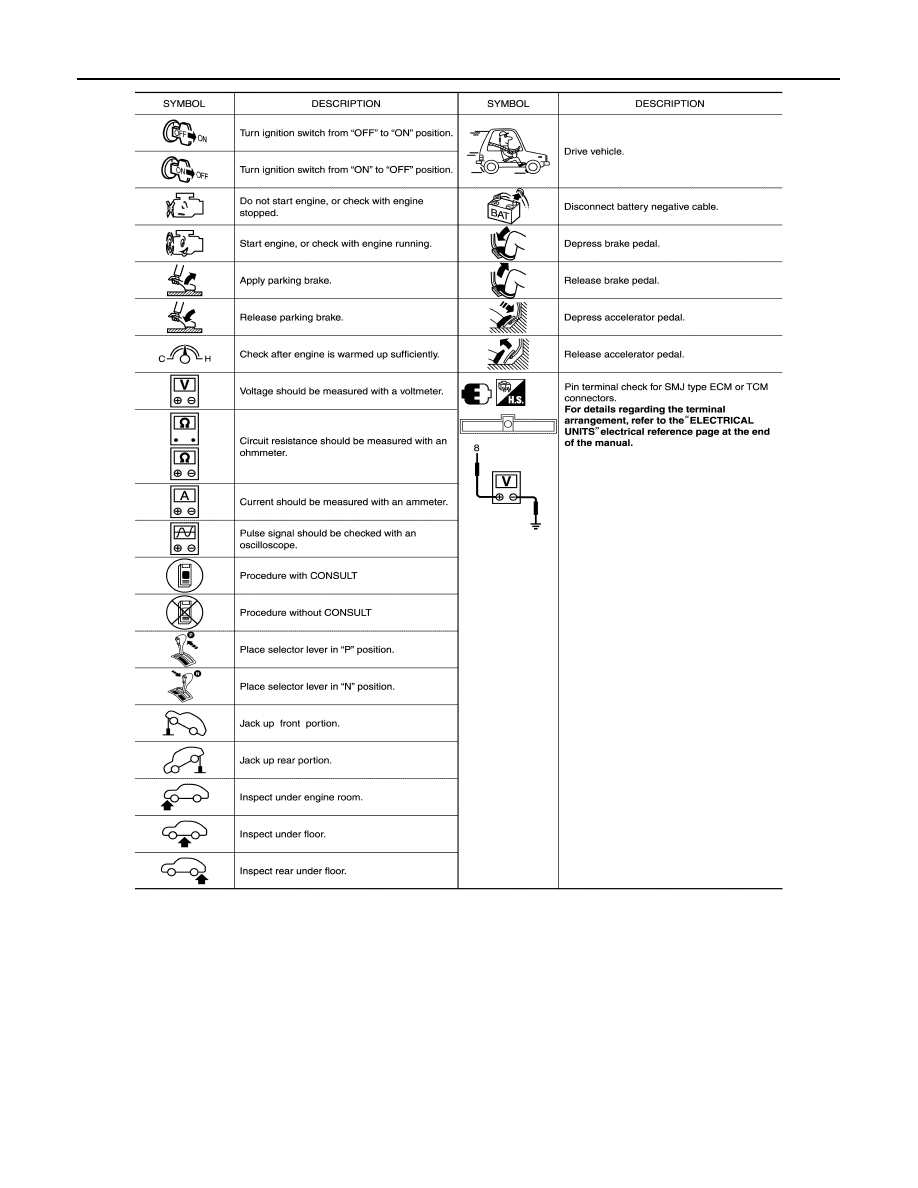

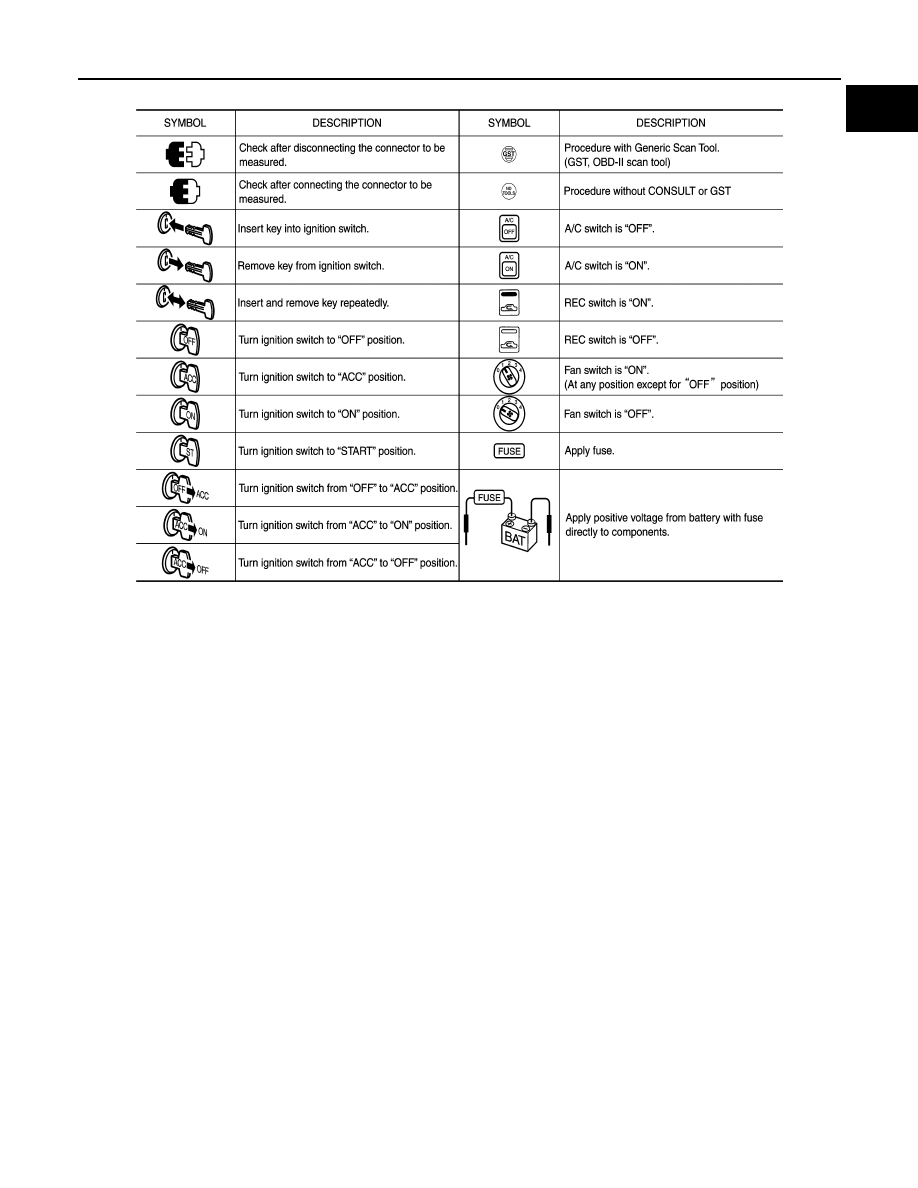

Key to Symbols Signifying Measurements or Procedures

INFOID:0000000009472951

JPAIA0982GB

GI-8

< HOW TO USE THIS MANUAL >

HOW TO FOLLOW TROUBLE DIAGNOSES

JSAIA1461GB
