Nissan Versa Note. Manual - part 450





SERVICE DATA AND SPECIFICATIONS (SDS)

FAX-27

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000008969179

Drive Shaft

INFOID:0000000009541208

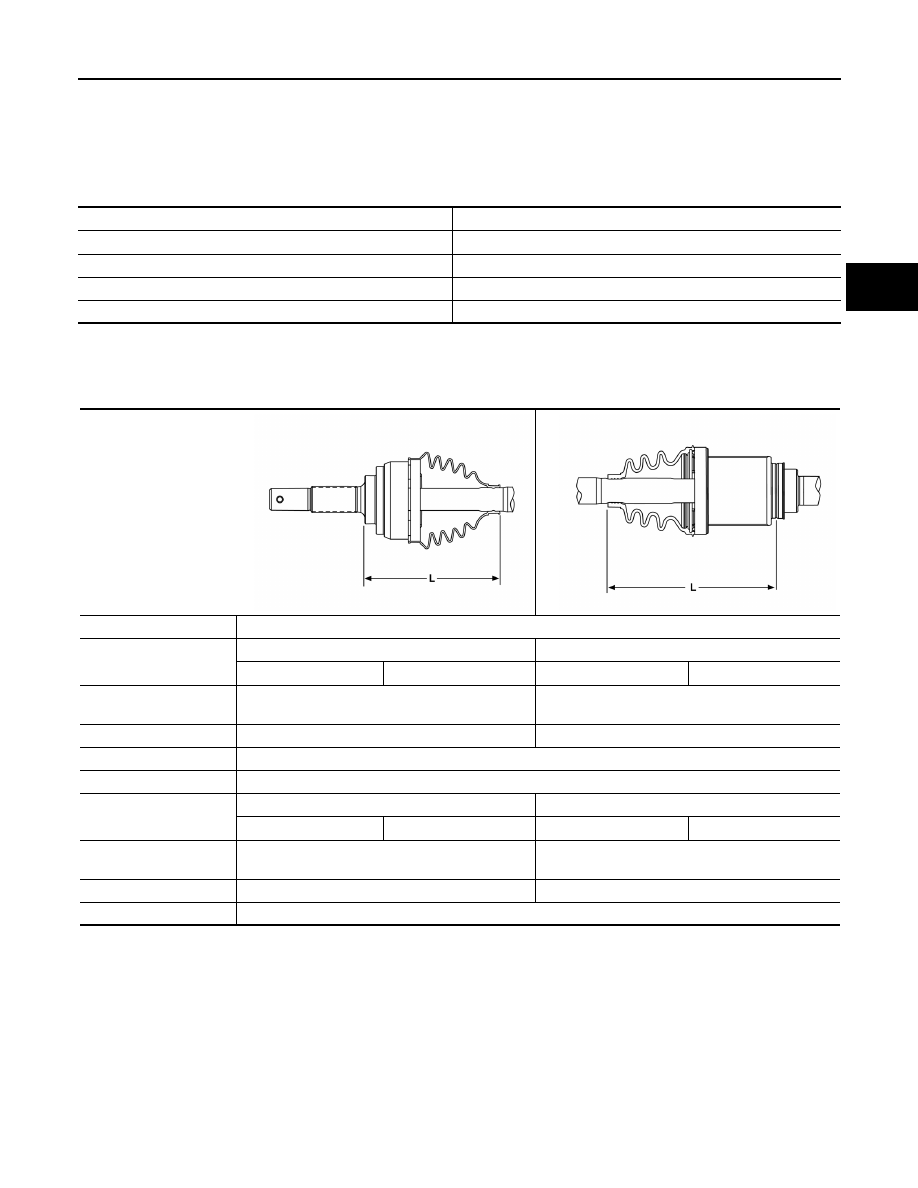

Drive Shaft Specifications

*Always check with the Parts Department for the latest parts information.

Dynamic Damper Specifications

Item

Standard

Axial end play

0.0 mm (0.0 in)

Rotating torque

1.9 N·m (0.19 kg-m, 17 in-lb) or less

Spring balance measurement

13.7 N (1.40 kg-f, 3.08 lb-f) or less

Wheel bearing press-fit load

49 kN (4,998.0 kg-f, 11,015.2 lb-f)

Application

M/T

Joint type

Wheel side

Transaxle side

(LH)

(RH)

(LH)

(RH)

Grease quantity*

90 - 100 g

(3.17 - 3.53 oz)

141.1- 157.1 g

(4.98 - 5.54 oz)

Boot installed length (L)

135.5 mm (5.33 in)

154 mm (6.06 in)

Molykote M77*

1.0 - 3.0 g (0.04 - 0.10 oz)

Application

CVT

Joint type

Wheel side

Transaxle side

(LH)

(RH)

(LH)

(RH)

Grease quantity*

90 - 100 g

(3.17 - 3.53 oz)

132.7 - 148.7 g
(4.68 - 5.25 oz)

Boot installed length (L)

136.8 mm (5.39 in)

145.5 mm (5.73 in)

Molykote M77*

1.0 - 3.0 g (0.04 - 0.10 oz)

ALDIA0269ZZ

ALDIA0268ZZ

FAX-28

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Unit: mm (in)

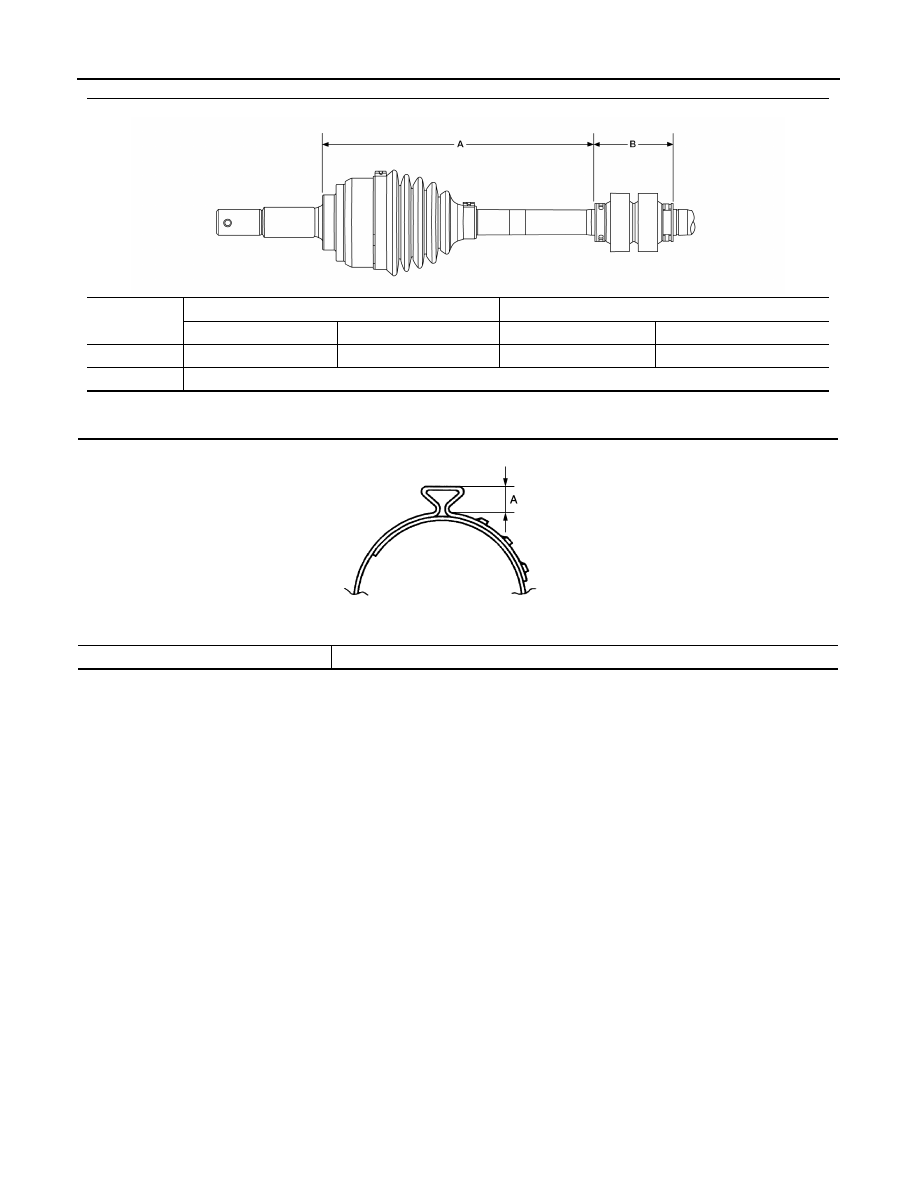

Boot Band Specification

Unit: mm (in)

Application

M/T

CVT

(LH)

(RH)

(LH)

(RH)

Dimension (A)

240

± 3 (9.45 ± 0.1)

457

± 3 (17.99 ± 0.1)

242.9

± 3 (9.56 ± 0.1)

457

± 3 (17.99 ± 0.1)

Dimension (B)

70 (2.76)

ALDIA0270ZZ

Dimension (A) - maximum

7.0 (0.28)

JPDIF0268ZZ

FL-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

FL

A

FL

N

O

P

CONTENTS

FUEL SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

General Precaution  ...................................................

2

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tool  .................................................

4

Commercial Service Tools  ........................................

4

PERIODIC MAINTENANCE ..........................

5

FUEL SYSTEM ....................................................

5

Inspection ..................................................................

5

Quick Connector  .......................................................

5

REMOVAL AND INSTALLATION ................

6

FUEL LEVEL SENSOR UNIT, FUEL FILTER
AND FUEL PUMP ASSEMBLY  ..........................

6

Exploded View  ..........................................................

6

Removal and Installation ...........................................

6

Inspection ..................................................................

9

FUEL TANK ........................................................

10

Exploded View  ........................................................

10

Removal and Installation .........................................

10

Inspection ................................................................

13

EVAP CANISTER ..............................................

14

Exploded View .........................................................

14

Removal and Installation  .........................................

14

Inspection ................................................................

15

EVAP CANISTER FILTER  ................................

16

Exploded View .........................................................

16

Removal and Installation  .........................................

16

EVAP CANISTER VENT CONTROL VALVE  ...

17

Exploded View .........................................................

17

Removal and Installation  .........................................

17

EVAP CONTROL SYSTEM PRESSURE SEN-
SOR ...................................................................

19

Exploded View .........................................................

19

Removal and Installation  .........................................

19

DISASSEMBLY AND ASSEMBLY ..............

20

FUEL LEVEL SENSOR UNIT  ...........................

20

Exploded View .........................................................

20

Disassembly and Assembly .....................................

20

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

22

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

22

Fuel Tank .................................................................

22

FL-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009452292

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

General Precaution

INFOID:0000000009405635

WARNING:

When replacing fuel line parts, be sure to observe the following.

• Put a “CAUTION: FLAMMABLE” sign in the work area.
• Be sure to work in a well ventilated area and have a CO

2

 fire extinguisher.

• Do not smoke while working on the fuel system. Keep open flames and sparks away from the work

area.

CAUTION:

• Before removing fuel line parts, carry out the following procedures:

- Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in

safe area.

- Release fuel pressure from the fuel lines. Refer to

EC-135, "Work Procedure"

.

- Disconnect the battery ground cable.

• Always replace O-rings and clamps with new ones.

• Do not kink or twist tubes when they are being installed.

• Do not tighten hose clamps excessively to avoid damaging hoses.

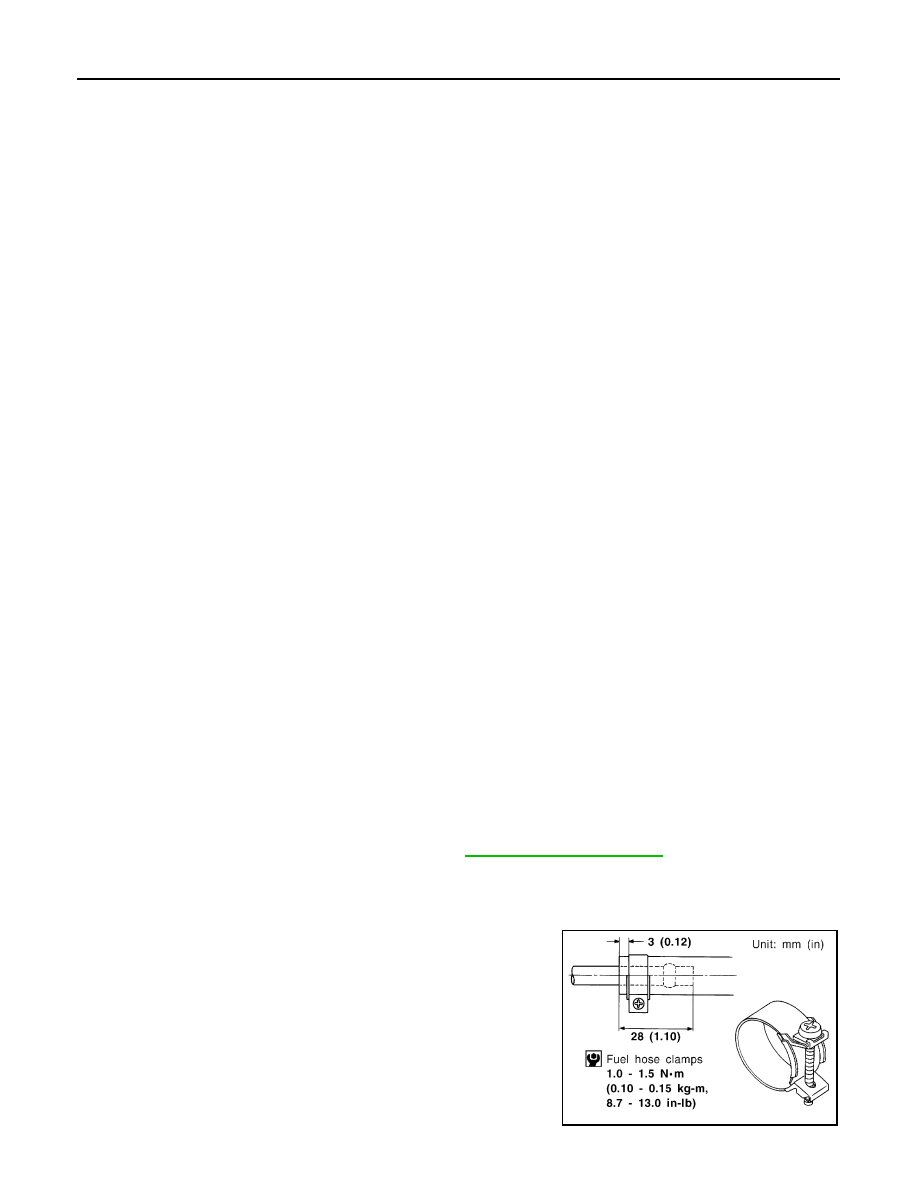

Tighten high-pressure rubber hose clamp so that clamp end

is 3 mm (0.12 in) from hose end.

Tightening torque specifications are the same for all rubber

hose clamps.

Ensure that screw does not contact adjacent parts.

MMA104A
