HEADLAMP

EXL-25

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

WIRING DIAGRAM

HEADLAMP

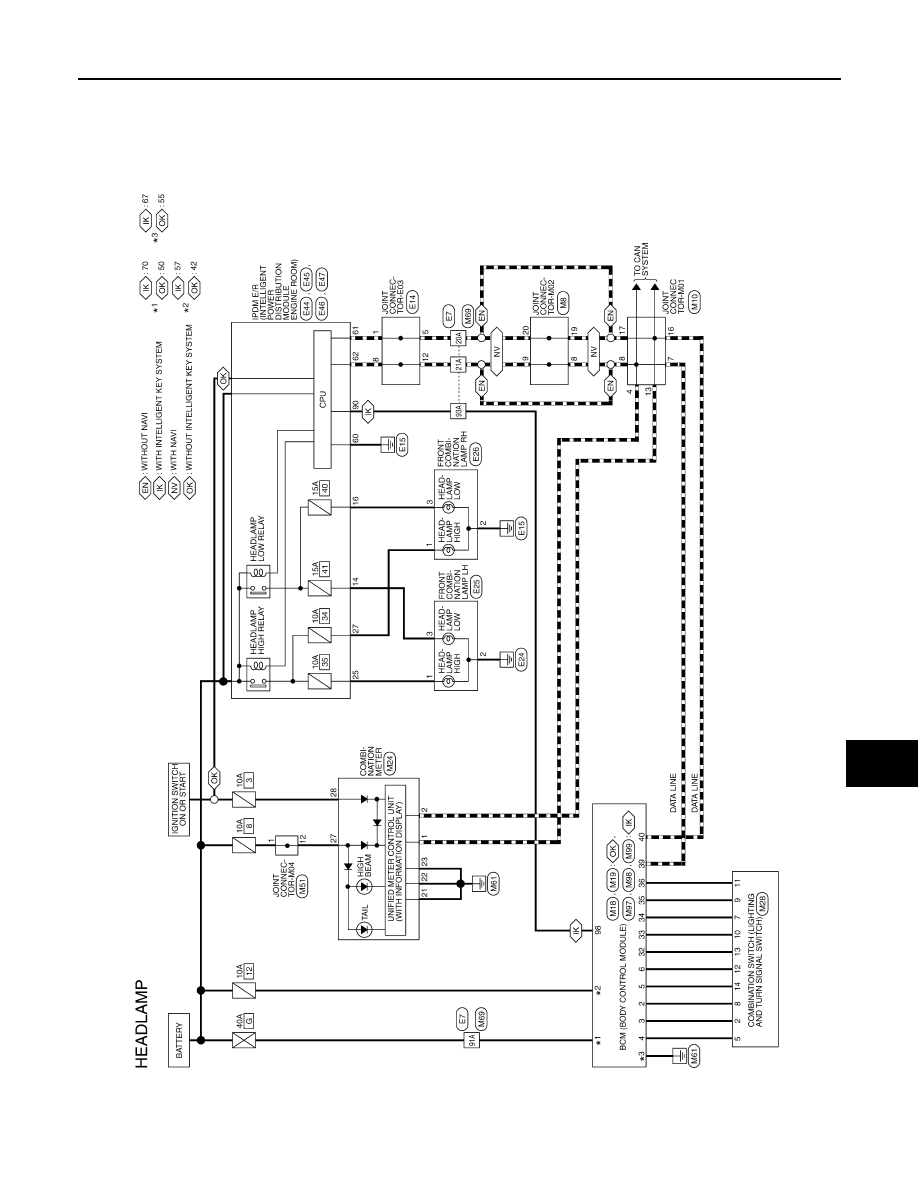

Wiring Diagram

INFOID:0000000009694048

AALWA0652GB

EXL-26

< WIRING DIAGRAM >

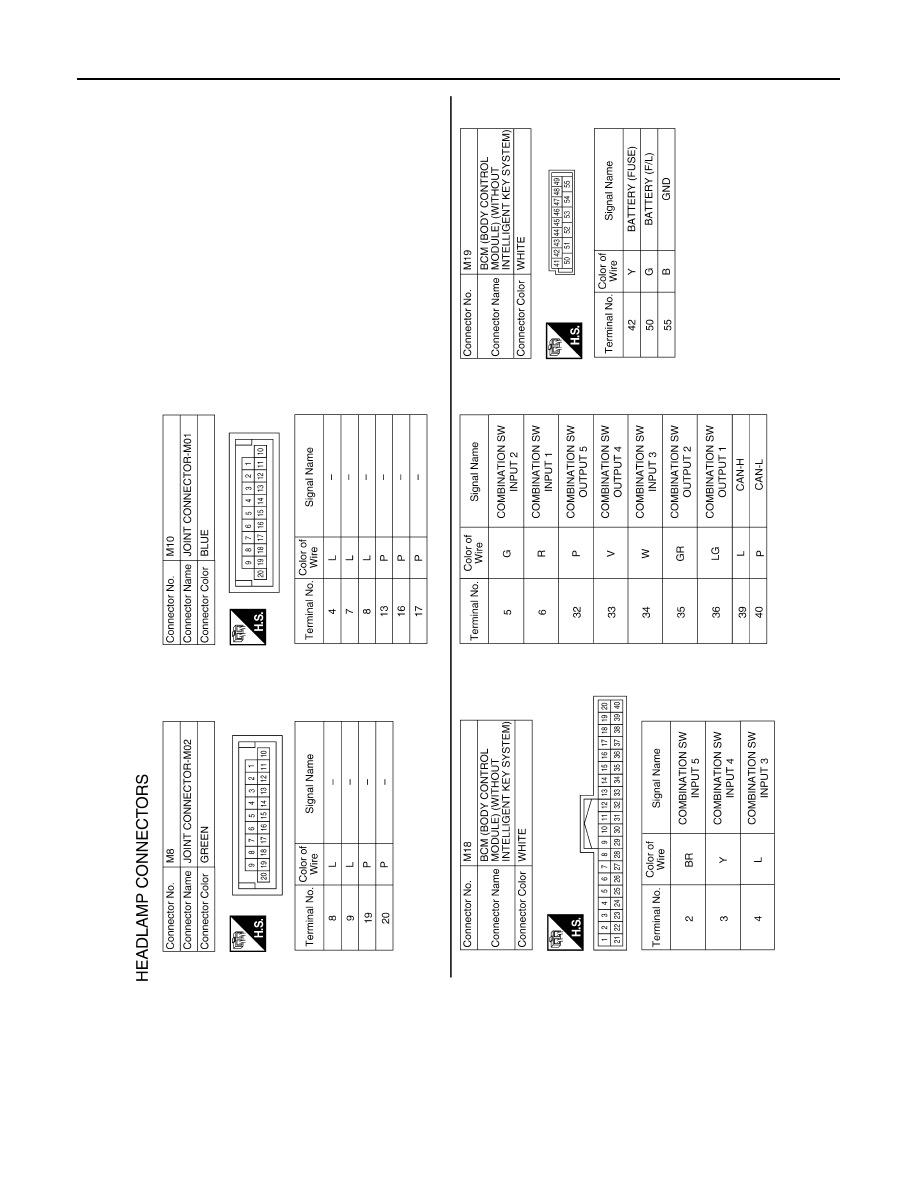

HEADLAMP

AALIA1432GB

HEADLAMP

EXL-27

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

AALIA1433GB
