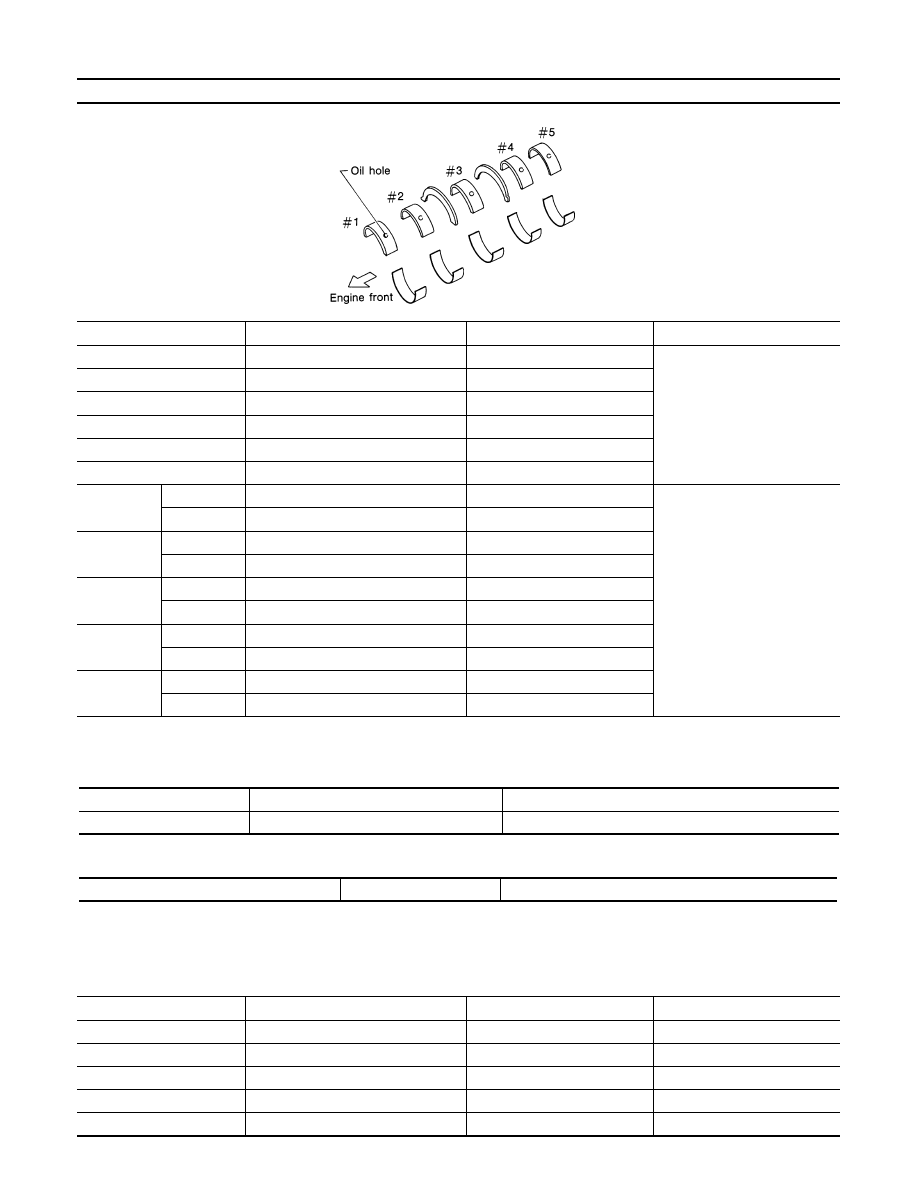

EM-124 < SERVICE DATA AND SPECIFICATIONS (SDS) [HR16DE] SERVICE DATA AND SPECIFICATIONS (SDS) Unit: mm (in) *: Always check with the Parts Department for the latest parts information. Undersize Unit: mm (in) Bearing Oil Clearance Unit: mm (in) Connecting Rod Bearing INFOID:0000000009444767 CONNECTING ROD BEARING Unit: mm (in) Grade number* Thickness Identification color Remarks 0 1.996 - 1.999 (0.0786 - 0.0787) Black Grade and color are the same 1 1.999 - 2.002 (0.0787 - 0.0788) Brown 2 2.002 - 2.005 (0.0788 - 0.0789) Green 3 2.005 - 2.008 (0.0789 - 0.0791) Yellow 4 2.008 - 2.011 (0.0791 - 0.0792) Blue 5 2.011 - 2.014 (0.0792 - 0.0793) Pink 01 UPR 1.996 - 1.999 (0.0786 - 0.0787) Black Grade and color are different LWR 1.999 - 2.002 (0.0787 - 0.0788) Brown 12 UPR 1.999 - 2.002 (0.0787 - 0.0788) Brown LWR 2.002 - 2.005 (0.0788 - 0.0789) Green 23 UPR 2.002 - 2.005 (0.0788 - 0.0789) Green LWR 2.005 - 2.008 (0.0789 - 0.0791) Yellow 34 UPR 2.005 - 2.008 (0.0789 - 0.0791) Yellow LWR 2.008 - 2.011 (0.0791 - 0.0792) Blue 45 UPR 2.008 - 2.011 (0.0791 - 0.0792) Blue LWR 2.011 - 2.014 (0.0792 - 0.0793) Pink SEM685D Items Thickness Main journal diameter US 0.25 (0.0098) 2.126 - 2.134 (0.0837 - 0.0840) Grind so that bearing clearance is the specified value. Main bearing oil clearance Standard 0.024 - 0.034 (0.0009 - 0.0013) Grade number* Thickness Identification color Remarks 1 1.501 - 1.504 (0.0591 - 0.0592) Brown 2 1.504 - 1.507 (0.0592 - 0.0593) Green 3 1.507 - 1.510 (0.0593 - 0.0594) Yellow 4 1.510 - 1.513 (0.0594 - 0.0596) Blue 5 1.513 - 1.516 (0.0596 - 0.0597) Pink |
