EC-346

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

P059F ACTIVE GRILLE SHUTTER

Without CONSULT

1. Turn ignition switch OFF.

2. Operate shutter by hands to close position.

3. Check the operation of active grille shutter as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace active grille shutter. Refer to

EXT-31, "Removal and Installation"

.

Component Inspection (Active Grille Shutter Relay)

INFOID:0000000009731738

1.

CHECK ACTIVE GRILLE SHUTTER RELAY

1. Turn ignition switch OFF.

2. Remove active grille shutter relay.

3. Apply battery voltage to active grille shutter relay terminal, and check the continuity as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace active grille shutter relay.

Condition

Active grille shutter

Select “CLOSE”

Close

→ Open

Select “OPEN”

Open

→ Close

Condition

Active grille shutter

Ignition switch: ON

Close

→ Open

Active grille shutter relay

Condition

Continuity

+

–

Terminal

5

3

12 V direct current supply
between terminals 1 and 2

Existed

No current supply

None

P0603 ECM POWER SUPPLY

EC-347

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

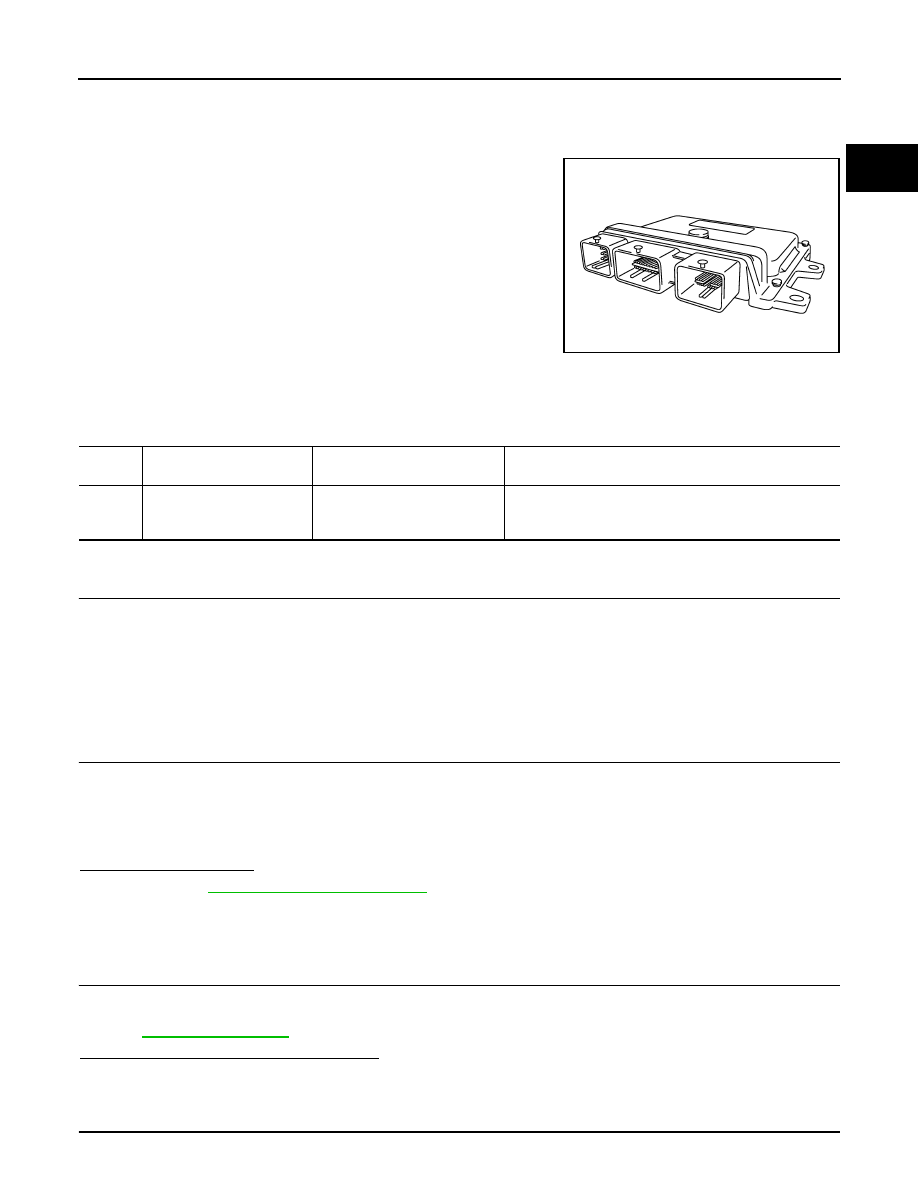

P0603 ECM POWER SUPPLY

Description

INFOID:0000000009020845

ECM has the memory function of the DTC memory, the air-fuel ratio

feedback compensation value memory, the Idle Air Volume Learning

value memory, etc. even when the ignition switch is turned OFF.

DTC Logic

INFOID:0000000009020846

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON wait at least 10 seconds.

2. Turn ignition switch OFF and wait at least 5 minutes

3. Turn ignition switch ON, wait at least 10 seconds.

4. Repeat step 2 and 3 for five times.

5. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Go to

EC-347, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009020847

1.

INSPECTION START

1. Erase DTC.

2. Perform DTC CONFIRMATION PROCEDURE.

See

EC-347, "DTC Logic"

.

Is the 1st trip DTC P0603 displayed again?

YES

>> GO TO 2.

NO

>> INSPECTION END

2.

REPLACE ECM

PBIA9222J

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P0603

ECM BACK UP/CIRCUIT
(ECM power supply circuit)

ECM back-up RAM system
does not function properly.

• Harness or connectors

[ECM power supply (back up) circuit is open or shorted.]

• ECM

EC-348

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

P0603 ECM POWER SUPPLY

1. Replace ECM. Refer to

EC-465, "Removal and Installation"

.

2. Perform

EC-123, "Work Procedure"

.

>> INSPECTION END

P0605 ECM

EC-349

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0605 ECM

DTC Logic

INFOID:0000000009020848

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION A

1. Turn ignition switch ON.

2. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Go to

EC-349, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION B

1. Turn ignition switch ON and wait at least 1 second.

2. Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.

3. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Go to

EC-349, "Diagnosis Procedure"

.

NO

>> GO TO 4.

4.

PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION C

1. Turn ignition switch ON and wait at least 1 second.

2. Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.

3. Repeat step 2 for 32 times.

4. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Go to

EC-349, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009020849

1.

INSPECTION START

1. Erase DTC.

2. Perform DTC CONFIRMATION PROCEDURE.

See

EC-349, "DTC Logic"

.

Is the 1st trip DTC P0605 displayed again?

YES

>> GO TO 2.

NO

>> INSPECTION END

DTC No.

Trouble diagnosis content

DTC detecting condition

Possible cause

P0605

Engine control module

A)

ECM calculation function is malfunctioning.

ECM

B)

ECM EEP-ROM system is malfunctioning.

C)

ECM self shut-off function is malfunctioning.
