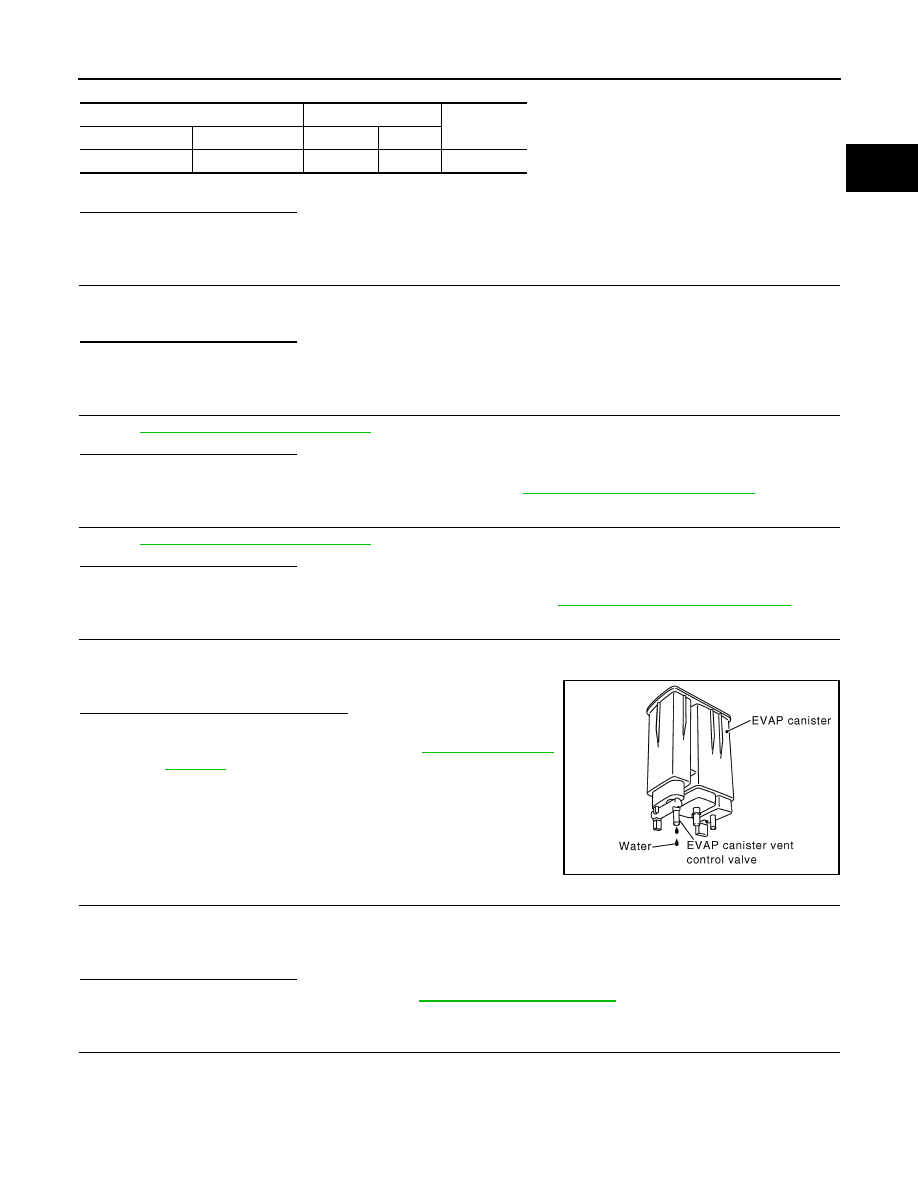

EC-314 < DTC/CIRCUIT DIAGNOSIS > [HR16DE] P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR 2. Also check harness for short to ground and to power. YES >> GO TO 6. NO >> Repair or replace error-detected parts. 6. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR Check the EVAP control system pressure sensor. Refer to EC-310, "Component Inspection" Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-41, "Intermittent Incident" . NO >> Replace EVAP control system pressure sensor. Refer to FL-19, "Removal and Installation" . Component Inspection INFOID:0000000009020808 1. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR 1. Turn ignition switch OFF. 2. Remove EVAP control system pressure sensor with its harness connector connected from EVAP canister. Always replace O-ring with a new one. 3. Install a vacuum pump to EVAP control system pressure sensor. 4. Turn ignition switch ON and check output voltage between ECM harness connector and ground under the following conditions. CAUTION: • Always calibrate the vacuum pump gauge when using it. 2 , -13.53 psi) or pressure over 101.3 kPa (1.033 kg/ cm 2 , 14.69 psi). Is the inspection result normal? YES >> INSPECTION END NO >> Replace EVAP control system pressure sensor. Refer to FL-19, "Removal and Installation" . EVAP control system pressure sensor ECM Continuity Connector Terminal Connector Terminal B3 2 F11 43 Existed ECM Condition [Applied vacuum kPa (kg/cm 2 , psi)] Voltage Connector + − Terminal F11 43 68 Not applied 0.5 - 4.6 V -26.7 (-0.272, -3.87) 2.1 to 2.5 V lower than above value |
