Nissan Versa Note. Manual - part 191

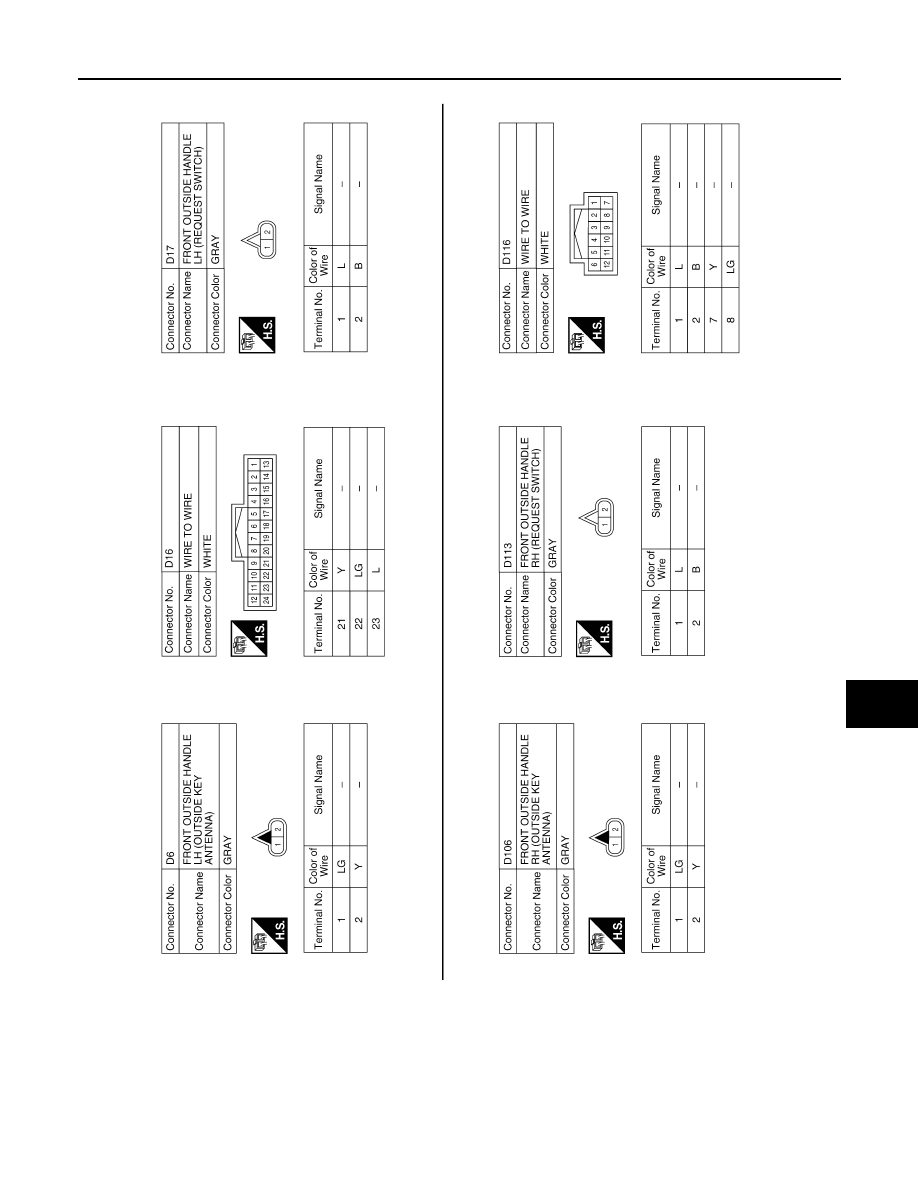

DOOR & LOCK SYSTEM

DLK-49

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AAKIA1316GB

DLK-50

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

DOOR & LOCK SYSTEM

POWER DOOR LOCK SYSTEM

AAKIA1368GB

DOOR & LOCK SYSTEM

DLK-51

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

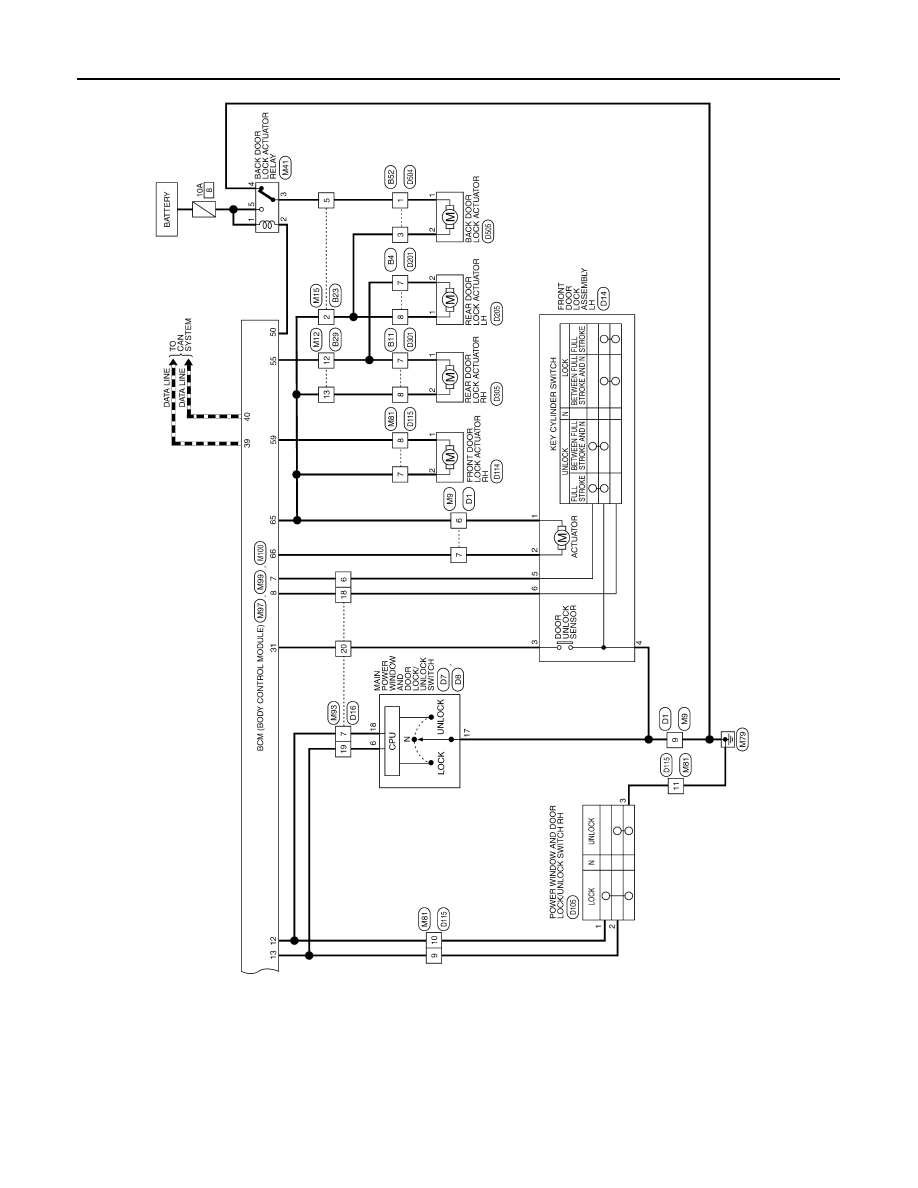

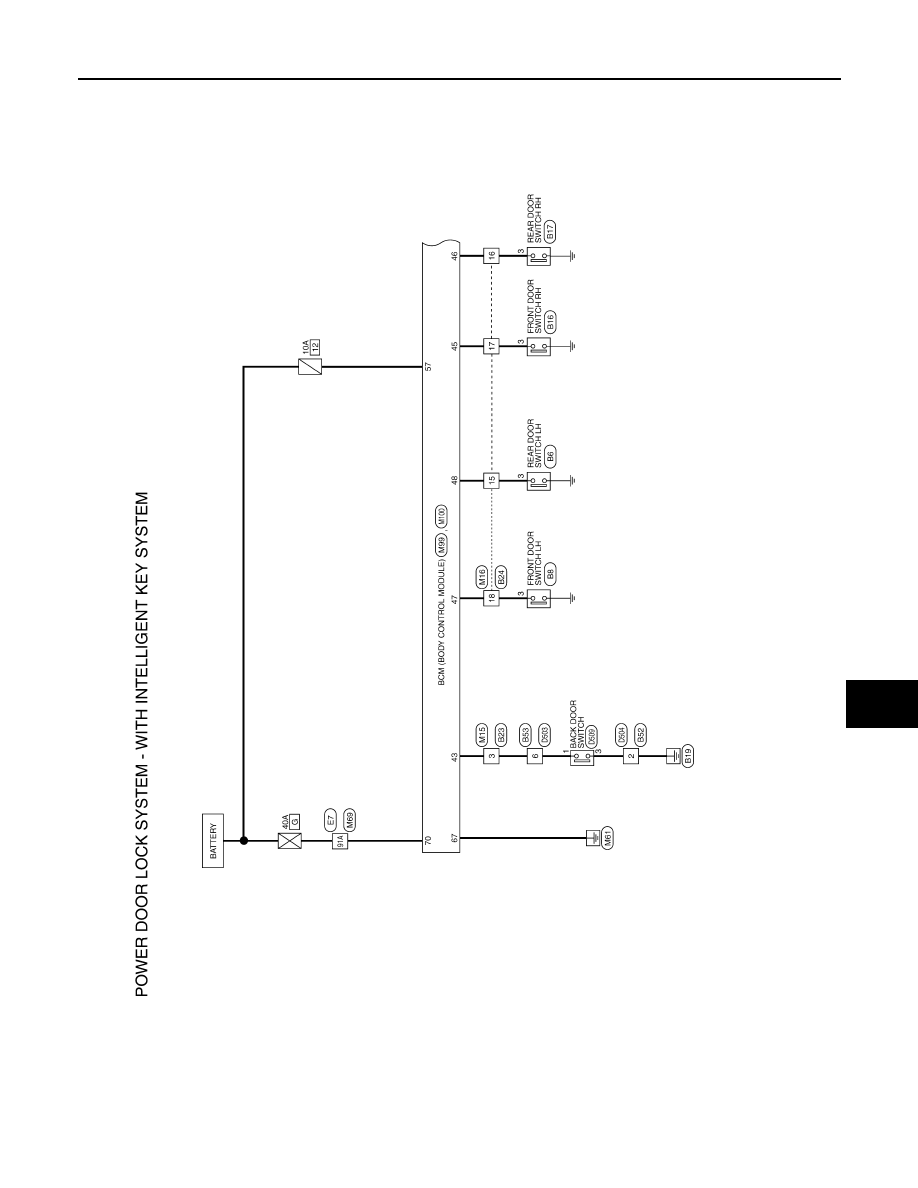

POWER DOOR LOCK SYSTEM : Wiring Diagram

INFOID:0000000009645286

AAKWA0651GB

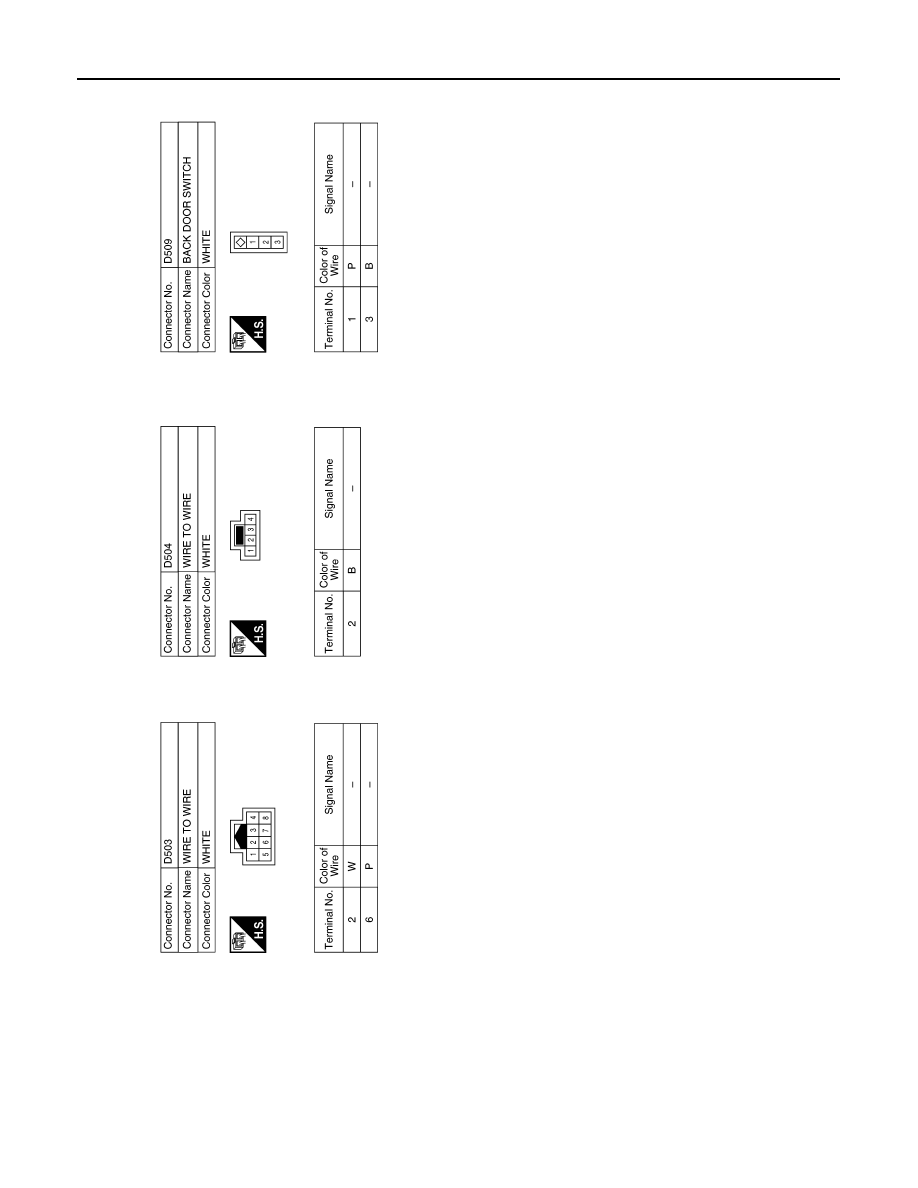

DLK-52

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

DOOR & LOCK SYSTEM

AAKWA0652GB
