DIAGNOSIS SYSTEM (BCM)
DLK-33
< SYSTEM DESCRIPTION >

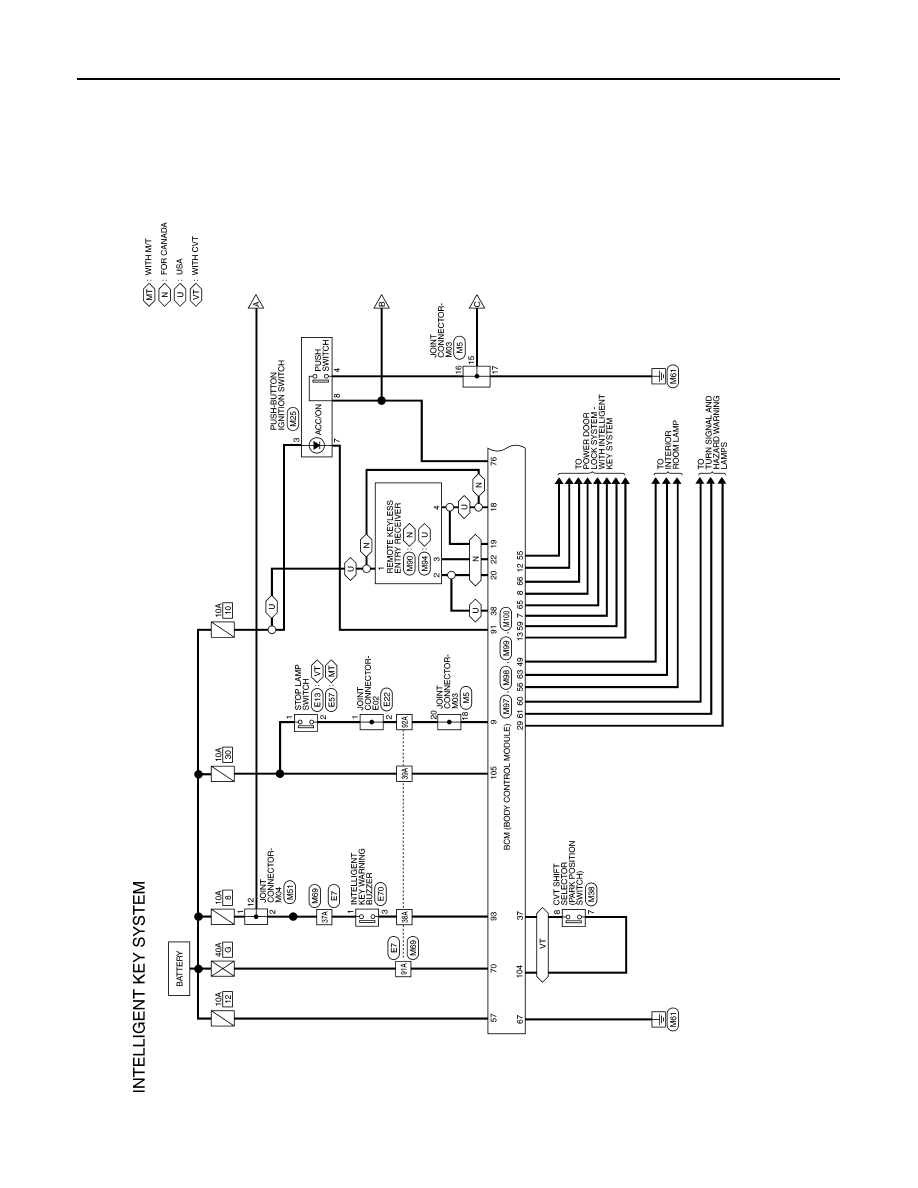

[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
M
A
B
DLK
N
O
P
WORK SUPPORT
ENGINE SW ILLUMI
This test is able to check push-button ignition switch START indicator operation [On/Off].
PUSH SWITCH INDICATOR
This test is able to check push-button ignition switch indicator operation [On/Off].
INT LAMP
This test is able to check interior room lamp operation [On/Off].
INDICATOR
This test is able to check combination meter warning lamp operation [KEY ON/KEY IND/Off].
FLASHER
This test is able to check hazard lamp operation [LH/RH/Off].
OUTSIDE BUZZER
This test is able to check Intelligent Key warning buzzer operation [On/Off].
HORN
This test is able to check horn operation [On].
P RANGE
This test is able to check CVT shift selector illumination operation [On/Off].
Test Item
Description
Support Item
Setting
Description
LOCK/UNLOCK BY I-KEY
On*
Door lock/unlock function from Intelligent Key ON.
Off
Door lock/unlock function from Intelligent Key OFF.
ANTI KEY LOCK IN FUNCTI
On*
Anti lock out setting ON.
Off
Anti lock out setting OFF.
ANS BACK I-KEY UNLOCK
Off
No buzzer reminder when doors are unlocked with request switch.
On*
Buzzer reminder when doors are unlocked with request switch.
ANS BACK I-KEY LOCK
Horn Chirp
Horn chirp reminder when doors are locked with request switch.
Buzzer*
Buzzer reminder when doors are locked with request switch.
Off
No reminder when doors are locked with request switch.
HORN WITH KEYLESS LOCK
Off
Horn chirp reminder when doors are locked with Intelligent Key.
On*
No horn chirp reminder when doors are locked with Intelligent Key.
HAZARD ANSWER BACK
Lock/Unlock*
Hazard warning lamp activation when doors are locked/unlocked
with Intelligent Key or request switch.
Unlock Only
Hazard warning lamp activation when doors are unlocked with Intel-
ligent Key or request switch.
Lock Only
Hazard warning lamp activation when doors are locked with Intelli-
gent Key or request switch.
Off
No hazard warning lamp activation when doors are locked/unlocked
with Intelligent Key or request switch.
INSIDE ANT DIAGNOSIS
—
This function allows inside key antenna self-diagnosis.
CONFIRM KEY FOB ID
—
Intelligent Key ID code can be checked.
SHORT CRANKING OUTPUT
Start
70 msec
Starter motor operation duration time setting.
100 msec
200 msec
End
—
PANIC ALARM SET
MODE 3
1.5 sec
Intelligent Key panic alarm button setting.
MODE 2
OFF
MODE 1*
0.5 sec
LO- BATT OF KEY FOB WARN
On*
Intelligent Key low battery warning ON.
Off
Intelligent Key low battery warning OFF.
