Nissan Versa Note. Manual - part 157

CHG

GENERATOR

CHG-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REMOVAL AND INSTALLATION

GENERATOR

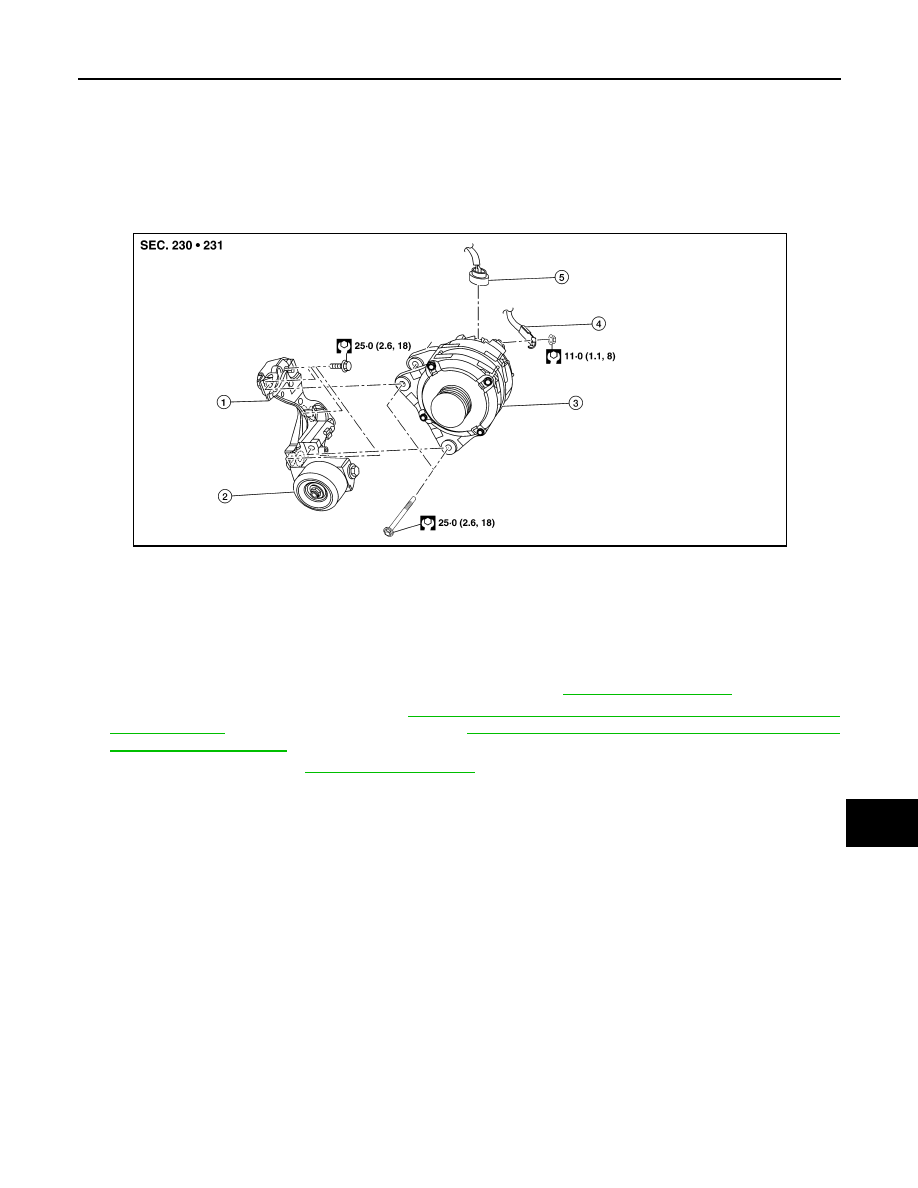

Exploded View

INFOID:0000000009395307

Removal and Installation

INFOID:0000000009395308

REMOVAL

1. Disconnect the battery cable from the negative terminal. Refer to

PG-67, "Exploded View"

.

2. Remove the radiator core support upper.

DLK-139, "RADIATOR CORE SUPPORT UPPER : Removal

and Installation"

 (with intelligent key system) or

DLK-265, "RADIATOR CORE SUPPORT UPPER :

Removal and Installation"

 (without intelligent key system).

3. Remove drive belt. Refer to

EM-24, "Exploded View"

.

4. Disconnect generator harness connector.
5. Remove “B” terminal nut and disconnect “B” terminal harness.
6. Remove the generator bolts.
7. Remove the generator.

CAUTION:

Be careful not to damage surrounding parts when removing generator from the vehicle.

8. Remove bolts and remove generator bracket if necessary.

INSTALLATION

1.

Generator bracket

2.

Tensioner Idler pulley

3.

Generator

4.

“B” terminal harness

5.

Generator harness connector

AWGIA0293ZZ

CHG-30

< REMOVAL AND INSTALLATION >

GENERATOR

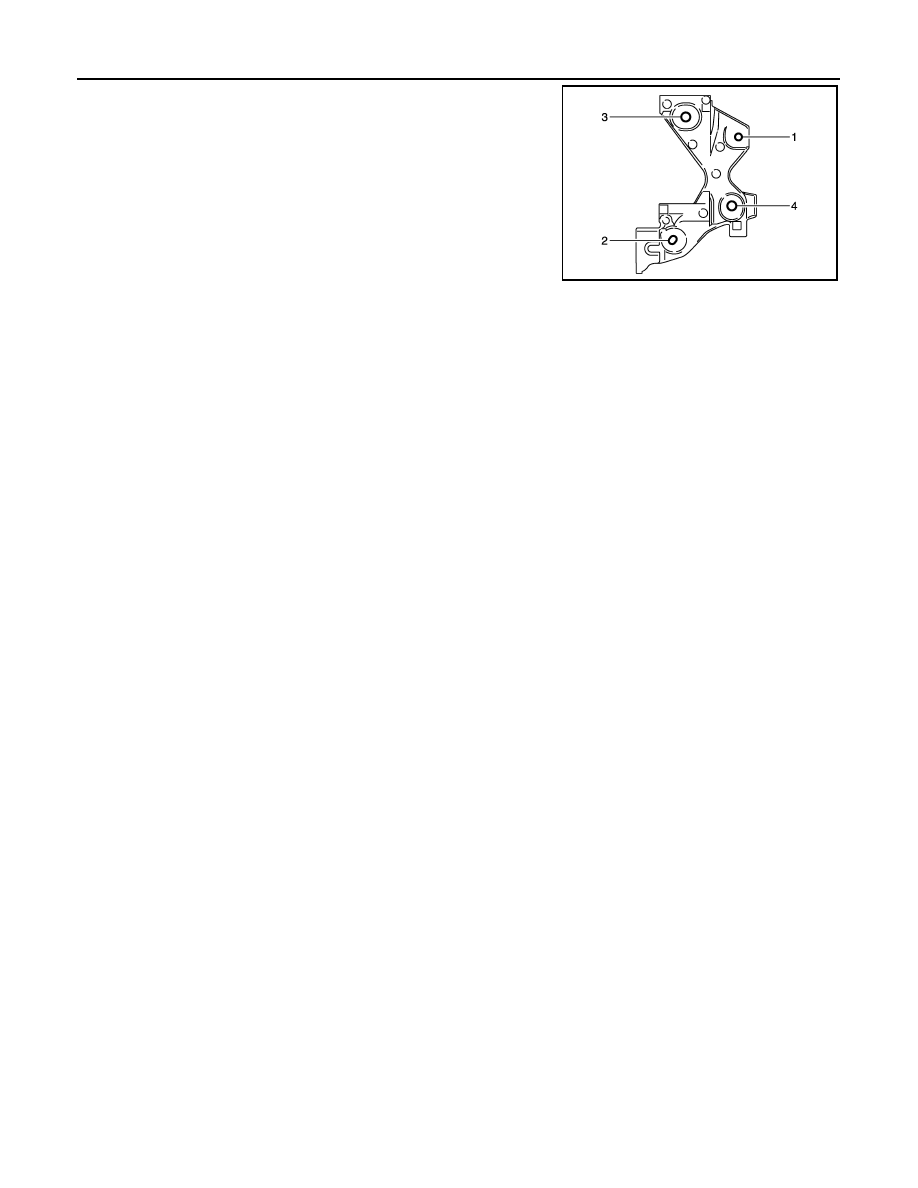

1. Install the generator bracket (if removed), using the following

procedure.

a. Temporarily tighten bolt (1).
b. Temporarily tighten bolt (2).
c.

Tighten bolts to specification in numerical order as shown.

2. Install the generator using the following procedure.
a. Temporarily tighten the generator bolts in order from the lower to the upper.
b. Tighten the generator bolts to the specification starting with the top bolt.
c.

Install “B” terminal harness and "B" terminal nut.

CAUTION:

Be sure to tighten "B" terminal nut carefully.

Installation of the remaining components is the reverse order of removal.

JMMIA0463ZZ

CHG

SERVICE DATA AND SPECIFICATIONS (SDS)

CHG-31

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Generator

INFOID:0000000009395309

* : Always check with the Parts Department for the latest parts information.

Model*

A002TJ1791ZC

Manufacturer

Mitsubishi

Nominal rating

13.5V - 110A

Ground polarity

Negative

Minimum revolution under no-load

1,000 rpm

Hot output current (When 13.5 V is applied)

More than 27A/1,300 rpm
More than 95A/2,500 rpm

More than 116A/5,000 rpm

Regulated output voltage

14.1 - 14.7V @20

°C (68°F)

Adjustment range of power generation voltage variable control

11.4 - 15.6V

CL-1

TRANSMISSION & DRIVELINE

C

E

F

G

H

I

J

K

L

M

SECTION

CL

A

B

CL

N

O

P

CONTENTS

CLUTCH

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

General Precautions  .................................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Commercial Service Tools  ........................................

3

SYMPTOM DIAGNOSIS  ...............................

4

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

4

NVH Troubleshooting Chart  ......................................

4

PERIODIC MAINTENANCE ..........................

5

CLUTCH PEDAL  .................................................

5

Inspection and Adjustment ........................................

5

CLUTCH FLUID ...................................................

6

Inspection ..................................................................

6

Draining .....................................................................

6

Refilling .....................................................................

7

Air Bleeding ...............................................................

8

REMOVAL AND INSTALLATION ...............

10

CLUTCH PEDAL  ................................................

10

Exploded View  ........................................................

10

Removal and Installation .........................................

10

Inspection and Adjustment  ......................................

11

CLUTCH MASTER CYLINDER  ........................

12

Exploded View .........................................................

12

Removal and Installation  .........................................

12

Inspection and Adjustment  ......................................

13

CLUTCH PIPING ...............................................

14

Exploded View .........................................................

14

Hydraulic Layout ......................................................

14

Removal and Installation  .........................................

14

Inspection and Adjustment  ......................................

15

UNIT REMOVAL AND INSTALLATION ......

16

CSC (CONCENTRIC SLAVE CYLINDER)  .......

16

Exploded View .........................................................

16

Removal and Installation  .........................................

16

Inspection and Adjustment  ......................................

17

CLUTCH DISC AND CLUTCH COVER  ............

18

Exploded View .........................................................

18

Removal and Installation  .........................................

18

Inspection ................................................................

19

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

21

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

21

General Specifications .............................................

21

Clutch Pedal  ............................................................

21

Clutch Disc  ..............................................................

21

Clutch Cover ............................................................

21
