INSPECTION AND ADJUSTMENT
3. Put the points FM and RM (mark) 75 cm (29.5 in) from the points FM0 and RM0 individually.
4. Route the vinyl string through the points FM and RM using a triangle scale, and then fix it at approximately
1.5 m (59 in) on both sides with packing tape.
5. Put the points FL, FR, RL, and RR (mark) to both right and left [vehicle width / 2 + 30 cm (11.8 in)] from the
points FM and RM.

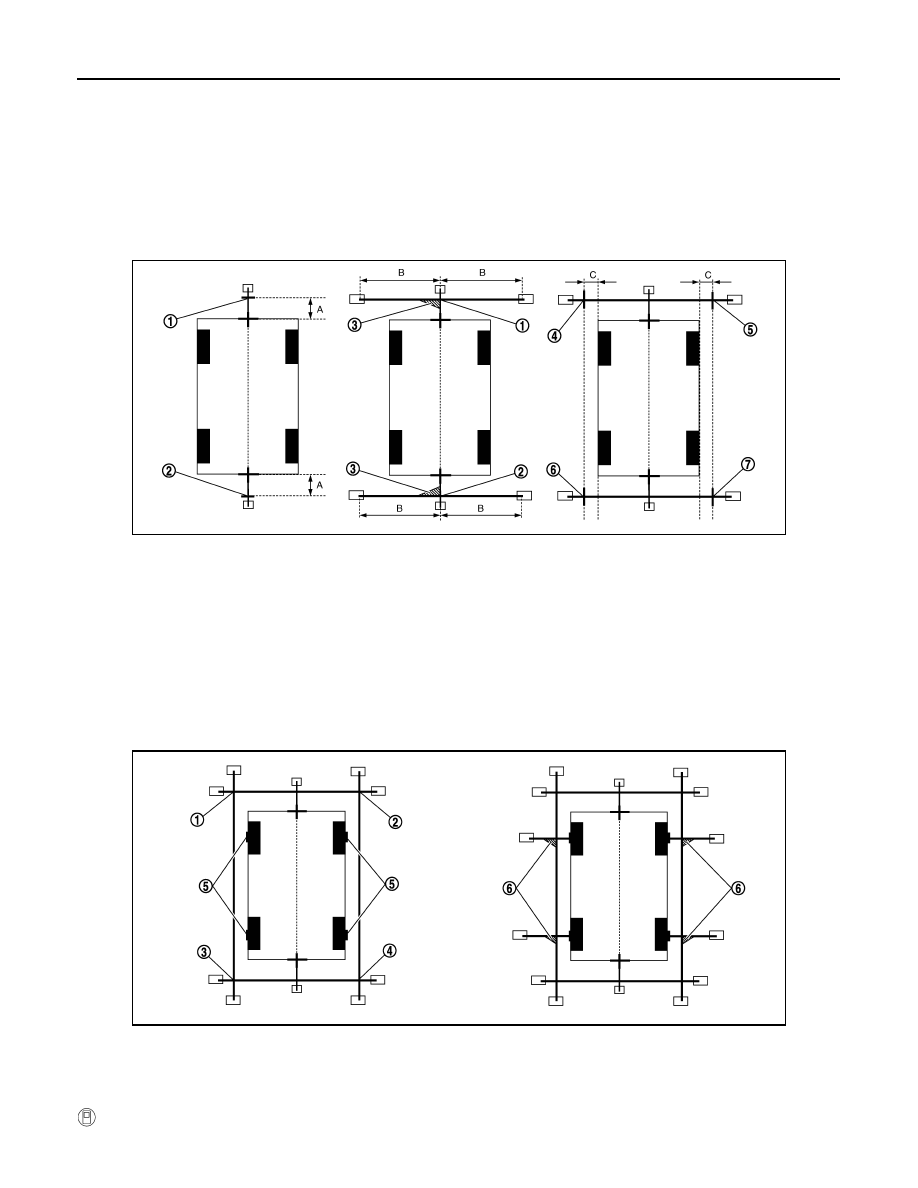

Target line preparation procedure 2
6. Draw the lines of the points FL – RL and FR – RR with vinyl string, and fix it with packing tape.
7. Put a mark on the center of each axle, draw vertical lines to the lines of the points FL – RL and FR – RR
from the marks on the center of the axle using a triangle scale, and then fix the lines using packing tape.
Target line preparation procedure 3

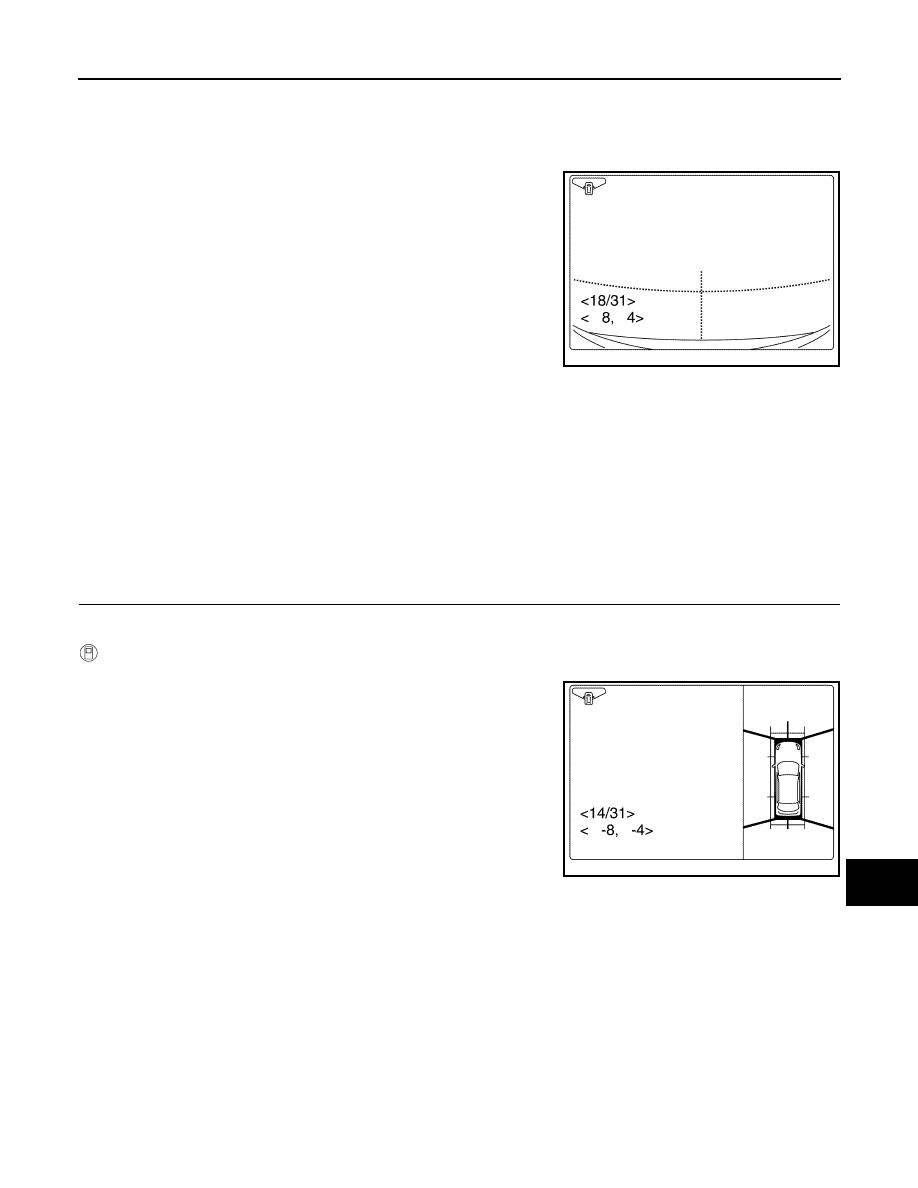

Perform “Calibrating Camera Image”
CONSULT work support
1.
Thread
2.
Weight
3.
Point FM0 (mark)
4.
Point RM0 (mark)
5.
Packing tape (to fix the vinyl string)
6.
Vinyl string
JSNIA0921ZZ
1.
Point FM
2.
Point RM
3.
Triangle scale
4.
Point FL (mark)
5.
Point FR (mark)
6.
Point RL (mark)
7.
Point RR (mark)
A.
75 cm (29.5 in)
B.
Approx. 1.5 m (59 in)
C.
30 cm (11.8 in)
[Vehicle width/ 2 + 30 cm (11.8 in)
from the points FM and RM]
JSNIA0922ZZ
1.
Point FL
2.
Point FR
3.
Point RL
4.
Point RR
5.
Center position of axle
6.
Triangle scale
