AV-174

< BASIC INSPECTION >

[NAVIGATION]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

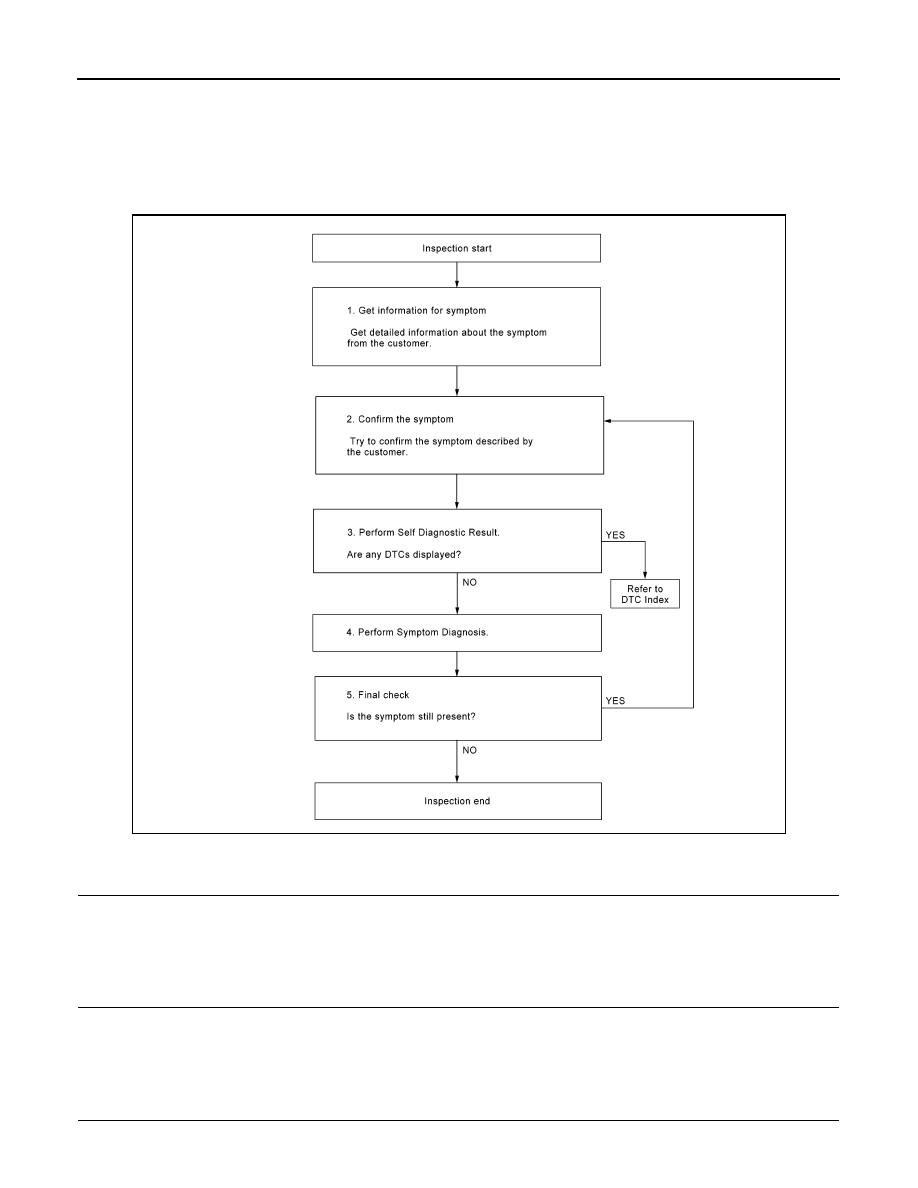

Work Flow

INFOID:0000000009459999

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2.

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition

when the symptom is detected.

>> GO TO 3.

3.

PERFORM SELF DIAGNOSTIC RESULT

1. Turn ignition switch ON and wait for 2 seconds or more.

AWNIA2982GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-175

< BASIC INSPECTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

2. Depending on system being diagnosed, perform Self Diagnostic Result for:

-

MULTI  AV.

-

AVM.

Are any DTCs displayed?

YES

>> Refer to

AV-154, "DTC Index"

 (MULTI AV) or

AV-157, "DTC Index"

 (AVM).

NO

>> GO TO 4.

4.

PERFORM SYMPTOM DIAGNOSIS

Refer to

AV-227, "Symptom Table"

.

>> GO TO 5

5.

FINAL CHECK

Refer to symptom described by the customer in step 1.
Is the symptom still present?

YES

>> GO TO 2

NO

>> Inspection End.
