Nissan Versa Note. Manual - part 36

AV-136

< SYSTEM DESCRIPTION >

[NAVIGATION]

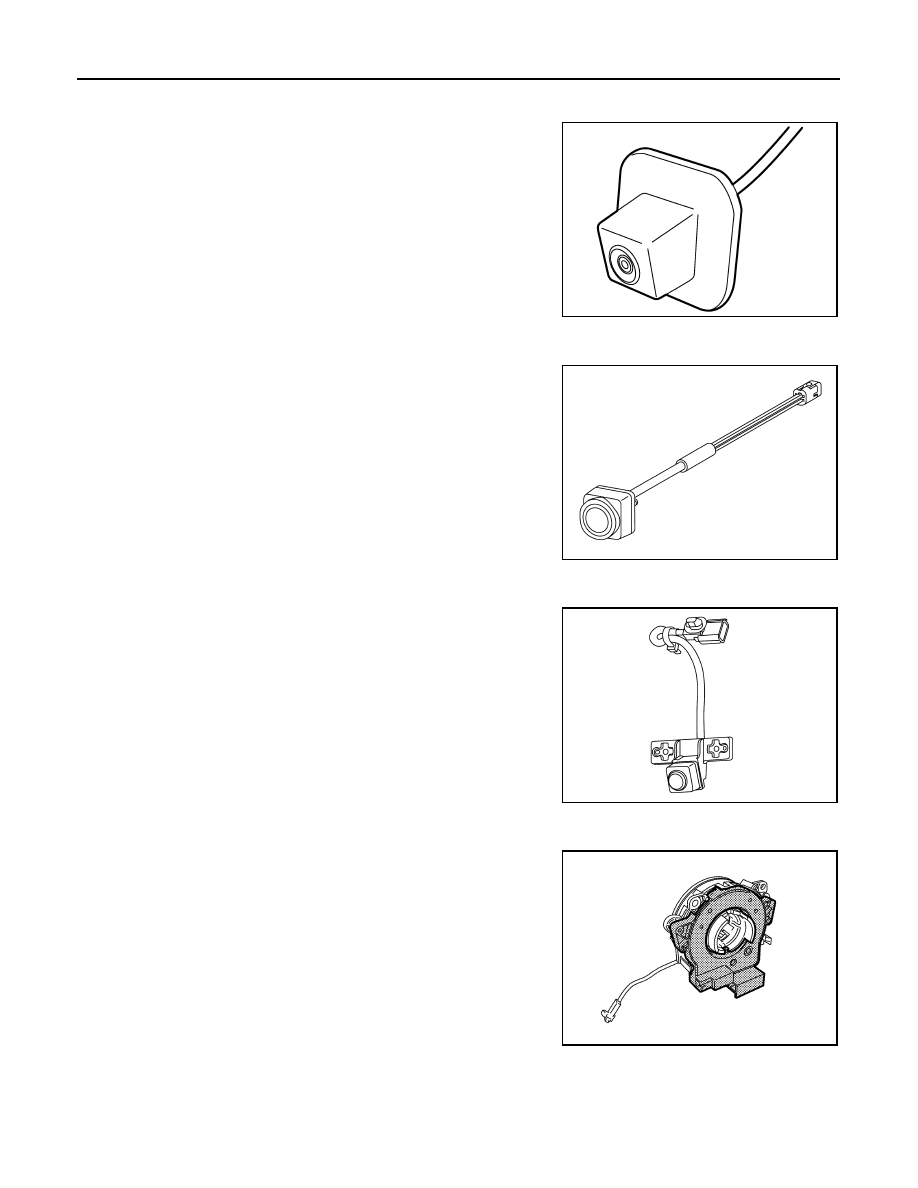

COMPONENT PARTS

Rear View Camera

INFOID:0000000009681885

• The rear view camera is installed in the back door finisher.

• Power is supplied from the around view monitor control unit.

Side Cameras

INFOID:0000000009681899

• The side cameras are installed in the door mirrors.

• Power is supplied from the around view monitor control unit.

Front Camera

INFOID:0000000009681900

• The front camera is installed in the front grille.

• Power is supplied from the around view monitor control unit.

Steering Angle Sensor

INFOID:0000000009681901

• Steering sensor is installed to the spiral cable.

• Steering angle sends the steering signal necessary for predictive

course line via CAN communication.

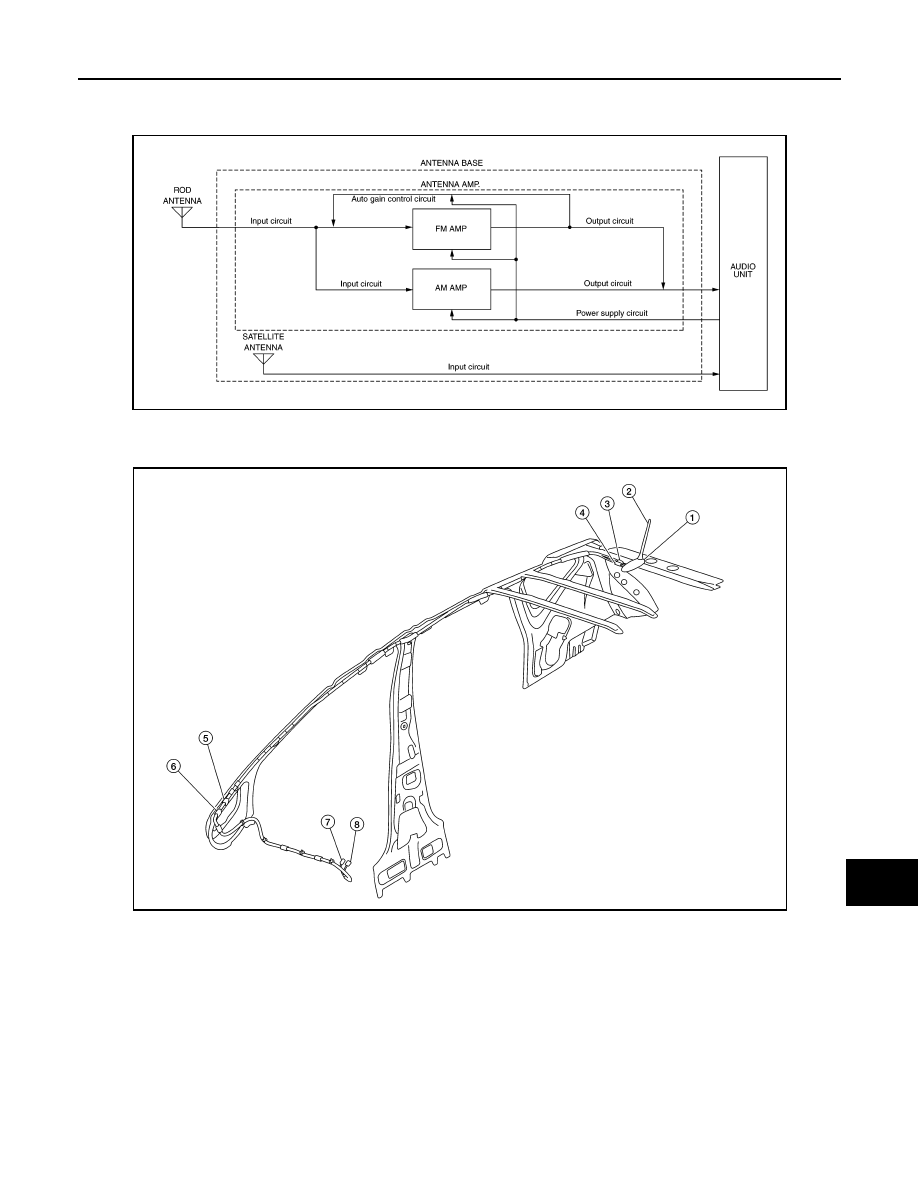

Rod Antenna, Antenna Amp., Satellite Antenna and Antenna Feeder

INFOID:0000000009681886

RADIO ANTENNA AND SATELLITE ANTENNA

JPNIA1452ZZ

JSNIA5397ZZ

JSNIA5398ZZ

JSNIA1571ZZ

AV

COMPONENT PARTS

AV-137

< SYSTEM DESCRIPTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AM/FM radio rod antenna, antenna base and satellite antenna are located on the rear of the roof. The antenna

amp. and satellite antenna are built into the antenna base.

ANTENNA FEEDER LAYOUT

AWNIA3133GB

1.

Antenna base (antenna amp. and
satellite antenna)

2.

Rod Antenna

3.

M351

4.

M352

5.

M110, M353

6.

M67, M350

7.

M109

8.

M73

ALNIA1520ZZ

AV-138

< SYSTEM DESCRIPTION >

[NAVIGATION]

COMPONENT PARTS

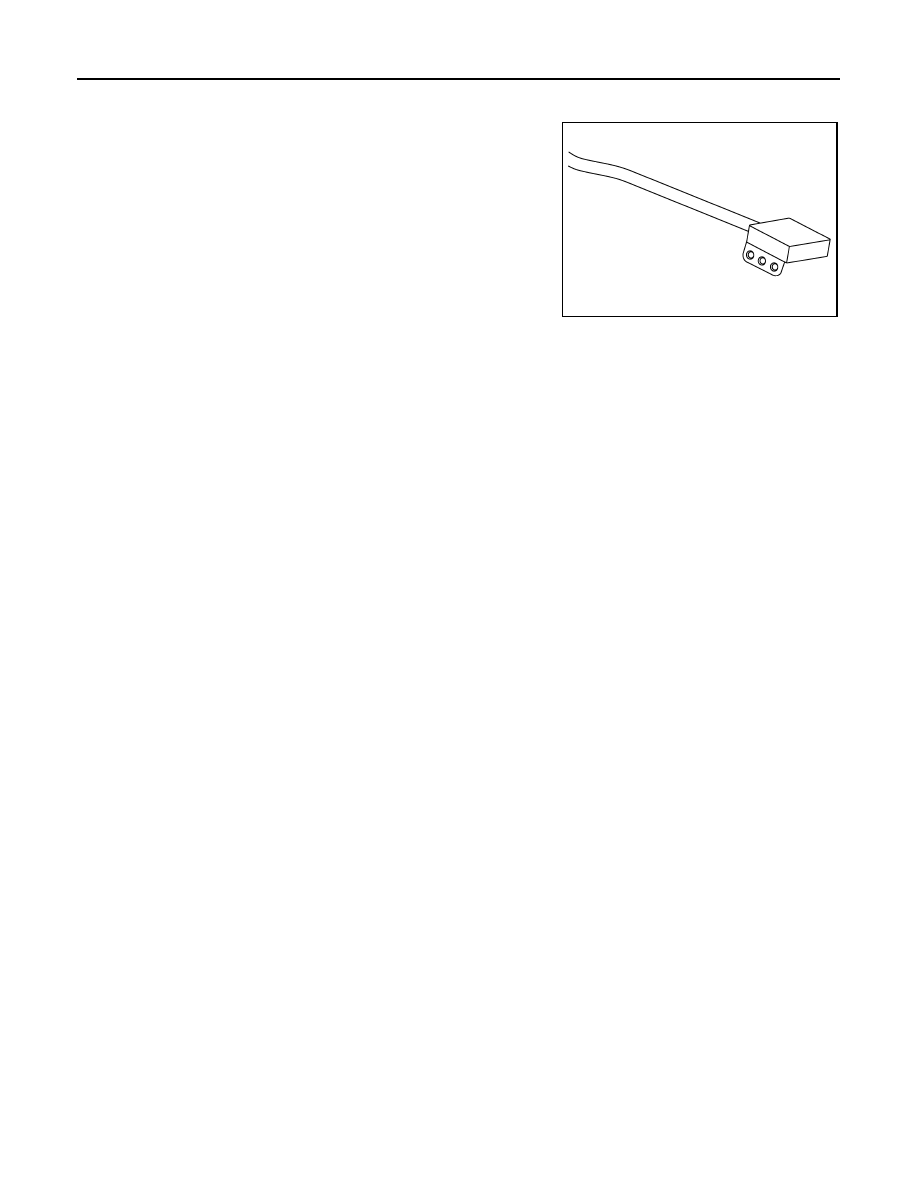

GPS Antenna

INFOID:0000000009681887

• GPS antenna is installed in the instrument panel, behind the com-

bination meter.

• Power is supplied from the AV control unit.

SD Card

INFOID:0000000009681888

• Map data is memorized in the SD card.

• Map data is sent to the AV control unit from the SD slot.

JSNIA3303ZZ

AV

SYSTEM

AV-139

< SYSTEM DESCRIPTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM

System Description

INFOID:0000000009681878

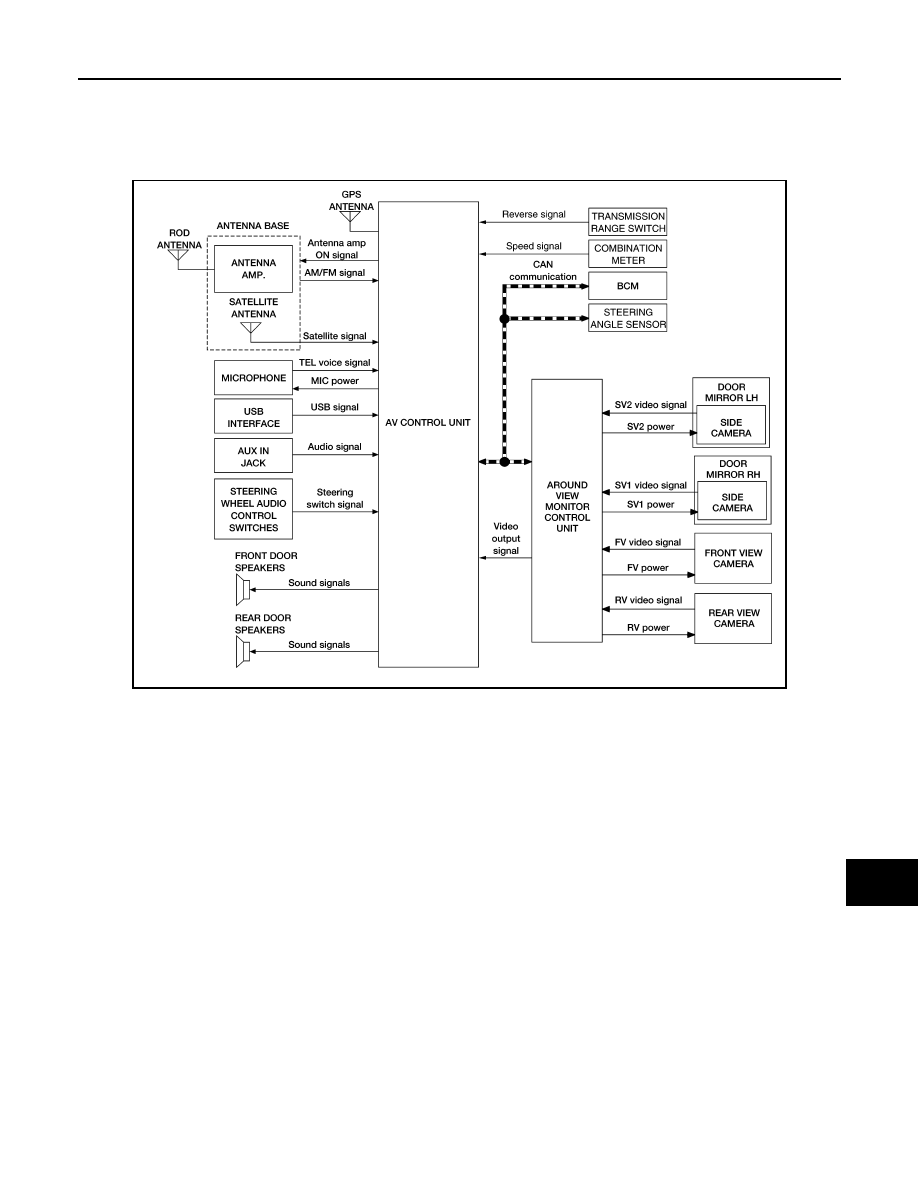

SYSTEM DIAGRAM

AUDIO SYSTEM

The audio system consists of the following component:

• AV control unit

• Front door speakers

• Rear door speakers

• Steering wheel audio control switches

• USB  interface

• AUX in jack

• Antenna amp.

• Satellite antenna

• Rod antenna

When the audio system is on, AM/FM signals received by the rod antenna are amplified by the antenna amp.

and sent to the AV control unit. The AV control unit then sends audio signals to the front door speakers and

rear door speakers.

Refer to Owner's Manual for audio system operating instructions.

NAVIGATION SYSTEM

Description

• The navigation system can be operated by control panel of the AV control unit and display (touch panel) of

the AV control unit.

• Guide sound during the operation of the navigation system is output from AV control unit to front tweeters.

• AV control unit calculates the vehicle location based on the signals from GYRO (angle speed sensor), vehi-

cle sensor, and GPS satellite, as well as the map data from map SD-card. The vehicle location is displayed

on the AV control unit.

POSITION DETECTION PRINCIPLE

AWNIA3137GB
