COMPONENT PARTS

Rear View Camera

INFOID:0000000009681864

• The rear view camera is installed to the back door finisher.

• Power is supplied from the audio unit.

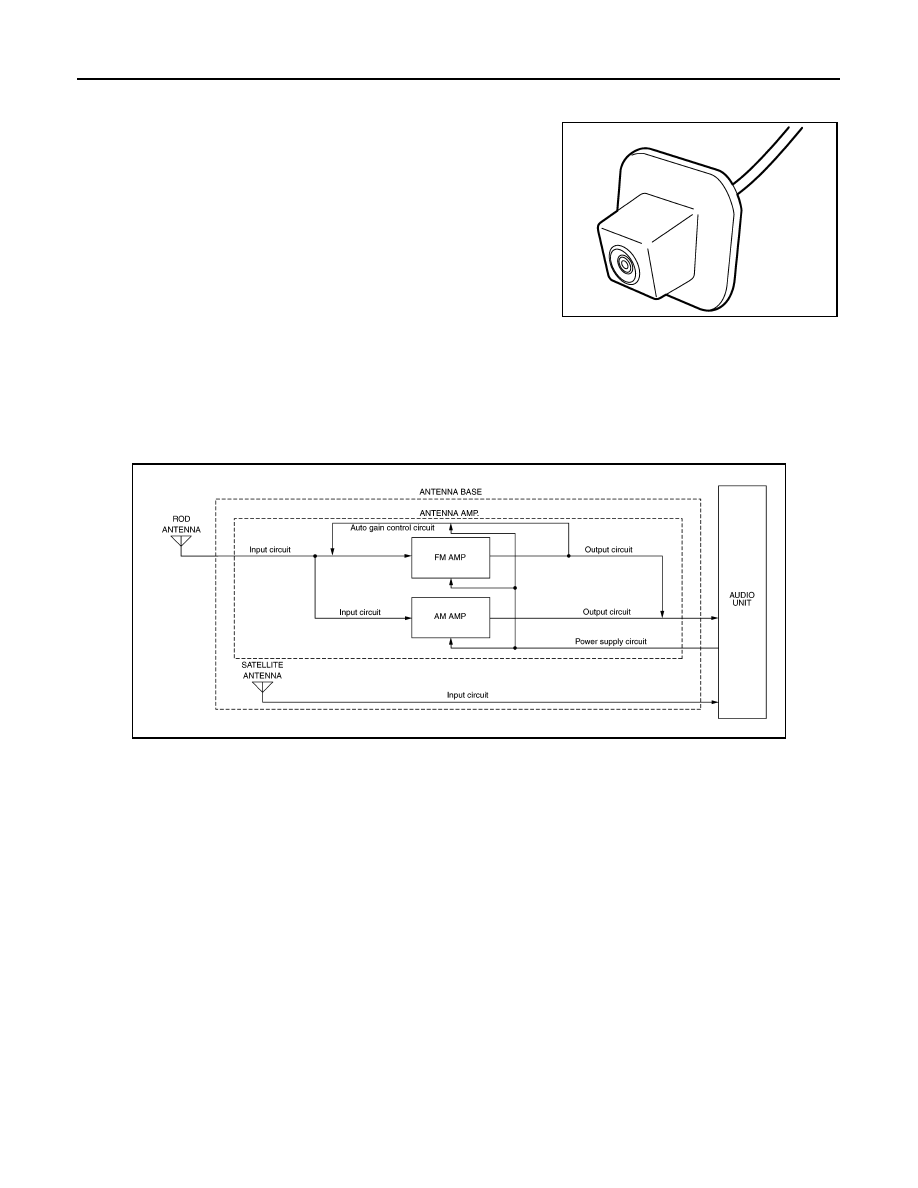

Rod Antenna, Antenna Amp., Satellite Antenna and Antenna Feeder

INFOID:0000000009681865

RADIO ANTENNA AND SATELLITE ANTENNA

AM/FM radio rod antenna, antenna base and satellite antenna are located on the rear of the roof. The antenna

amp. and satellite antenna are built into the antenna base.

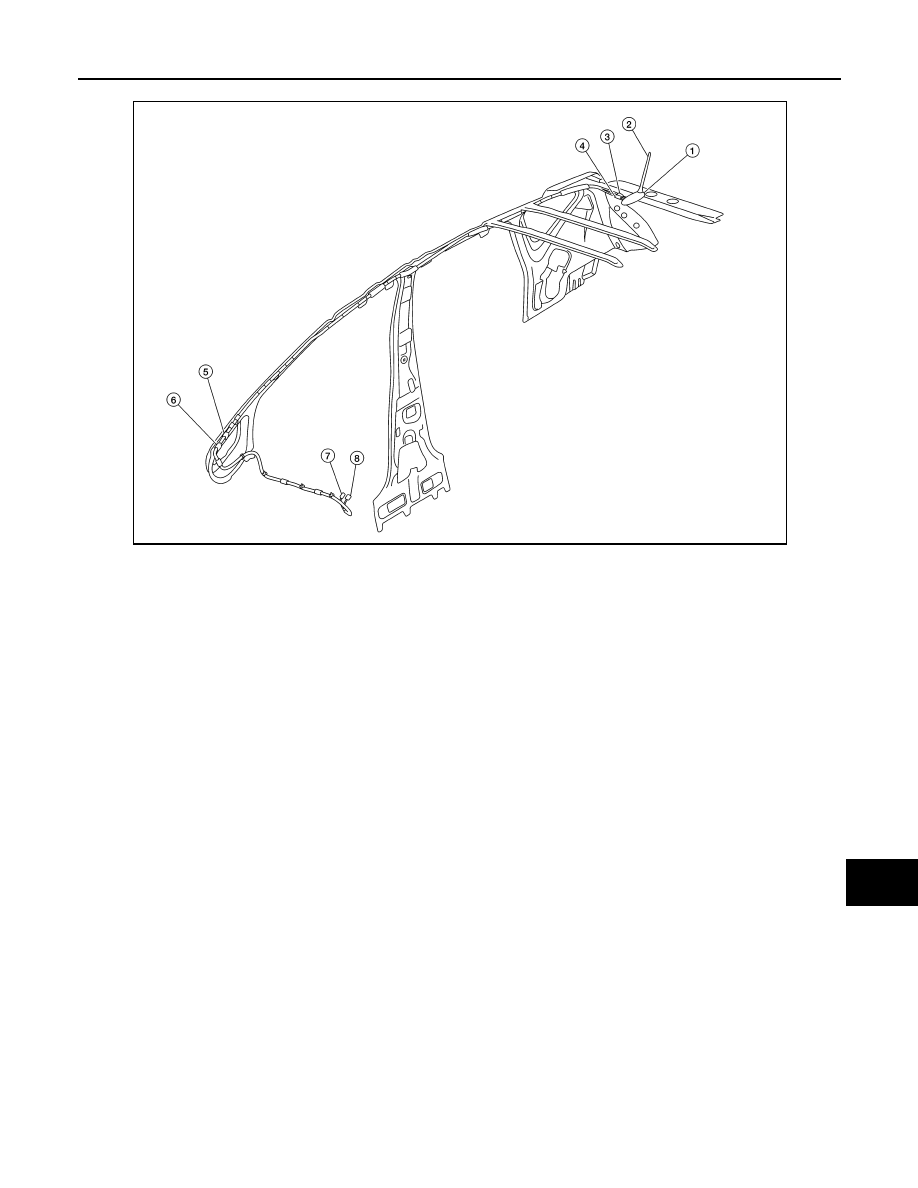

ANTENNA FEEDER LAYOUT

JPNIA1452ZZ

AWNIA3133GB

COMPONENT PARTS

AV-69

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

Antenna base (antenna amp. and
satellite antenna)

Rod Antenna

M351

M352

M110, M353

M67, M350

M106

M105

ALNIA1520ZZ

AV-70

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

SYSTEM

SYSTEM

System Description

INFOID:0000000009681866

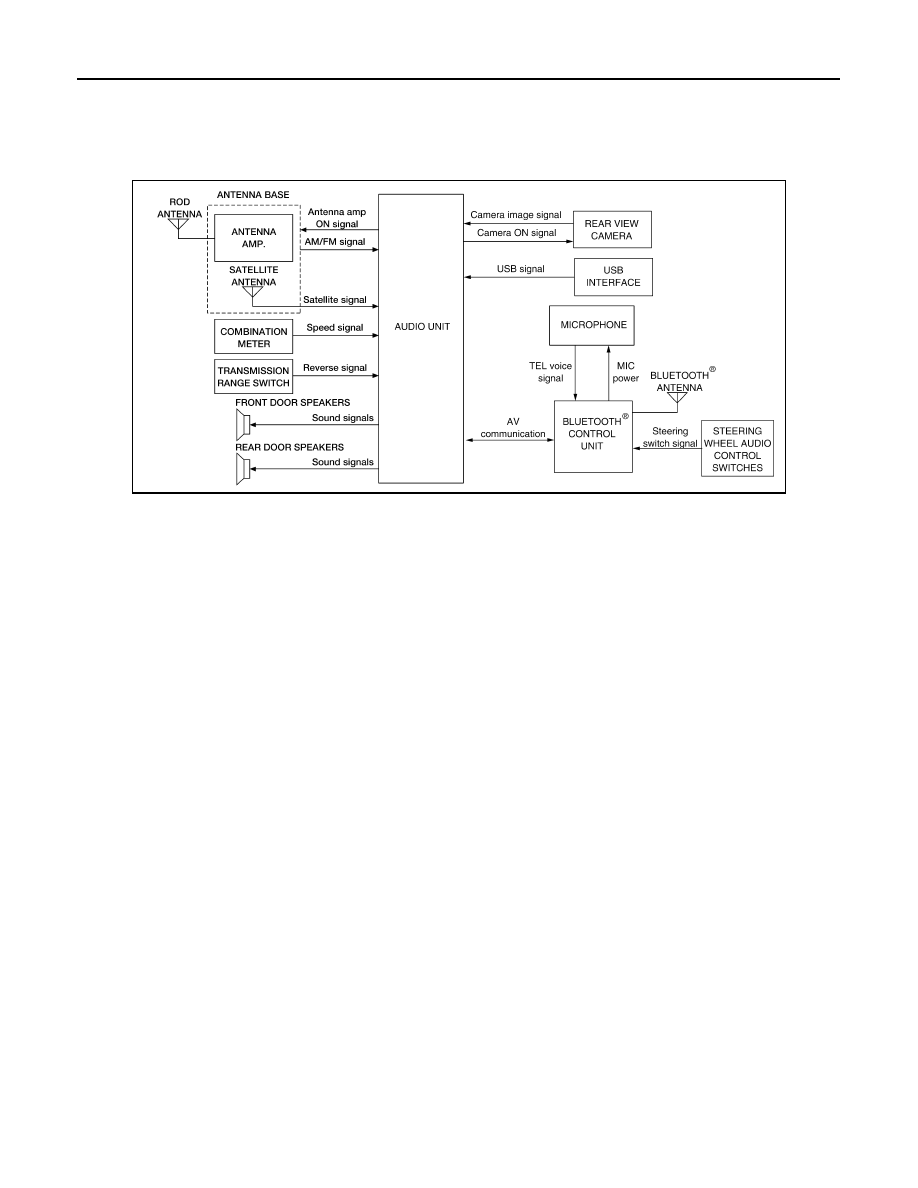

SYSTEM DIAGRAM

AUDIO SYSTEM

The audio system consists of the following components

• Audio unit

• Front door speakers

• Rear door speakers

• Steering wheel audio control switches

• USB interface

• Antenna amp.

• Satellite antenna

• Rod antenna

When the audio system is on, AM/FM signals received by the rod antenna are amplified by the antenna amp.

and sent to the audio unit. The audio unit then sends audio signals to the front door speakers and rear door

speakers.

Refer to Owner's Manual for audio system operating instructions.

HANDS-FREE PHONE SYSTEM

System Operation

NOTE:
Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth

telephone

system.
The Bluetooth

telephone system allows users who have a Bluetooth

cellular telephone to make a wireless

connection between their cellular telephone and the Bluetooth

control unit. Hands-free cellular telephone

calls can be sent and received. Some Bluetooth

cellular telephones may not be recognized by the Bluetooth

control unit. When a cellular telephone or the Bluetooth

control unit is replaced, the telephone must be paired

with the Bluetooth

control unit. Different cellular telephones may have different pairing procedures, refer to

the cellular telephone operating manual.
Refer to the Owner's Manual for Bluetooth

telephone system operating instructions.

Bluetooth

Control Unit

When the ignition switch is turned to ACC or ON, the Bluetooth

control unit will power up. During power up,

the Bluetooth

control unit is initialized and performs various self-checks. Initialization may take up to 20 sec-

onds. If a phone is present in the vehicle and paired with the Bluetooth

control unit, Nissan Voice Recognition

will then become active. Bluetooth

telephone functions can be turned off using the Nissan Voice Recognition

system.

AWNIA3134GB

SYSTEM

AV-71

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

Steering Switches

When buttons on the steering switches are pushed, the resistance in steering wheel audio control switch cir-
cuit changes, depending on which button is pushed. The Bluetooth

control unit uses this signal to perform

various functions while navigating through the voice recognition system.

The following functions can be performed using the steering switches:
• Initiate self-diagnosis of the Bluetooth

telephone system

• Start a voice recognition session

• Answer and end telephone calls

• Adjust the volume of calls

Microphone

The microphone is located in the roof in front of the map lamp. The microphone sends a signal to the Blue-
tooth

control unit. The microphone can be actively tested during self-diagnosis.

Audio Unit

The audio unit receives signals from the Bluetooth

control unit and sends audio signals to the speakers.

SPEED SENSITIVE VOLUME SYSTEM

Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control

level can be selected by the customer. Refer to Owner's Manual for operating instructions.
