DUCT AND GRILLE

VTL-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

Installation is in the reverse order of removal.

SIDE DEFROSTER DUCT
SIDE DEFROSTER DUCT : Removal and Installation

INFOID:0000000009405609

REMOVAL

1. Remove instrument panel assembly. Refer to

IP-15, "Removal and Installation"

.

2. Remove screws and side defroster duct from instrument panel assembly.

INSTALLATION

Installation is in the reverse order of removal.

FOOT DUCT
FOOT DUCT : Removal and Installation

INFOID:0000000009405610

FOOT DUCT

Removal

1. Remove instrument panel assembly. Refer to

IP-15, "Removal and Installation"

.

2. Remove screws and foot duct (LH/RH) from heating and cooling unit assembly.

Installation

Installation is in the reverse order of removal.

VTL-8

< REMOVAL AND INSTALLATION >

FRONT BLOWER MOTOR

FRONT BLOWER MOTOR

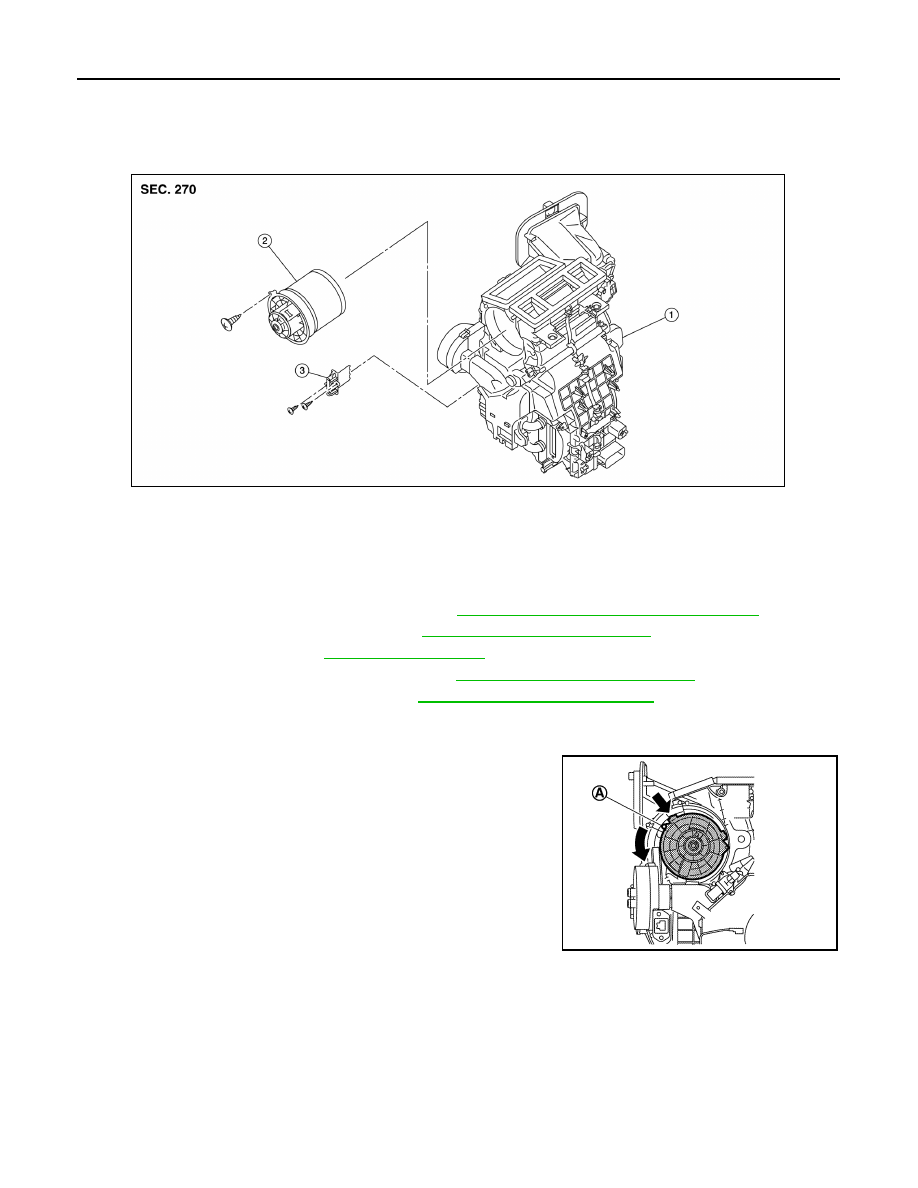

Exploded View

INFOID:0000000009014886

Removal and Installation

INFOID:0000000009405612

REMOVAL

1. Disconnect the negative battery terminal. Refer to

PG-69, "Removal and Installation (Battery)"

.

2. Remove instrument lower panel LH. Refer to

IP-24, "Removal and Installation"

.

3. Remove knee bolster. Refer to

IP-14, "Exploded View"

.

4. Remove the accelerator pedal assembly. Refer to

ACC-3, "Removal and Installation"

.

5. Remove the brake pedal assembly. Refer to

BR-19, "Removal and Installation"

.

6. Disconnect the harness connectors from the front blower motor.
7. Disconnect the harness connector from the thermo control amp.
8. Remove the front blower motor screw (A).
9. Press the flange holding hook, turn the front blower motor coun-

terclockwise and remove.

INSTALLATION

Installation is in the reverse order of removal.

1.

Heating and cooling unit assembly

2.

Front blower motor

3.

Front blower motor resistor

AWIIA1465ZZ

JMIIA1741ZZ

WCS

WCS-1
