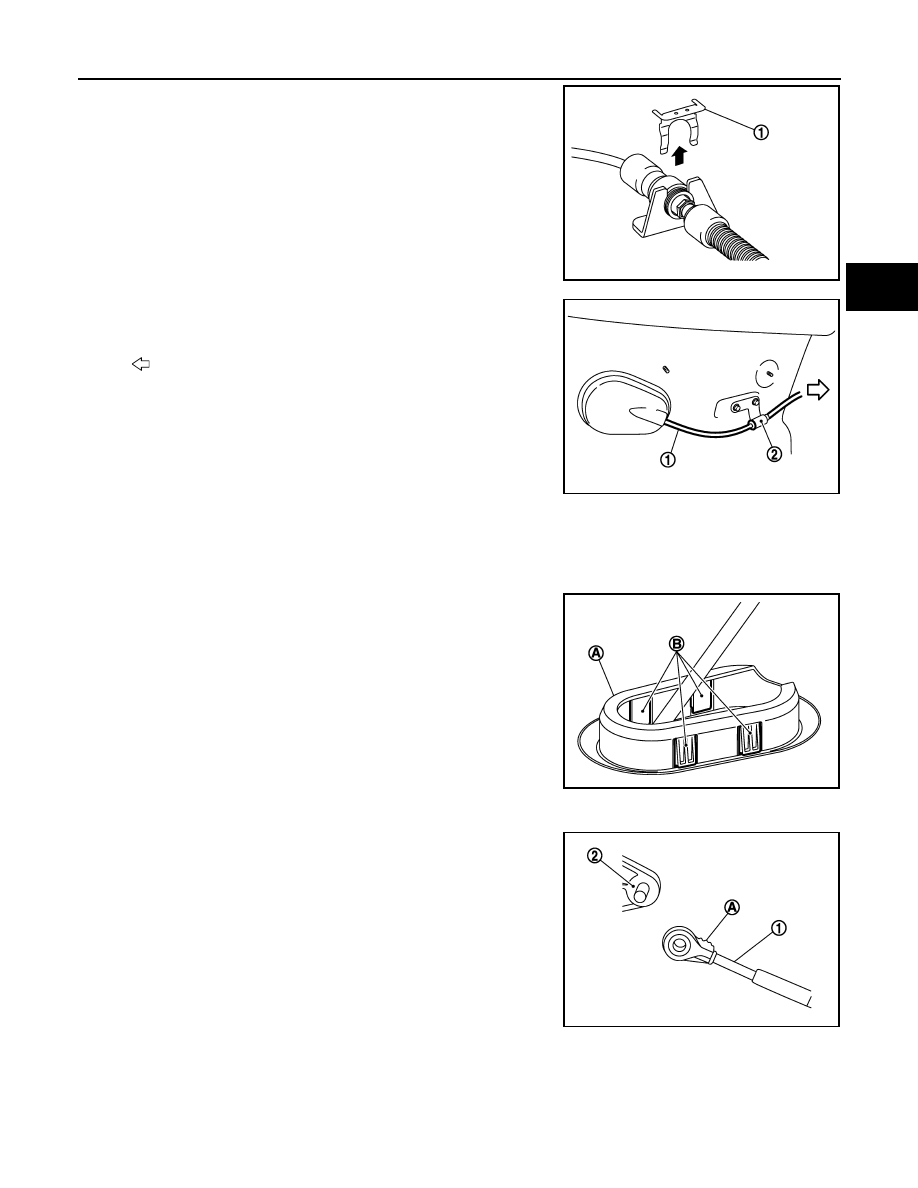

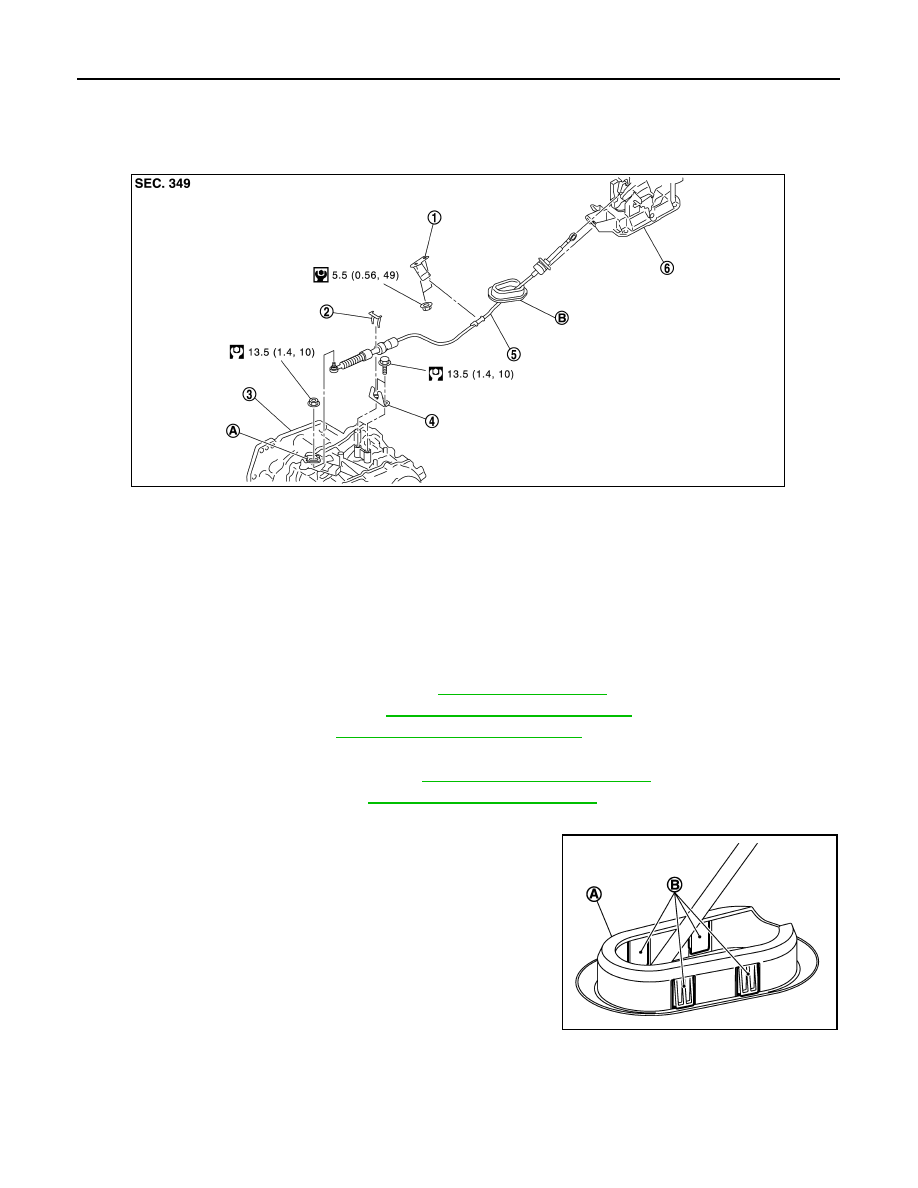

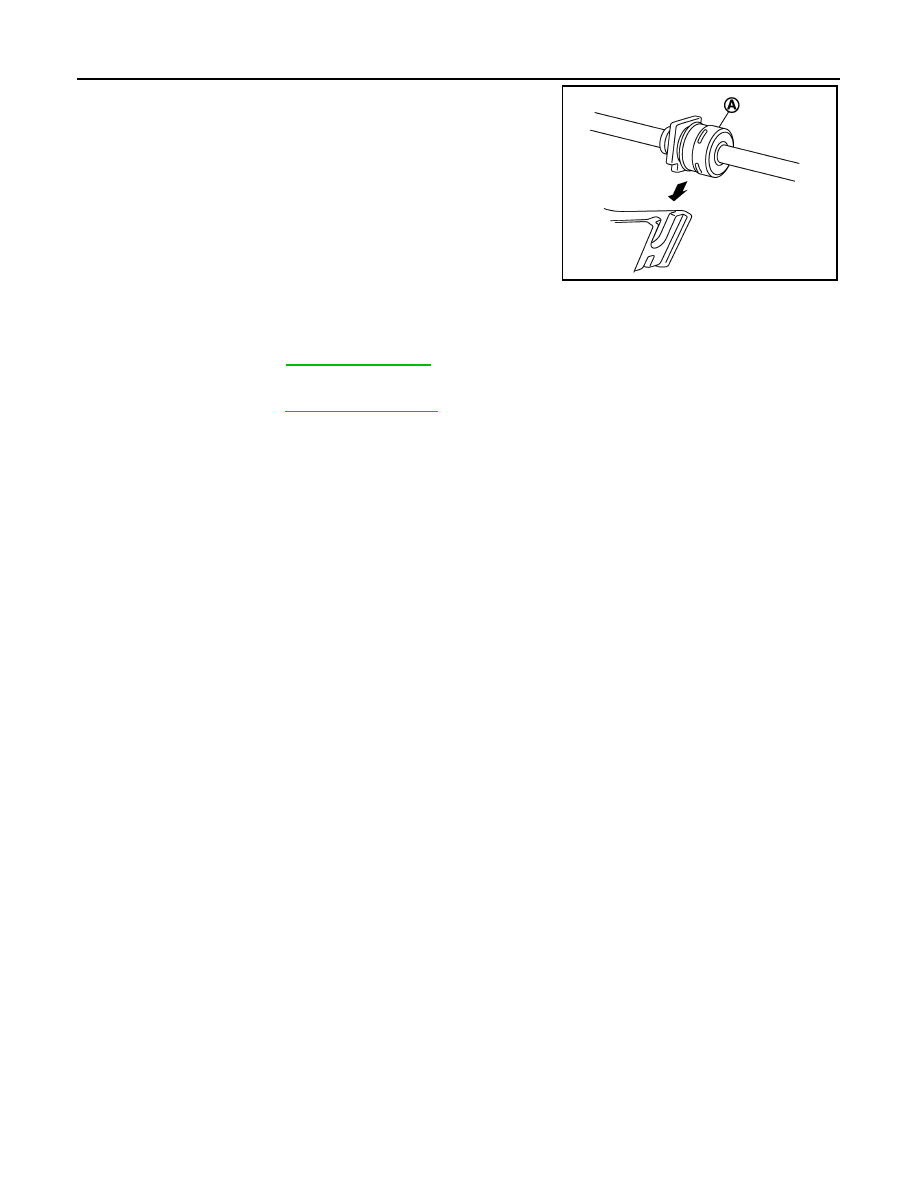

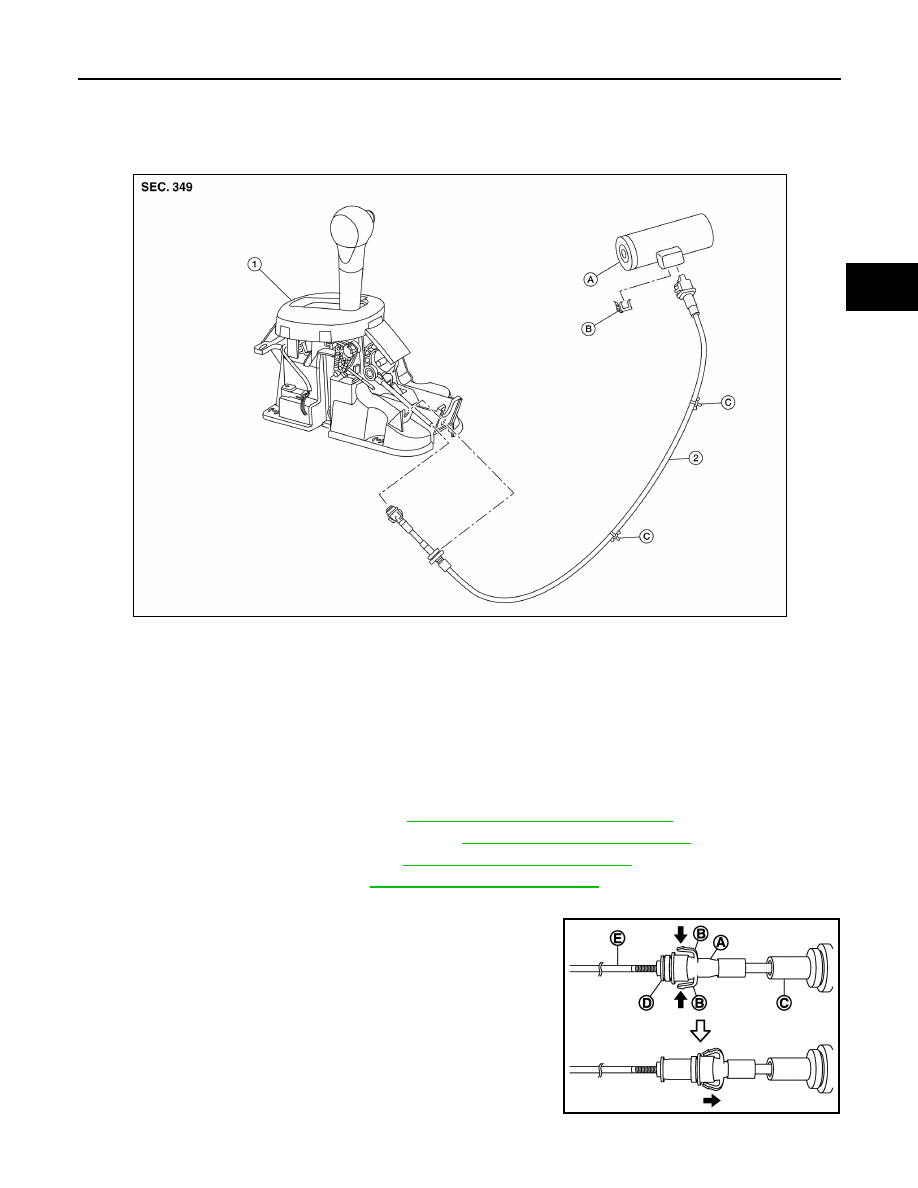

TM-230 < REMOVAL AND INSTALLATION > [CVT: RE0F11A] CONTROL CABLE CONTROL CABLE Exploded View INFOID:0000000009020020 Removal and Installation INFOID:0000000009020021 CAUTION: Always apply the parking brake before performing removal and installation. REMOVAL 1. Remove the battery negative terminal. Refer to 2. Remove the TCM and bracket. Refer to TM-235, "Removal and Installation" . 3. Remove the IPDM E/R. Refer to PCS-30, "Removal and Installation" . 4. Remove the battery tray and bracket. IP-24, "Removal and Installation" . 6. Remove the center console. Refer to IP-18, "Removal and Installation" . 7. Remove the control cable from the shift selector assembly. to remove. 9. Remove the control cable nut from the manual lever. 1. Bracket B 2. Lock plate 3. Transaxle assembly 4. Bracket A 5. Control cable 6. CVT shift selector assembly A: Manual lever B: Grommet JSDIA1921GB JSDIA1809ZZ |
