TM-86

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

SYSTEM

IDLE NEUTRAL CONTROL : System Description

INFOID:0000000009019867

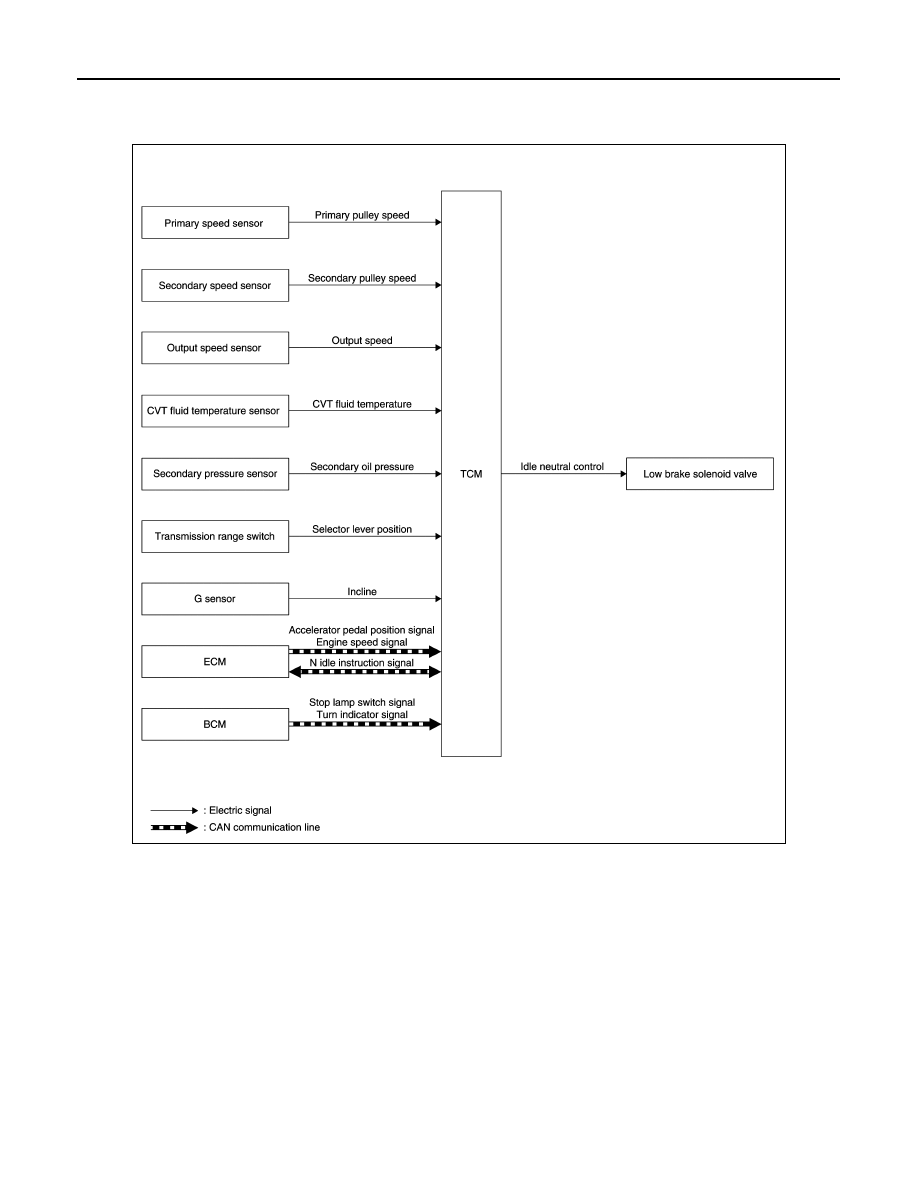

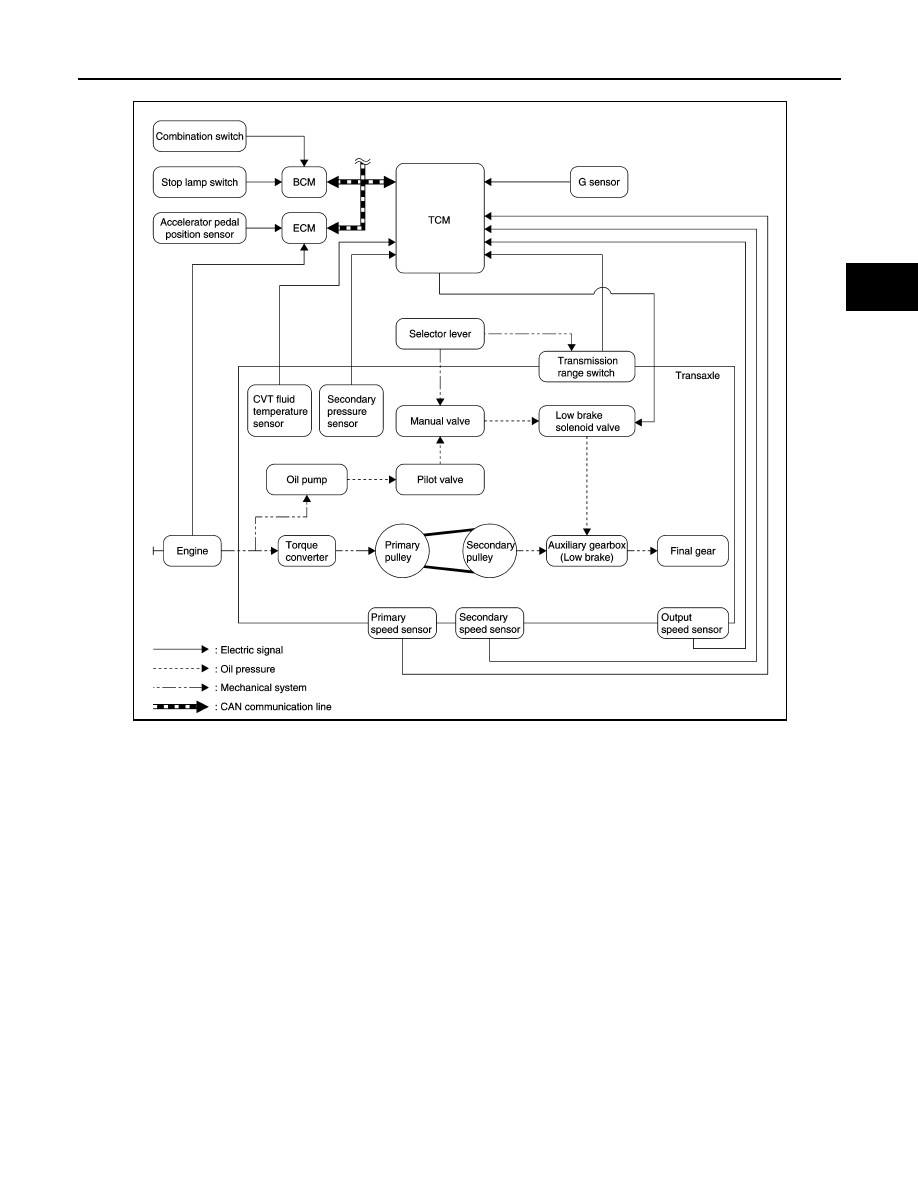

SYSTEM DIAGRAM

DESCRIPTION

If a driver has no intention of starting the vehicle in D position, TCM operates the low brake solenoid valve and

controls the oil pressure of the low brake to be low pressure. Therefore, the low brake is in the release (slip)

status and the power transmission route of transaxle is the same status as the N position. In this way, the tran-

saxle is in idling status and load to the engine can be reduced to improve fuel economy.

NOTE:

JSDIA2535GB

SYSTEM

TM-87

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Provides idle neutral control when stop/start operation is not performed.

Idle Neutral Control Start Condition

Idle neutral control is started when all of the following conditions are fulfilled. However, during idle neutral con-

trol, idle neutral control is stopped when any of the following conditions is not met or idle neutral control contin-

ues 30 seconds.

NOTE:

Stops or prohibits the idle neutral control when the TCM and ECM detect that the vehicle is in one of the fol-

lowing conditions.

• Engine coolant temperature and CVT fluid temperature are the specified temperature or more, or the speci-

fied temperature or less.

• When a transaxle malfunction occurs.

• When the vehicle detects DTC and is in the fail-safe mode.

Idle Neutral Control Resume Condition

JPDIA1215GB

Driving environment

: Flat road or road with mild gradient

Selector lever position

: “D” position

Vehicle speed

: 0 km/h (0 MPH)

Accelerator pedal position

: 0.0/8

Brake pedal

: Depressed

Engine speed

: Idle speed

Turn signal lamp/hazard signal lamp

: Not activated

TM-88

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

SYSTEM

When the idle neutral control finishes, if the vehicle is driven at more than the specified speed and the idle

neutral control start conditions are satisfied, the idle neutral control starts again. If the vehicle has a malfunc-

tion, the idle neutral control does not start.

ON BOARD DIAGNOSTIC (OBD) SYSTEM

TM-89

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ON BOARD DIAGNOSTIC (OBD) SYSTEM

Description

INFOID:0000000009019870

This is an on board diagnosis system which records diagnosis information related to the exhaust gases. It

detects malfunctions related to sensors and actuators. The malfunctions are indicated by means of the mal-

function indicator lamp (MIL) and are stored as DTC in the ECU memory. The diagnosis information can be

checked using a diagnosis tool (GST: Generic Scan Tool).

Function of OBD

INFOID:0000000009019871

The GST is connected to the diagnosis connector on the vehicle and communicates with the on-board control

units to perform diagnosis. The diagnosis connector is the same as for CONSULT. Refer to

GI-49, "Descrip-

tion"

.
