FRONT SEAT

SE-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

When removing and installing the seat, use shop cloths to protect components from damage.

REMOVAL

1. Slide the seat to the full forward position.
2. Remove the seat rear bolts.
3. Slide the seat to the full rearward position.
4. Remove the seat front bolts.
5. Tilt the seat rearward and disconnect the harness connector from the seat and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Make sure that the seat harness or the floor trim is not damaged during installation.

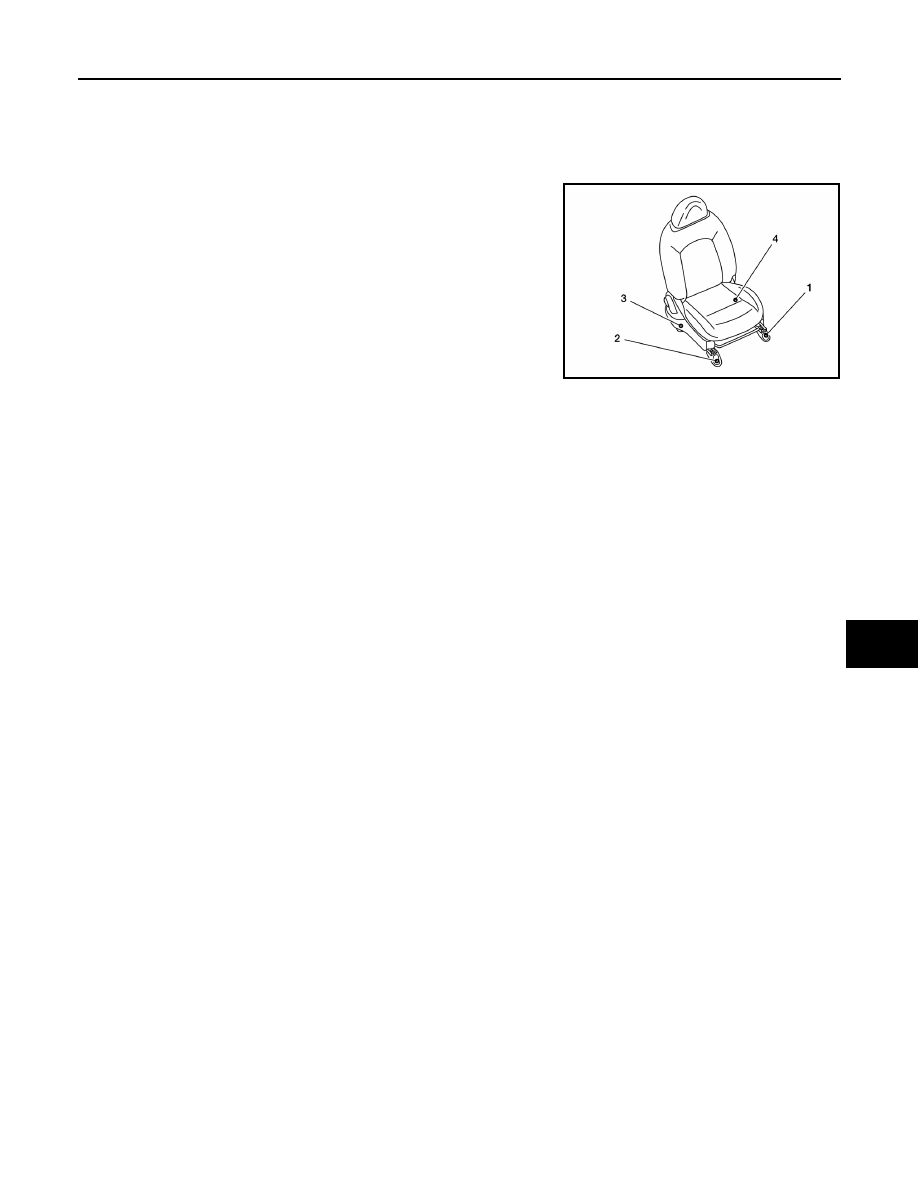

When installing the driver side front seat, tighten the bolts in the

order shown.

PASSENGER SIDE

Driver side front seat bolt
torque

: 40 Nm (4.1 kg-m, 30 ft-lb)

AWJIA0920ZZ

SE-16

< REMOVAL AND INSTALLATION >

FRONT SEAT

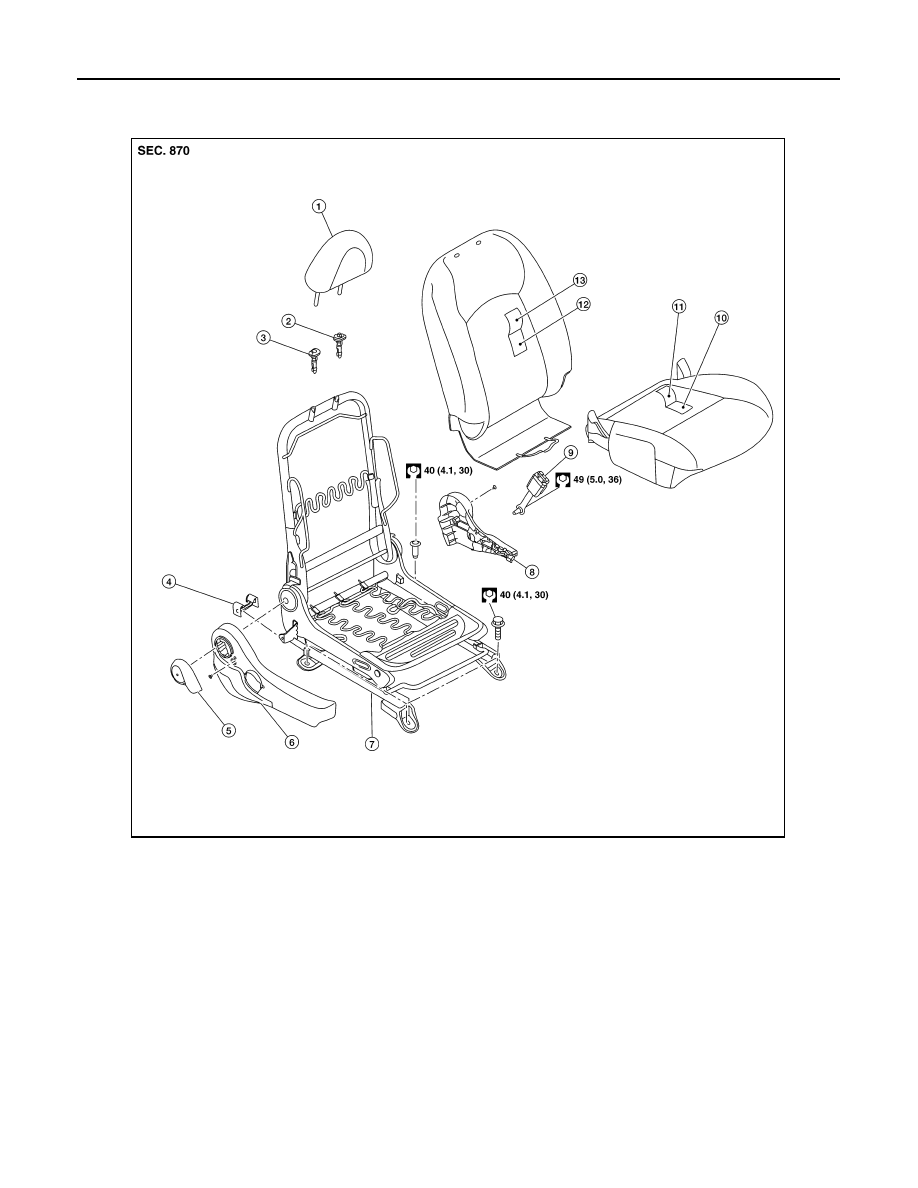

PASSENGER SIDE : Exploded View

INFOID:0000000009643057

PASSENGER SIDE : Removal and Installation

INFOID:0000000009643058

CAUTION:

When removing and installing the seat, use shop cloths to protect components from damage.

REMOVAL

1. Slide the seat to the full forward position.
2. Remove the seat rear bolts.
3. Slide the seat to the full rearward position.

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Slide finisher rear (LH/RH)

5.

Recline lever

6.

Seat cushion outer finisher (RH)

7.

Seat frame

8.

Seat cushion outer finisher (LH)

9.

Seat belt buckle

10. Seat cushion pad

11. Seat cushion trim

12. Seatback pad

13. Seatback trim

AWJIA1117ZZ

FRONT SEAT

SE-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

4. Remove the seat front bolts.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Make sure that the floor trim is not damaged during installation.

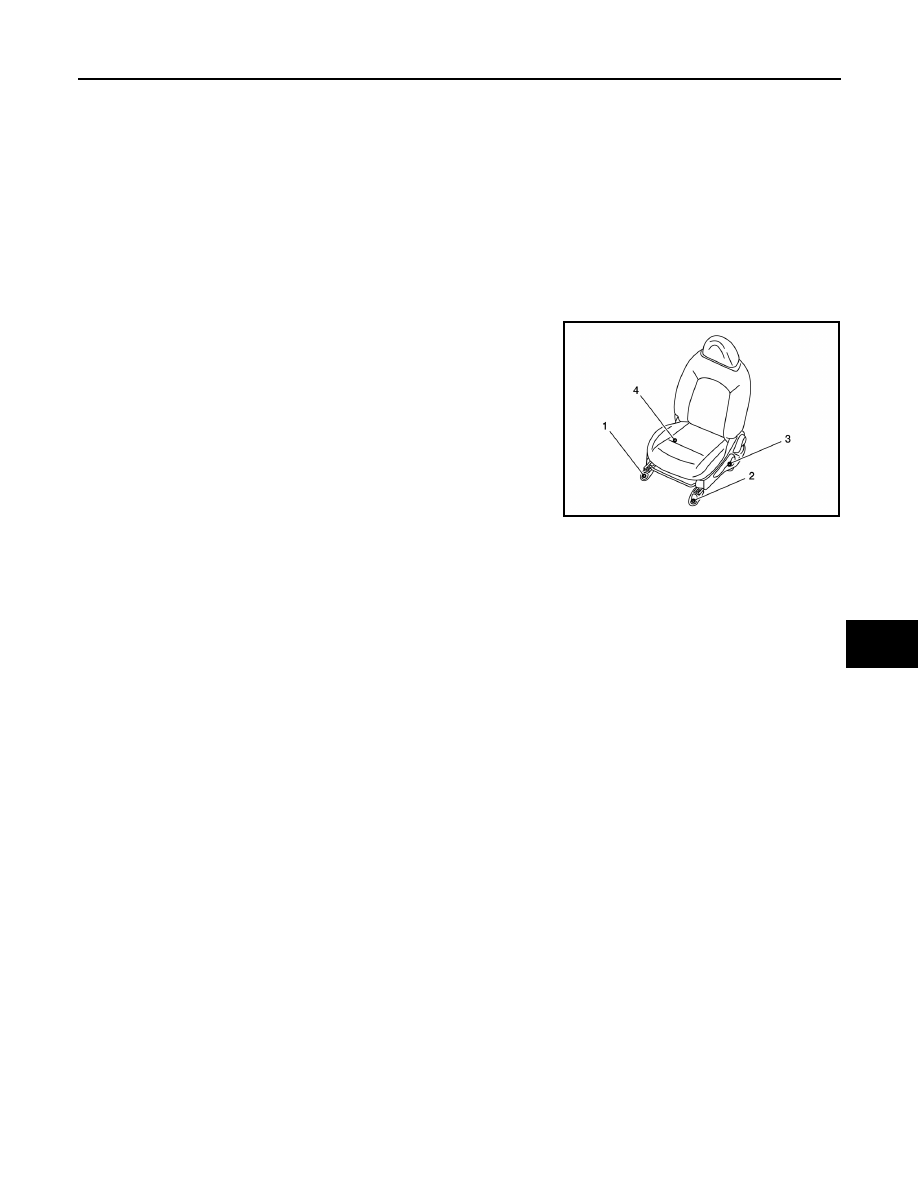

When installing the passenger side front seat, tighten the bolts in the

order shown.

Passenger side front seat
bolt torque

: 40 Nm (4.1 kg-m, 30 ft-lb)

AWJIA0921ZZ

SE-18

< REMOVAL AND INSTALLATION >

REAR SEAT

REAR SEAT

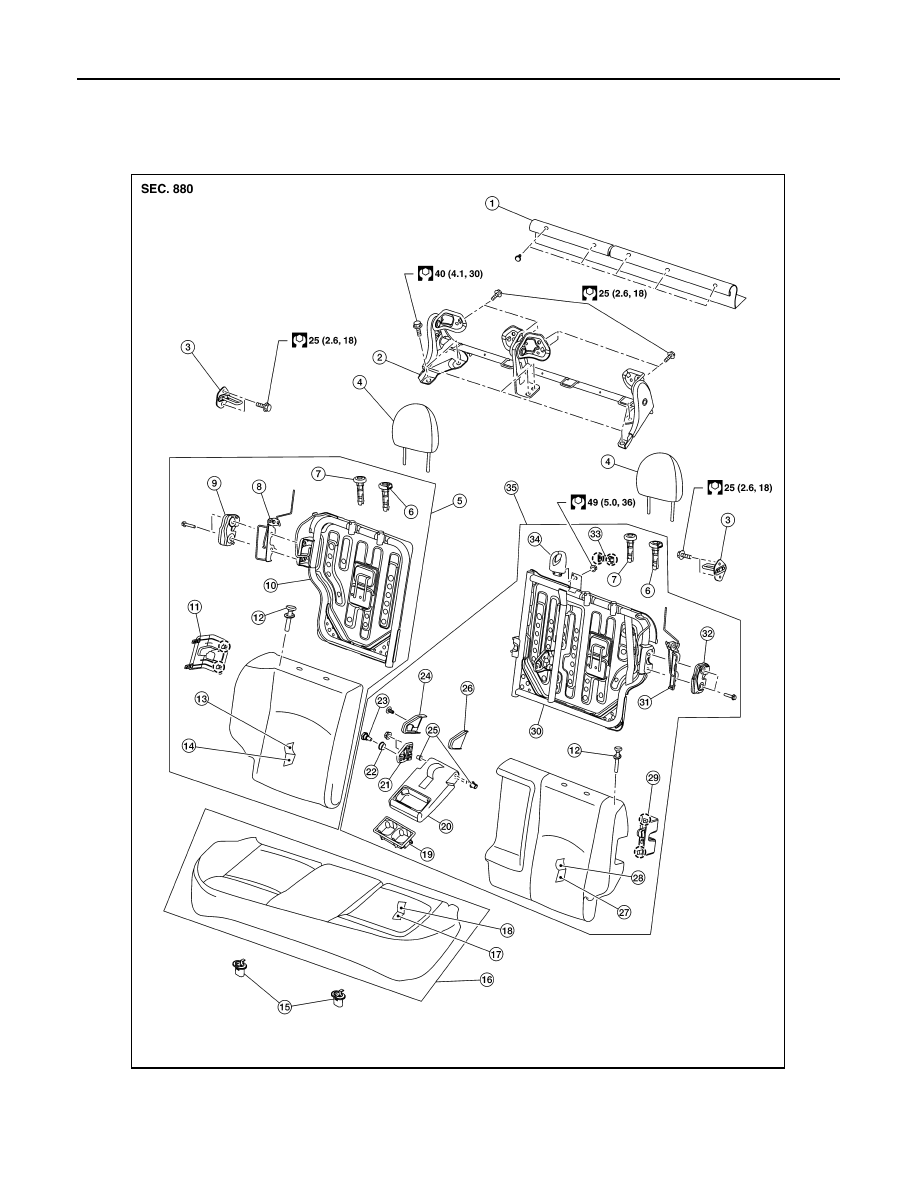

Exploded View

INFOID:0000000009643061

1.

Seatback hinge trim

2.

Seatback hinge

3.

Seatback striker

4.

Headrest

5.

Seatback (RH)

6.

Headrest holder (locked)

7.

Headrest holder (free)

8.

Seatback latch bracket (RH)

9.

Seatback latch (RH)

AWJIA1138ZZ
