PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009578838

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-42059)
Power Socket Removal Tool

Removing power sockets

AWMIA1148GB

PWO-4

< WIRING DIAGRAM >

POWER SOCKET

WIRING DIAGRAM

POWER SOCKET

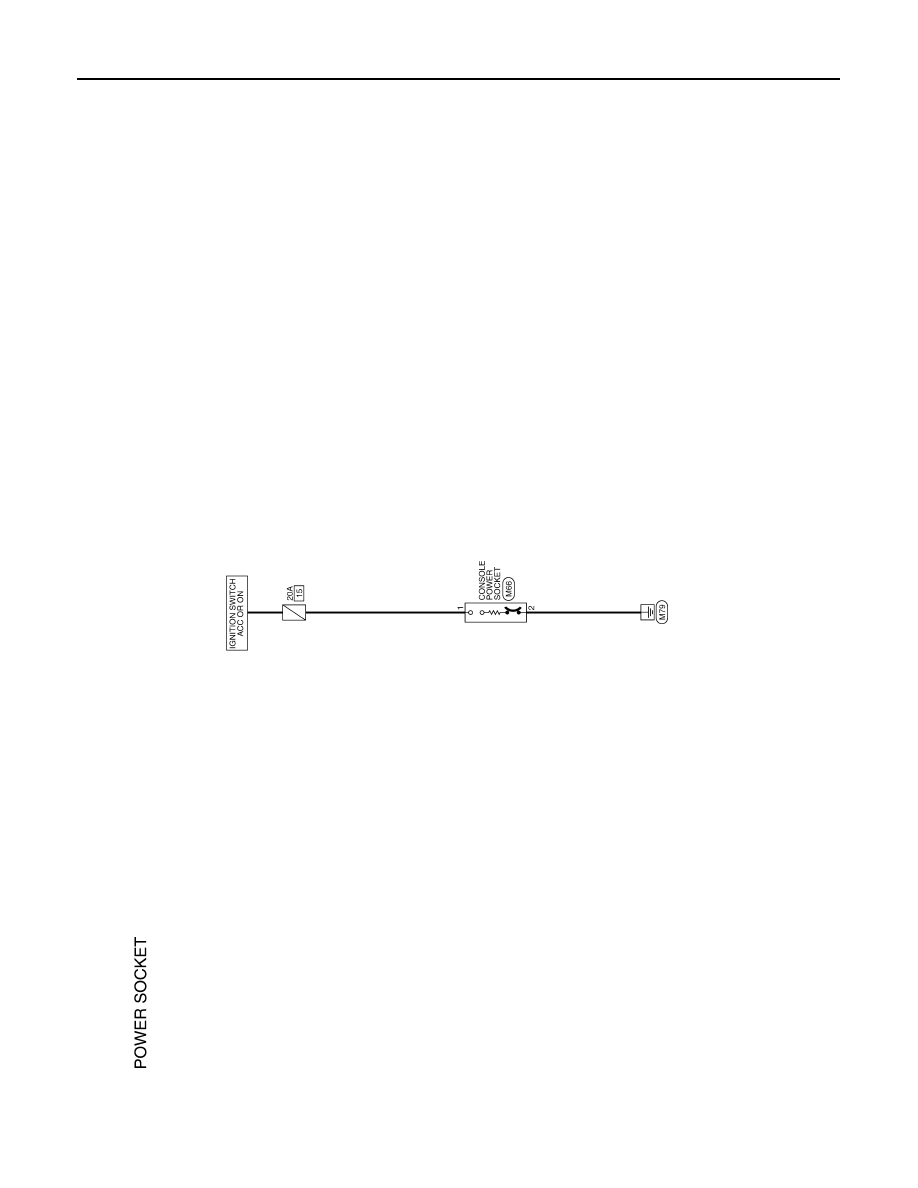

Wiring Diagram

INFOID:0000000009015563

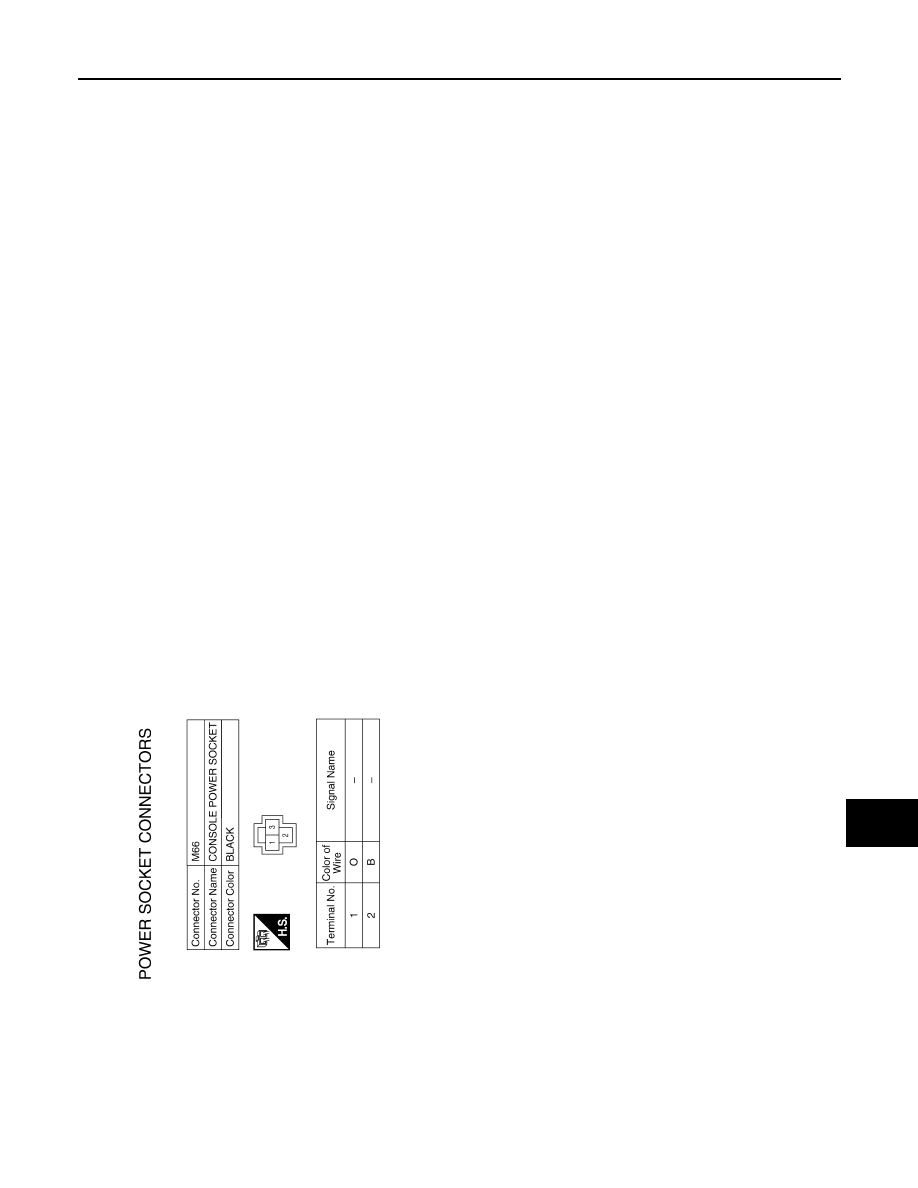

AAMWA0757GB

PWO

POWER SOCKET

PWO-5

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AAMIA1654GB

PWO-6

< REMOVAL AND INSTALLATION >

CONSOLE POWER SOCKET

REMOVAL AND INSTALLATION

CONSOLE POWER SOCKET

Removal and Installation

INFOID:0000000009578839

REMOVAL

NOTE:

If unable to use the tool because of power socket location or access to the harness connector, then further

removal of interior components may be required. Refer to

IP-18, "Removal and Installation"

.

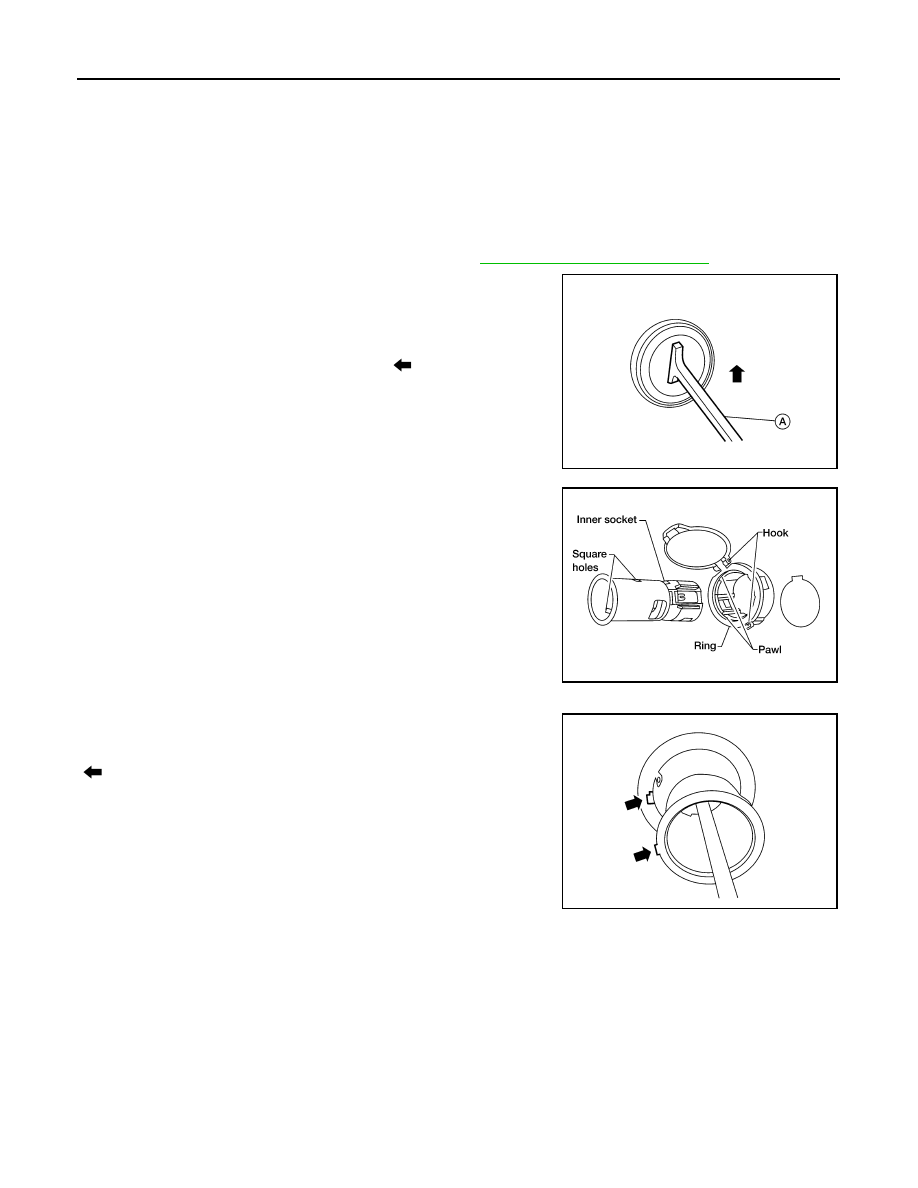

1. Insert one side of Tool (A) into one of the square holes inside the

power socket.

2. Lift up the handle of the Tool as shown (

) until the other side

snaps into the other square hole in the power socket.

3. Pull the power socket straight out with the Tool.

4. Disconnect the harness connector from the power socket.
5. Remove the ring from the power socket while pressing the pawls

with a suitable tool.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Make sure to align the tabs with the square notched areas as shown
(

) during installation.

Tool number:

—  (J-42059)

AWMIA1182GB

WKIA1035E

AWMIA1183GB
