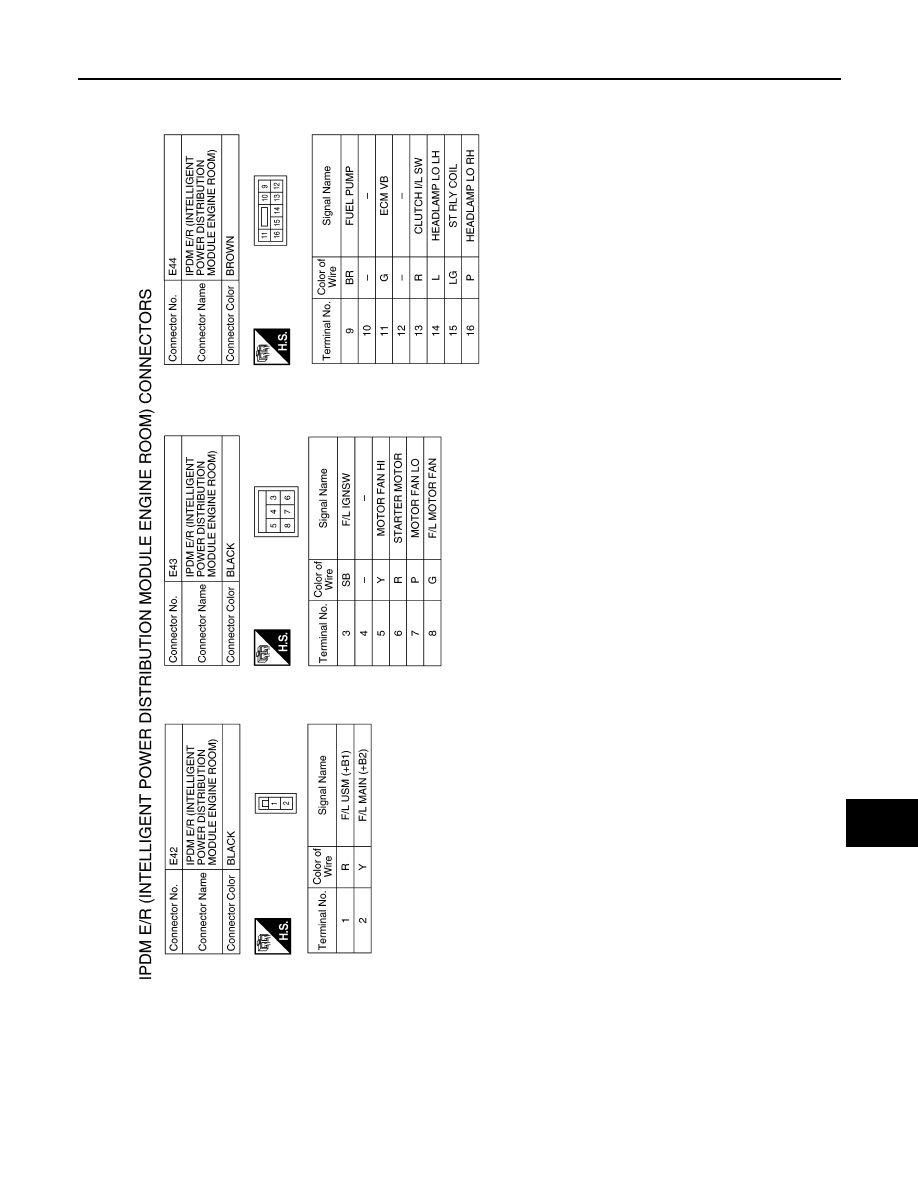

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-23

< WIRING DIAGRAM >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AAMIA1680GB

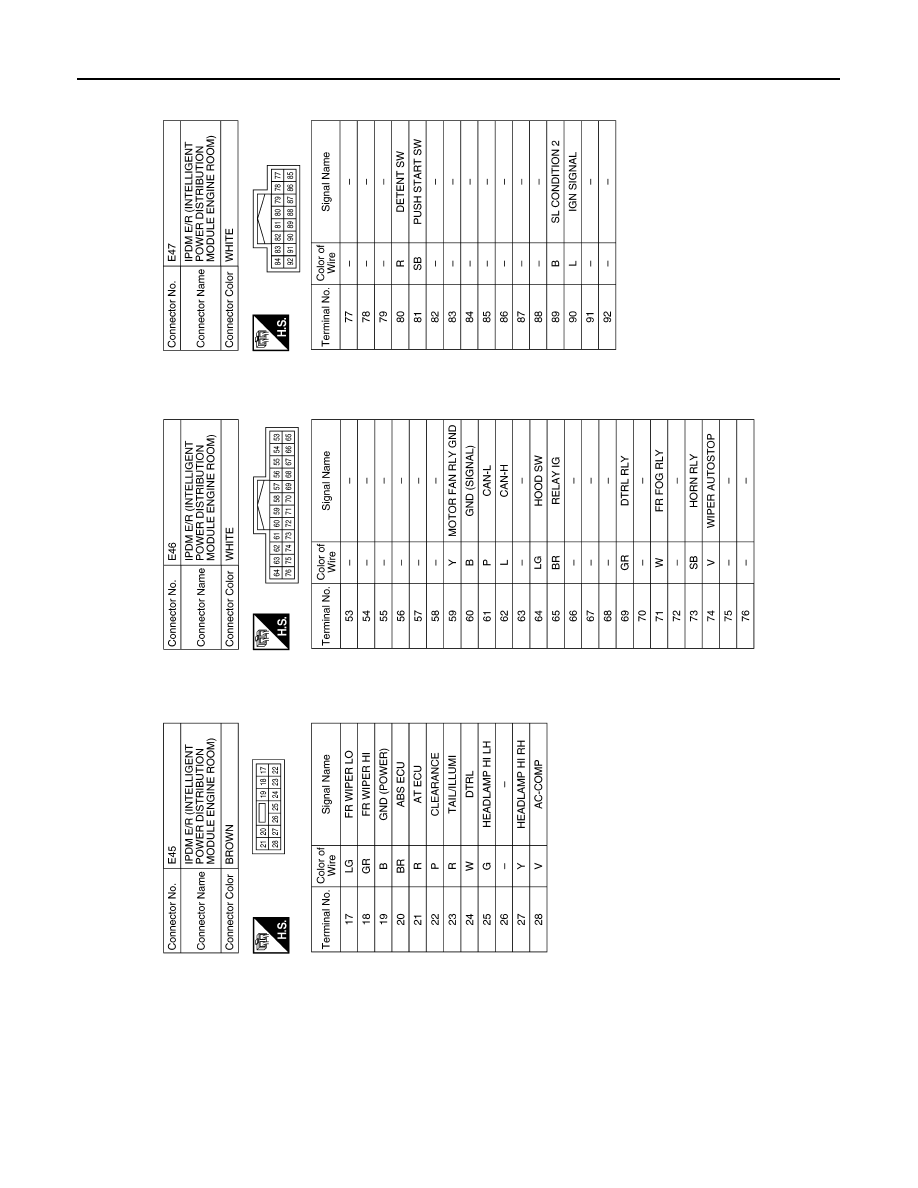

PCS-24

< WIRING DIAGRAM >

[IPDM E/R]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

AAMIA1681GB

PCS

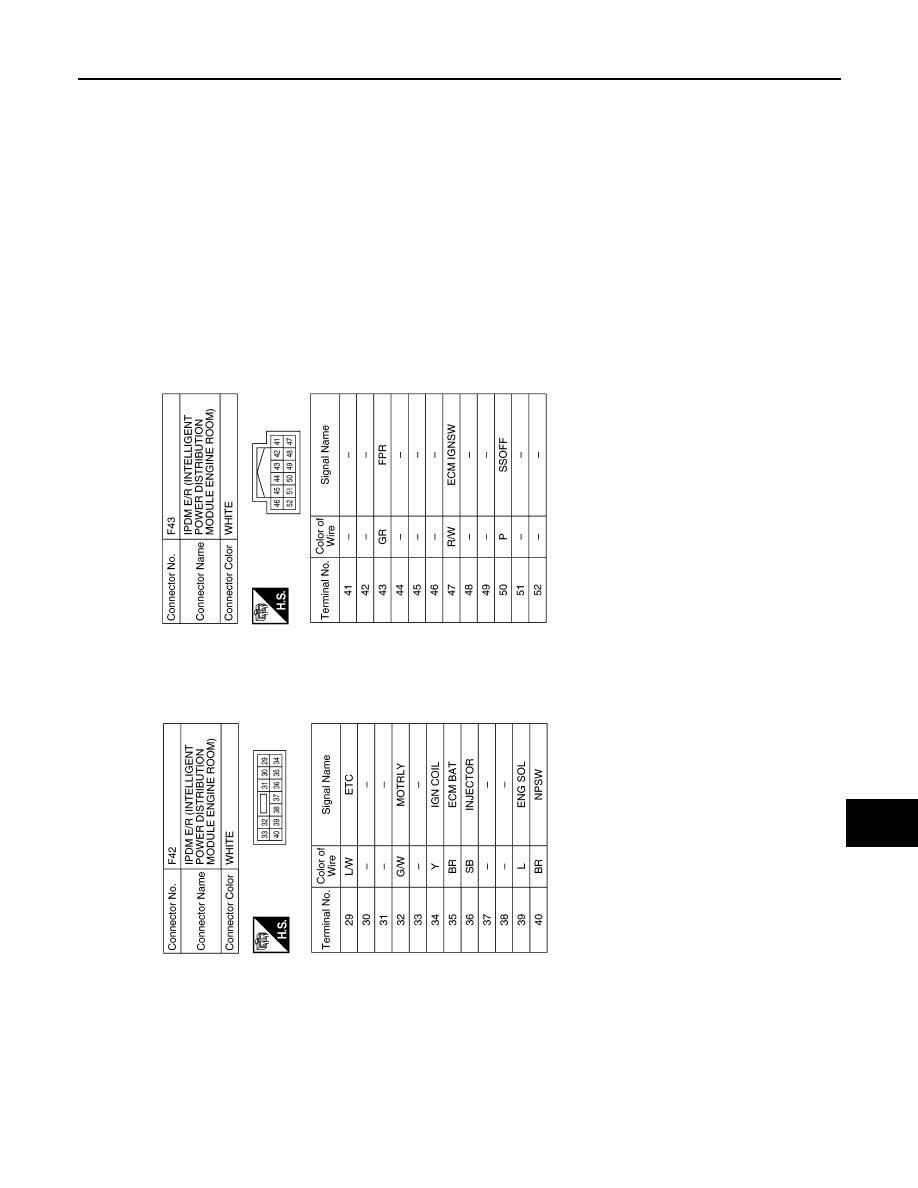

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-25

< WIRING DIAGRAM >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AAMIA1682GB

PCS-26

< DTC/CIRCUIT DIAGNOSIS >

[IPDM E/R]

U1000 CAN COMM CIRCUIT

DTC/CIRCUIT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000009567571

Refer to

LAN-6, "CAN COMMUNICATION SYSTEM : System Description"

.

DTC Logic

INFOID:0000000009567572

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000009567573

1.

 PERFORM SELF DIAGNOSTIC RESULT

1. Turn ignition switch ON and wait for 2 second or more.

2. Check “SELF-DIAG RESULTS” of IPDM E/R.
Is “CAN COMM CIRCUIT” displayed?

YES

>> Refer to

LAN-15, "Trouble Diagnosis Flow Chart"

.

NO

>> Refer to

GI-41, "Intermittent Incident"

.

CONSULT Display

DTC Detection Condition

Possible Cause

CAN COMM CIRCUIT
[U1000]

When IPDM E/R cannot communicate with CAN com-
munication signal continuously for 2 seconds or more

In CAN communication system, any item (or items) of
the following listed below is malfunctioning.
• Transmission
• Receiving (ECM)
• Receiving (BCM)
• Receiving (Combination meter)
