REMOVAL AND INSTALLATION

FRONT DOOR FINISHER

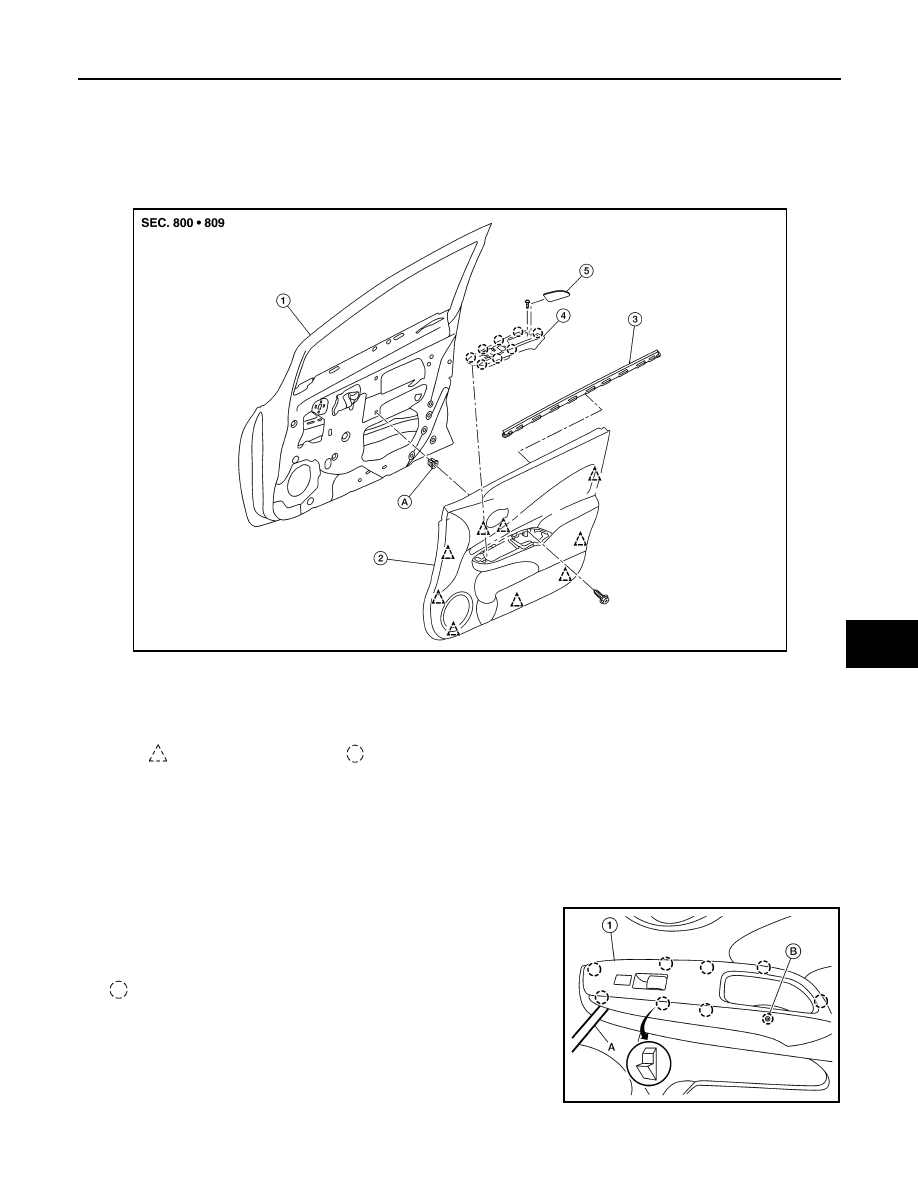

Exploded View

INFOID:0000000009016036

NOTE:

 RH side door shown; LH side door similar.

Removal and Installation

INFOID:0000000009016037

REMOVAL

1. Remove door pull handle escutcheon using a suitable tool.
2. Remove screw (B) from power window and door lock/unlock

switch (RH) finisher.

3. Remove power window and door lock/unlock switch (RH) fin-

isher (1) using a suitable tool (A).

: Pawl

4. Disconnect the harness connector from the power window and door lock/unlock switch (RH).

1.

Front door panel

2.

Front door finisher

3.

Front door inside seal

4.

Power window and door
lock/unlock switch (RH) fin-
isher

5.

Door pull handle escutcheon

A. Grommet

Clip

Pawl

AWJIA1139ZZ

AWKIA2505ZZ

INT-16

< REMOVAL AND INSTALLATION >

FRONT DOOR FINISHER

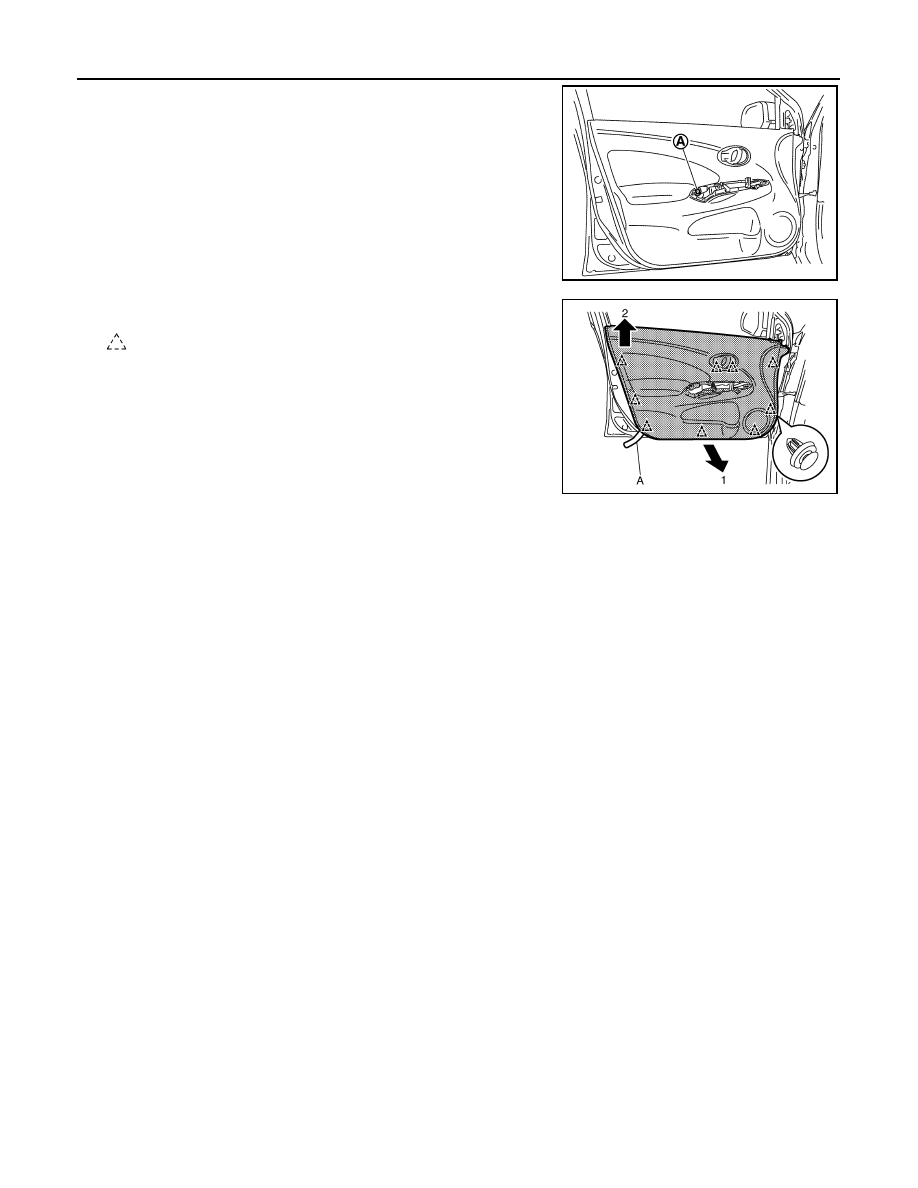

5. Remove front door finisher bolt (A).

6. Release clips using a suitable tool (A) remove front door finisher

as shown.

: Clip

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation.

• When installing front door finisher, check that clips and pawls are securely placed into door panel

holes.

JMJIA6023ZZ

AWJIA1122ZZ

REAR DOOR FINISHER

INT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

REAR DOOR FINISHER

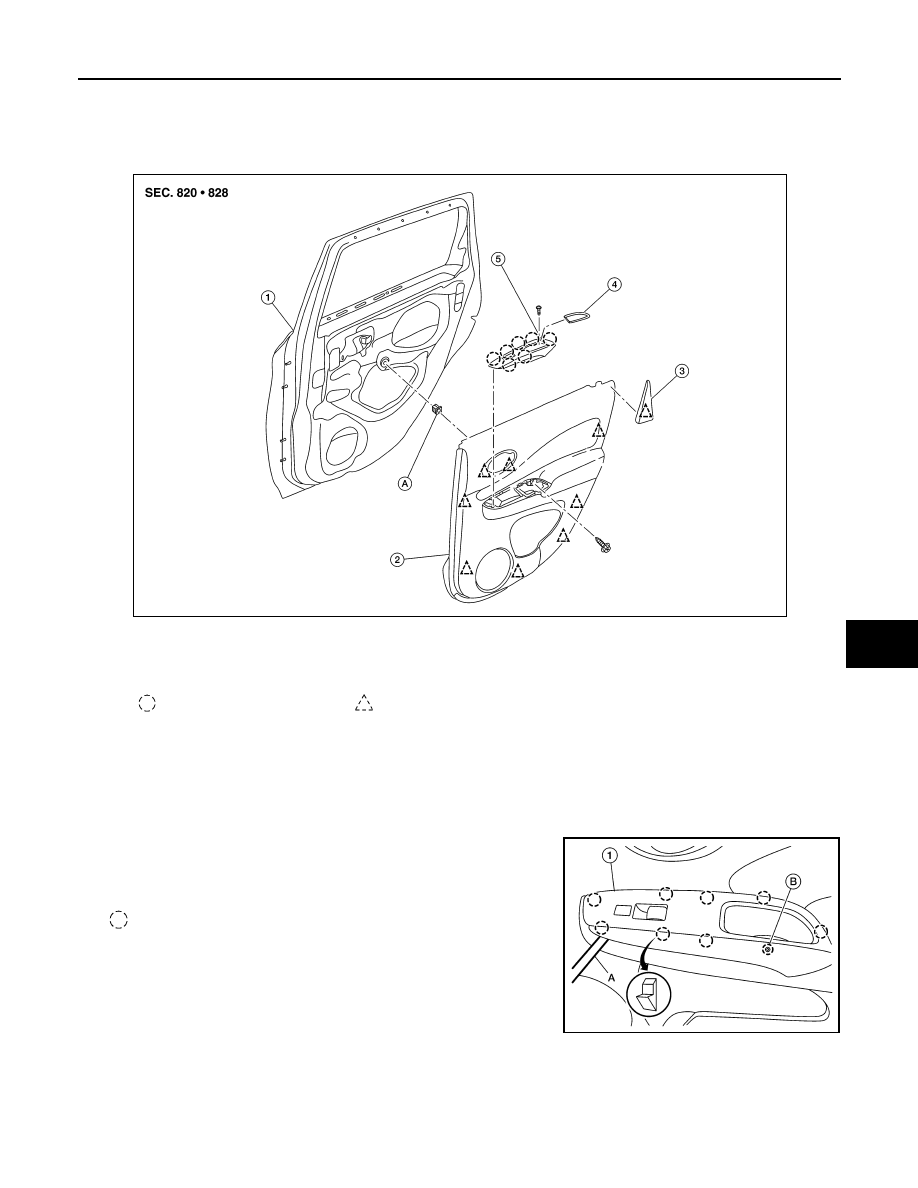

Exploded View

INFOID:0000000009016038

Removal and Installation

INFOID:0000000009016039

REMOVAL

1. Release rear door corner finisher clip using a suitable tool.
2. Remove rear door pull handle escutcheon using a suitable tool.
3. Remove screw (B) from power window and door lock/unlock

switch (RH) finisher.

4. Remove power window and door lock/unlock switch (RH) fin-

isher (1) using a suitable tool (A).

: Pawl

5. Disconnect the harness connector from the power window and door lock/unlock switch (RH).

1.

Rear door panel

2.

Rear door finisher

3.

Rear door corner finisher

4.

Rear door pull handle escutch-
eon

5.

Rear power window switch fin-
isher

A. Grommet

Pawl

Clip

AWJIA1099ZZ

AWKIA2505ZZ
