EXL-116

< REMOVAL AND INSTALLATION >

REAR COMBINATION LAMP

2. Rotate stop/tail lamp bulb socket counterclockwise and remove.
3. Remove stop/tail lamp bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install bulb socket securely for watertightness.

REAR TURN SIGNAL LAMP BULB

Removal

1. Remove rear combination lamp. Refer to

EXL-115, "Removal and Installation"

.

2. Rotate rear turn signal lamp bulb socket counterclockwise and remove.
3. Remove rear turn signal lamp bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install bulb socket securely for watertightness.

BACK-UP LAMP BULB

Removal

1. Remove rear combination lamp. Refer to

EXL-115, "Removal and Installation"

.

2. Rotate back-up lamp bulb socket counterclockwise and remove.
3. Remove back-up lamp bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install bulb socket securely for watertightness.

HIGH-MOUNTED STOP LAMP

EXL-117

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HIGH-MOUNTED STOP LAMP

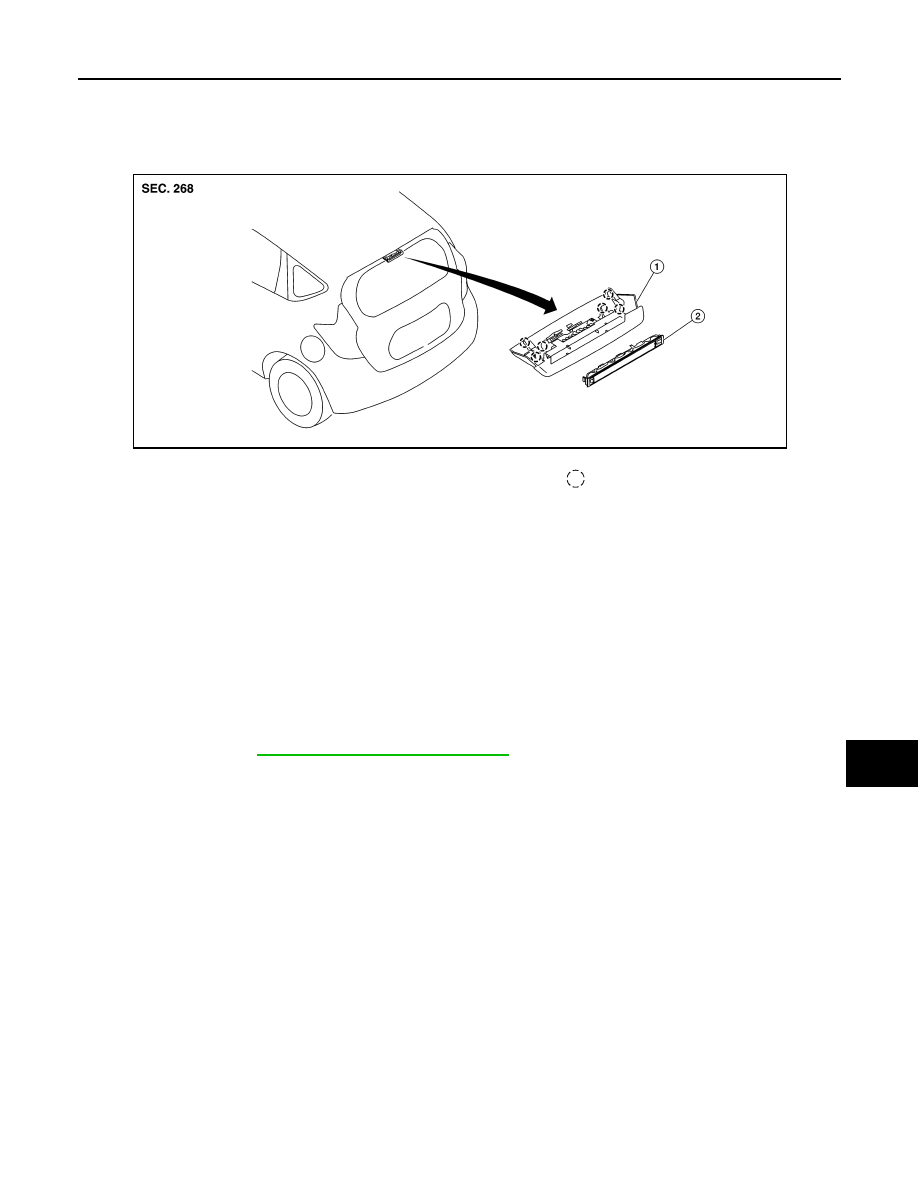

Exploded View

INFOID:0000000009015747

Removal and Installation

INFOID:0000000009015748

REMOVAL

1. Release high-mounted stop lamp pawls using a suitable tool.
2. Disconnect the harness connector from high-mounted stop lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000009015749

HIGH-MOUNTED STOP LAMP BULB

The high-mounted stop lamp bulb is a LED and is integrated into the high-mounted stop lamp and is serviced

as an assembly. Refer to

EXL-117, "Removal and Installation"

.

1.

High-mounted stop lamp

2.

High-mounted stop lamp LED

Pawl

AWLIA2164ZZ

EXL-118

< REMOVAL AND INSTALLATION >

LICENSE PLATE LAMP

LICENSE PLATE LAMP

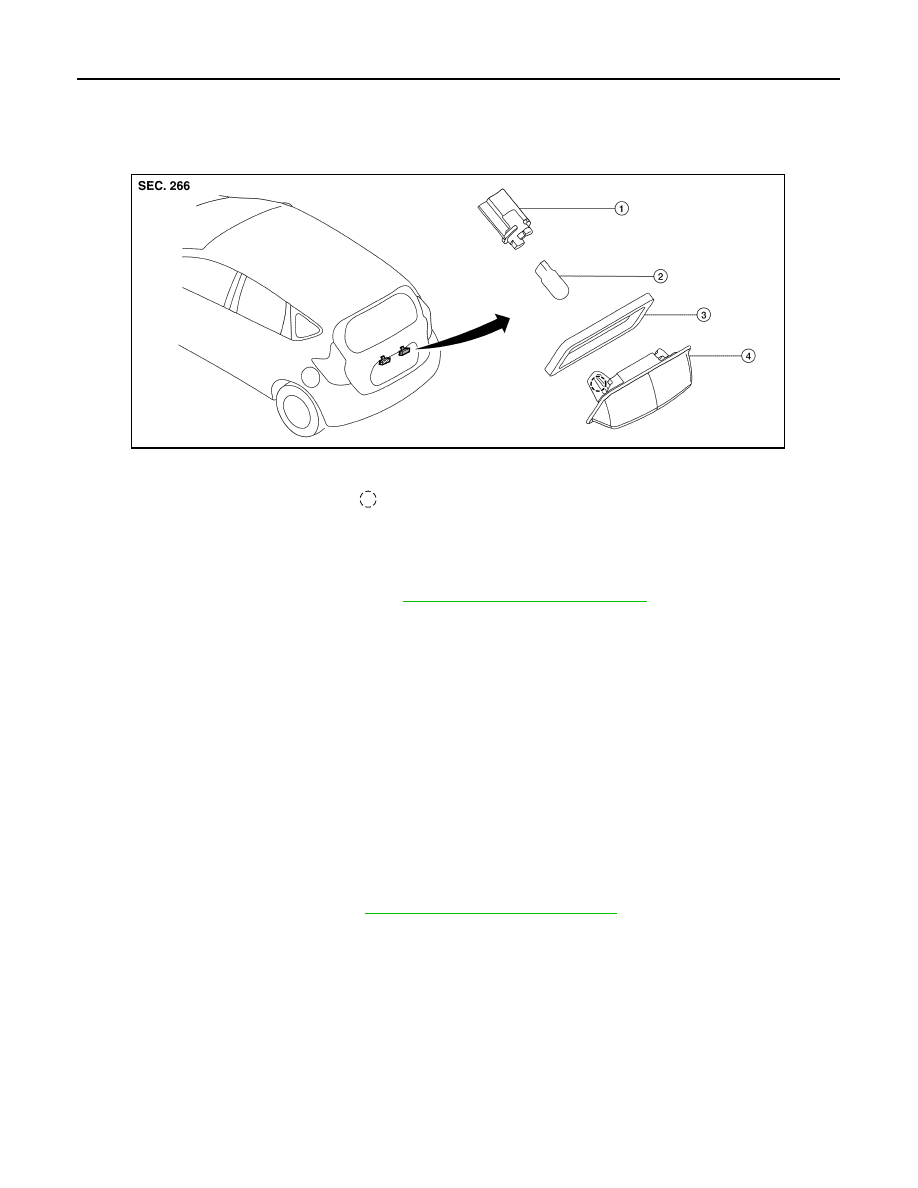

Exploded View

INFOID:0000000009015750

Removal and Installation

INFOID:0000000009015751

REMOVAL

1. Remove back door outer finisher. Refer to

EXT-34, "Removal and Installation"

.

2. Disconnect harness connector from license plate lamp.
3. Release license plate lamp pawl and remove license plate lamp.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000009015752

WARNING:

Do not touch bulb with your hand while it is on or right after being turned off. Burning may result.

CAUTION:

• Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

REMOVAL

1. Remove license plate lamp. Refer to

EXL-118, "Removal and Installation"

.

2. Rotate license plate lamp bulb socket counterclockwise and remove.
3. Remove license plate lamp bulb from bulb socket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install the bulb socket securely for watertightness.

1.

License plate lamp bulb socket

2.

License plate lamp bulb

3.

Seal

4.

License plate lamp

Pawl

AWLIA2173ZZ

FRONT COMBINATION LAMP

EXL-119

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

FRONT COMBINATION LAMP

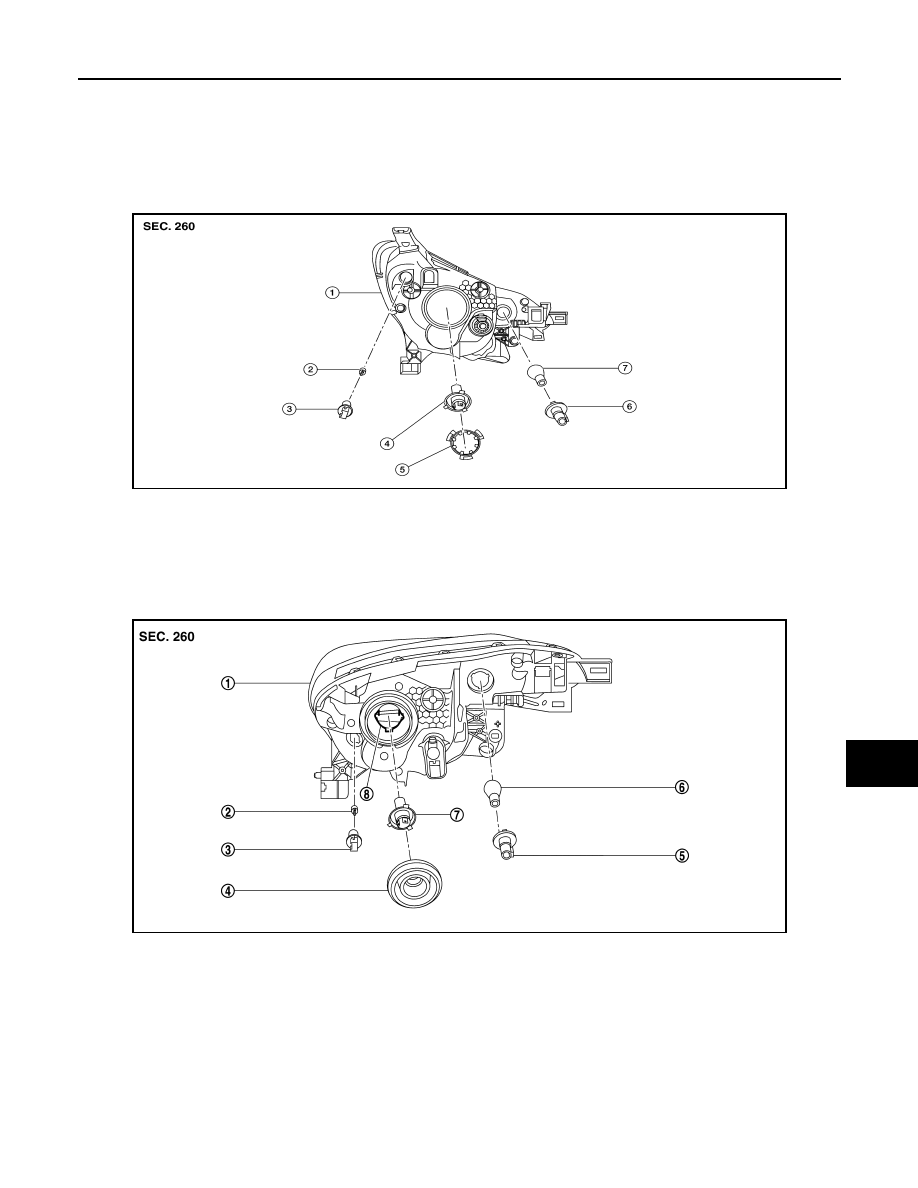

Exploded View

INFOID:0000000009670495

FRONT COMBINATION LAMP - WITHOUT AIMING MOTOR

FRONT COMBINATION LAMP - WITH AIMING MOTOR

Disassembly and Assembly

INFOID:0000000009670496

WARNING:

Do not touch bulb while it is lit or right after being turned off. Burning may result.

CAUTION:

AWLIA2165ZZ

1.

Front combination lamp

2.

Side marker lamp bulb

3.

Side marker lamp socket

4.

Headlamp bulb

5.

Lock ring

6.

Front turn signal/Parking
lamp bulb socket

7.

Front turn signal/Parking lamp bulb

JMLIA3219ZZ

1.

Front combination lamp

2. Side marker lamp bulb

3. Side marker lamp bulb socket

4.

Lock ring

5. Front turn signal/parking lamp

bulb socket

6. Front turn signal/parking lamp

bulb

7.

Headlamp Bulb

8. Retaining spring
