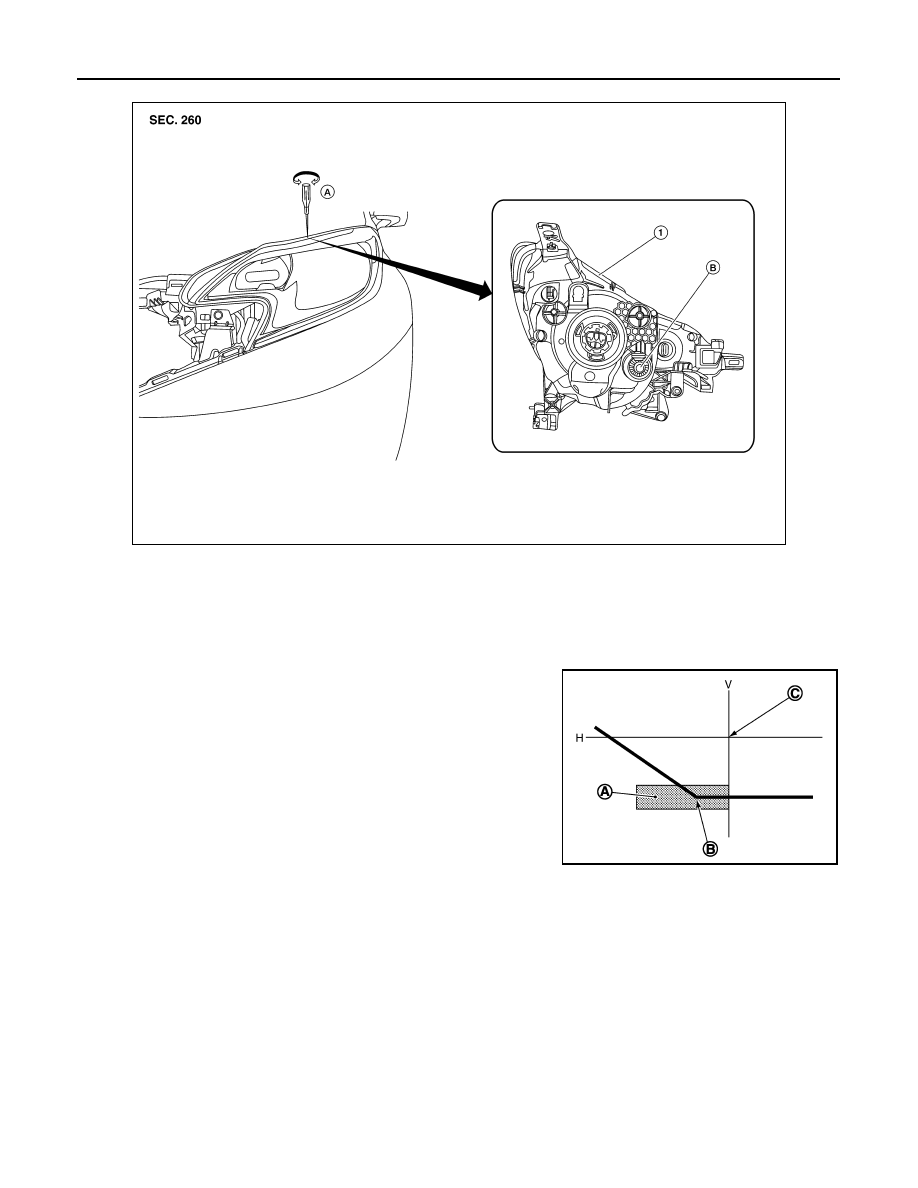

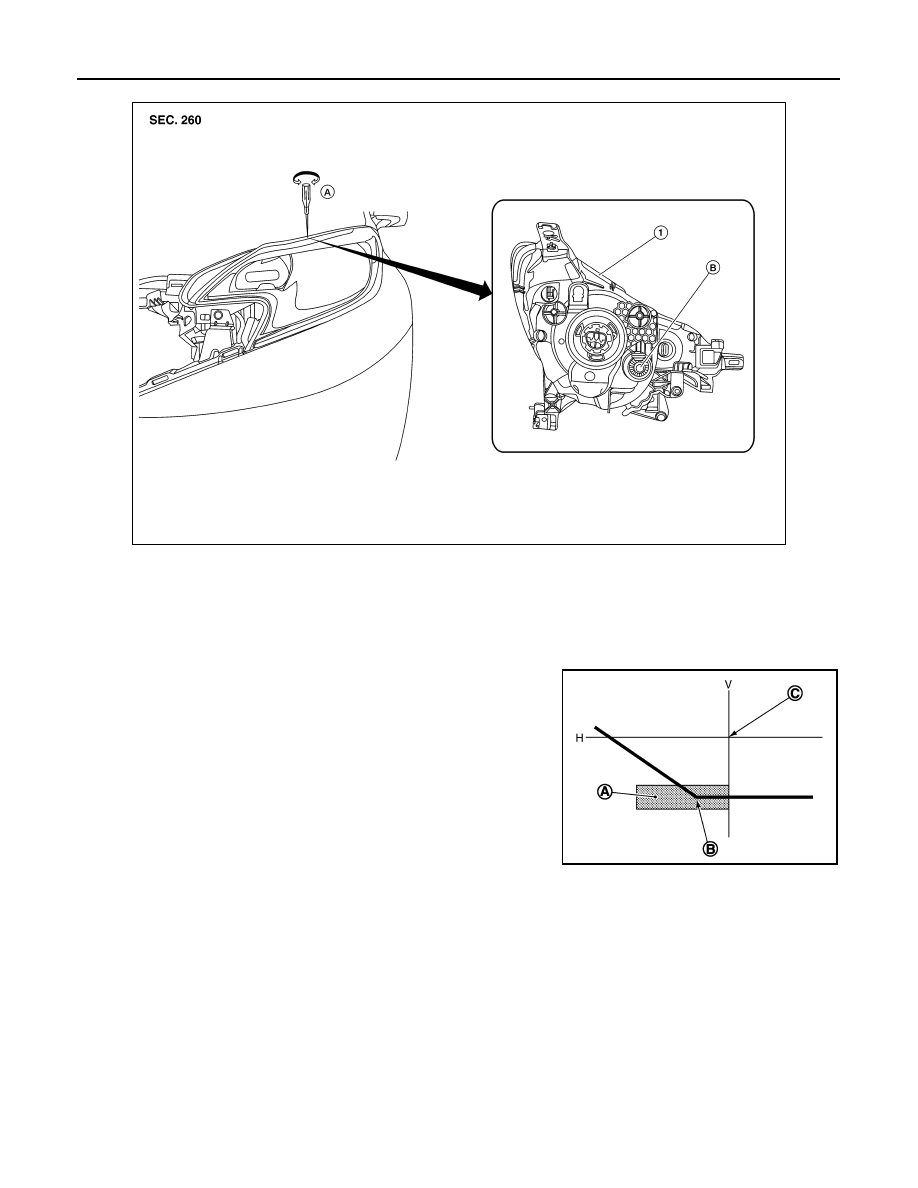

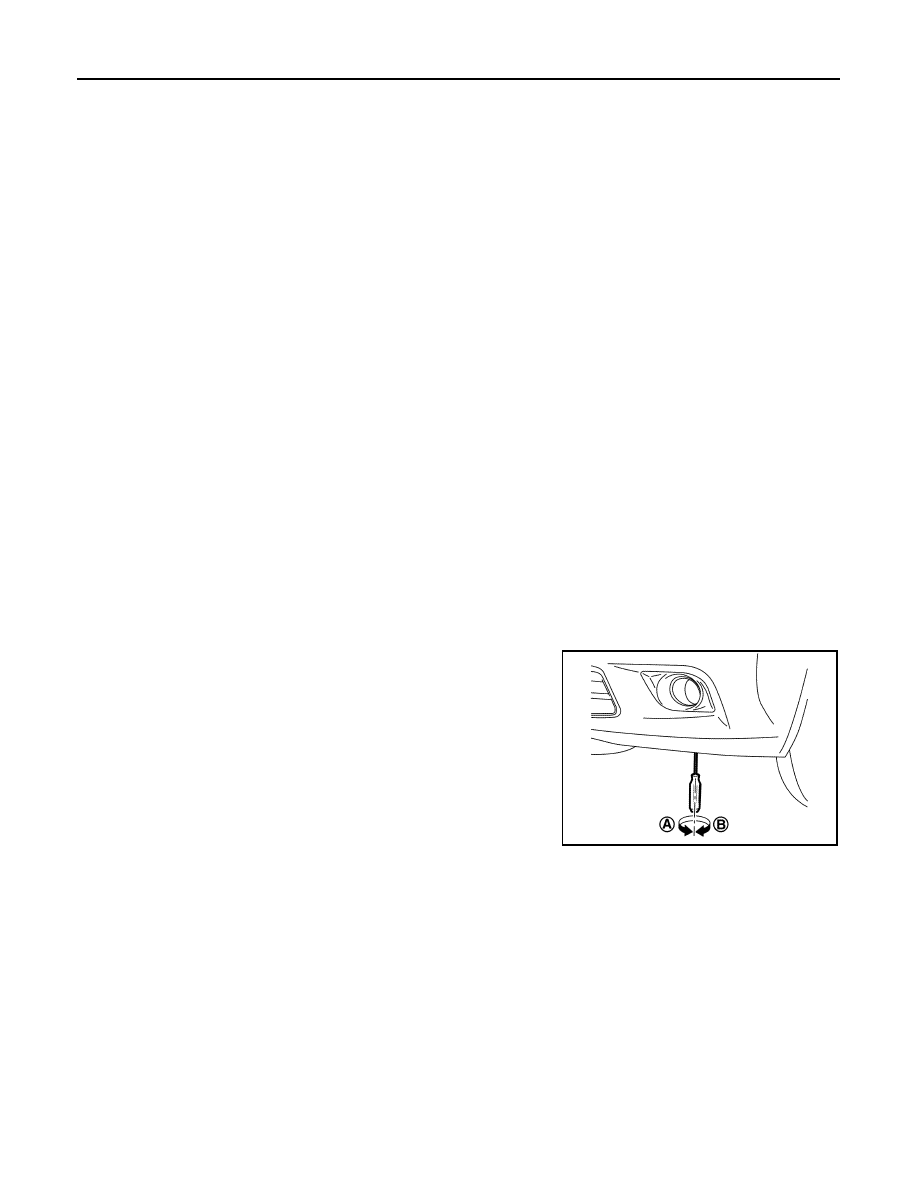

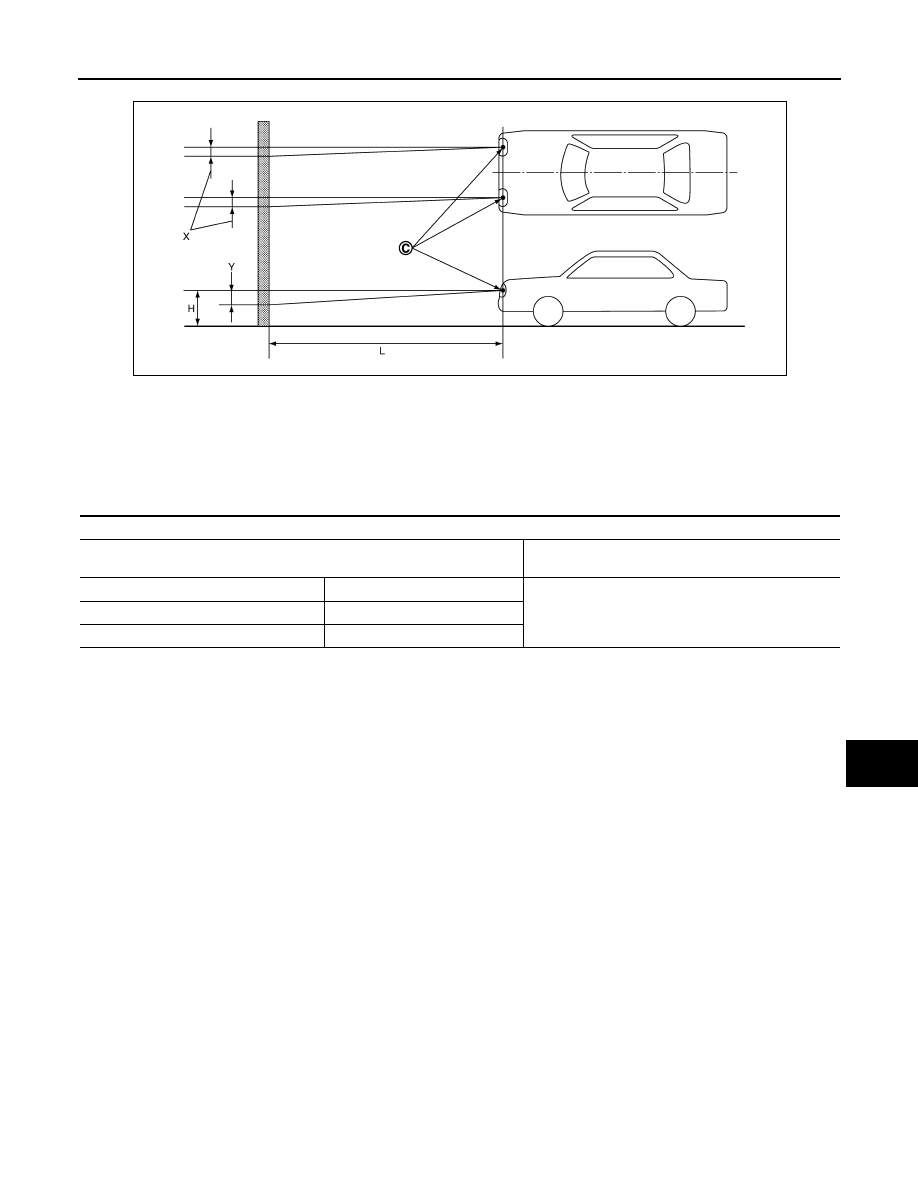

EXL-104 < PERIODIC MAINTENANCE > HEADLAMP AIMING ADJUSTMENT Aiming Adjustment Procedure INFOID:0000000009445898 1. Use the aiming adjustment screw to adjust the elbow point projected by the low beams on the screen, so that it is within the aiming adjustment area. Low beam distribution on the screen AWLIA2170ZZ 1. Front combination lamp A. Suitable tool (for aiming adjustment) B. Adjusting screw A. : 150 mm (5.91 in) B. : 100 mm (3.94 in) C. : 100 mm (3.94 in) JSLIA0028ZZ |
