CLUTCH FLUID

CL-9

< PERIODIC MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

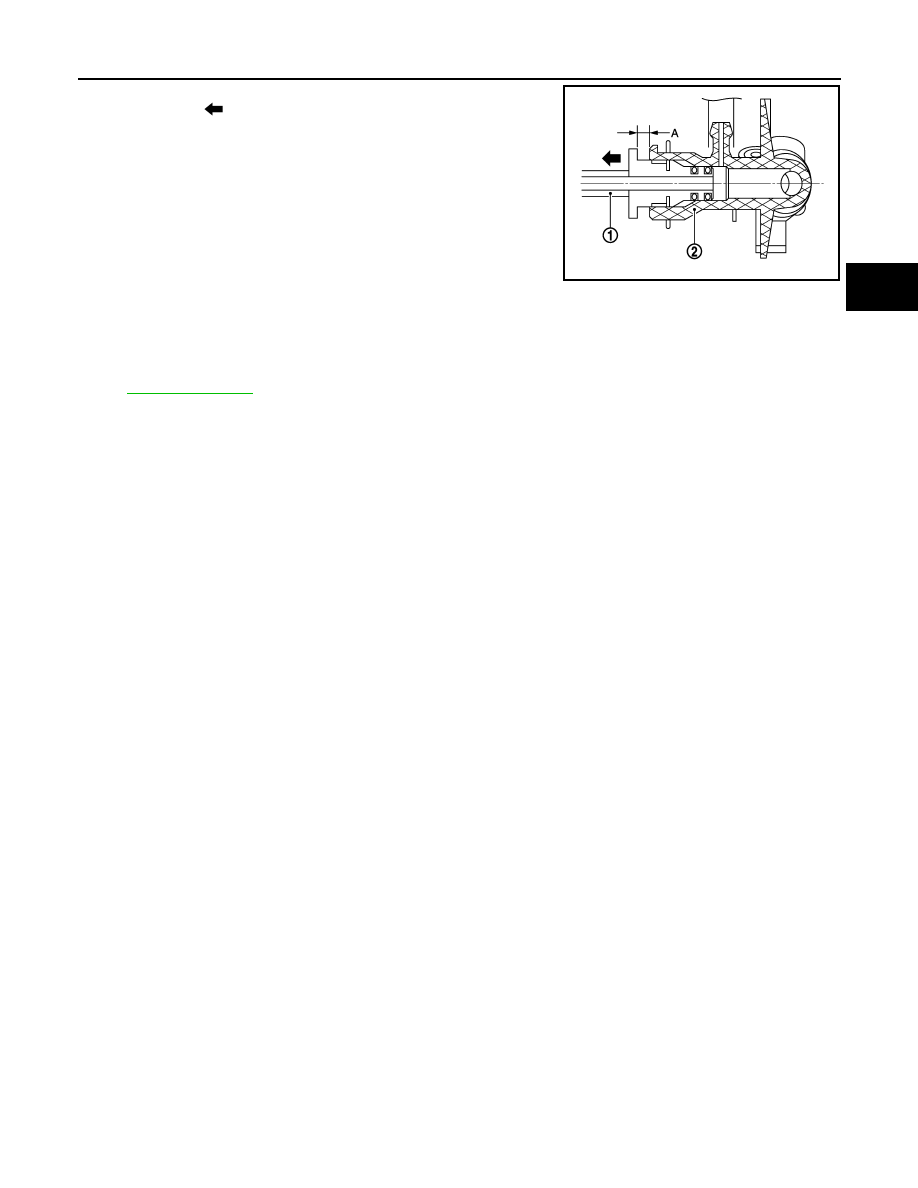

5. Slide clutch tube (1) for the specified distance (A) in the direction

of the arrow (

) as shown and immediately depress the clutch

pedal and hold it, to bleed the air from the system.

CAUTION:

Clutch tube is under hydraulic pressure; do not allow the

clutch tube to disconnect from the bleeding connector.

6. Return clutch tube and lock pin in their original positions.
7. Release clutch pedal and wait for 5 seconds.
8. Repeat steps 3 to 7 until no bubbles are observed in the clutch fluid.
9. Check that the clutch fluid level in the reservoir tank is within the specified range after air bleeding. Refer

to

CL-6, "Inspection"

.

(2)

: Bleeding connector

Dimension (A)

: 5 mm (0.20 in)

JPDIB0147ZZ

CL-10

< REMOVAL AND INSTALLATION >

CLUTCH PEDAL

REMOVAL AND INSTALLATION

CLUTCH PEDAL

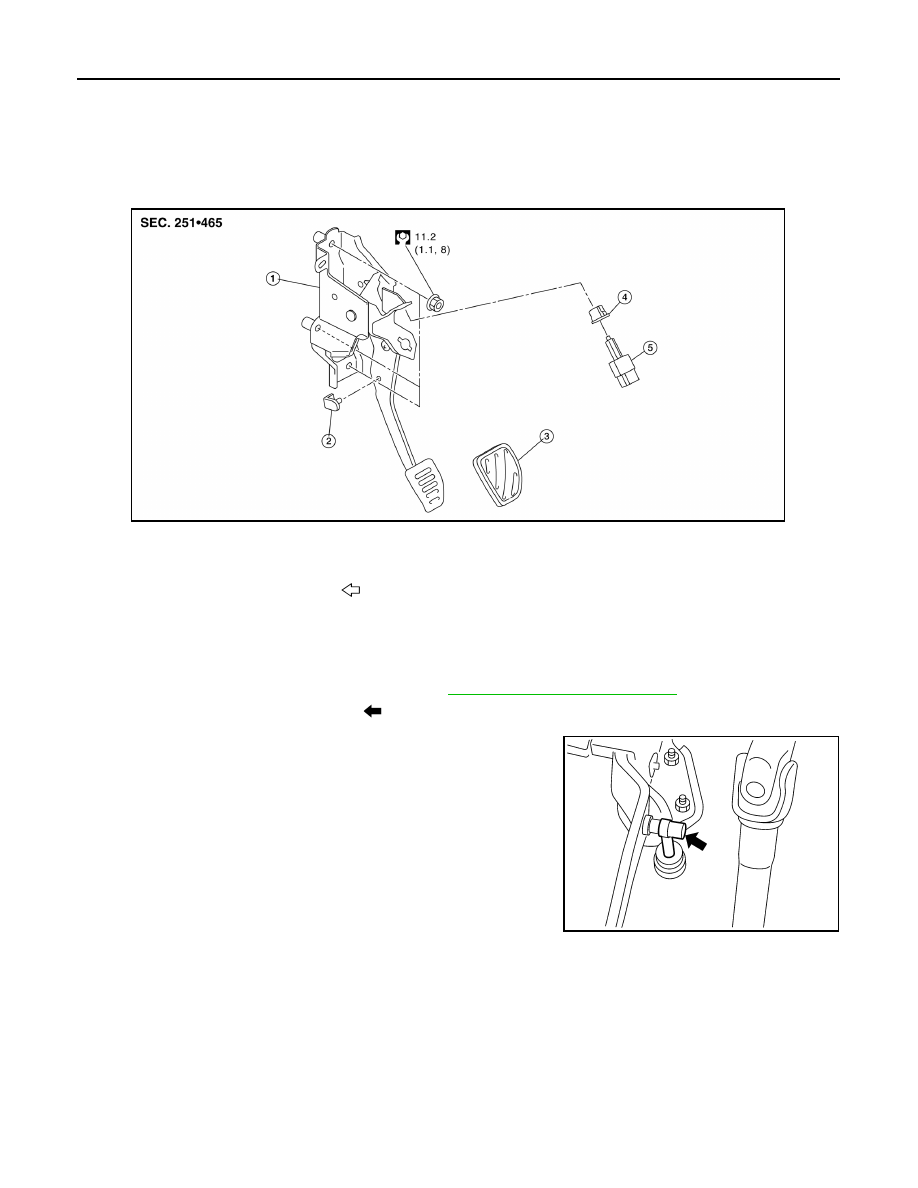

Exploded View

INFOID:0000000009417557

Removal and Installation

INFOID:0000000009417558

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-24, "Removal and Installation"

.

2. Disconnect master cylinder rod end (

) from clutch pedal.

3. Disconnect ASCD cancel switch and clutch interlock switch harness connector
4. Remove harness clip from clutch pedal.
5. Remove clutch pedal nuts and remove clutch pedal.
6. Remove pedal pad from clutch pedal.
7. Remove clutch interlock switch and clip from clutch pedal.
8. Remove pedal stopper rubber from clutch pedal using a suitable tool.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Press master cylinder rod end into clutch pedal until it stops.

1.

Clutch pedal

2.

Pedal stopper rubber

3.

Pedal pad

4.

Clutch interlock switch

5.

Clip

6.

ASCD cancel switch

7.

Clip

Front

AWDIA0944GB

PCIB1491E

CLUTCH PEDAL

CL-11

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

Inspection and Adjustment

INFOID:0000000009417559

INSPECTION AFTER REMOVAL

• Check clutch pedal for bend, damage, or a cracked weld. If bend, damage, or a cracked weld is found,

replace clutch pedal.

• Check pedal stopper rubber. If damage or deformation is found, replace pedal stopper rubber.

• Check pedal pad. If wear or damage is found, replace pedal pad.

INSPECTION AND ADJUSTMENT AFTER INSTALLATION

Inspect the clutch interlock switch position and adjust as necessary. Refer to

CL-5, "Inspection and Adjust-

ment"

.

CL-12

< REMOVAL AND INSTALLATION >

CLUTCH MASTER CYLINDER

CLUTCH MASTER CYLINDER

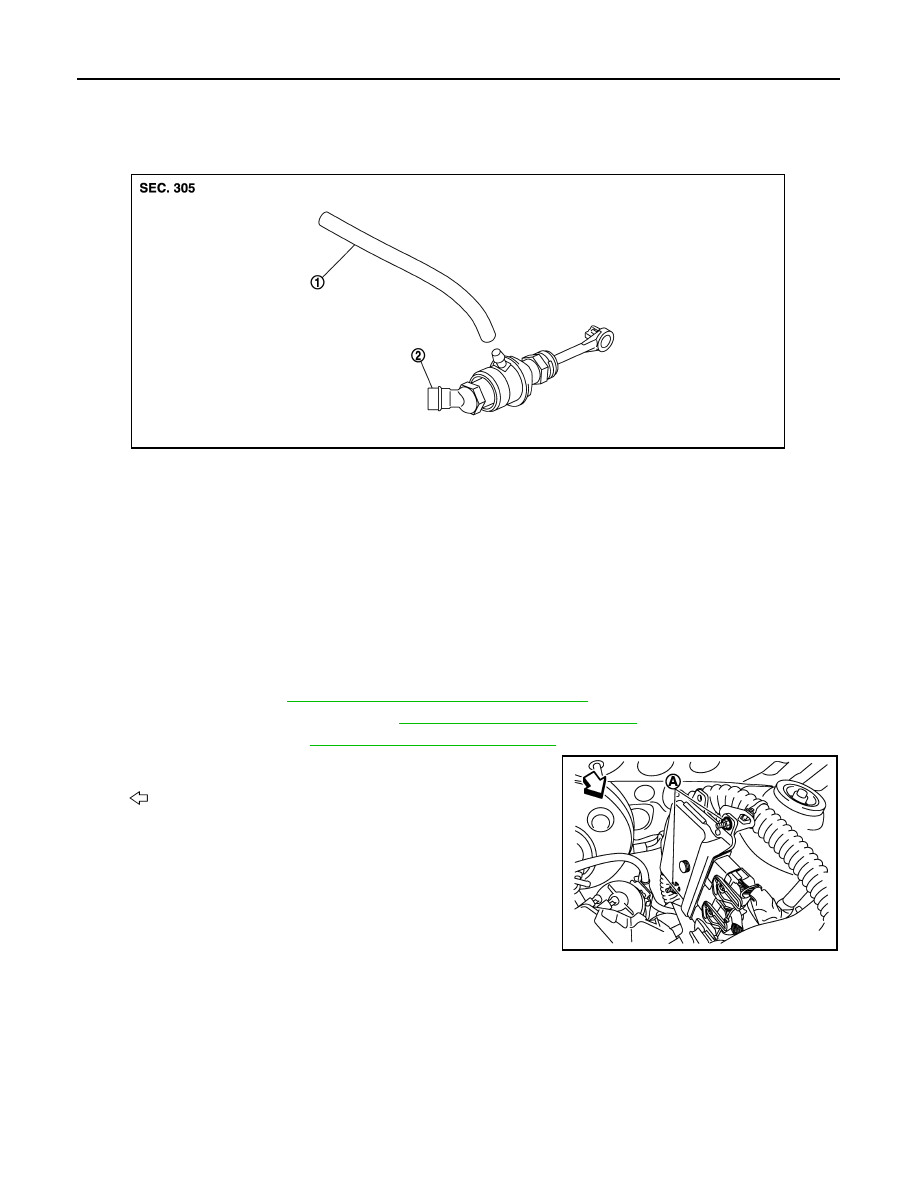

Exploded View

INFOID:0000000009417560

Removal and Installation

INFOID:0000000009417561

CAUTION:

• Do not spill clutch fluid onto painted surfaces. If clutch fluid spills, wipe up immediately and wash

the affected area with water.

• Do not disassemble clutch master cylinder.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove battery. Refer to

PG-69, "Removal and Installation (Battery)"

.

2. Remove air cleaner and air duct. Refer to

EM-26, "Removal and Installation"

3. Remove IPDM E/R. Refer to

PCS-30, "Removal and Installation"

.

4. Remove ECM bracket nuts (A).

1.

Reservoir hose

2.

Master cylinder

JPDIB0222ZZ

: Front

JPDIB0233ZZ
