Nissan Note E12. Manual - part 41

AV-156

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Diagnosis Procedure

INFOID:0000000009460299

Regarding Wiring Diagram information, refer to

AV-121, "Wiring Diagram"

.

1.

CONNECTOR CHECK

Check the AV control unit and speaker connectors for the following:

•  Proper connection

•  Damage

•  Disconnected or loose terminals
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminals or connectors.

2.

CHECK REAR DOOR SPEAKER SIGNAL CIRCUIT CONTINUITY

1. Disconnect AV control unit connector M70 and suspect rear door speaker connector.

2. Check continuity between AV control unit connector M70 and suspect rear door speaker connector.

3. Check continuity between AV control unit connector M70 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

CHECK REAR DOOR SPEAKER SIGNAL

1. Connect AV control unit connector M70 and suspect rear door speaker connector.

2. Turn ignition switch to ACC.

3. Push AV control unit POWER switch.

4. Check signal between the terminals of AV control unit connector M70.

AV control unit

Rear door speaker

Continuity

Connector

Terminal

Connector

Terminal

M70

4

D207 (LH)

1

Yes

5

2

13

D307 (RH)

1

14

2

AV control unit

Ground

Continuity

Connector

Terminal

M70

4

—

No

5

13

14

AV control unit connector M70

Condition

Reference value

(+)

(

−)

Terminal

Terminal

AV

REAR DOOR SPEAKER

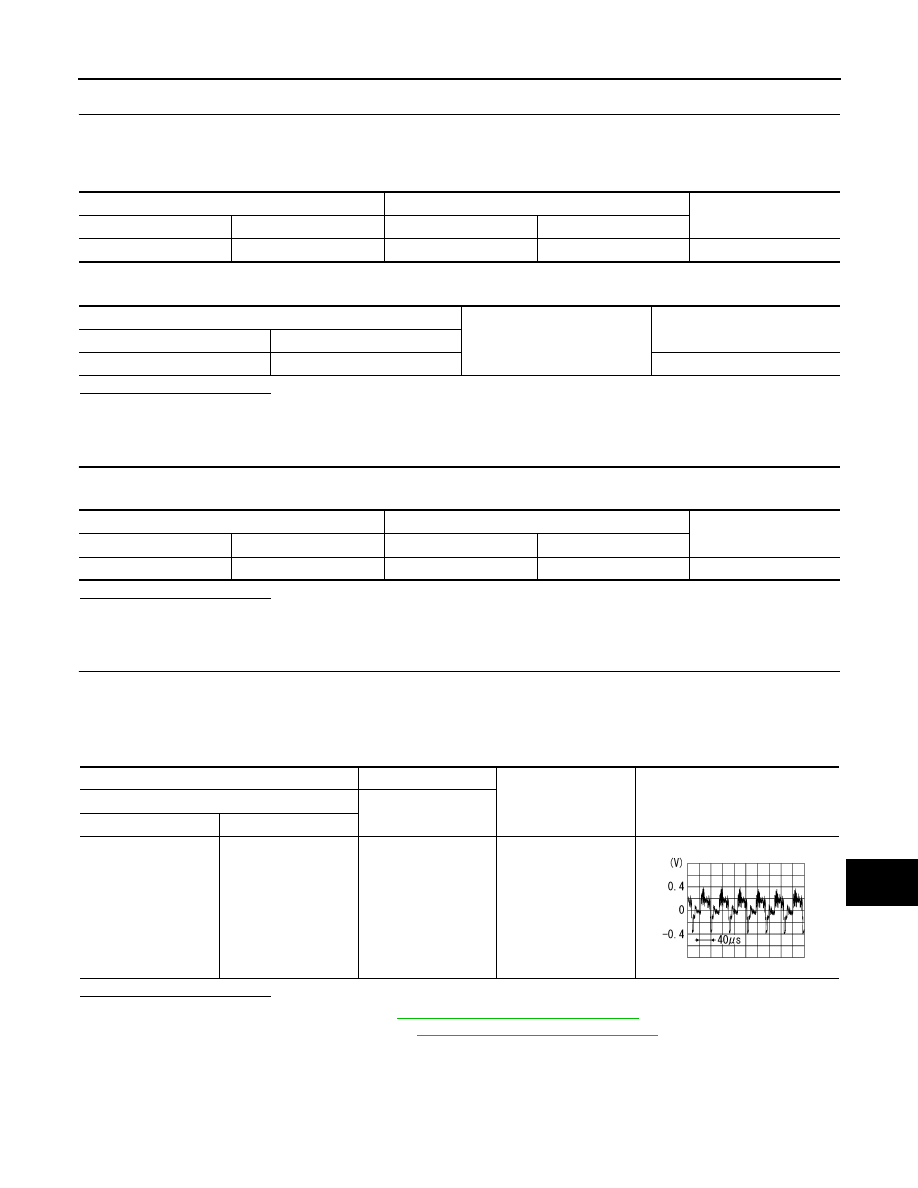

AV-157

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is the inspection result normal?

YES

>> Replace rear door speaker. Refer to

AV-180, "Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-178, "Removal and Installation"

.

4

5

Audio signal output

13

14

SKIB3609E

AV-158

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

REAR VIEW CAMERA IMAGE SIGNAL CIRCUIT

REAR VIEW CAMERA IMAGE SIGNAL CIRCUIT

Diagnosis Procedure

INFOID:0000000009460300

Regarding Wiring Diagram information, refer to

AV-121, "Wiring Diagram"

.

1.

CHECK REVERSE INPUT SIGNAL

1. Turn ignition switch ON.

2. Shift the selector lever to R (reverse).

3. Check voltage between AV control unit connector M71 and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK CAMERA POWER SUPPLY CIRCUIT CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect AV control unit connector M71 and rear view camera connector.

3. Check continuity between AV control unit connector M71 and rear view camera connector D501.

4. Check continuity between AV control unit connector M71 and ground.

Is inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

CHECK CAMERA POWER SUPPLY VOLTAGE

1. Connect AV control unit connector M71 and rear view camera connector.

2. Turn ignition switch ON.

3. Shift the selector lever to R (reverse).

4. Check voltage between AV control unit connector M71 and ground.

Is inspection result normal?

YES

>> GO TO 4.

NO

>> Replace AV control unit. Refer to

AV-178, "Removal and Installation"

.

AV control unit

Ground

Condition

Voltage

(Approx.)

(+)

(

−)

Connector

Terminal

M71

34

—

Selector lever in R (re-
verse)

Battery Voltage

AV control unit

Rear view camera

Continuity

Connector

Terminal

Connector

Terminal

M71

34

D501

2

Yes

AV control unit

Ground

Continuity

Connector

Terminal

M71

34

No

AV control unit

Ground

Condition

Voltage

(Approx.)

(+)

(

−)

Connector

Terminal

M71

36

—

Selector lever is in “R”.

6.0 V

AV

REAR VIEW CAMERA IMAGE SIGNAL CIRCUIT

AV-159

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

4.

CHECK CAMERA IMAGE SIGNAL CIRCUIT CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect AV control unit connector M71 and rear view camera connector.

3. Check continuity between AV control unit connector M71 and rear view camera connector D501.

4. Check continuity between AV control unit connector M71 and ground.

Is inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness or connectors.

5.

CHECK CAMERA GROUND CIRCUIT CONTINUITY

Check continuity between AV control unit connector M71 and rear view camera connector D501.

Is inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace harness or connectors.

6.

CHECK CAMERA IMAGE SIGNAL

1. Connect AV control unit connector M71 and rear view camera connector.

2. Turn ignition switch ON.

3. Shift the selector lever to R (reverse).

4. Check signal between AV control unit connector M71 and ground.

Is inspection result normal?

YES

>> Replace AV control unit. Refer to

AV-178, "Removal and Installation"

.

NO

>> Replace rear view camera. Refer to

AV-185, "Removal and Installation"

.

AV control unit

Rear view camera

Continuity

Connector

Terminal

Connector

Terminal

M71

36

D501

4

Yes

AV control unit

Ground

Continuity

Connector

Terminal

M71

36

No

AV control unit

Rear view camera

Continuity

Connector

Terminal

Connector

Terminal

M71

33

D501

1

Yes

AV control unit

Ground

Condition

Reference value

(+)

(

−)

Connector

Terminal

M71

33

—

Camera image dis-

played.

SKIB2251J
