[DISPLAY AUDIO]

AUDIO UNIT

35

(Y)

36

(Shield)

Camera image signal

Input

ON

Camera image displayed

44

(B)

Ground Camera detection

—

ON

—

0 V

46

(B)

Ground EQ02 Ground

—

ON

—

0 V

48

(B/W)

Ground EQ04 Ground

—

ON

—

0 V

50

(Y)

Ground Reverse signal

Input

ON

Selector lever in R (re-
verse)

Battery voltage

Selector lever in any posi-
tion other than R (reverse)

0 V

53

(W)

—

V BUS signal

—

—

—

—

54

(G)

—

USB ground

—

—

—

—

55

(L)

—

USB D+ signal

—

—

—

—

56

(R)

—

USB D

− signal

—

—

—

—

57

(Shield)

—

USB shield

—

—

—

—

58

(B)

Ground Antenna amp. ON signal

Output

ON

Audio unit ON, FM-AM se-
lected.

Battery voltage

59

(B)

Ground AM/FM antenna signal

Input

ON

Audio unit ON, FM-AM se-
lected.

5.0 V

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

SKIB2251J

AV

BLUETOOTH® CONTROL UNIT

AV-57

< ECU DIAGNOSIS INFORMATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BLUETOOTH® CONTROL UNIT

Reference Value

INFOID:0000000009460156

TERMINAL LAYOUT

PHYSICAL VALUES

AWNIA3057ZZ

Terminal

(wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

output

Ignition

switch

Operation

1

 (Y/G)

Ground Battery power

Input

OFF

–

Battery voltage

2

(L/Y)

Ground ACC power

Input

ACC

–

Battery voltage

3

(O)

Ground  IGN power

Input

ON

–

Battery voltage

4

(B)

Ground Ground

–

ON

–

0V

7

 (P)

8

(Shield)

MIC in signal

Input

–

–

–

9

(W)

10

(B)

Audio out

Output

ACC

or

ON

Bluetooth

®

 control unit

sends audio signal

12

(R)

14

(G)

LAD IN 1

Input

ON

Press SOURCE switch

 0V

Press

switch

1.0V

Press

switch

2.0V

Press

switch

3.0V

Except above

5.0V

13

(P)

14

(G)

LAD IN 2

Input

ON

Press

switch

0V

Press

switch

1.0V

Press

switch

2.0V

Except above

5.0V

SKIB3609E

AV-58

< ECU DIAGNOSIS INFORMATION >

[DISPLAY AUDIO]

BLUETOOTH® CONTROL UNIT

17

(BR)

19

(GR)

LAD OUT 1

Output

ON

Press SOURCE switch

 0V

Press

switch

1.0V

Press

switch

2.0V

Press

switch

3.0V

Except above

5.0V

18

(V)

19

(GR)

LAD OUT 2

Output

ON

Press

switch

0V

Press

switch

1.0V

Press

switch

2.0V

Except above

5.0V

20

(B)

Ground CONT1 Ground

–

ON

–

0V

22

(B)

Ground CONT3 Ground

–

ON

–

0V

23

(B)

Ground CONT4 Ground

–

ON

–

0V

24

(B)

Ground CONT5 Ground

–

ON

–

0V

27

(B)

Ground CONT6 Ground

–

ON

–

0V

28

 (Y)

Ground

Vehicle speed signal (2-
pulse)

Input

ON

When vehicle speed is ap-
prox. 40 km/h (25 MPH)

29

(L)

Ground Microphone power

Output

ON

–

5V

33

(SB)

–

AV communication (H)

–

–

–

—

34

(LG)

–

AV communication (L)

–

–

–

—

37

(LG)

–

AV communication jumper
(H)

–

–

–

—

38

(LG)

–

AV communication jumper
(H)

–

–

–

—

39

(SB)

–

AV communication jumper
(L)

–

–

–

—

40

(SB)

–

AV communication jumper
(L)

–

–

–

—

41

(B)

–

Bluetooth

®

 antenna

–

–

–

—

42

(Shield)

–

Shield

–

–

–

—

Terminal

(wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

output

Ignition

switch

Operation

PKIA1935E

AV

DISPLAY AUDIO

AV-59

< WIRING DIAGRAM >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

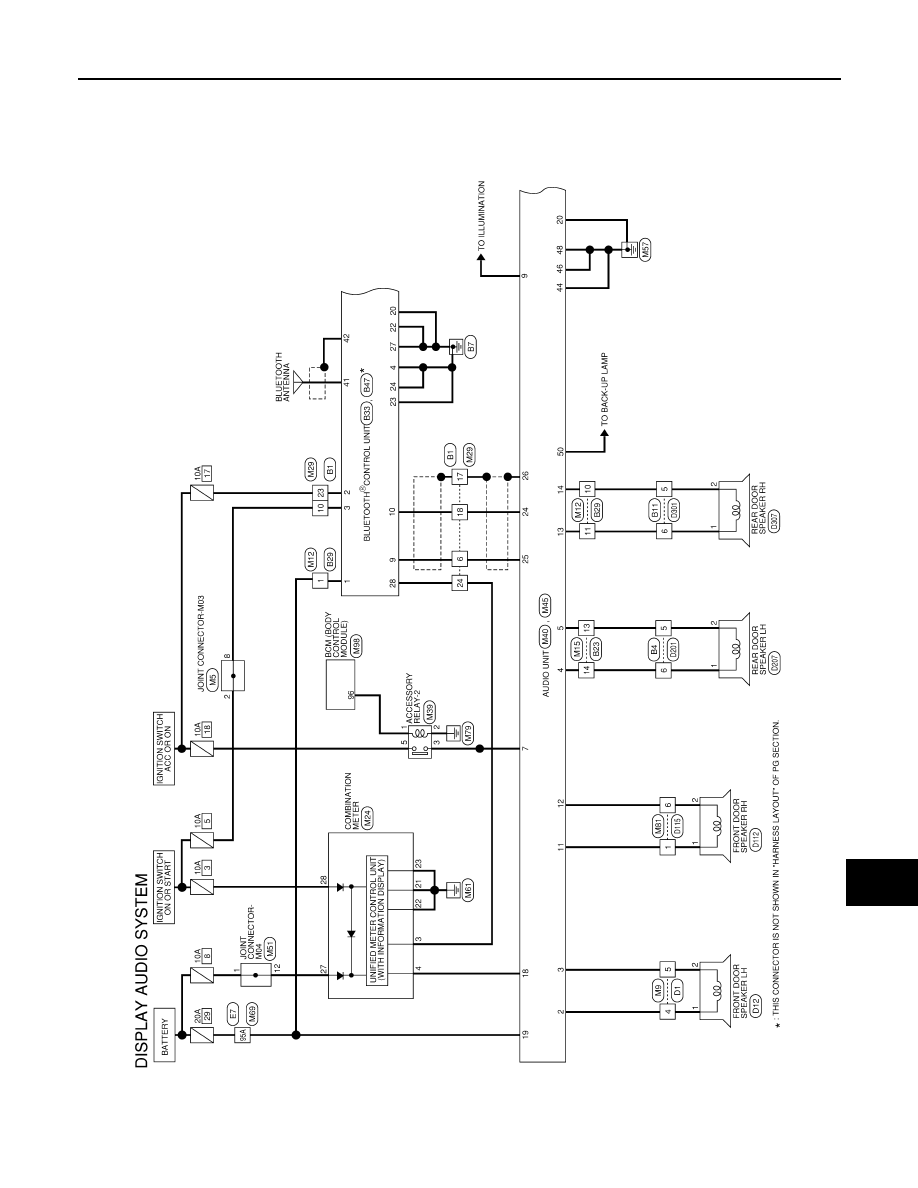

WIRING DIAGRAM

DISPLAY AUDIO

Wiring Diagram

INFOID:0000000009460157

AANWA0859GB
