PCS-54

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)

INFOID:0000000011455593

WORK SUPPORT

Support Item

Setting

Description

REMO CONT ID CONFIR

—

Keyfob ID code registration is displayed.

PCS

BCM

PCS-55

< ECU DIAGNOSIS INFORMATION >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000011277107

ECU

Reference

BCM (with Intelligent Key system)

BCS-28, "Reference Value"

BCS-46, "Fail Safe"

BCS-46, "DTC Inspection Priority Chart"

BCS-47, "DTC Index"

BCM (without Intelligent Key system)

BCS-96, "Reference Value"

BCS-107, "Fail Safe"

BCS-107, "DTC Inspection Priority Chart"

BCS-108, "DTC Index"

PCS-56

< WIRING DIAGRAM >

[POWER DISTRIBUTION SYSTEM]

POWER DISTRIBUTION SYSTEM

WIRING DIAGRAM

POWER DISTRIBUTION SYSTEM

Wiring Diagram

INFOID:0000000011277108

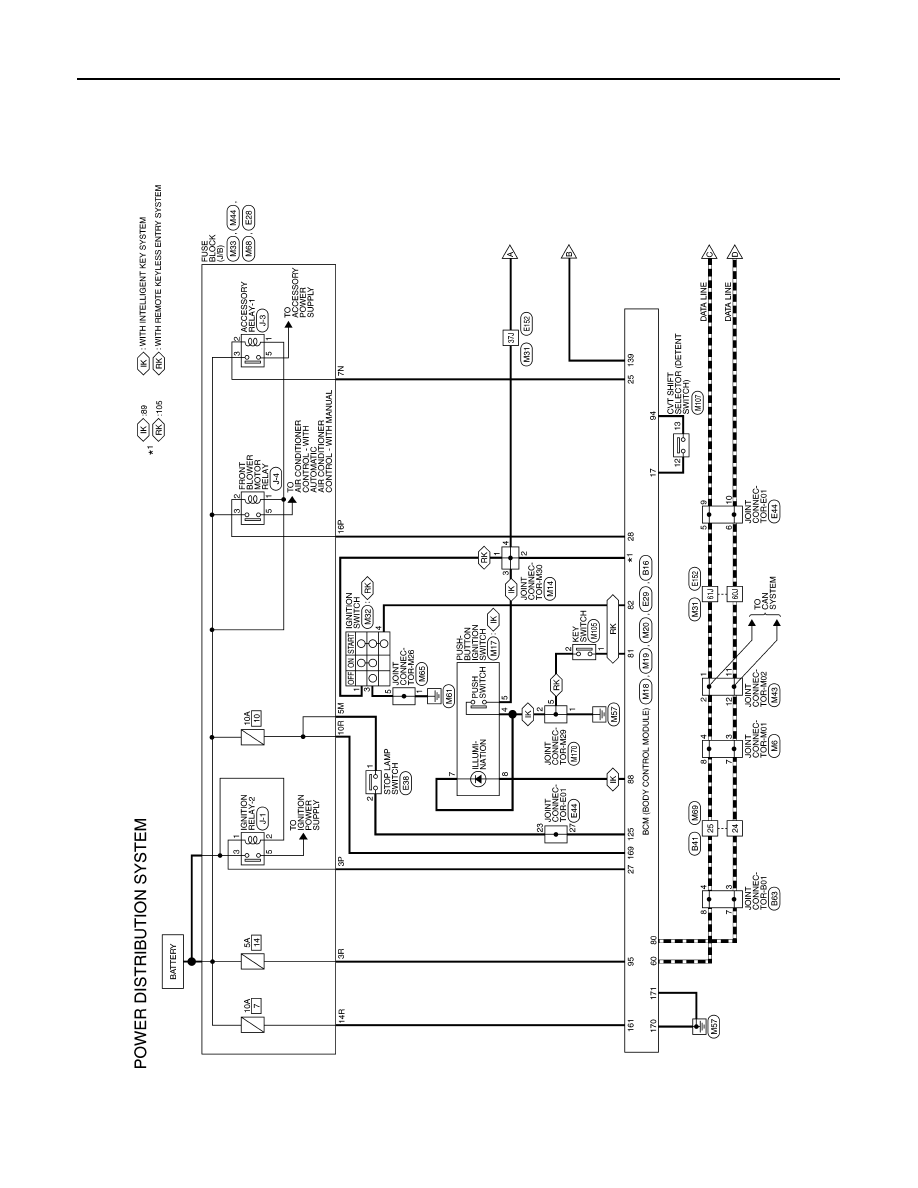

AAMWA1439GB

PCS

POWER DISTRIBUTION SYSTEM

PCS-57

< WIRING DIAGRAM >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

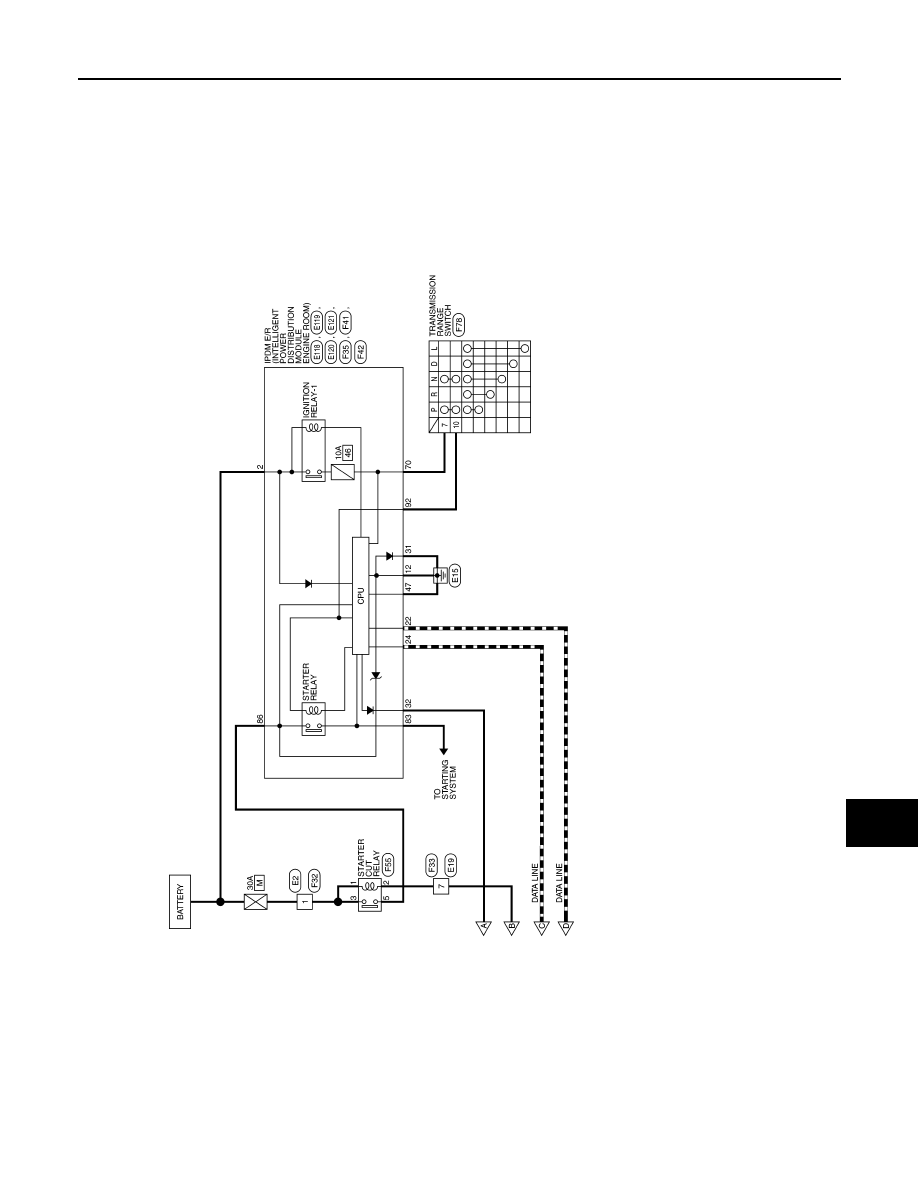

AAMWA1440GB
