Nissan Rogue. Manual - part 836





LAN

CAN SYSTEM

LAN-43

< WIRING DIAGRAM >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AAMIA2817GB

LAN-44

< BASIC INSPECTION >

[CAN]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

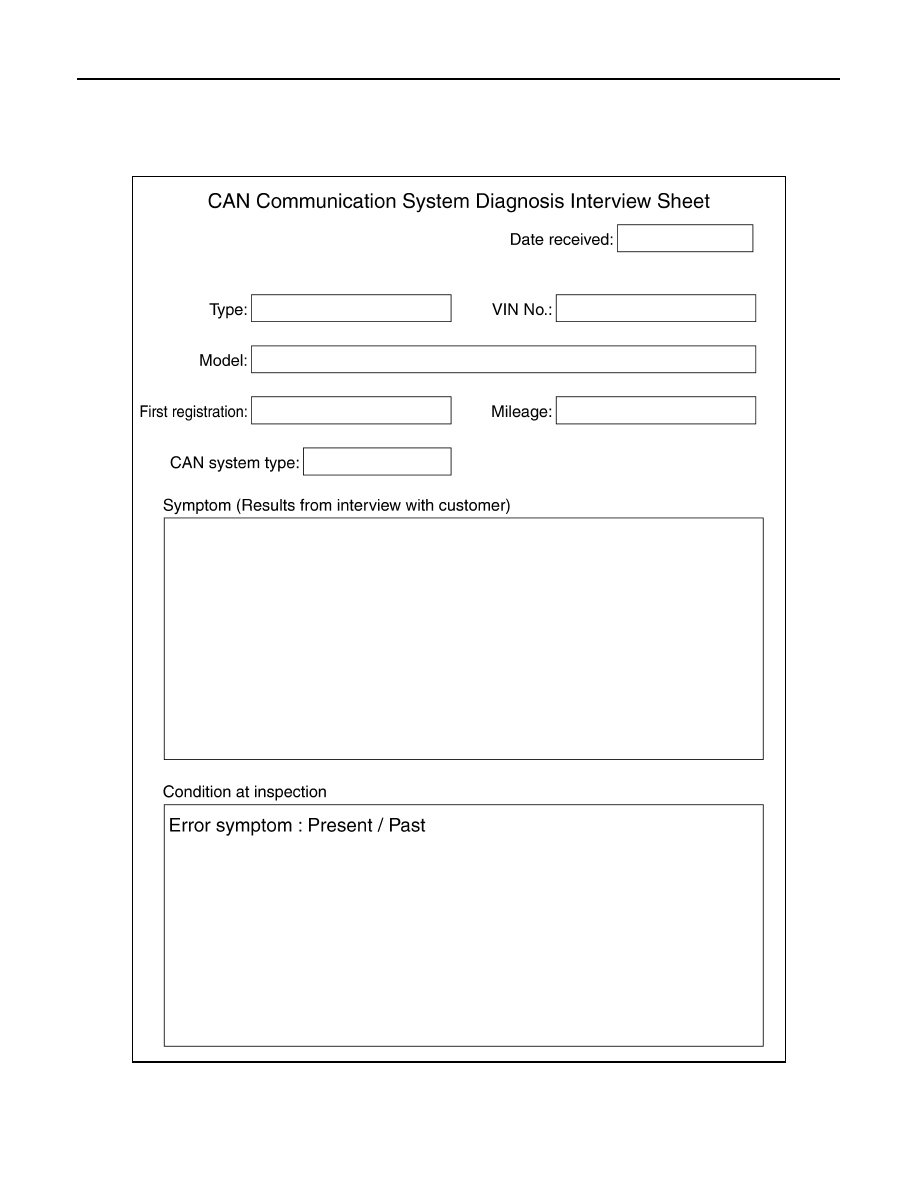

Interview Sheet

INFOID:0000000011277522

SKIB8898E

LAN

MALFUNCTION AREA CHART

LAN-45

< DTC/CIRCUIT DIAGNOSIS >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

DTC/CIRCUIT DIAGNOSIS

MALFUNCTION AREA CHART

Main Line

INFOID:0000000011277523

Branch Line

INFOID:0000000011277524

Short Circuit

INFOID:0000000011277525

Malfunction area

Reference

Main line between IPDM E/R and data link connector

LAN-46, "Diagnosis Procedure"

Main line between data link connector and chassis control module

LAN-47, "Diagnosis Procedure"

Main line between chassis control module and automatic back
door control module

LAN-48, "Diagnosis Procedure"

Main line between chassis control module and AWD control unit

LAN-49, "Diagnosis Procedure"

Malfunction area

Reference

ECM branch line circuit

LAN-50, "Diagnosis Procedure"

ABS actuator and electric unit (control unit) branch line circuit

LAN-51, "Diagnosis Procedure"

IPDM E/R branch line circuit

LAN-52, "Diagnosis Procedure"

TCM branch line circuit

LAN-53, "Diagnosis Procedure"

Data link connector branch line circuit

LAN-55, "Diagnosis Procedure"

Combination meter branch line circuit

LAN-56, "Diagnosis Procedure"

Air bag diagnosis sensor unit branch line circuit

LAN-57, "Diagnosis Procedure"

Chassis control module branch line circuit

LAN-58, "Diagnosis Procedure"

EPS control unit branch line circuit

LAN-59, "Diagnosis Procedure"

Steering angle sensor branch line circuit

LAN-60, "Diagnosis Procedure"

AWD control unit branch line circuit

LAN-61, "Diagnosis Procedure"

Automatic back door control module branch line circuit

LAN-62, "Diagnosis Procedure"

BCM branch line circuit

LAN-63, "Diagnosis Procedure"

AV control unit branch line circuit

LAN-64, "Diagnosis Procedure"

Around view monitor control unit branch line circuit

LAN-65, "Diagnosis Procedure"

A/C auto amp. branch line circuit

LAN-66, "Diagnosis Procedure"

Front air control branch line circuit

Distance sensor branch line circuit

LAN-68, "Diagnosis Procedure"

Malfunction area

Reference

CAN communication circuit 1

LAN-69, "Diagnosis Procedure"

CAN communication circuit 2

LAN-71, "Diagnosis Procedure"

LAN-46

< DTC/CIRCUIT DIAGNOSIS >

[CAN]

MAIN LINE BETWEEN IPDM-E AND DLC CIRCUIT

MAIN LINE BETWEEN IPDM-E AND DLC CIRCUIT

Diagnosis Procedure

INFOID:0000000011277526

1.

CHECK CONNECTOR

1. Turn the ignition switch OFF.

2. Disconnect the battery cable from the negative terminal.

3. Check the following terminals and connectors for damage, bend and loose connection (connector side

and harness side).

-

Harness connector E152

-

Harness connector M31

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1. Disconnect the following harness connectors.

-

IPDM E/R

-

Harness connectors E152 and M31

2. Check the continuity between the IPDM E/R harness connector and the harness connector.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair the main line between the IPDM E/R and the harness connector E152.

3.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

Check the continuity between the harness connector and the data link connector.

Is the inspection result normal?

YES (Present error)>>Check CAN system type decision again.

YES (Past error)>>Error was detected in the main line between the IPDM E/R and the data link connector.

NO

>> Repair the main line between the harness connector M31 and the data link connector.

IPDM E/R harness connector

Harness connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

E120

24

E152

61J

Existed

22

60J

Existed

Harness connector

Data link connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

M31

61J

M22

6

Existed

60J

14

Existed
