TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

EXL-185

< WIRING DIAGRAM >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

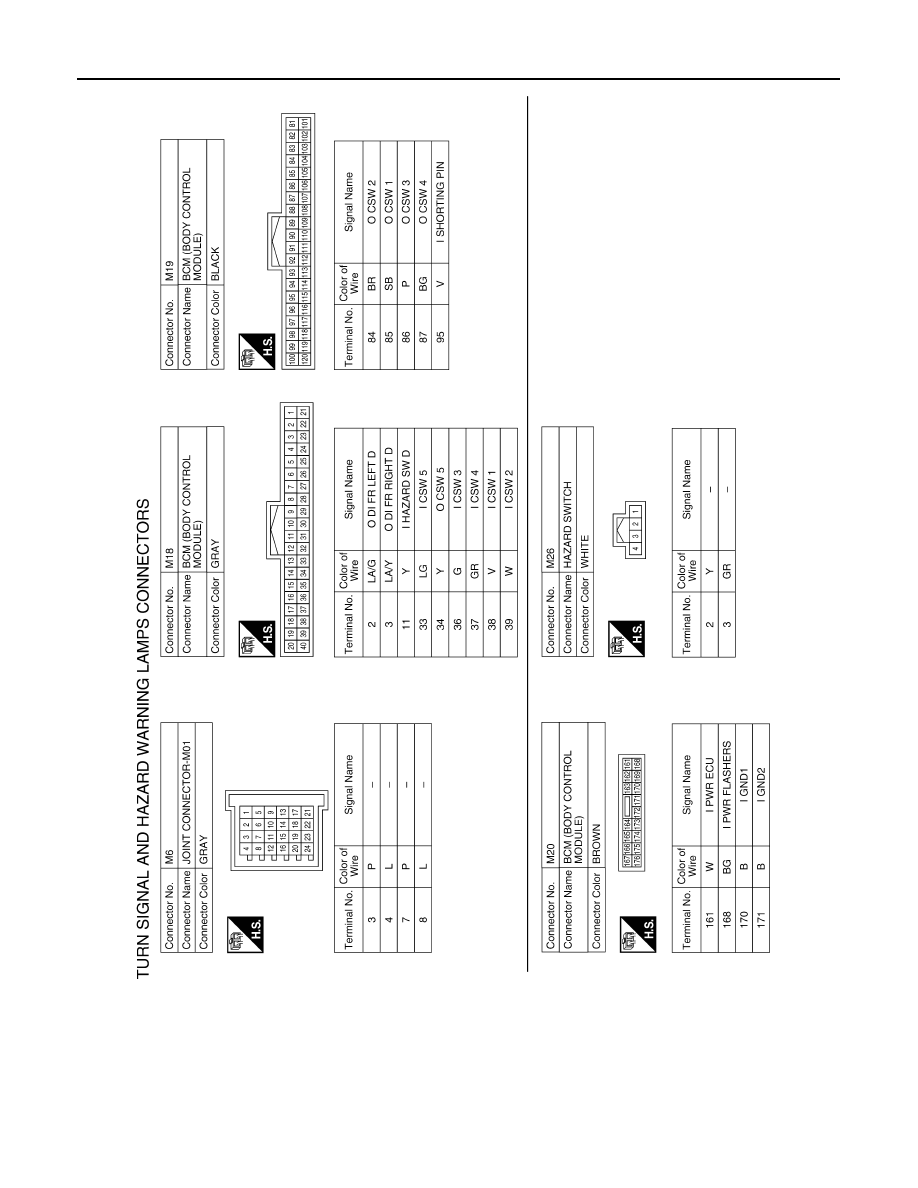

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

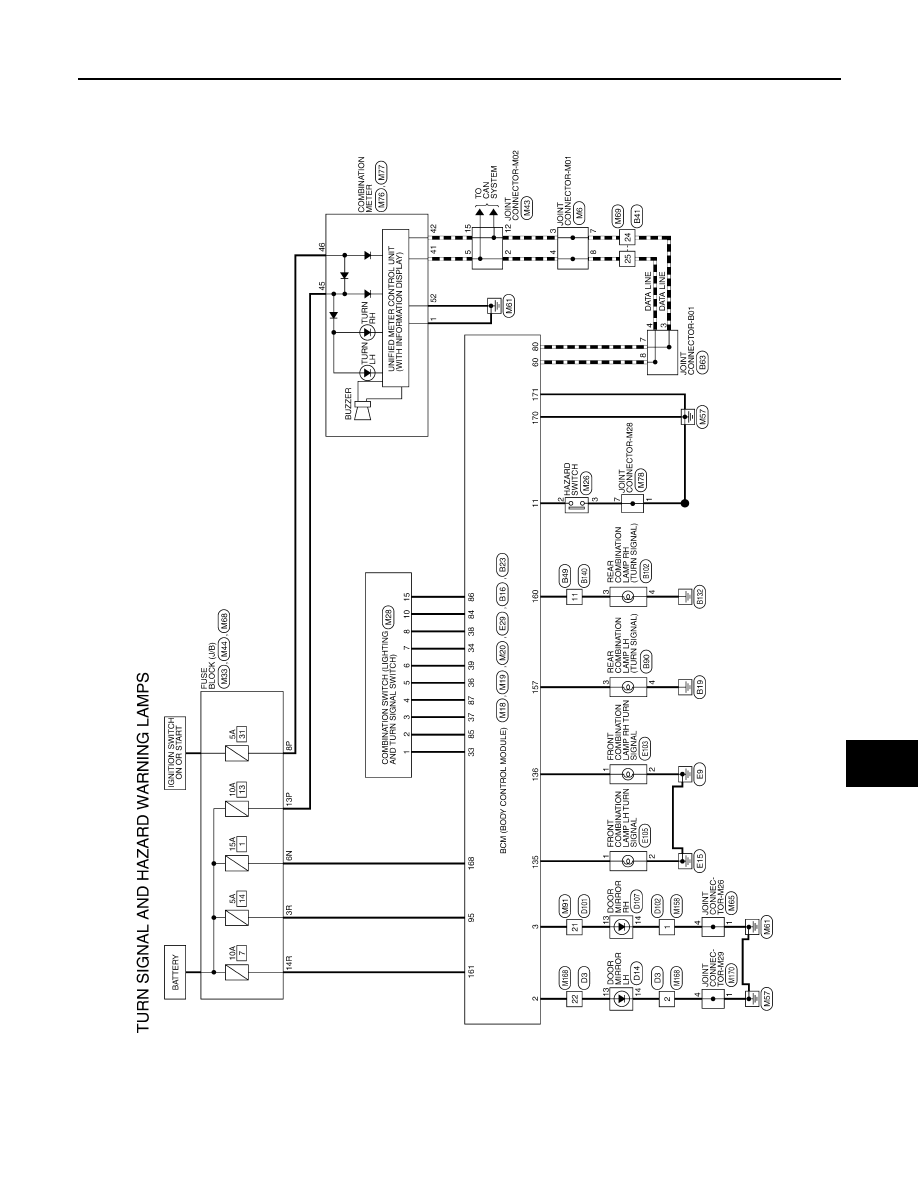

Wiring Diagram

INFOID:0000000011379512

AALWA1041GB

EXL-186

< WIRING DIAGRAM >

[LED HEADLAMP]

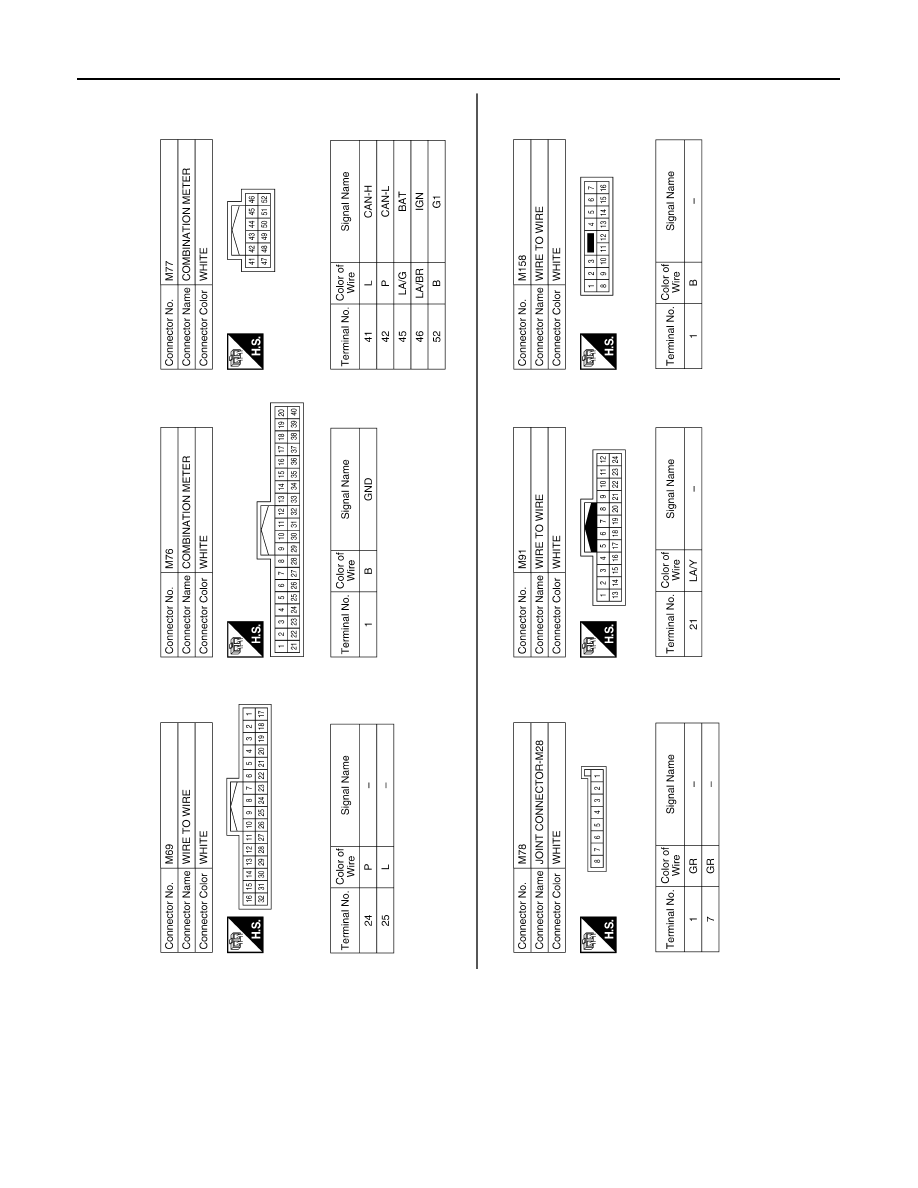

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

AALIA2949GB

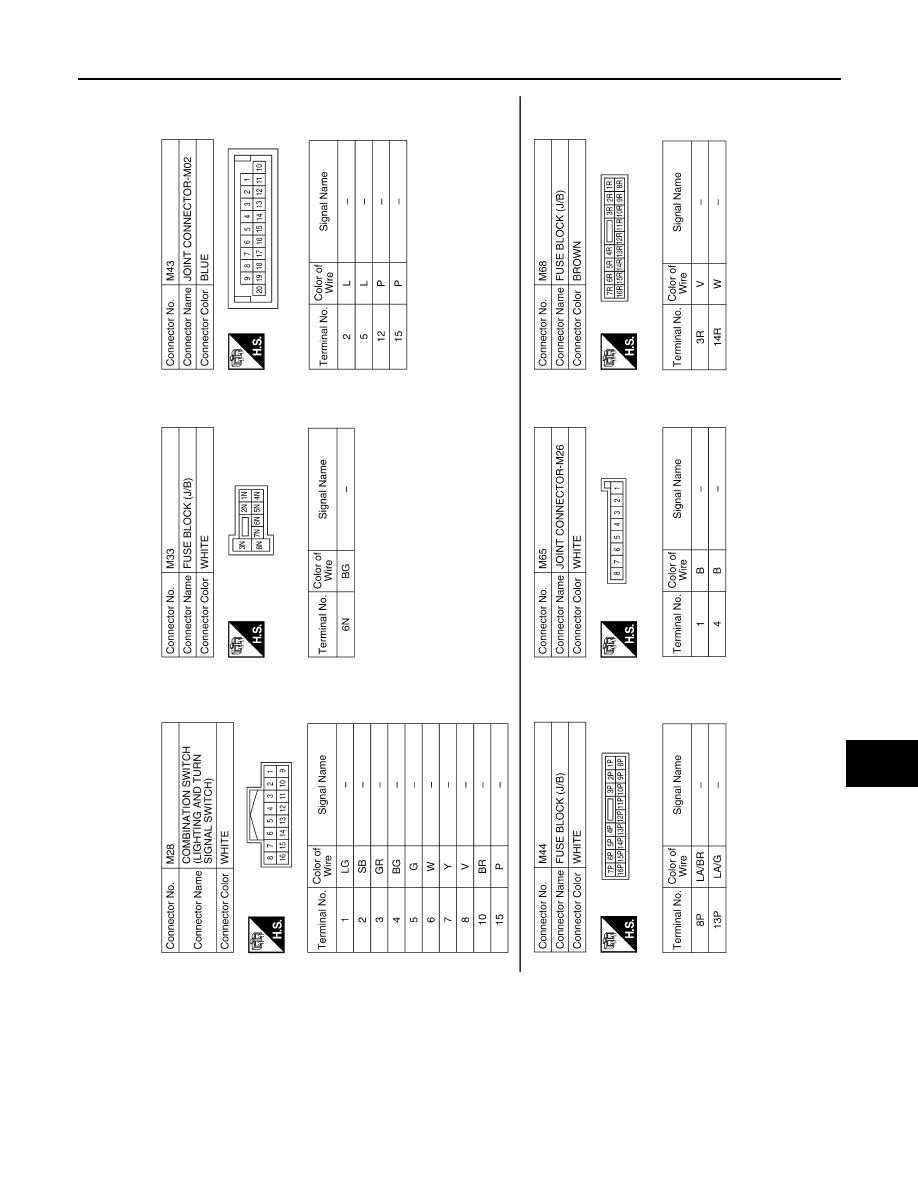

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

EXL-187

< WIRING DIAGRAM >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

AALIA2950GB

EXL-188

< WIRING DIAGRAM >

[LED HEADLAMP]

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

AALIA2980GB
