LICENSE PLATE LAMP

EXL-133

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

CAUTION:

• Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

REMOVAL

1. Remove license plate lamp. Refer to

EXL-132, "Removal and Installation"

.

2. Rotate license plate lamp bulb socket counterclockwise and remove.
3. Remove license plate lamp bulb from bulb socket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install the bulb socket securely for watertightness.

EXL-134

< UNIT DISASSEMBLY AND ASSEMBLY >

[HALOGEN HEADLAMP]

FRONT COMBINATION LAMP

UNIT DISASSEMBLY AND ASSEMBLY

FRONT COMBINATION LAMP

Exploded View

INFOID:0000000011280806

Disassembly and Assembly

INFOID:0000000011280807

DISASSEMBLY

1. Remove front combination lamp. Refer to

EXL-119, "Removal and Installation"

.

2. Rotate the headlamp (low beam) bulb counterclockwise and remove.
3. Disconnect the harness connector from headlamp (low beam) bulb.
4. Remove plastic cover.
5. Rotate the headlamp (high beam) bulb counterclockwise and remove.
6. Disconnect the harness connector from headlamp (high beam) bulb.
7. Rotate the side marker lamp bulb socket counterclockwise and remove.
8. Remove the side marker lamp bulb from the bulb socket.
9. Rotate the turn signal lamp bulb socket counterclockwise and remove.
10. Remove the turn signal lamp bulb from the bulb socket.

ASSEMBLY

Assembly is in the reverse order of disassembly.

CAUTION:

After installing, be sure to install the bulb sockets securely to ensure watertightness.

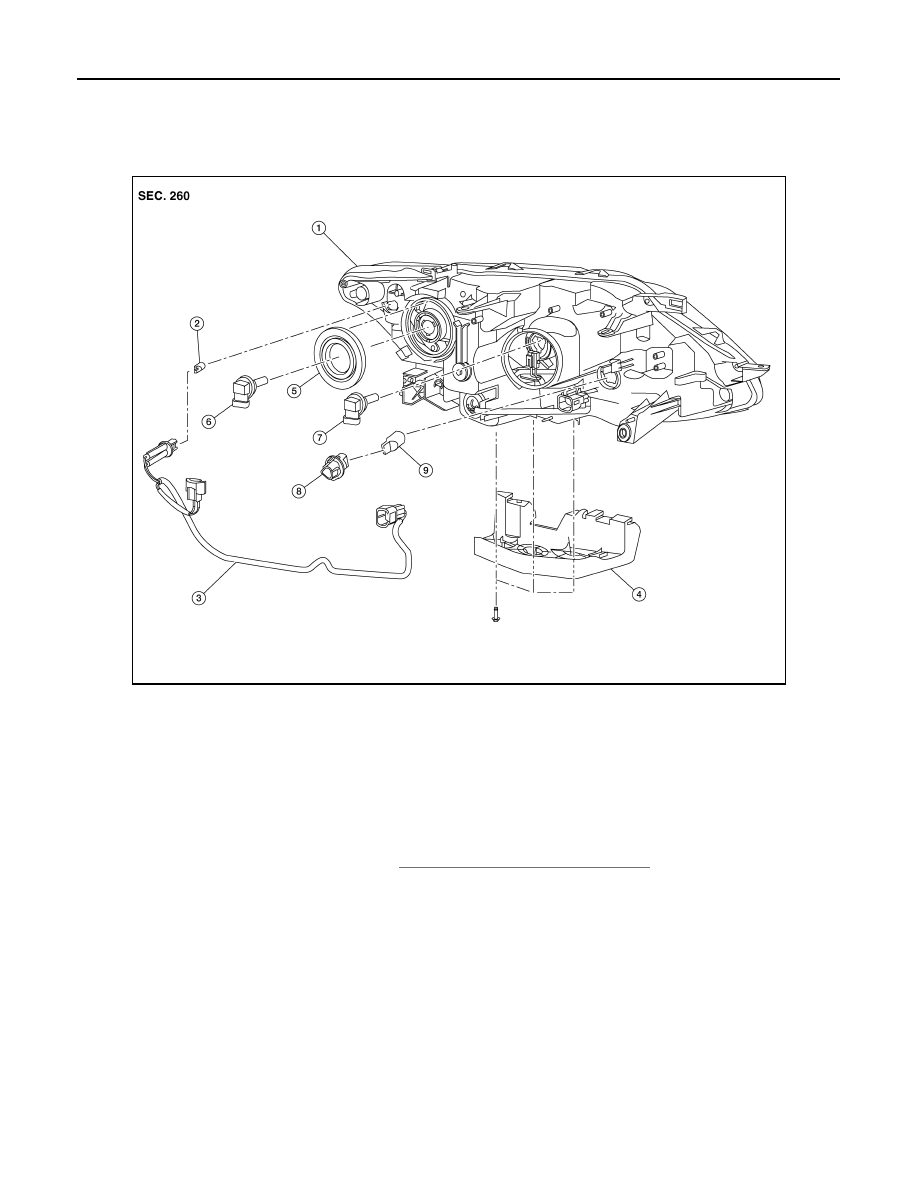

ALLIA1594ZZ

1.

Front combination lamp

2. Side marker lamp bulb

3. Front combination lamp harness

4.

Front combination lamp
mounting bracket

5. Headlamp (low beam) socket cover 6. Headlamp (low beam) bulb

7.

Headlamp (high beam) bulb

8. Turn signal lamp bulb socket

9. Turn signal lamp bulb

REAR COMBINATION LAMP

EXL-135

< UNIT DISASSEMBLY AND ASSEMBLY >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REAR COMBINATION LAMP

Exploded View

INFOID:0000000011280808

Disassembly and Assembly

INFOID:0000000011280809

DISASSEMBLY

1. Remove rear combination lamp. Refer to

EXL-127, "Removal and Installation"

.

2. Rotate the stop lamp bulb socket counterclockwise and remove.
3. Remove the stop lamp bulb from the bulb socket.
4. Rotate the tail lamp bulb socket counterclockwise and remove.
5. Remove the tail lamp bulb from the bulb socket.
6. Rotate the turn signal lamp bulb socket counterclockwise and remove.
7. Remove the turn signal lamp bulb from bulb socket.

ASSEMBLY

Assembly is in the reverse order of disassembly.

CAUTION:

After installing, be sure to install the bulb sockets securely to ensure watertightness.

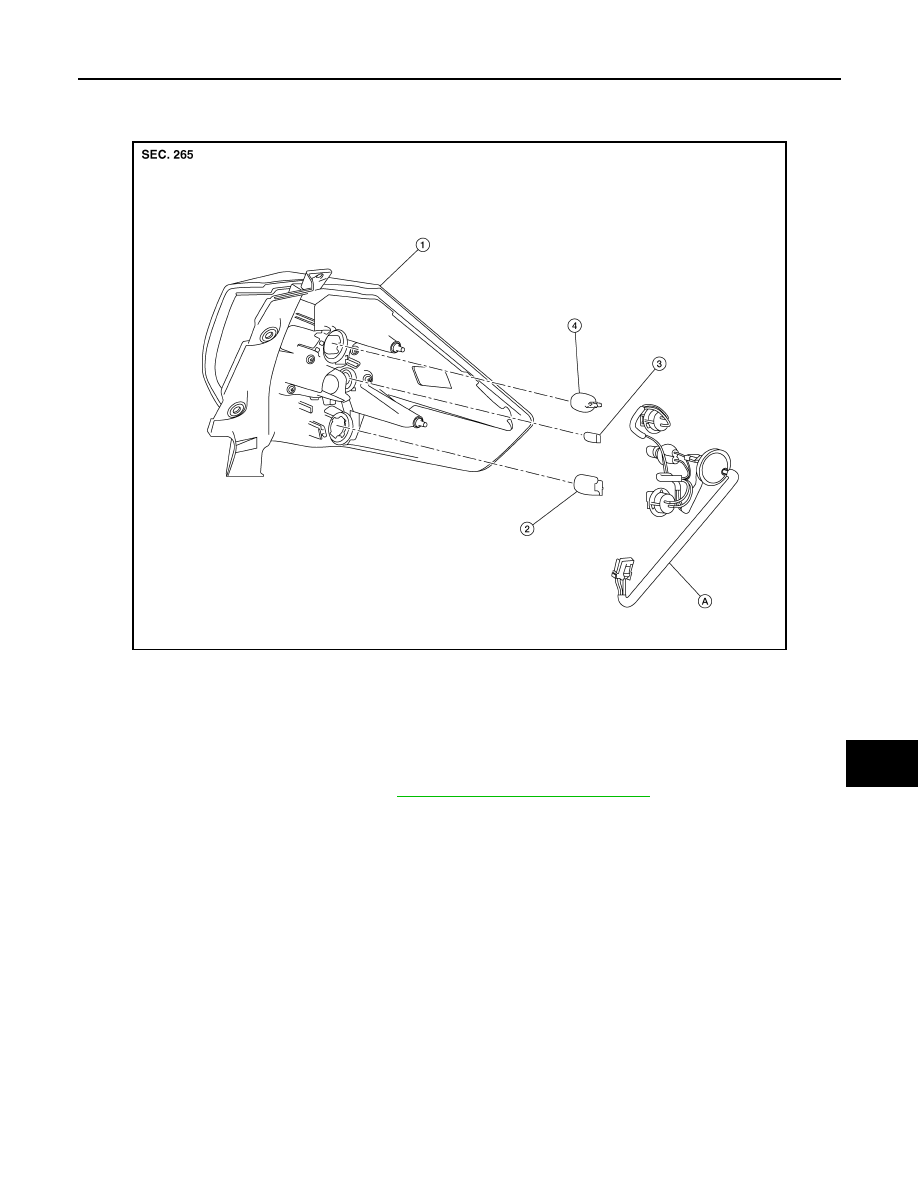

AWLIA2341ZZ

1. Rear combination lamp

2.

Turn signal lamp bulb

3. Tail lamp bulb

4. Stop lamp bulb

A. Rear combination lamp harness

EXL-136

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HALOGEN HEADLAMP]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000011280810

*: Always check with the Parts Department for the latest parts info.

Item

Wattage (W)*

Front combination lamp

High beam

65

Low beam

55

Turn signal lamp

28/8

Side marker lamp

5

Daytime running lamp

—

Front fog lamp (if equipped)

55

Side turn signal lamp

—

Rear combination lamp

Stop lamp

21

Tail lamp

5

Turn signal lamp

21

Back-up lamp

Tail lamp

5

Back-up lamp

16

License plate lamp

5

High-mounted stop lamp

—
