DIAGNOSIS AND REPAIR WORKFLOW

EXL-81

< BASIC INSPECTION >

[HALOGEN HEADLAMP]

EXL

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000011280732

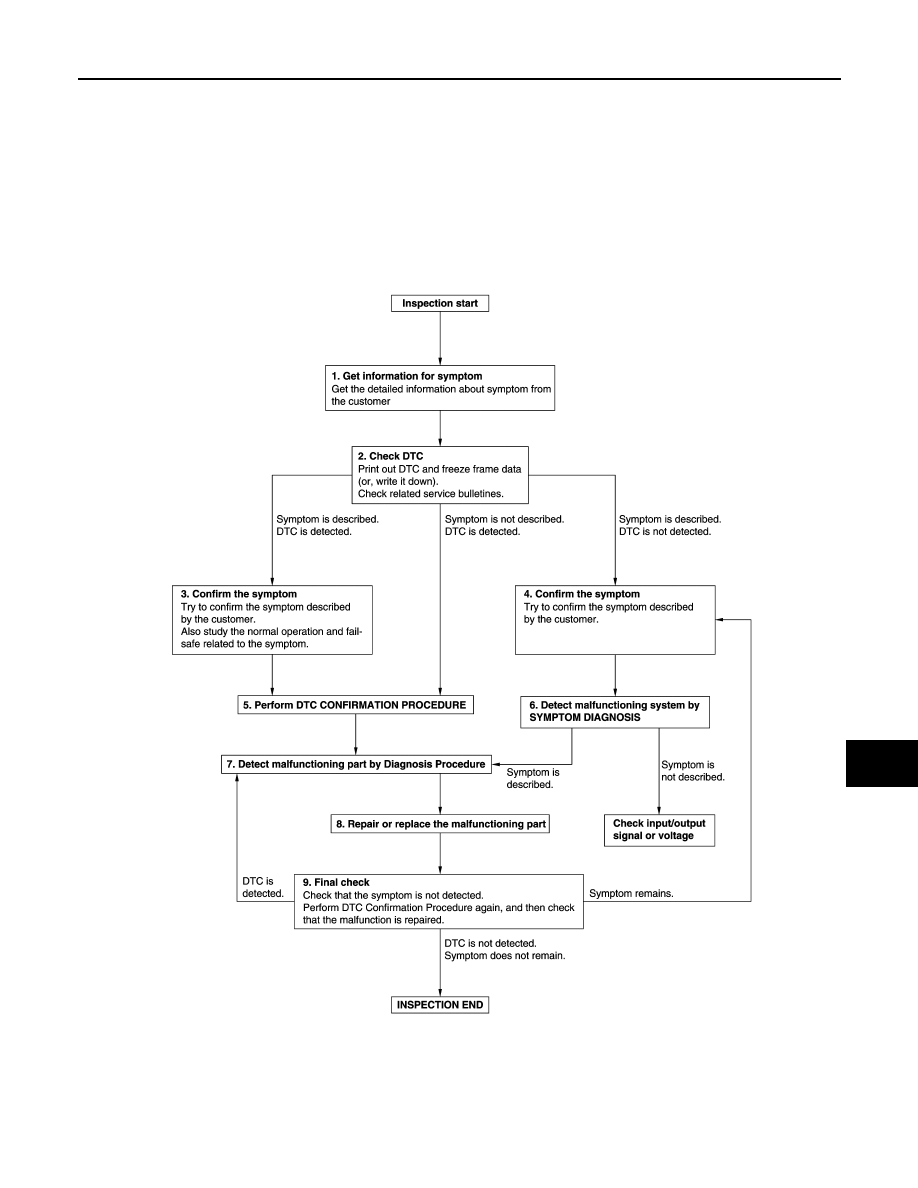

OVERALL SEQUENCE

DETAILED FLOW

JMKIA8652GB

EXL-82

< BASIC INSPECTION >

[HALOGEN HEADLAMP]

DIAGNOSIS AND REPAIR WORKFLOW

GET INFORMATION FOR SYMPTOM

1. Get detailed information from the customer about the symptom (the condition and the environment when

the incident/malfunction occurs).

2. Check operation condition of the function that is malfunctioning.

>> GO TO 2.

CHECK DTC

1. Check DTC.

2. Perform the following procedure if DTC is detected:

Record DTC and freeze frame data (Print them out using CONSULT.)

Erase DTC.

Study the relationship between the cause detected by DTC and the symptom described by the customer.

3. Check related service bulletins for information.
Are any symptoms described and any DTC detected?

Symptom is described, DTC is detected>>GO TO 3.

Symptom is described, DTC is not detected>>GO TO 4.

Symptom is not described, DTC is detected>>GO TO 5.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

Also study the normal operation and fail-safe related to the symptom.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the detected DTC, and then check that DTC is detected

again. At this time, always connect CONSULT to the vehicle, and check self diagnostic results in real time.

If two or more DTCs are detected, refer to

BCS-46, "DTC Inspection Priority Chart"

(BCM) (with Intelligent

Key System) or

BCS-107, "DTC Inspection Priority Chart"

(BCM) (without Intelligent Key System) or

PCS-

14, "Reference Value"

(IPDM E/R), and determine trouble diagnosis order.

NOTE:

• Freeze frame data is useful if the DTC is not detected.

• Perform Component Function Check if DTC CONFIRMATION PROCEDURE is not included on Service

Manual. This simplified check procedure is an effective alternative though DTC cannot be detected during

this check.

If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIR-

MATION PROCEDURE.

Is DTC detected?

YES

>> GO TO 7.

>> Check according to

GI-44, "Intermittent Incident"

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM DIAGNOSIS

Detect malfunctioning system according to SYMPTOM DIAGNOSIS based on the confirmed symptom in step

4, and determine the trouble diagnosis order based on possible causes and symptom.
Is the symptom described?

YES

>> GO TO 7.

>> Monitor input data from related sensors or check voltage of related module terminals using CON-

SULT.

DIAGNOSIS AND REPAIR WORKFLOW

EXL-83

< BASIC INSPECTION >

[HALOGEN HEADLAMP]

EXL

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.
Is malfunctioning part detected?

YES

>> GO TO 8.

>> Check according to

GI-44, "Intermittent Incident"

REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnostic Procedure again after repair and replace-

ment.

3. Check DTC. If DTC is detected, erase it.

>> GO TO 9.

FINAL CHECK

When DTC is detected in step 2, perform DTC CONFIRMATION PROCEDURE again, and then check that the

malfunction is repaired securely.

When symptom is described by the customer, refer to confirmed symptom in step 3 or 4, and check that the

symptom is not detected.
Is DTC detected and does symptom remain?

YES-1 >> DTC is detected: GO TO 7.

YES-2 >> Symptom remains: GO TO 4.

>> Before returning the vehicle to the customer, always erase DTC.

EXL-84

< BASIC INSPECTION >

[HALOGEN HEADLAMP]

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000011280733

CAUTION:

• When the IPDM E/R is replaced or disconnected and reconnected, perform “SENSOR INITIALIZE”

with CONSULT.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000011280734

SENSOR INITIALIZE

CONSULT WORK SUPPORT

Perform “SENSOR INITIALIZE”. Refer to

EXL-84, "SENSOR INITIALIZE : Special Repair Requirement"

>> Work End.

SENSOR INITIALIZE
SENSOR INITIALIZE : Description

INFOID:0000000011280735

HEADLAMP AIMING CONTROL SYSTEM

Perform the sensor initialize when installing, removing and replacing the auto levelizer control unit or suspen-

sion components.

SENSOR INITIALIZE : Special Repair Requirement

INFOID:0000000011280736

CAUTION:

When performing aiming adjustment after the levelizer initialization, be sure to start the engine after

turning ignition switch OFF.

VEHICLE CONDITION CHECK

1. Park the vehicle in the straight-forward position.

2. Unload the vehicle (no passenger aboard).

>> GO TO 2.

SENSOR INITIALIZE

CONSULT WORK SUPPORT

1. Select “SENSOR INITIALIZE” in “Work Support” of “IPDM E/R”.

2. Select “START”.

3. When “INITIALIZE COMPLETE”, select “END”.

CAUTION:

If “INITIALIZE NOT DONE” is indicated, auto levelizer control unit detects that the sensor lever sig-

nal was changing. The sensor initialization is cancelled. In this case, turn the ignition switch OFF,

do not allow the vehicle height to change. Perform the sensor initialization again.

Is the sensor initialize completed?

YES

>> GO TO 3.

>> Perform the sensor initialize again.

SELF DIAGNOSTIC RESULT CHECK

Perform the “Self Diagnostic Result” with CONSULT. Check that any DTC is not detected.
Is any DTC detected?

YES

>> GO TO 2.

>> Sensor initialize completed.
