EC-484

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

ON BOARD REFUELING VAPOR RECOVERY (ORVR)

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace refueling EVAP vapor cut valve with fuel tank. Refer to

FL-11, "FWD : Removal and

Installation"

  (with FWD models)

FL-15, "AWD : Removal and Installation"

 (with AWD models).

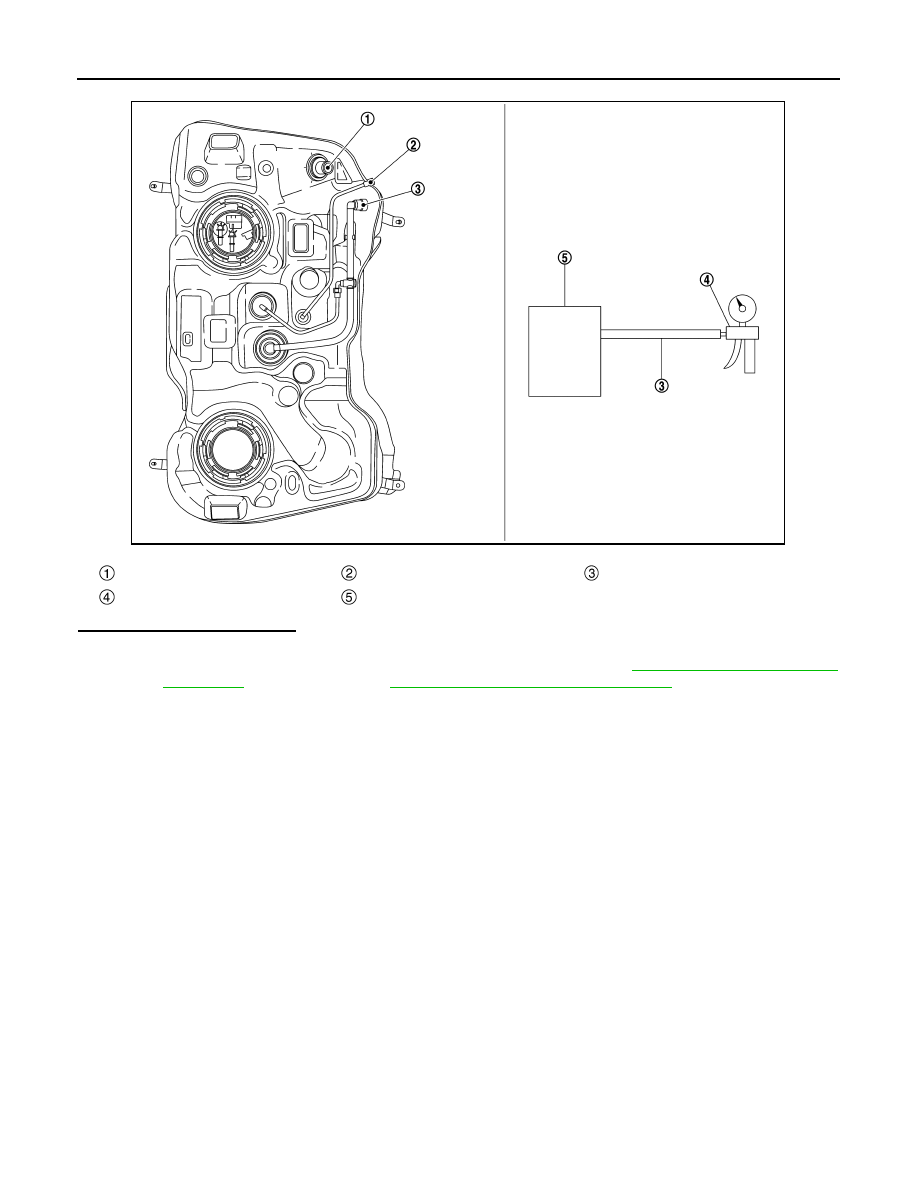

Filler tube

Recirculation line

EVAP/ORVR line

Vacuum/pressure handy pump

Fuel tank

JSBIA4497ZZ

REFRIGERANT PRESSURE SENSOR

EC-485

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

REFRIGERANT PRESSURE SENSOR

Component Function Check

INFOID:0000000011278200

1.

CHECK REFRIGERANT PRESSURE SENSOR FUNCTION

1. Start engine and warm it up to normal operating temperature.

2. Turn A/C switch and blower fan switch ON.

3. Check the voltage between ECM harness connector terminals under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-485, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000011278201

1.

CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY

1. Disconnect refrigerant pressure sensor harness connector.

2. Turn ignition switch ON.

3. Check the voltage between refrigerant pressure sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between refrigerant pressure sensor harness connector and ECM harness connec-

tor.

Is the inspection result normal?

YES

>> Perform the trouble diagnosis for power supply circuit.

NO

>> Repair or replace error-detected parts.

3.

CHECK REFRIGERANT PRESSURE SENSOR GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between refrigerant pressure sensor harness connector and ECM harness connec-

tor.

ECM

Voltage (V)

Connector

+

–

Terminal

E16

103

124

1.0 - 4.0

+

-

Voltage

(Approx.)

Refrigerant pressure sensor

Connector

Terminal

F10

3

Ground

5 V

+

-

Continuity

Refrigerant pressure sensor

ECM

Connector

Terminal

Connector

Terminal

F10

3

E16

104

Existed

EC-486

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

REFRIGERANT PRESSURE SENSOR

4. Also check harness for short to power.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace error-detected parts.

4.

CHECK REFRIGERANT PRESSURE SENSOR INPUT SIGNAL CIRCUIT

1. Check the continuity between refrigerant pressure sensor harness connector and ECM harness connec-

tor.

2. Also check harness for short to ground and to power.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace error-detected parts.

5.

CHECK INTERMITTENT INCIDENT

Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace refrigerant pressure sensor. Refer to

HAC-108, "Removal and Installation"

 (with auto-

matic air conditioner) or

HAC-184, "Removal and Installation"

 (with manual air conditioner).

NO

>> Repair or replace error-detected parts.

+

-

Continuity

Refrigerant pressure sensor

ECM

Connector

Terminal

Connector

Terminal

F10

1

E16

124

Existed

+

-

Continuity

Refrigerant pressure sensor

ECM

Connector

Terminal

Connector

Terminal

F10

2

E16

103

Existed

SENSOR POWER SUPPLY2 CIRCUIT

EC-487

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

SENSOR POWER SUPPLY2 CIRCUIT

Description

INFOID:0000000011278202

ECM supplies a voltage of 5 V to some of the sensors systematically divided into 2 groups, respectively.

Accordingly, when a short circuit develops in a sensor power source, a malfunction may occur simultaneously

in the sensors belonging to the same group as the short-circuited sensor.

Sensor power supply 1

• APP sensor 1

• CKP sensor (POS)

• Intake manifold runner control valve position sensor

• Refrigerant pressure sensor

• TP sensor

NOTE:

If sensor power supply 1 circuit is malfunctioning, DTC P0643 is displayed.

Sensor power supply 2

• APP sensor 2

• CMP sensor (PHASE)

• EVT control position sensor

• EOP sensor

• MAF sensor

Diagnosis Procedure

INFOID:0000000011278203

1.

CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-1

1. Turn ignition switch OFF.

2. Disconnect accelerator pedal position (APP) sensor harness connector.

3. Turn ignition switch ON.

4. Check the voltage between APP sensor harness connector and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-2

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between APP sensor harness connector and ECM harness connector.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair open circuit.

3.

CHECK SENSOR POWER SUPPLY 2 CIRCUIT

1. Disconnect following sensors harness connector.

2. Check harness for short to power and short to ground, between the following terminals.

+

-

Voltage

(Approx.)

APP sensor

Connector

Terminal

E25

5

Ground

 5V

+

+

Continuity

APP sensor

ECM

Connector

Terminal

Connector

Terminal

E25

5

E16

118

Existed
