Nissan Rogue. Manual - part 497





EC-256

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

P0139 HO2S2

Component Inspection

INFOID:0000000011277993

1.

INSPECTION START

Do you have CONSULT?
Do you have CONSULT?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK HEATED OXYGEN SENSOR 2

With CONSULT

1. Turn ignition switch ON and select “DATA MONITOR” mode of “ENGINE” using CONSULT.

2. Start engine and warm it up to normal operating temperature.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.

5. Let engine idle for 1 minute.

6. Select “FUEL INJECTION” in “ACTIVE TEST” mode of “ENGINE” using CONSULT, and select “HO2S2

(B1)” as the monitor item with CONSULT.

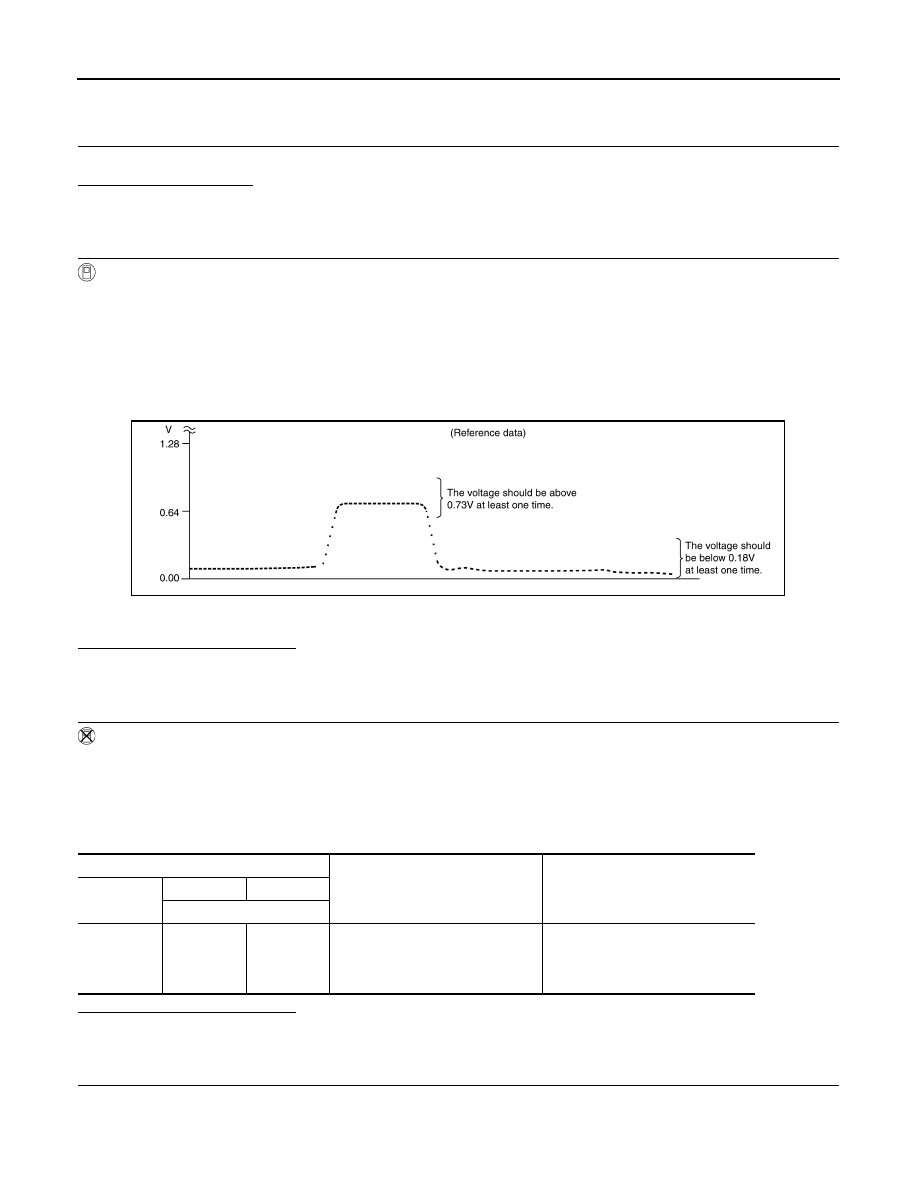

7. Check “HO2S2 (B1)” at idle speed when adjusting “FUEL INJECTION” to

± 25%.

“HO2S2 (B1)” should be above 0.73 V at least once when the “FUEL INJECTION” is + 25%.

“HO2S2 (B1)” should be below 0.18 V at least once when the “FUEL INJECTION” is

 25%.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 6.

3.

CHECK HEATED OXYGEN SENSOR 2-1

Without CONSULT

1. Start engine and warm it up to normal operating temperature.

2. Turn ignition switch OFF and wait at least 10 seconds.

3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.

4. Let engine idle for 1 minute.

5. Check the voltage between ECM harness connector and ground as per the following condition.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 4.

4.

CHECK HEATED OXYGEN SENSOR 2-2

Check the voltage between ECM harness connector and ground as per the following condition.

JPBIA5998GB

ECM

Condition

Voltage

Connector

+

Terminal

F51

22

23

Revving up to 4,000 rpm under no
load at least 10 times

The voltage should be above 0.73 V
at least once during this procedure.
The voltage should be below 0.18 V
at least once during this procedure.

P0139 HO2S2

EC-257

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 5.

5.

CHECK HEATED OXYGEN SENSOR 2-3

Check the voltage between ECM harness connector and ground as per the following condition.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 6.

6.

REPLACE HEATED OXYGEN SENSOR 2

Replace heated oxygen sensor 2. Refer to

EX-5, "Exploded View"

.

CAUTION:

• Discard any sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard

surface such as a concrete floor; use a new one.

• Before installing new sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner

[commercial service tool (J-43897-18 or J43897-12)] and approved Anti-seize Lubricant (commercial

service tool).

>> INSPECTION END

ECM

Condition

Voltage

Connector

+

Terminal

F51

22

23

Keeping engine speed at idle for 10
minutes

The voltage should be above 0.73 V
at least once during this procedure.
The voltage should be below 0.18 V
at least once during this procedure.

ECM

Condition

Voltage

Connector

+

Terminal

F51

22

23

Coasting from 80 km/h (50 MPH) in
D position

The voltage should be above 0.73 V
at least once during this procedure.
The voltage should be below 0.18 V
at least once during this procedure.

EC-258

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

P014C, P014D, P015A, P015B, A/F SENSOR 1

P014C, P014D, P015A, P015B, A/F SENSOR 1

DTC Description

INFOID:0000000011277994

DTC DETECTION LOGIC

To judge malfunctions, this diagnosis measures response time of the A/F signal computed by ECM from the A/

F sensor 1 signal. The time is compensated by engine operating (speed and load), fuel feedback control con-

stant, and the A/F sensor 1 temperature index. Judgment is based on whether the compensated time (the A/F

signal cycling time index) is inordinately long or not.

POSSIBLE CAUSE

• Harness or connectors (The A/F sensor 1 circuit is open or shorted.)

• A/F sensor 1

FAIL-SAFE

Not applicable

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.
Do you have CONSULT?

YES

>> GO TO 2.

NO

>> GO TO 6.

2.

PERFORM DTC CONFIRMATION PROCEDURE-1

With CONSULT

1. Start engine and warm it up to normal operating temperature.

2. Turn ignition switch OFF and wait at least 10 seconds.

3. Turn ignition switch ON.

4. Turn ignition switch OFF and wait at least 10 seconds.

5. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1minute under no load.

6. Let engine idle for 1 minute.

7. Increase the engine speed up to about 3,600 rpm and keep it for 10 seconds.

8. Fully release accelerator pedal and then let engine idle for about 1 minute.

9. Check the items status of “DATA MONITOR” as follows.

NOTE:

If “PRSNT” changed to “ABSNT”, refer to

EC-160, "Component Function Check"

.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

P014C

A/F SENSOR1 (B1)
(O2 sensor slow response - rich to lean
bank 1 sensor 1)

• The response time of a A/F sensor 1 signal delays more than the speci-

fied time computed by ECM.

P014D

A/F SENSOR1 (B1)
(O2 sensor slow response - lean to rich
bank 1 sensor 1)

P015A

A/F SENSOR1 (B1)
(O2 sensor delayed response - rich to lean
bank 1 sensor 1)

P015B

A/F SENSOR1 (B1)
(O2 sensor delayed response - lean to rich
bank 1 sensor 1)

P014C, P014D, P015A, P015B, A/F SENSOR 1

EC-259

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is “PRSNT” displayed on CONSULT screen?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE-2

With CONSULT

Perform DTC confirmation procedure-1 again.
Is “PRSNT” displayed on CONSULT screen?

YES

>> GO TO 4.

NO

>> Refer to

EC-160, "Component Function Check"

.

4.

PERFORM DTC CONFIRMATION PROCEDURE-2

With CONSULT

1. Wait for about 20 seconds at idle.

2. Check the items status of “DATA MONITOR” as follows.

NOTE:

If “CMPLT” changed to “INCMP”, refer to

EC-160, "Component Function Check"

.

Is “CMPLT” displayed on CONSULT screen?

YES

>> GO TO 5.

NO

>> Refer to

EC-160, "Component Function Check"

.

5.

PERFORM SELF-DIAGNOSIS

With CONSULT

Check the “SELF-DIAG RESULT”.
Is any DTC detected?

YES

>> Proceed to

EC-260, "Diagnosis Procedure"

.

NO

>> INSPECTION END

6.

CHECK AIR-FUEL RATIO SELF-LEARNING VALUE

With GST

1. Start engine and warm it up to normal operating temperature.

2. Select Service $01 with GST.

3. Calculate the total value of “Short term fuel trim” and “Long term fuel trim” indications.
Is the total percentage within

±15%?

YES

>> GO TO 8.

NO

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check the following.

• Intake air leaks

• Exhaust gas leaks

• Incorrect fuel pressure

• Lack of fuel

• Fuel injector

• Incorrect PCV hose connection

• PCV  valve

• Mass air flow sensor

Data monitor item

Status

A/F SEN1 DIAG3 (B1)

PRSNT

Data monitor item

Status

A/F SEN1 DIAG1 (B1)

CMPLT

A/F SEN1 DIAG2 (B1)
