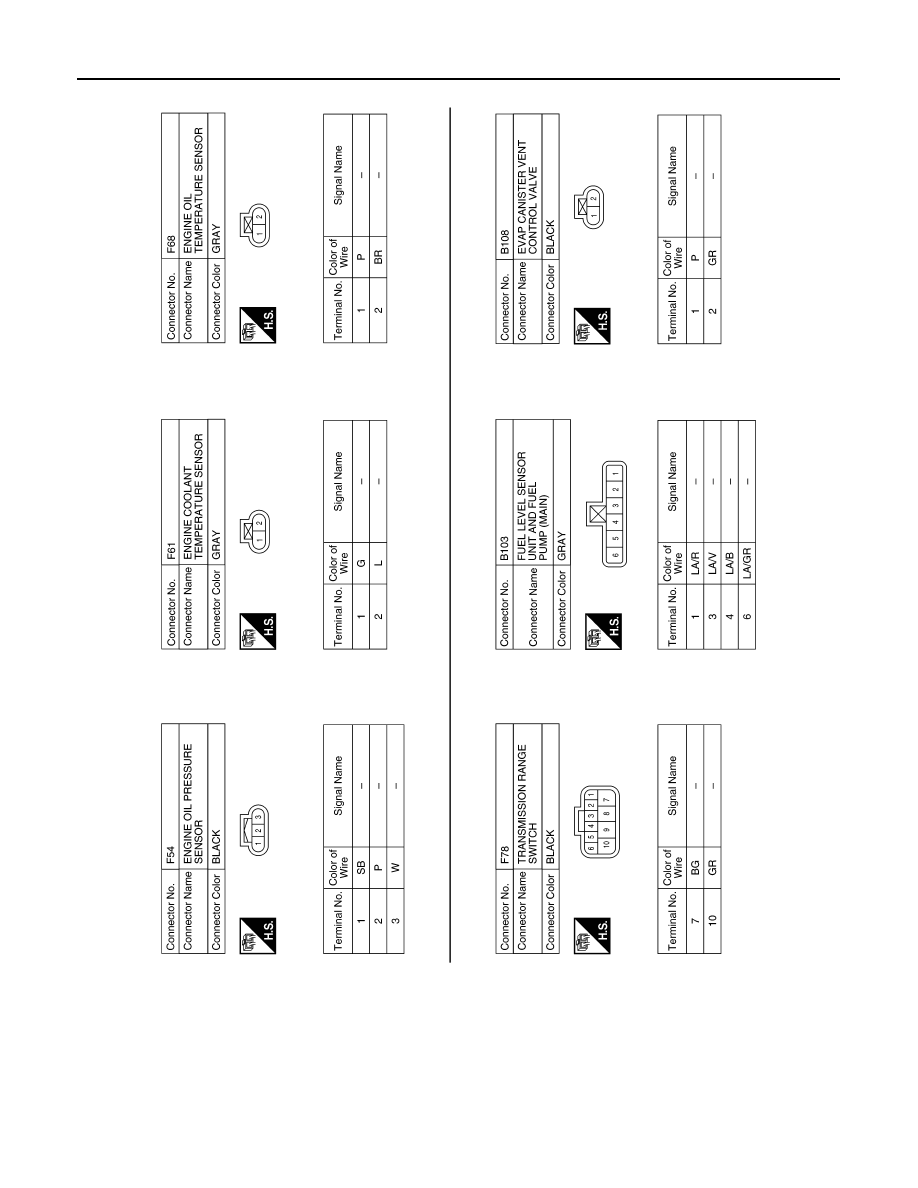

EC-128

< WIRING DIAGRAM >

[QR25DE]

ENGINE CONTROL SYSTEM

AABIA1216GB

ENGINE CONTROL SYSTEM

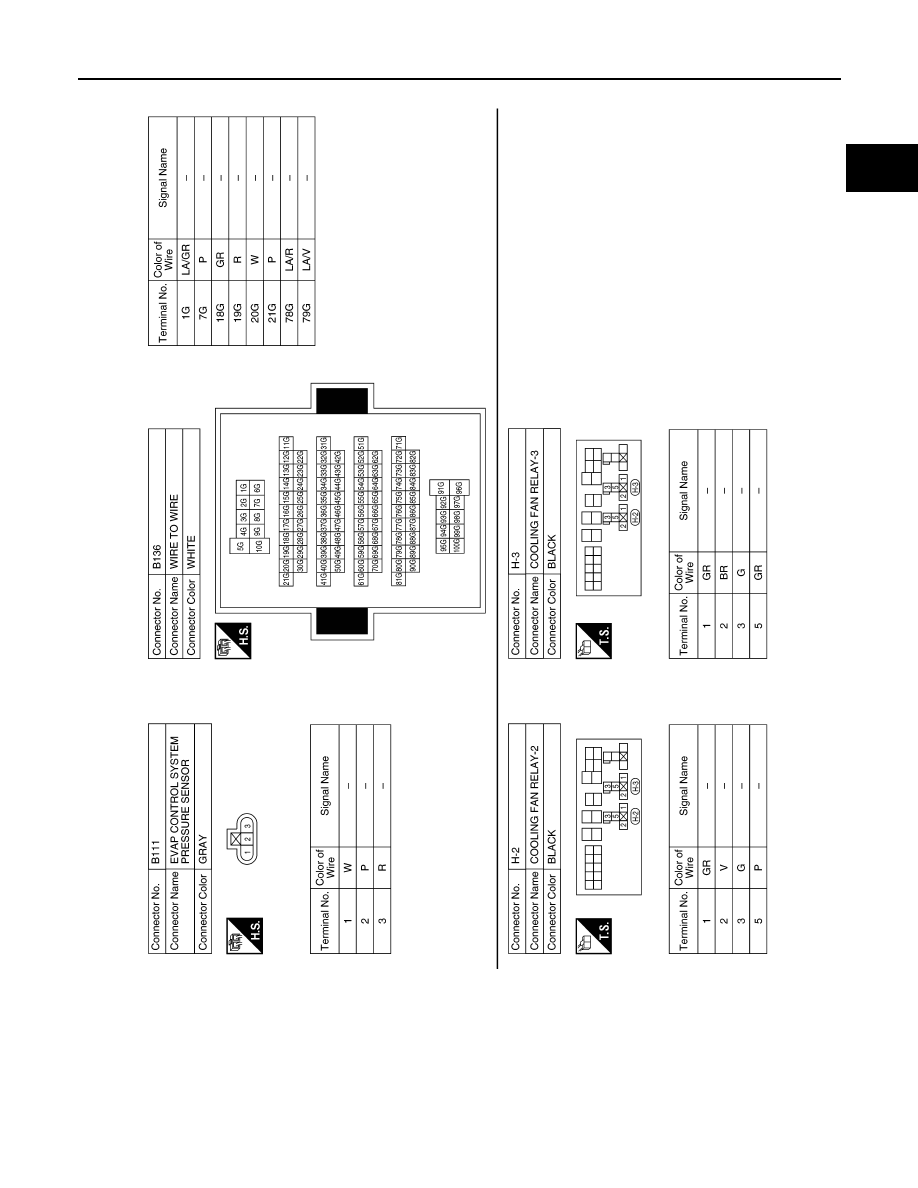

EC-129

< WIRING DIAGRAM >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

AABIA1217GB

EC-130

< BASIC INSPECTION >

[QR25DE]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000011277892

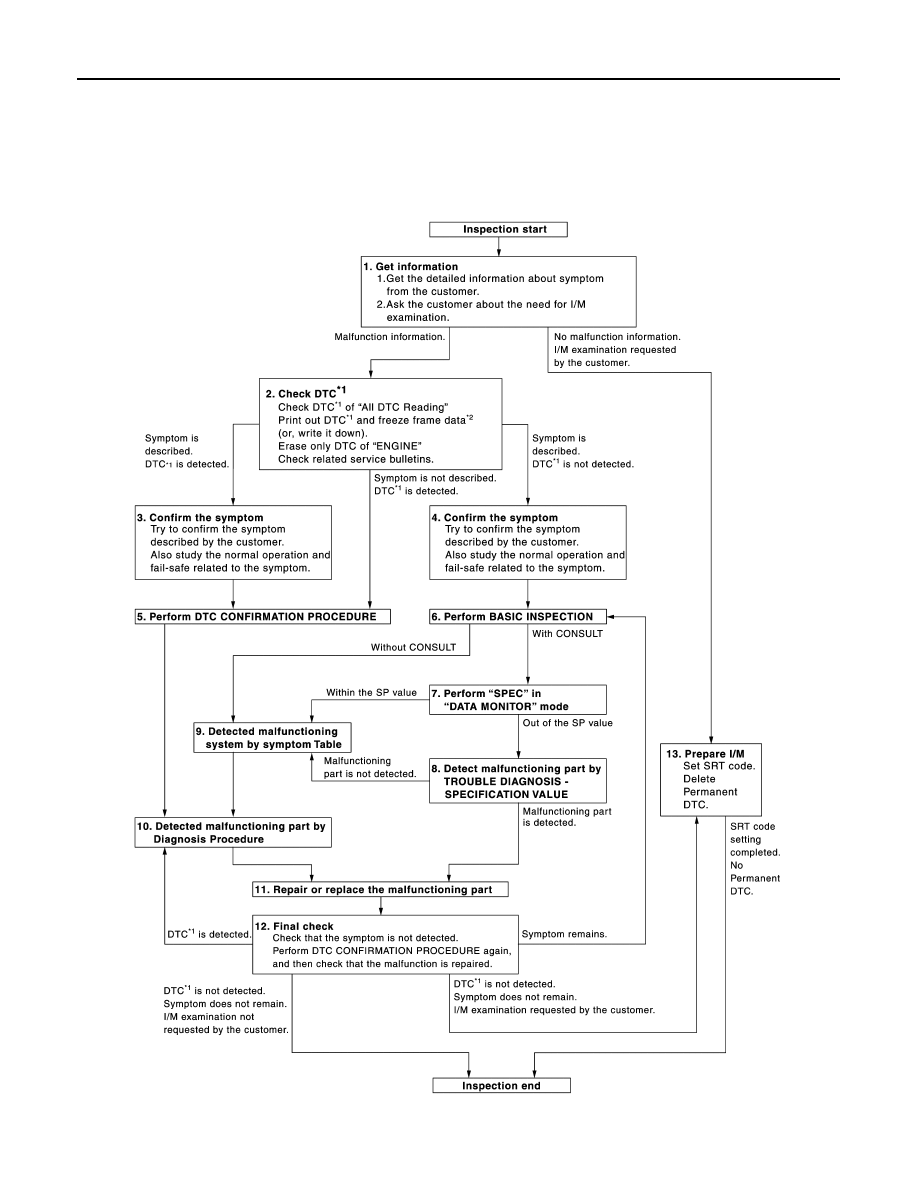

OVERALL SEQUENCE

DETAILED FLOW

JSBIA0123GB

DIAGNOSIS AND REPAIR WORKFLOW

EC-131

< BASIC INSPECTION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1.

GET INFORMATION FOR SYMPTOM

1. Get the detailed information from the customer about the symptom (the condition and the environment

when the incident/malfunction occurred) using the “Diagnostic Work Sheet”. (Refer to

EC-133, "Diagnostic

Work Sheet"

.)

2. Ask if the customer requests I/M examination.

Malfunction information, obtained>>GO TO 2.

No malfunction information, but a request for I/M examination>>GO TO 13.

2.

CHECK DTC

1. Check DTC.

2. Perform the following procedure if DTC is displayed.

-

Record DTC and freeze frame data. (Print them out with CONSULT or GST.)

-

Erase only DTC of “ENGINE”.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

(Symptom Matrix Chart is useful. Refer to

EC-489, "Symptom Table"

.)

3. Check related service bulletins for information.
Are any symptoms described and any DTCs detected?

Symptom is described, DTC is detected>>GO TO 3.

Symptom is described, DTC is not detected>>GO TO 4.

Symptom is not described, DTC is detected>>GO TO 5.

3.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer (except MIL ON).

Also study the normal operation and fail-safe related to the symptom. Refer to

EC-495, "Description"

 and

EC-

92, "Fail Safe"

.

Diagnosis Work Sheet is useful to verify the incident.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

Also study the normal operation and fail-safe related to the symptom. Refer to Refer to

EC-495, "Description"

and

EC-92, "Fail Safe"

.

Diagnosis Work Sheet is useful to verify the incident.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the displayed DTC, and then check that DTC is detected

again.

If two or more DTCs are detected, refer to

EC-95, "DTC Inspection Priority Chart"

 and determine trouble

diagnosis order.

NOTE:

• Freeze frame data is useful if the DTC is not detected.

• Perform Component Function Check if DTC CONFIRMATION PROCEDURE is not included on Service

Manual. This simplified check procedure is an effective alternative though DTC cannot be detected during

this check.

If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIR-

MATION PROCEDURE.

Is DTC detected?

YES

>> GO TO 10.

NO

>> Check according to

GI-44, "Intermittent Incident"

.

6.

PERFORM BASIC INSPECTION

Perform

EC-135, "Work Procedure"

.
