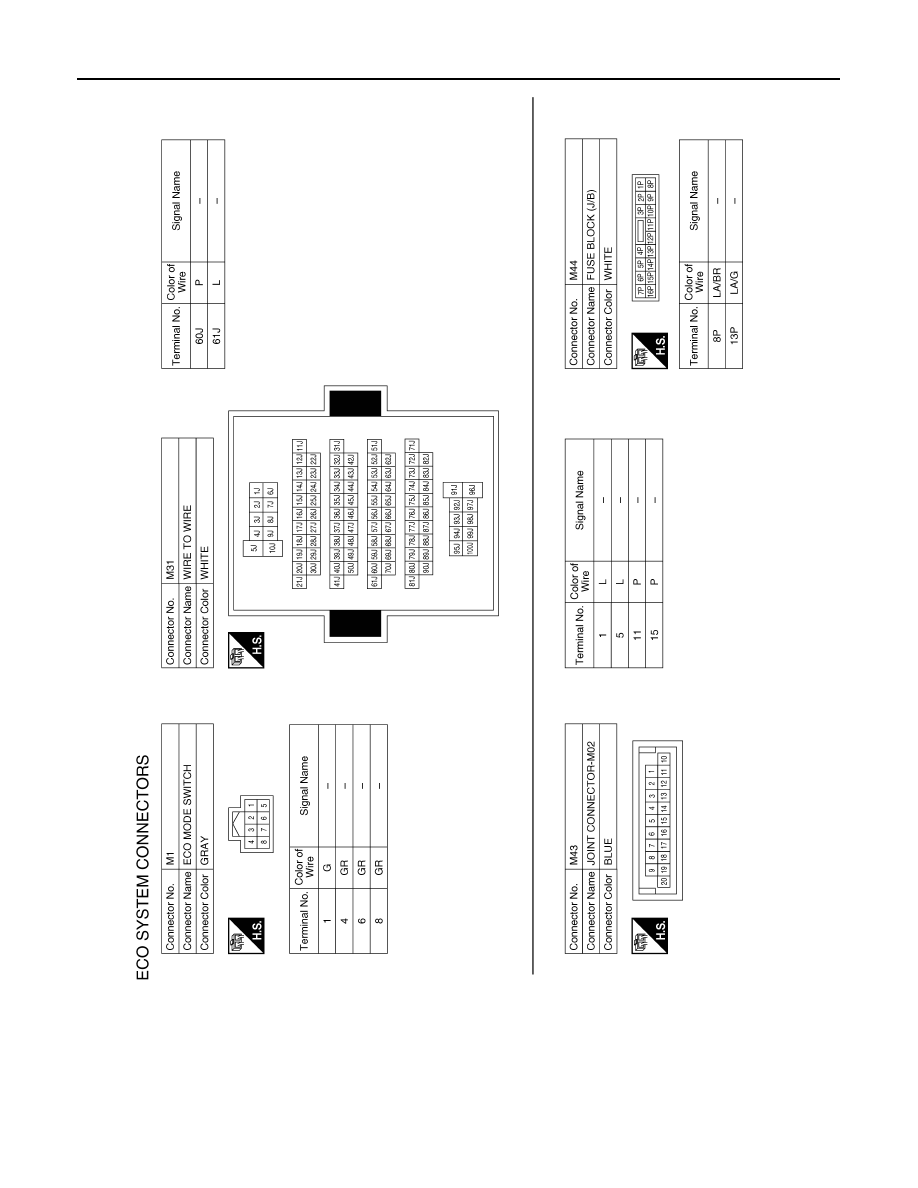

DMS-26

< WIRING DIAGRAM >

[ECO MODE]

ECO MODE SYSTEM

AAOIA0212GB

DMS

ECO MODE SYSTEM

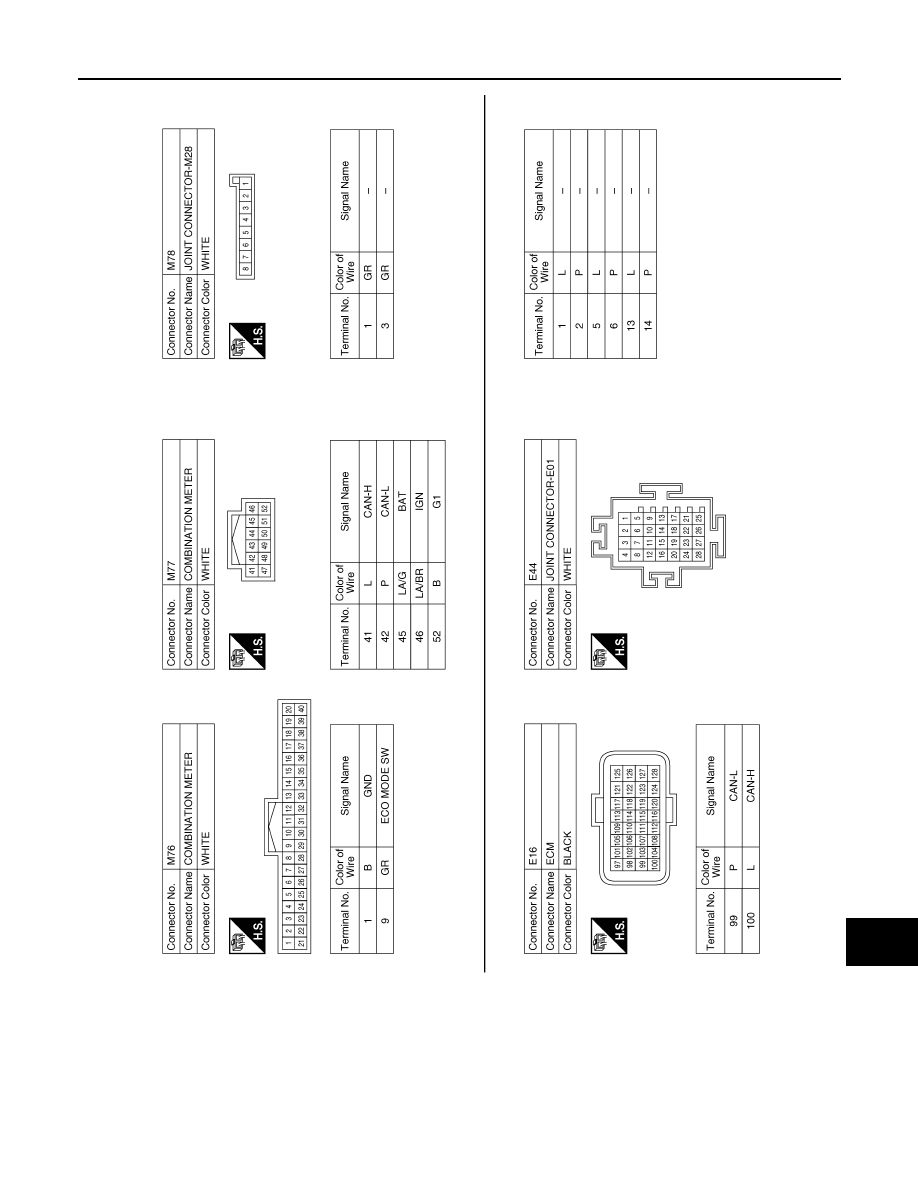

DMS-27

< WIRING DIAGRAM >

[ECO MODE]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

AAOIA0213GB

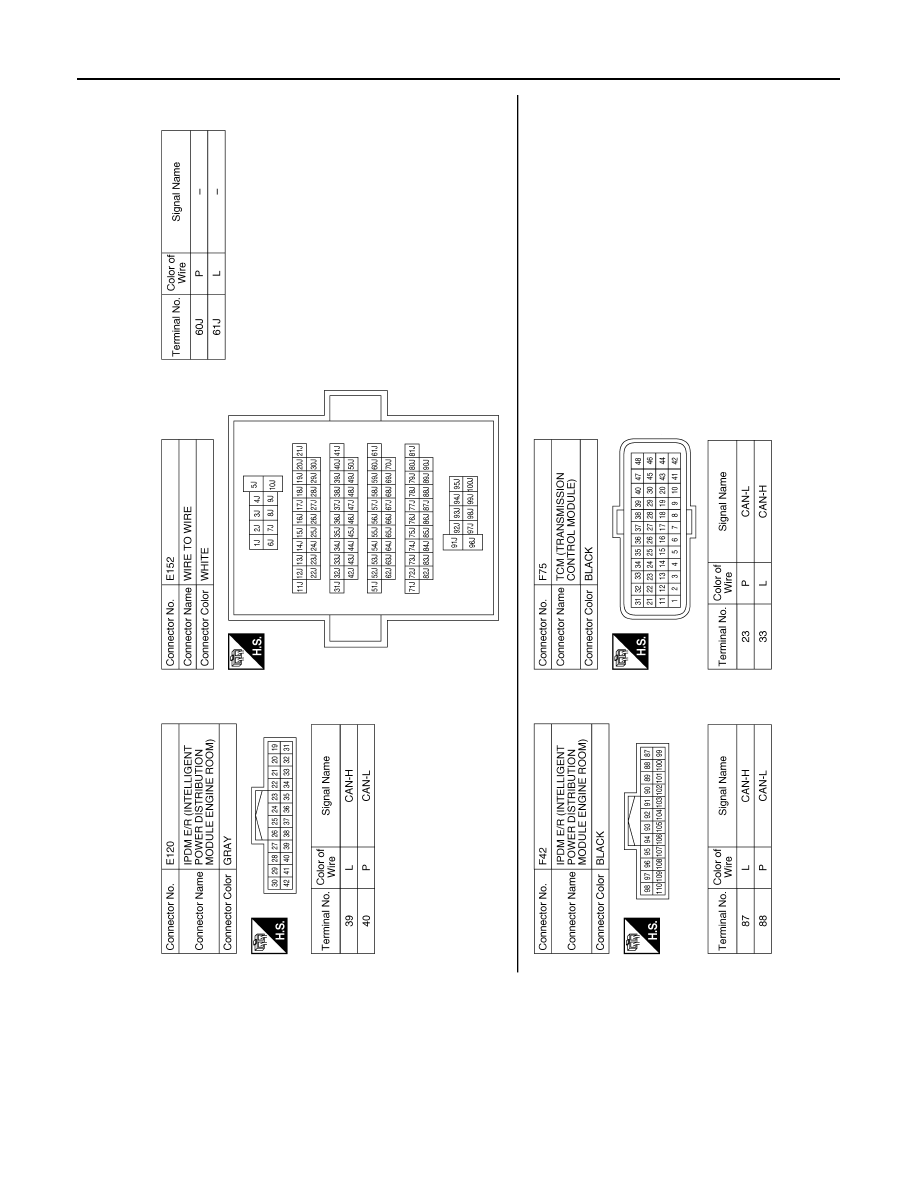

DMS-28

< WIRING DIAGRAM >

[ECO MODE]

ECO MODE SYSTEM

AAOIA0214GB

DMS

DIAGNOSIS AND REPAIR WORK FLOW

DMS-29

< BASIC INSPECTION >

[ECO MODE]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000011317491

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under

which the malfunction occurs.

>> GO TO 2.

2.

CHECK SYMPTOM

• Check the symptom based on the information obtained from the customer.

• Check if any other malfunctions are present.

>> GO TO 3.

3.

DTC/SYSTEM DIGANOSIS

Perform a DTC/system diagnosis and repair or replace any malfunctioning part.

>> GO TO 4.

4.

FINAL CHECK

Check that the ECO mode functions normally.
Does it operation normally?

YES

>> End of trouble diagnosis

NO

>> GO TO 2.
