DLK-314

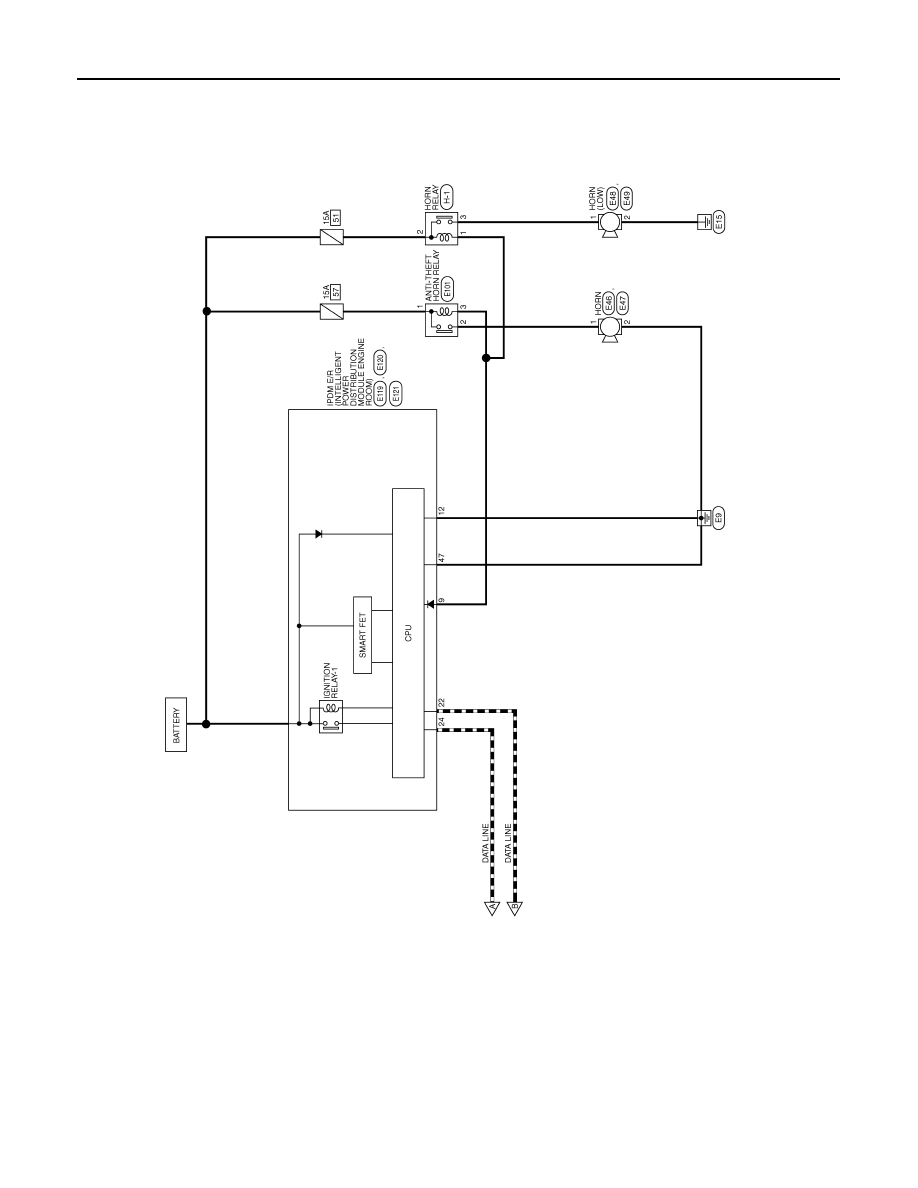

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

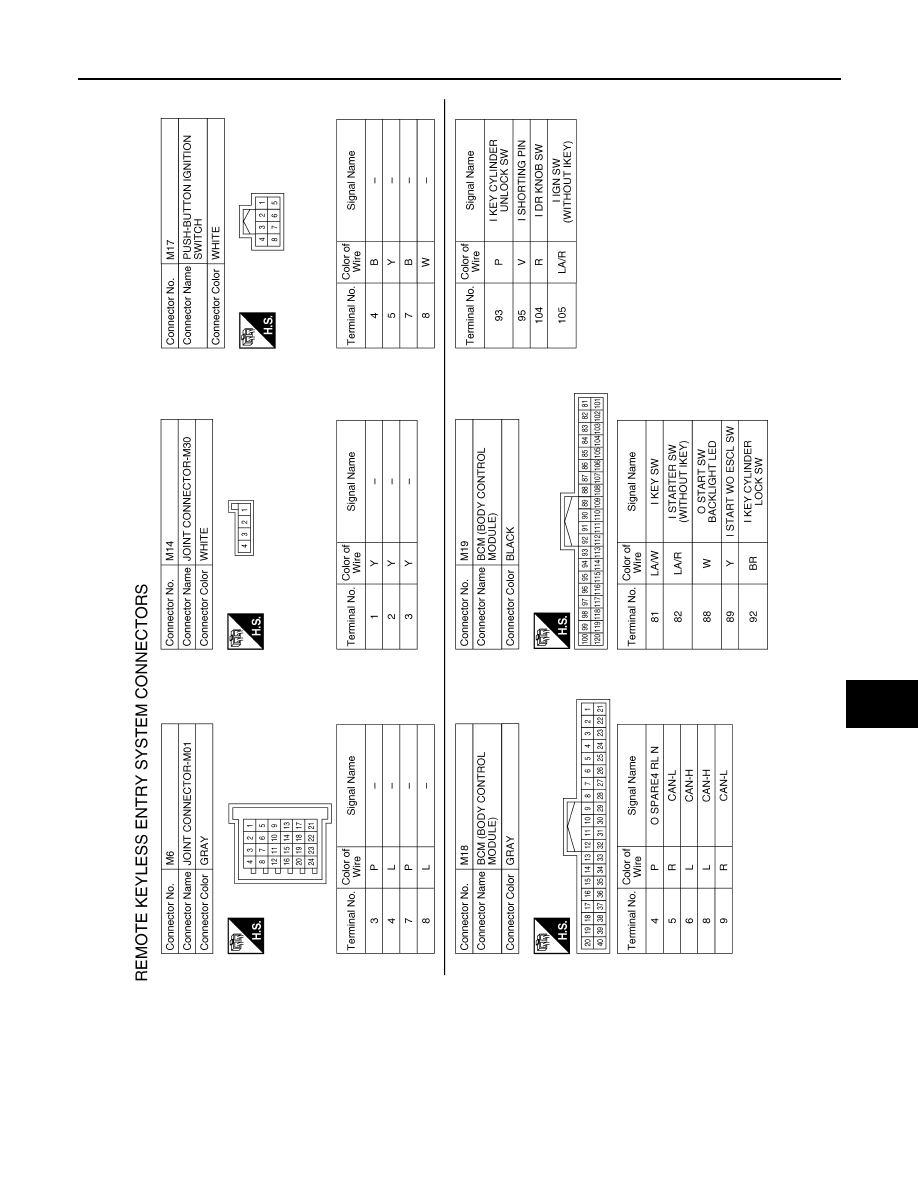

REMOTE KEYLESS ENTRY SYSTEM

AAKWA1011GB

2015 Rogue NAM

REMOTE KEYLESS ENTRY SYSTEM

DLK-315

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AAKIA2361GB

2015 Rogue NAM

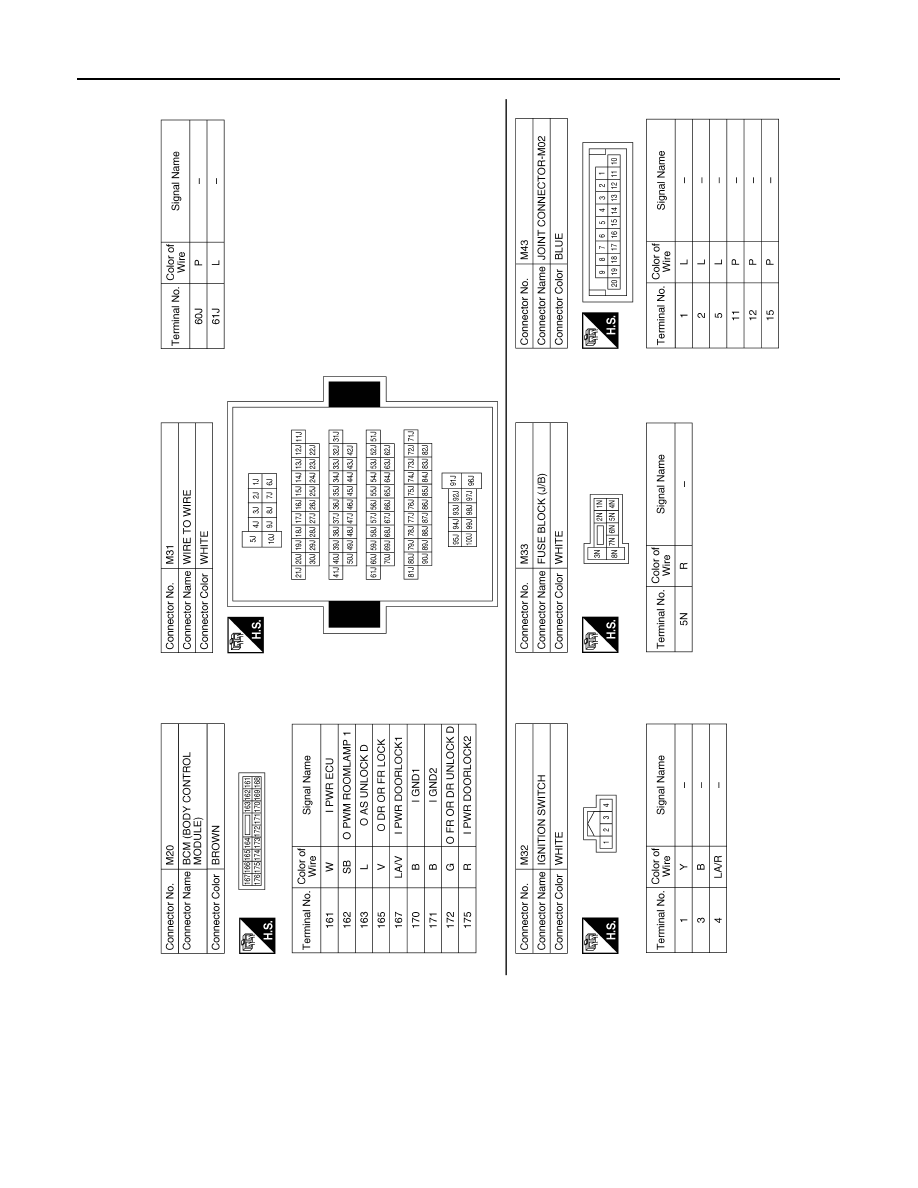

DLK-316

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

REMOTE KEYLESS ENTRY SYSTEM

AAKIA2362GB

2015 Rogue NAM

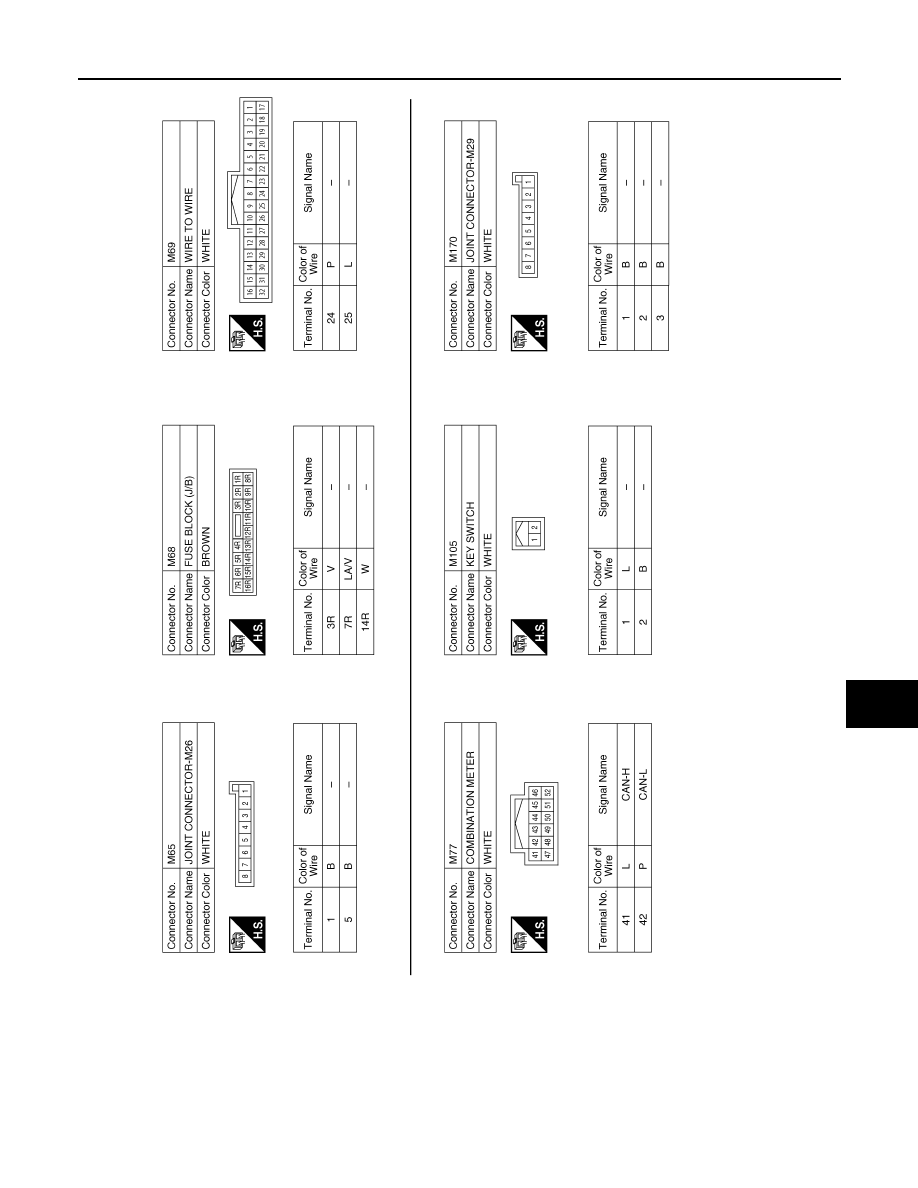

REMOTE KEYLESS ENTRY SYSTEM

DLK-317

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AAKIA2363GB

2015 Rogue NAM
