DOOR LOCK ACTUATOR

3. Check voltage between rear door lock actuator RH harness connector and ground.

Is the inspection result normal?

YES

>> Replace rear door lock actuator RH. Refer to

DLK-267, "DOOR LOCK : Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK DOOR LOCK ACTUATOR CIRCUIT

1. Disconnect BCM, all door lock actuator connectors.

2. Check continuity between BCM harness connector and rear door lock actuator RH harness connector.

3. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK BCM OUTPUT SIGNAL

1. Connect BCM connector.

2. Check voltage between BCM harness connector and ground.

Is the inspection result normal?

YES

>> Replace rear door lock actuator RH. Refer to

DLK-267, "DOOR LOCK : Removal and Installation"

.

NO

>> Replace BCM. Refer to

BCS-75, "Removal and Installation"

.

(+)

(–)

Condition

Voltage

(Approx.)

Rear door lock actuator RH

Connector

Terminal

D306

5

Ground

Door lock and unlock switch

Unlock

Battery voltage

6

Lock

BCM

Rear door lock actuator RH

Continuity

Connector

Terminal

Connector

Terminal

B23

148

D306

6

Yes

149

5

BCM

Ground

Continuity

Connector

Terminal

B23

148

No

149

(+)

(–)

Condition

Voltage

(Approx.)

BCM

Connector

Terminal

B23

148

Ground

Door lock and unlock switch

Unlock

Battery voltage

149

Lock

2015 Rogue NAM

UNLOCK SENSOR

DLK-171

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

UNLOCK SENSOR

Component Function Check

INFOID:0000000011278887

1.

CHECK FUNCTION

1. Select “INTELLIGENT KEY” of “BCM” using CONSULT.

2. Select “UNLK SEN-DR” in “Data Monitor”.

3. Check that the function operates normally according to the following conditions:

Is the inspection result normal?

YES

>> Unlock sensor is OK.

NO

>> Refer to

DLK-171, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000011278888

Regarding Wiring Diagram information, refer to

DLK-60, "Wiring Diagram"

.

1.

CHECK UNLOCK SENSOR INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect front door lock assembly LH connector.

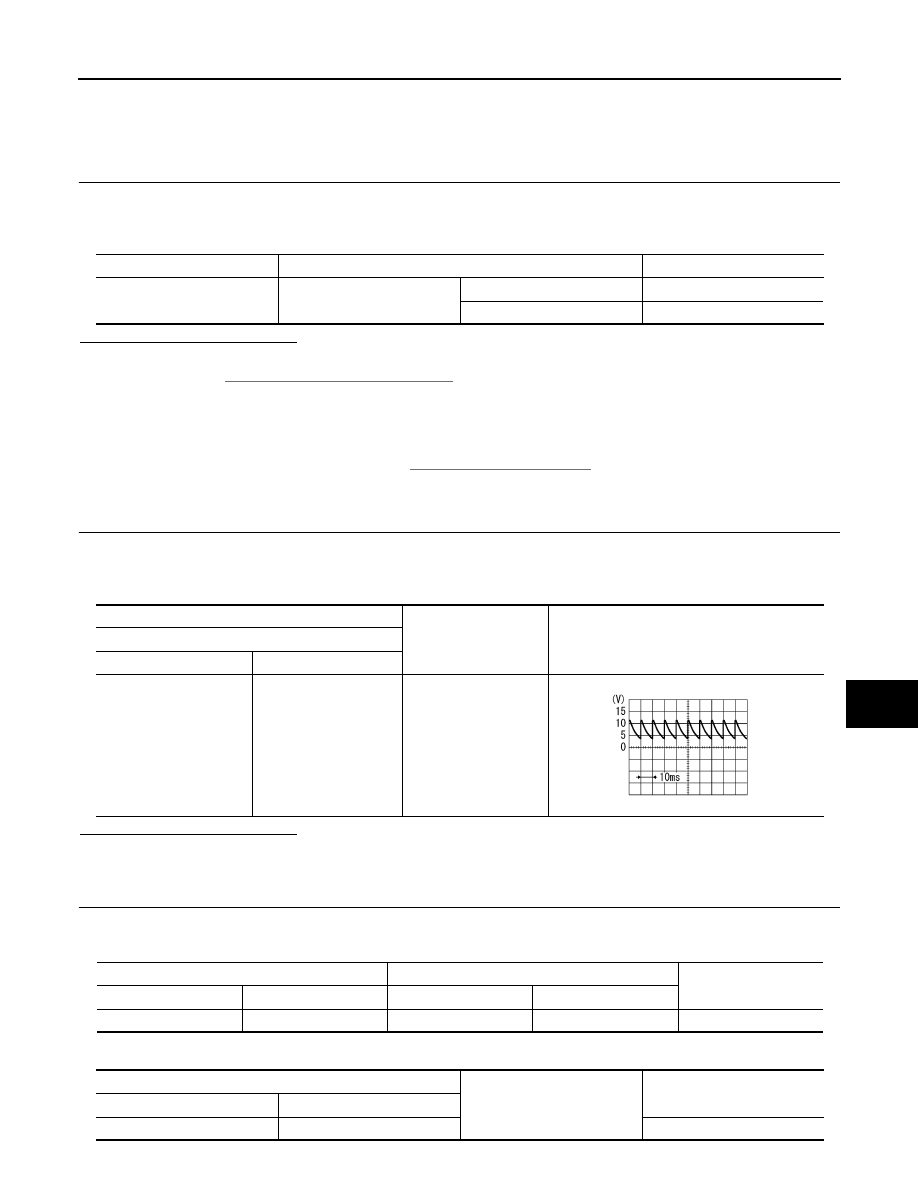

3. Check signal between front door lock assembly LH harness connector and ground with oscilloscope.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK UNLOCK SENSOR CIRCUIT

1. Disconnect BCM connector.

2. Check continuity between BCM harness connector and front door lock assembly LH harness connector.

3. Check continuity between BCM harness connector and ground.

Monitor item

Condition

Status

UNLK SEN -DR

Driver side door

Lock

OFF

Unlock

ON

(+)

(–)

Signal

(Reference value)

Front door lock assembly LH

Connector

Terminal

D23

3

Ground

PKIB4960J

BCM

Front door lock assembly LH

Continuity

Connector

Terminal

Connector

Terminal

M19

104

D23

3

Yes

BCM

Ground

Continuity

Connector

Terminal

M19

104

No

2015 Rogue NAM

DLK-172

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

UNLOCK SENSOR

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-75, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK UNLOCK SENSOR GROUND CIRCUIT

Check continuity between front door lock assembly LH harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK UNLOCK SENSOR

Refer to

DLK-172, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace front door lock assembly LH. Refer to

DLK-263, "DOOR LOCK : Removal and Installa-

tion"

.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> Inspection End.

Component Inspection

INFOID:0000000011278889

1.

CHECK UNLOCK SENSOR

1. Turn ignition switch OFF.

2. Disconnect front door lock assembly LH connector.

3. Check continuity between front door lock assembly LH terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace front door lock assembly LH. Refer to

DLK-263, "DOOR LOCK : Removal and Installa-

tion"

.

Front door lock assembly LH

Ground

Continuity

Connector

Terminal

D23

4

Yes

Front door lock assembly LH

Condition

Continuity

Terminal

3

4

Driver side door

Unlock

Yes

Lock

No

2015 Rogue NAM

DOOR KEY CYLINDER SWITCH

DLK-173

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR KEY CYLINDER SWITCH

Component Function Check

INFOID:0000000011278890

1.

CHECK FUNCTION

1. Select “DOOR LOCK” of “BCM” using CONSULT.

2. Select “KEY CYL LK-SW”, “KEY CYL UN-SW” in “Data Monitor”.

3. Check that the function operates normally according to the following conditions:

Is the inspection result normal?

YES

>> Door key cylinder switch is OK.

NO

>> Refer to

DLK-173, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000011278891

Regarding Wiring Diagram information, refer to

DLK-60, "Wiring Diagram"

.

1.

CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect front door lock assembly LH connector.

3. Check voltage between front door lock assembly LH harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK DOOR KEY CYLINDER SWITCH SIGNAL CIRCUIT

1. Disconnect the BCM connector.

2. Check continuity between BCM harness connector and front door lock assembly LH harness connector.

3. Check continuity between BCM harness connector and ground.

Monitor item

Condition

Status

KEY CYL LK-SW

Driver side door key cylinder

Lock

ON

Neutral / Unlock

OFF

KEY CYL UN-SW

Unlock

ON

Neutral / Lock

OFF

(+)

(–)

Voltage

(Approx.)

Front door lock assembly LH

Connector

Terminal

D23

5

Ground

5 V

6

BCM

Front door lock assembly LH

Continuity

Connector

Terminal

Connector

Terminal

M19

92

D23

6

Yes

93

5
