Nissan Rogue. Manual - part 313

DLK-94

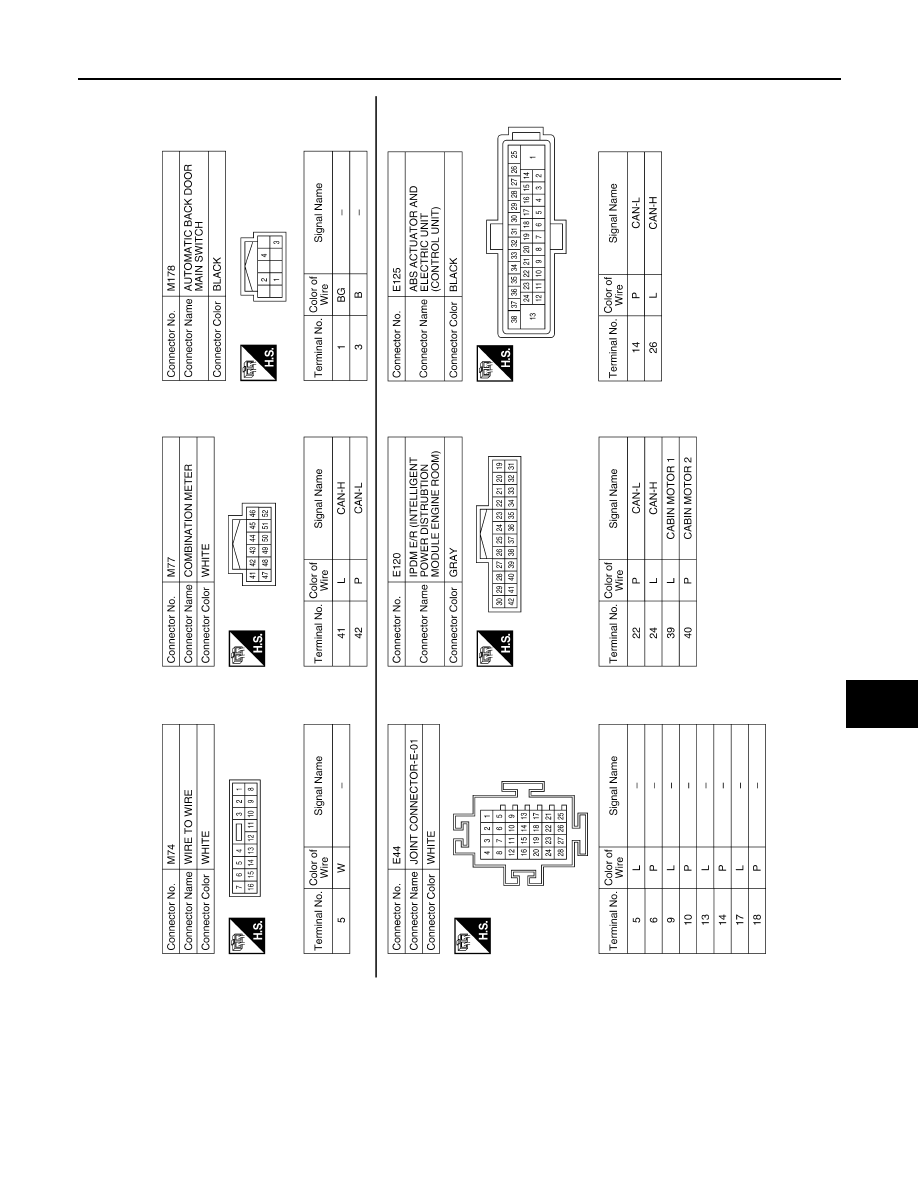

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

AUTOMATIC BACK DOOR SYSTEM

AAKIA2374GB

2015 Rogue NAM

AUTOMATIC BACK DOOR SYSTEM

DLK-95

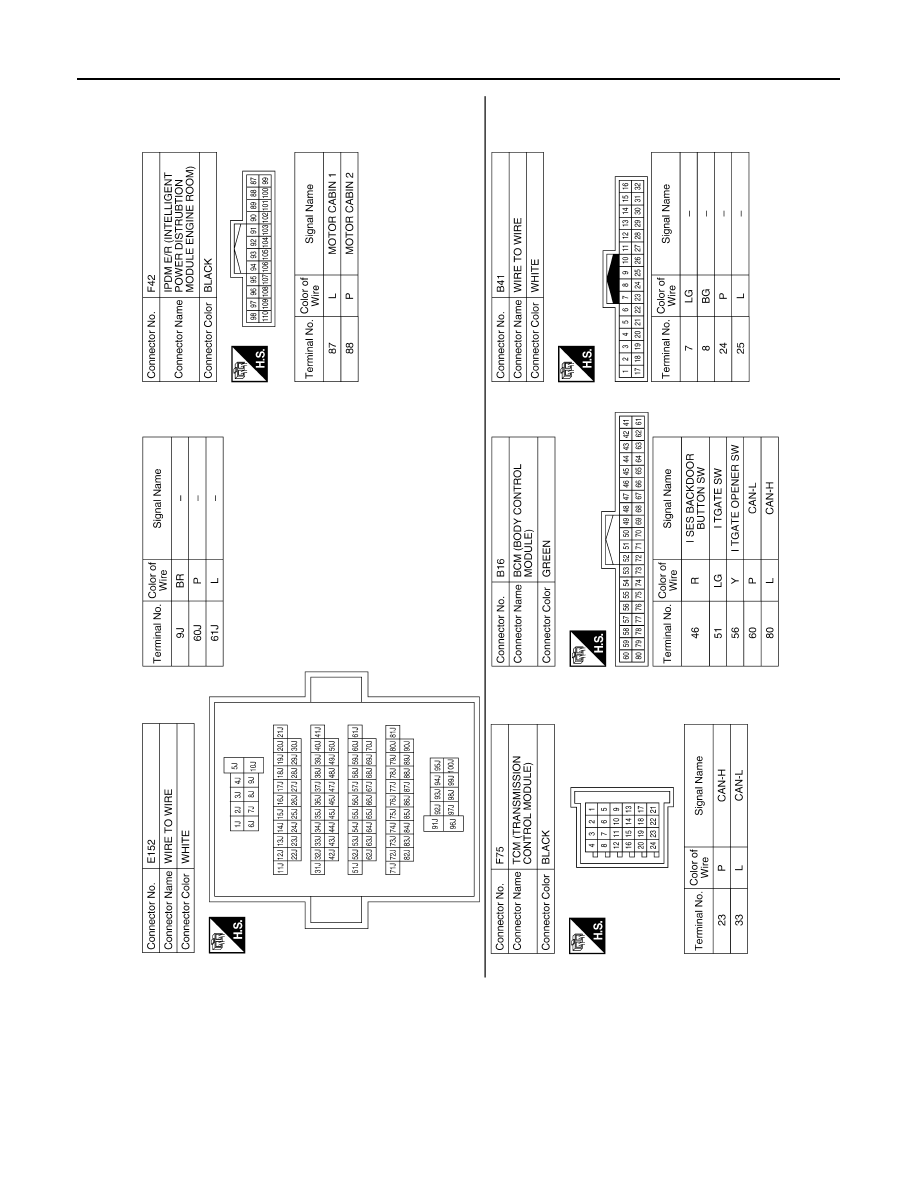

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AAKIA2375GB

2015 Rogue NAM

DLK-96

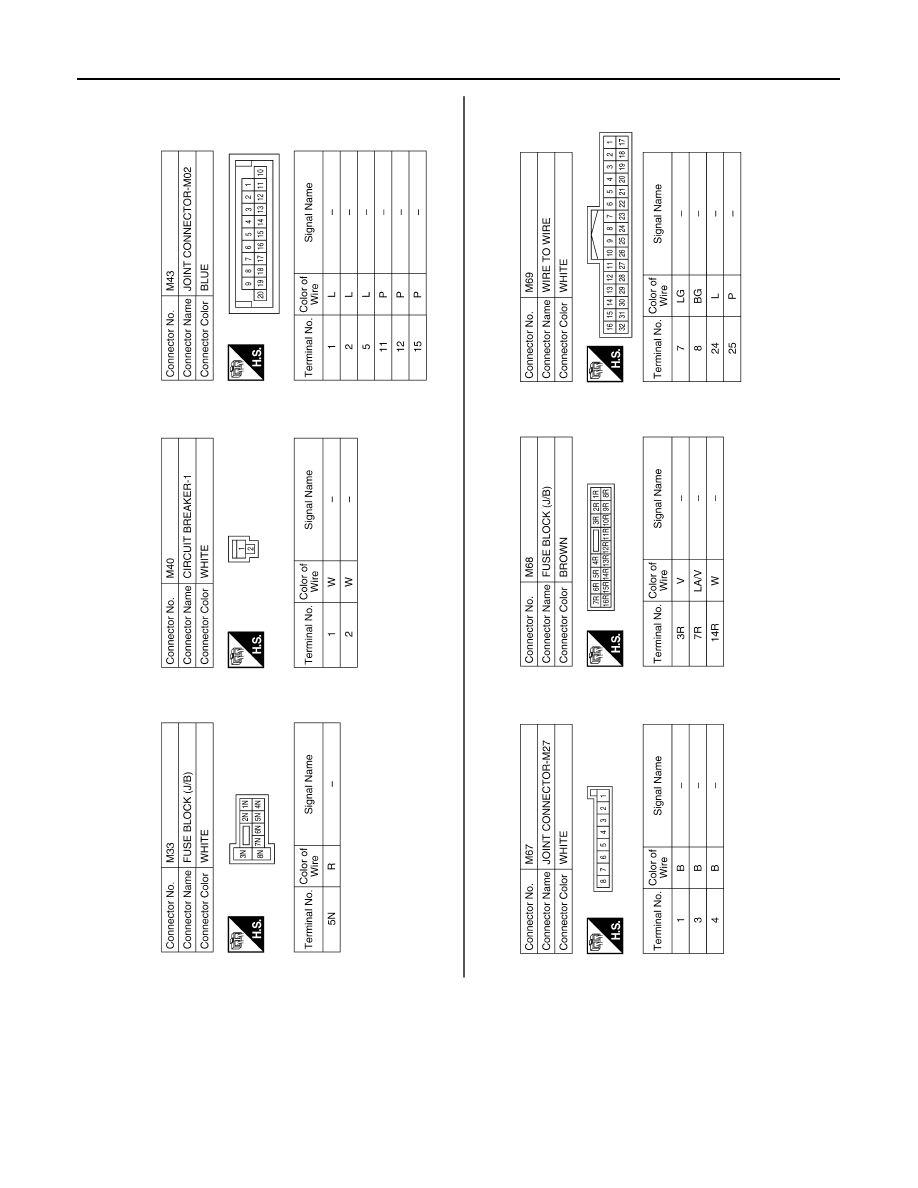

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

AUTOMATIC BACK DOOR SYSTEM

AAKIA2376GB

2015 Rogue NAM

AUTOMATIC BACK DOOR SYSTEM

DLK-97

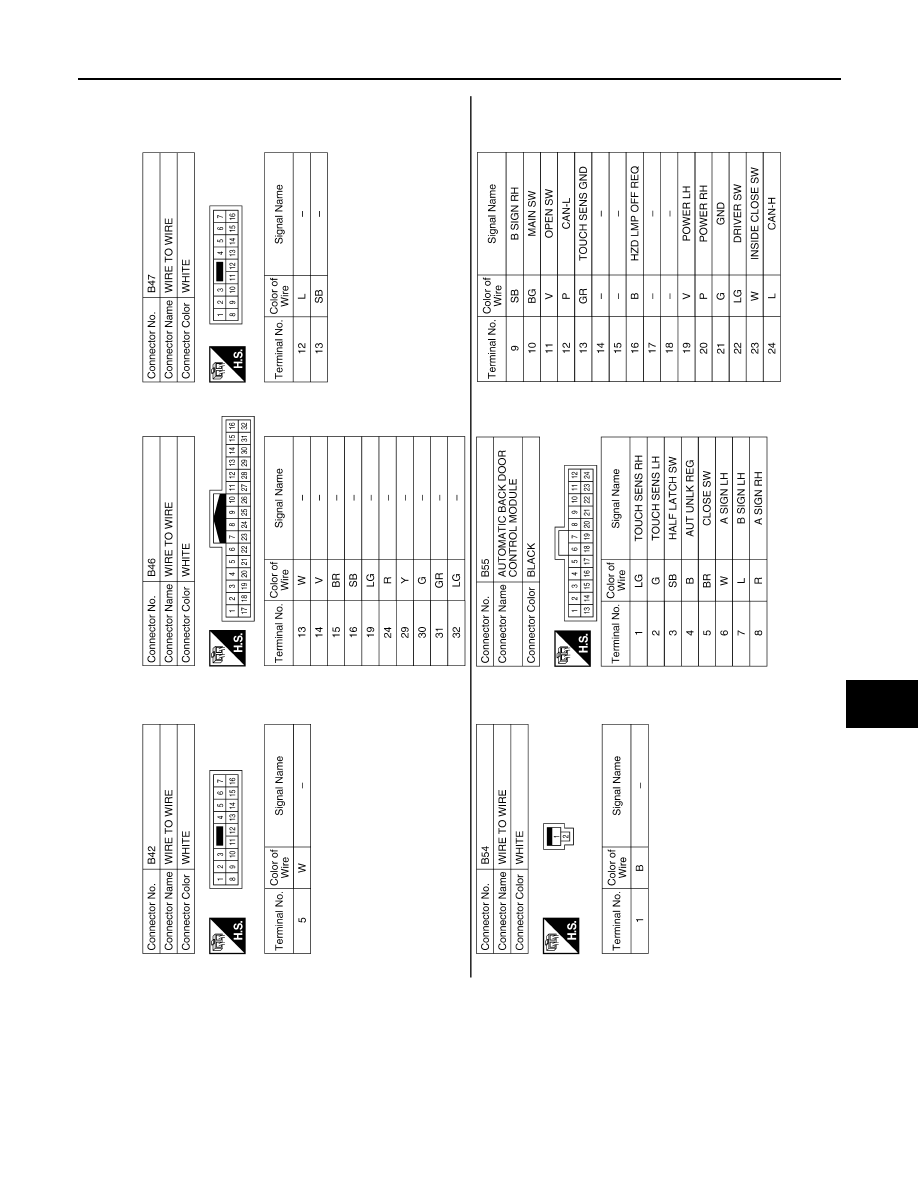

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AAKIA2378GB

2015 Rogue NAM
