DLK-38

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM (AUTOMATIC BACK DOOR SYSTEM)

SYSTEM (AUTOMATIC BACK DOOR SYSTEM)

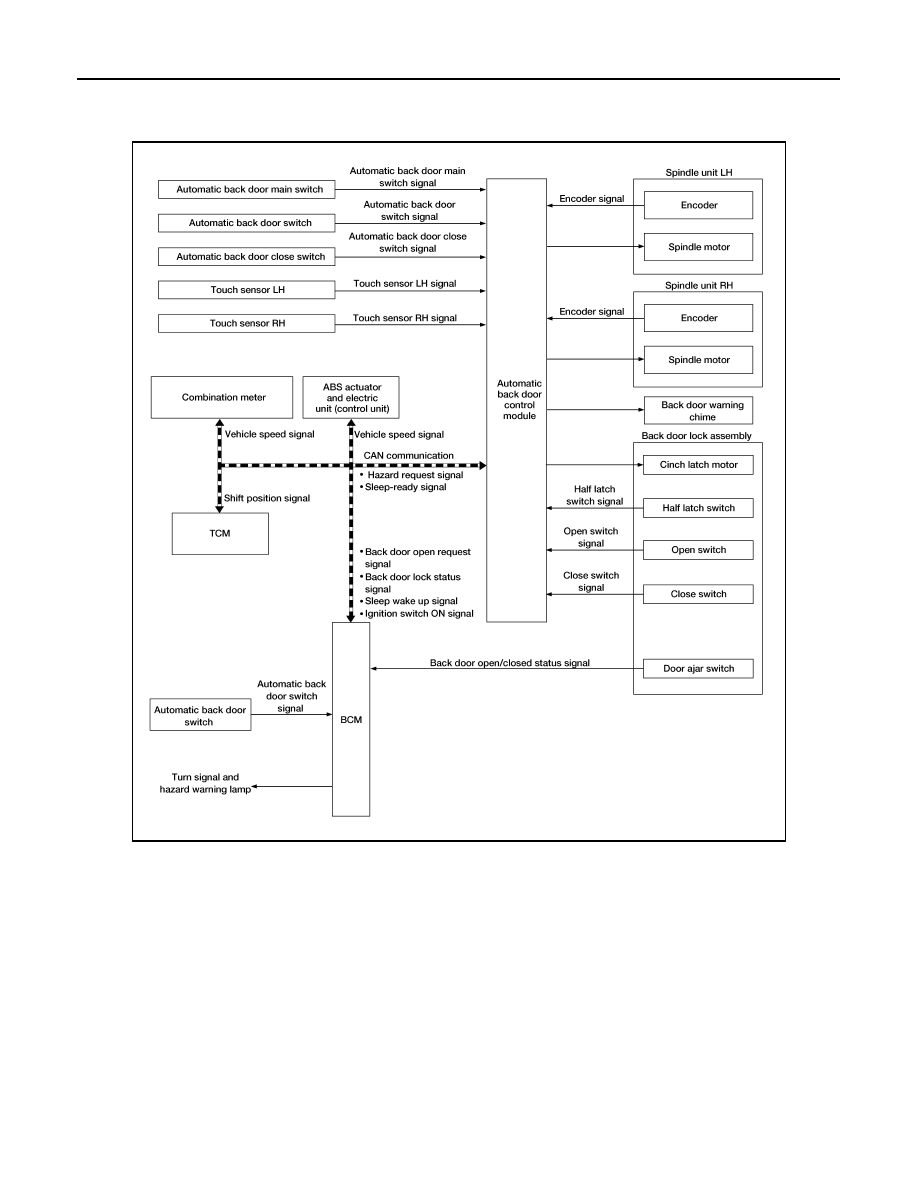

System Diagram

INFOID:0000000011278791

System Description

INFOID:0000000011278792

The automatic back door system performs the automatic open/close operation of the back door by operating

the automatic back door switch, the automatic back door close switch, the back door opener switch, and Intel-

ligent Key.

AUTOMATIC BACK DOOR OPEN/CLOSE FUNCTION

• In the case of the back door fully closed, operate the automatic back door switch, Intelligent Key or back

door opener switch with the back door unlock. The back door closure motor releases the latch, then the spin-

dle motor opens the back door to the fully open position. The closure motor reverses to the neutral position

simultaneously.

• In the case of the back door fully open, operate the automatic back door switch, Intelligent Key or automatic

back door close switch. The spindle motor closes the back door to the half-latch position, then the back door

closure motor to the full latch position. Then, the closure motor reverses to the neutral position.

AUTOMATIC OPEN/CLOSE TEMPORARY STOP FUNCTION

ALKIA3502GB

2015 Rogue NAM

SYSTEM (AUTOMATIC BACK DOOR SYSTEM)

DLK-39

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Automatic open/close temporary stop function temporarily stops the open/close operation by operating back

door opener switch during automatic open/close operation or by turning automatic back door main switch OFF.

Back Door Opener Switch Operation

• Automatic open/close operation stops when back door opener switch is operated during automatic open/

close operation.

• Back door performs automatic open operation in an open direction when back door opener switch is oper-

ated again during automatic open/close temporary stop function operation.

• Back door performs automatic close operation in a close direction when automatic back door close switch is

operated during automatic open/close temporary stop function operation.

• Automatic operation is performed again, in the direction that automatic back door switch operated before

stopping, when automatic back door switch or Intelligent Key button is operated during automatic open/close

temporary stop function operation.

Automatic Back Door Main Switch Operation

• While automatic back door main switch is ON, automatic open/close operation stops when automatic back

door main switch is turned OFF during automatic open/close operation.

• While automatic back door main switch is OFF, automatic open/close operation stops when automatic back

door main switch is turned ON then turned OFF during automatic open/close operation.

• Back door performs automatic open operation in an open direction when back door opener switch is oper-

ated again during auto open/close temporary stop function operation.

• Back door performs automatic close operation in a close direction when automatic back door close switch is

operated during automatic open/close temporary stop function operation.

• Automatic operation is performed again, in the direction that automatic back door switch operated before

stopping, when automatic back door switch or Intelligent Key button is operated during automatic open/close

temporary stop function operation.

BACK DOOR OPEN POSITION SETTING FUNCTION

Back door open position setting function enables a user to set stop position for automatic open operation.

Setting Procedure

Stop position for back door open position setting function can be set by the following procedure:

1. Manually move the back door to a stop setting position.

2. Press and hold the automatic back door close switch for 3 seconds while maintaining the back door posi-

tion.

3. The switching is complete when the buzzer sounds (pattern E).

4. Fully close the back door.

Cancellation Procedure

Setting of back door open position setting function can be cancelled by the following procedure:

1. Manually move the back door to a fully open position.

2. Press and hold the automatic back door close switch for 3 seconds.

3. The switching is complete when the buzzer sounds (pattern E).

4. Fully close the back door.

BACK DOOR AUTO CLOSURE FUNCTION

Open Function

When back door opener switch is pressed and automatic back door main switch in the OFF position, BCM

transmits the back door open request signal to automatic back door control module via CAN communication,

and automatic back door control module opens back door lock assembly.

Closure Function

When the back door is closed to the half-latch position, the motor drives to rotate the latch lever and pulls it in

from half latched to fully latched and automatically closes the door. Then, the closure motor reverses to the

neutral position.

WARNING FUNCTION

The warning function is as follows and gives the user warning information using automatic back door warning

chime and hazard warning lamps:

Chime Operation Condition

2015 Rogue NAM

DLK-40

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM (AUTOMATIC BACK DOOR SYSTEM)

ANTI-PINCH FUNCTION

During auto open operation, if an object is detected by encoder pulse in the door's path, a warning chime

sounds and the back door operates in the reverse direction to prevent pinching.

During auto close operation, if an object is detected by the touch sensors and encoder pulse in the door's

path, a warning chime sounds and the back door operates in the open direction until it is fully open.

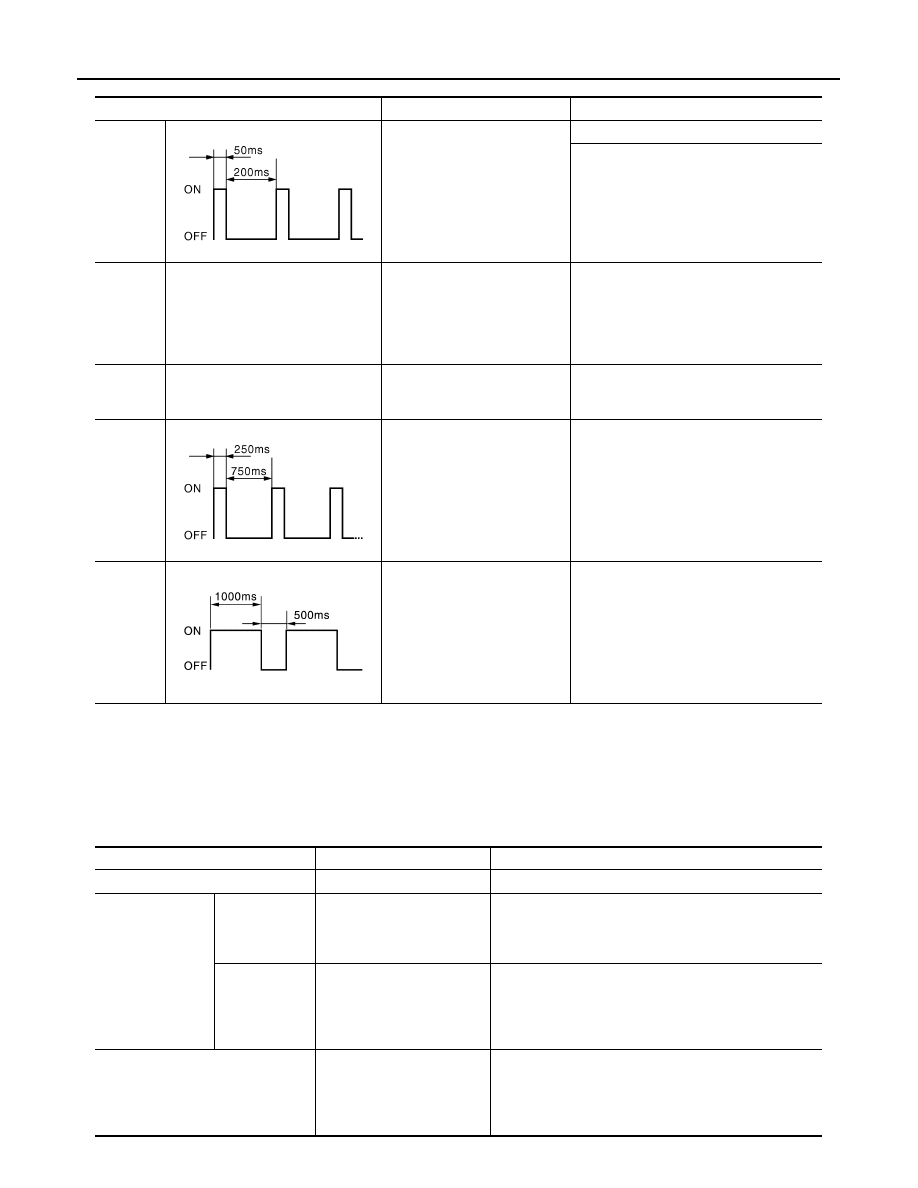

Operation Condition

Pattern

Time

Description

A

0.75 sec.

Operation start announcement.

Anti-pinch operation start announcement.

B

Pi---

2.0 sec.

• Closure function operates when auto-

matic back door main switch is in OFF
position.

• During the closure operation, when

touch sensor detects any trapped foreign
material, the back door stops halfway.

C

Pi------••••••

Back door fully closed or vehi-
cle is stopped

The conditions are not satisfied in the fully
open position or during the operation, and
then the operation continues.

D

During open/close operation

During operation announcement.

E

2.5 sec.

• Calibration of automatic back door posi-

tion information is complete.

• Back door open position setting proce-

dure is complete.

JMKIA1862ZZ

JMKIA1863ZZ

JMKIA6517ZZ

Detection method

Encoder pulse

Touch sensor

Applicable operation

Open/close operation

Close operation

Operation when
any trapped for-
eign material is de-
tected.

Stop the vehi-
cle.

Chime sounds (pattern A)
and reverse operation.

• Buzzer sounds (pattern A) and the back door stops in

the fully-open position after reverse operation.

• During closure (close) operation (at main switch OFF):

Closure [open (neutral position return)] operation.

Running the ve-
hicle.

No reverse operation (chime
sounds, pattern C).

• The back door reverses a certain amount, and then it

reverses automatically to perform the auto close oper-
ation.

• During closure (close) operation (at main switch ON):

Closure (open) operation.

Non-reverse area.

• Just after starting the mo-

tor operation.

• Full range of closure oper-

ation.

• Driving

• Back door open operation.
• Closure [open (return the latch to the neutral position)].

2015 Rogue NAM

SYSTEM (AUTOMATIC BACK DOOR SYSTEM)

DLK-41

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AUTOMATIC BACK DOOR OPEN/CLOSE OPERATION CONDITION

*: If the registered Intelligent Key is used, the operation can be performed even if the back door is in the LOCK position.

CONTROL IF NOT WITHIN THE OPERATION CONDITIONS DURING THE OPERATION

If the back door is not within the operation conditions during the operation, the automatic back door control

module performs the control as follows:

Switch operation during reverse op-
eration.

Receive

Number of allowable reverse opera-
tions.

Perform the automatic open/close temporary stop function after 2 reverse operations re-
gardless of the operation direction.

Detection method

Encoder pulse

Touch sensor

Automatic back door switch

Intelligent Key

Automat-

ic back

door close

switch

Back door opener

switch

Operating direction

Fully closed

→ Open

Fully open

→Closed

Fully

closed

→

Open

Fully open

→ Closed

Fully open

→ Closed

Fully closed

→ Open

Main switch

—

—

—

—

ON

ON

Ignition position

ON/ACC/

LOCK

OFF

—

—

—

ON/ACC/

LOCK

OFF

Shift selector lever

P position

—

—

—

—

—

P position

—

Vehicle speed

0 km/h

Back door lock condition

—

—

—

—

—

Unlock*

Touch sensor

Normal

Power supply
(Automatic power back
door control module)

Approx. 11 V or more

Item

(Condition)

Back door condition

Vehicle stop condition (open operation)
• IGN ON and shift P (Park) position

→IGN ON

and other than P (Park) position.

The operation is continued.

Operation condition release during the opera-
tion start announcement condition.

Automatic back door function does not operate.

Vehicle speed
(0 km/h

→ More than 0 km/h)

Open operation

Operation stop [Back door fully closed or chime
sounds until the vehicle stops (pattern C)].

Close operation

The operation is continued [chime sounds (pattern C)
until back door fully closed].

Touch sensor
(Normal

→ Open)

Open operation

The operation is continued (If the pinch is detected af-
ter that, the system switches to the automatic open/
close temporary stop function).

Close operation

Automatic open/close temporary stop function.

Closure (close) opera-
tion

Closure (open) operation and chime sounds (pattern
B).

Closure [open (return
the latch to the neutral
position)]

The operation is continued.

Operation time
(More than approx. 180 sec.)

Inhibit automatic back door operation.
