CHG-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011373312

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

CHG

PREPARATION

CHG-3

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PREPARATION

PREPARATION

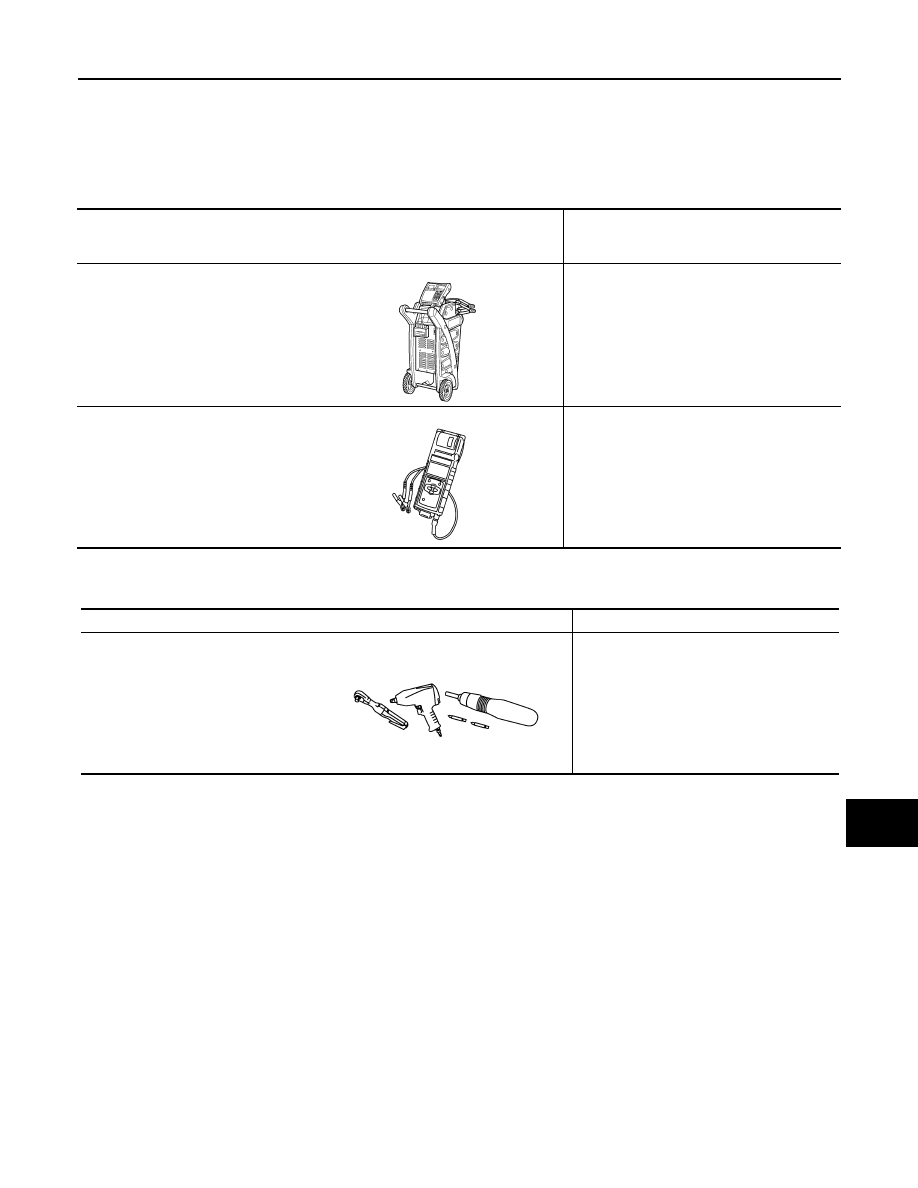

Special Service Tools

INFOID:0000000011278218

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tools

INFOID:0000000011278219

Tool number
(TechMate No.)
Tool name

Description

 —

(165-GR8-1200KIT-NI)
Nissan battery and electronics tester

Testing batteries, starting and charging sys-
tems and charges batteries.
For operating instructions, refer to diagnostic
station instruction manual.

 —

(165-EXP-800 NI)
Midtronic hand-held battery tester

Testing batteries and charging systems.
For operating instructions, refer to diagnostic
analyzer instruction manual.

AWIIA1239ZZ

JSMIA0806ZZ

Tool name

Description

Power tool

Loosening bolts, nuts and screws

PIIB1407E

CHG-4

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

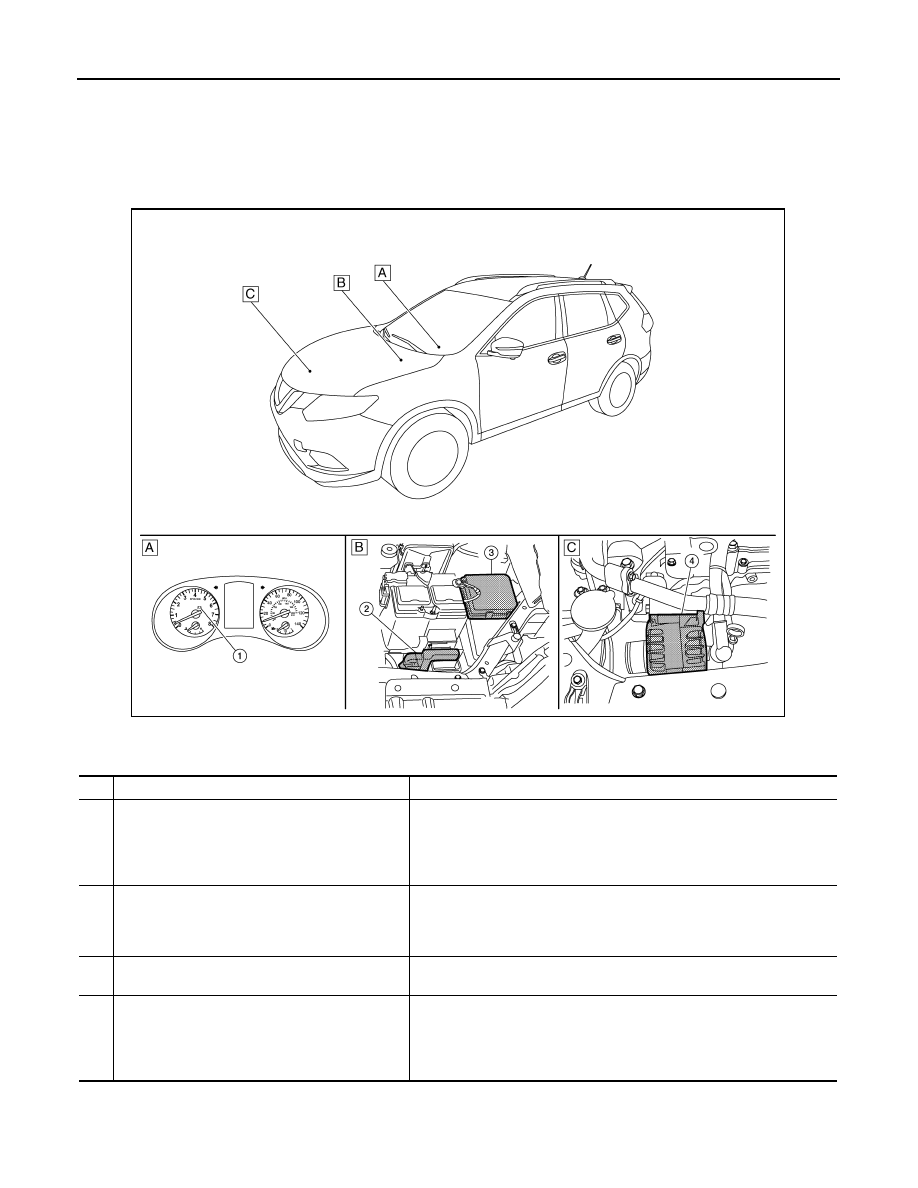

Component Parts Location

INFOID:0000000011278220

A.

Combination meter

B.

Engine room right side

C.

Engine room left side

No.

Component part

Description

1.

Combination meter (Charge warning lamp)

The IC regulator warning function activates to illuminate the charge warn-
ing lamp if any of the following symptoms occur while generator is operat-
ing:
• Excessive voltage is produced
• No voltage is produced

2.

ECM

ECM transmits a target power generation voltage signal received from
IPDM E/R to the generator via LIN communication. In addition, the ECM
controls the charge warning lamp via CAN communication to the combina-
tion meter.

3.

IPDM E/R

The IPDM E/R receives the generator signals via CAN communication from
ECM.

4.

Generator (IC voltage regulator)

IC voltage regulator controls the power generation voltage by the target
power generation voltage based on the received signal.
When there is no power generation command signal, the generator per-
forms the normal power generation according to the characteristic of the IC
voltage regulator.

AWMIA1587ZZ

CHG

SYSTEM

CHG-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYSTEM

CHARGING SYSTEM
CHARGING SYSTEM : System Description

INFOID:0000000011278221

The generator provides DC voltage to operate the vehicle's electrical system and to keep the battery charged.

The voltage output is controlled by the IC regulator.

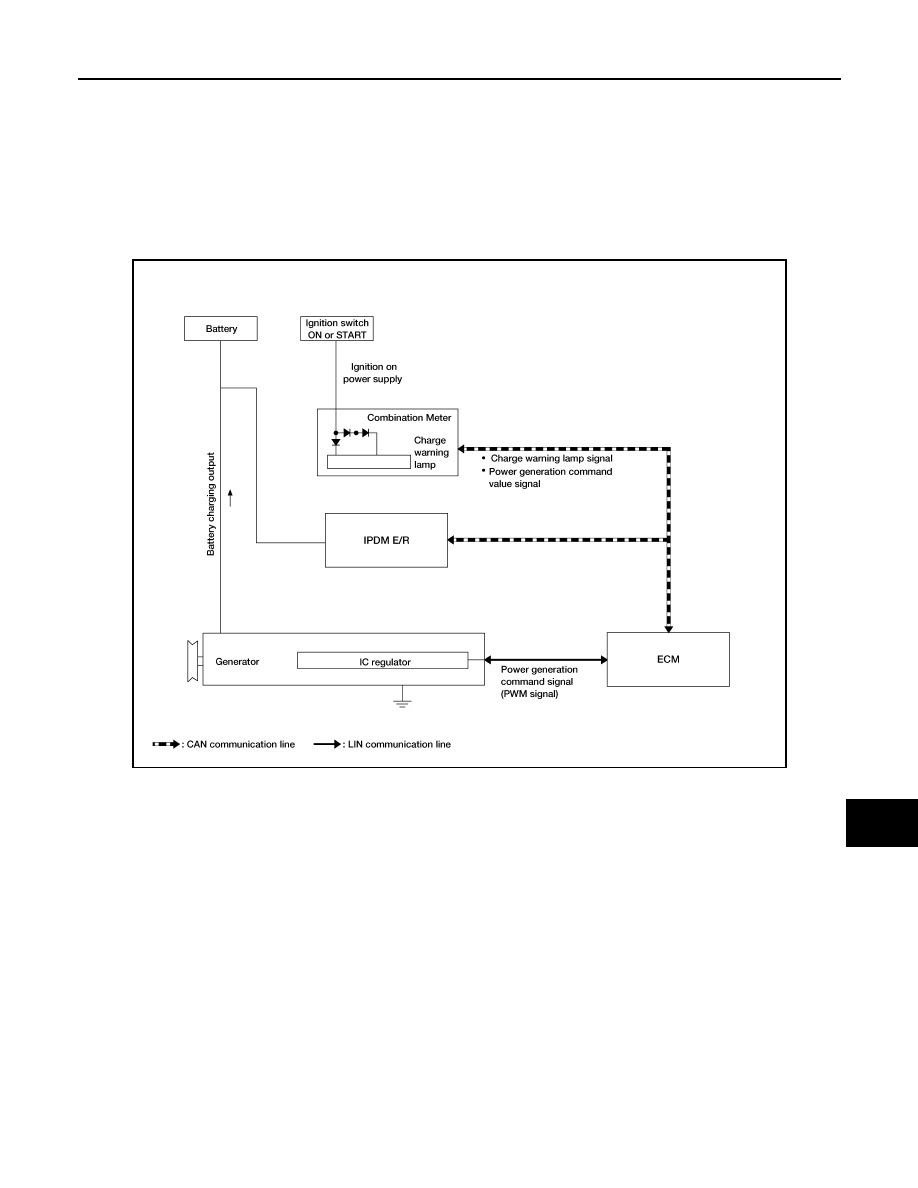

SYSTEM DIAGRAM

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM
POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM : System De-
scription

INFOID:0000000011278222

ECM transmits a target power generation voltage signal received from IPDM E/R to the generator via LIN

communication.

The generator includes a self-diagnosis function and transmits a diagnosis signal to ECM via LIN communica-

tion when detecting a malfunction. When ECM receives a diagnosis signal, ECM detects DTC and transmits a

charge warning lamp request signal to the combination meter to turn ON the charge warning lamp.

AWMIA1615GB
