Nissan Rogue. Manual - part 155

SYSTEM

BRC-31

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

BRC

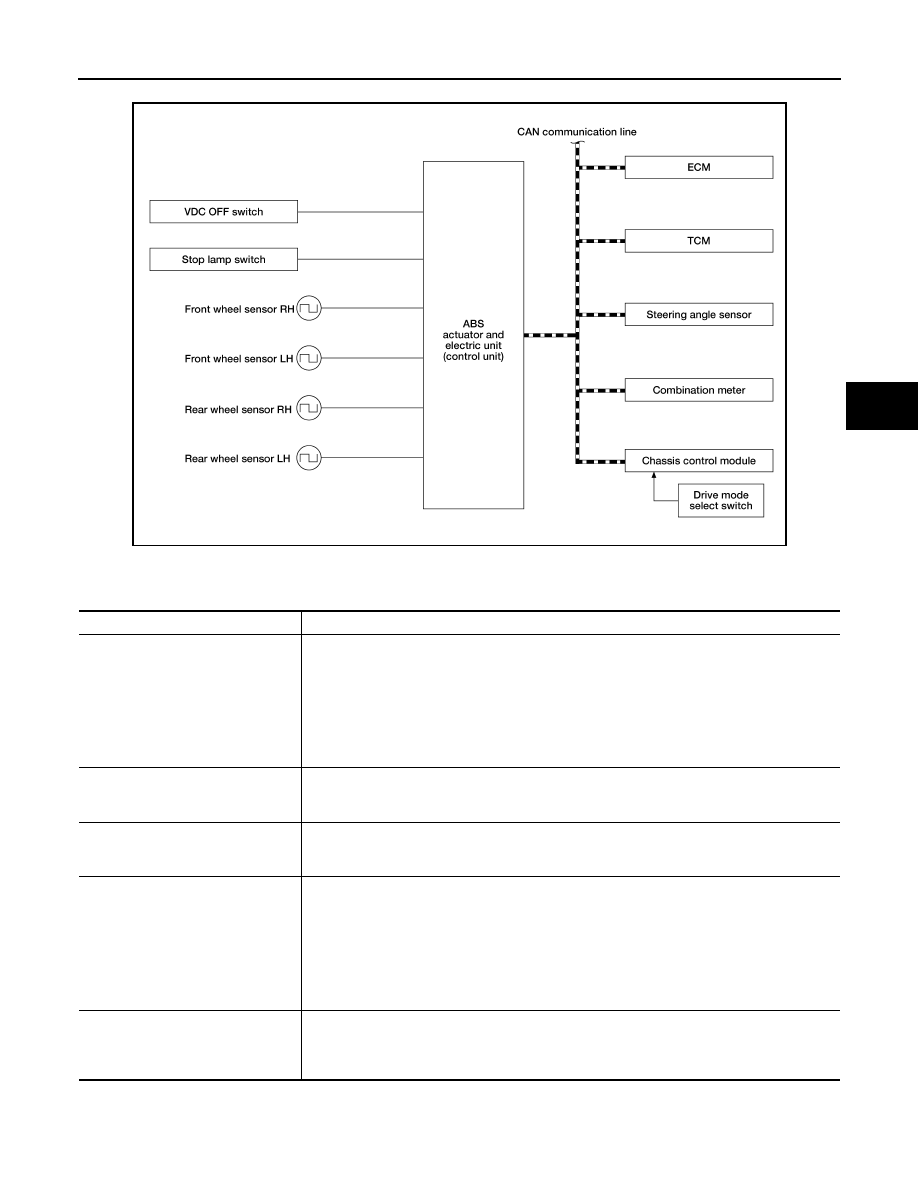

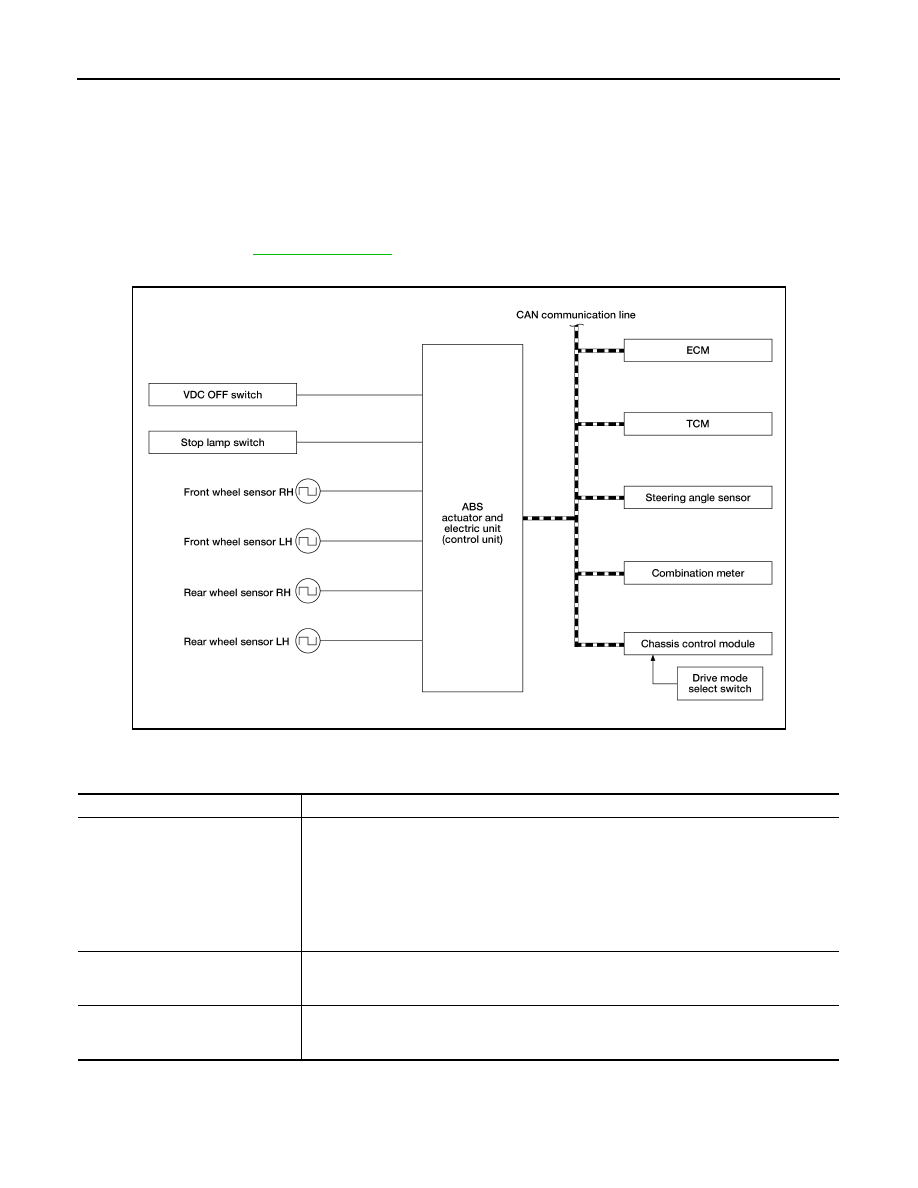

SYSTEM DIAGRAM

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.

BRAKE ASSIST FUNCTION

ALFIA0420GB

Component

Signal description

ECM

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication:
• Accelerator pedal position signal
• Engine speed signal
• Engine torque signal
Mainly receives the following signal from ABS actuator and electric unit (control unit) via CAN
communication:
• Engine torque request signal

TCM

Mainly transmits the following signal to ABS actuator and electric unit (control unit) via CAN
communication:
• Current gear position signal

Chassis control module

Mainly transmits the following signal to ABS actuator and electric unit (control unit) via CAN
communication:
• Active trace control signal

Combination meter

Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN
communication:
• Brake fluid level switch signal
• Parking brake switch signal
Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN
communication:
• VDC warning lamp signal
• VDC OFF indicator lamp signal

Steering angle sensor

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication:
• Steering angle sensor signal
• Steering angle sensor malfunction signal

BRC-32

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

SYSTEM

BRAKE ASSIST FUNCTION : System Description

INFOID:0000000011280576

• When the driver brakes hard in an emergency, the stopping distance is reduced by increasing brake fluid

pressure.

• Fail-safe function is adopted. When a malfunction occurs in Brake assist function, the control is suspended

for VDC function, TCS function, Brake limited slip differential (BLSD) function, Brake assist function, hill start

assist function and Brake force distribution function. The vehicle status becomes the same as models with-

out VDC function, TCS function, Brake limited slip differential (BLSD) function, Brake assist function, hill

start assist function and Brake force distribution function. However, ABS function and EBD function are oper-

ated normally. Refer to

BRC-20, "Fail-Safe"

SYSTEM DIAGRAM

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.

ALFIA0420GB

Component

Signal description

ECM

Mainly transmits the following signal to ABS actuator and electric unit (control unit) via CAN
communication:
• Accelerator pedal position signal
• Engine speed signal
• Engine torque signal
Mainly receives the following signal from ABS actuator and electric unit (control unit) via CAN
communication:
• Engine torque request signal

TCM

Mainly transmits the following signal to ABS actuator and electric unit (control unit) via CAN
communication:
• Current gear position signal

Chassis control module

Mainly transmits the following signal to ABS actuator and electric unit (control unit) via CAN
communication:
• Active trace control signal

SYSTEM

BRC-33

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

BRC

hill descent control (Downhill Drive Support) FUNCTION

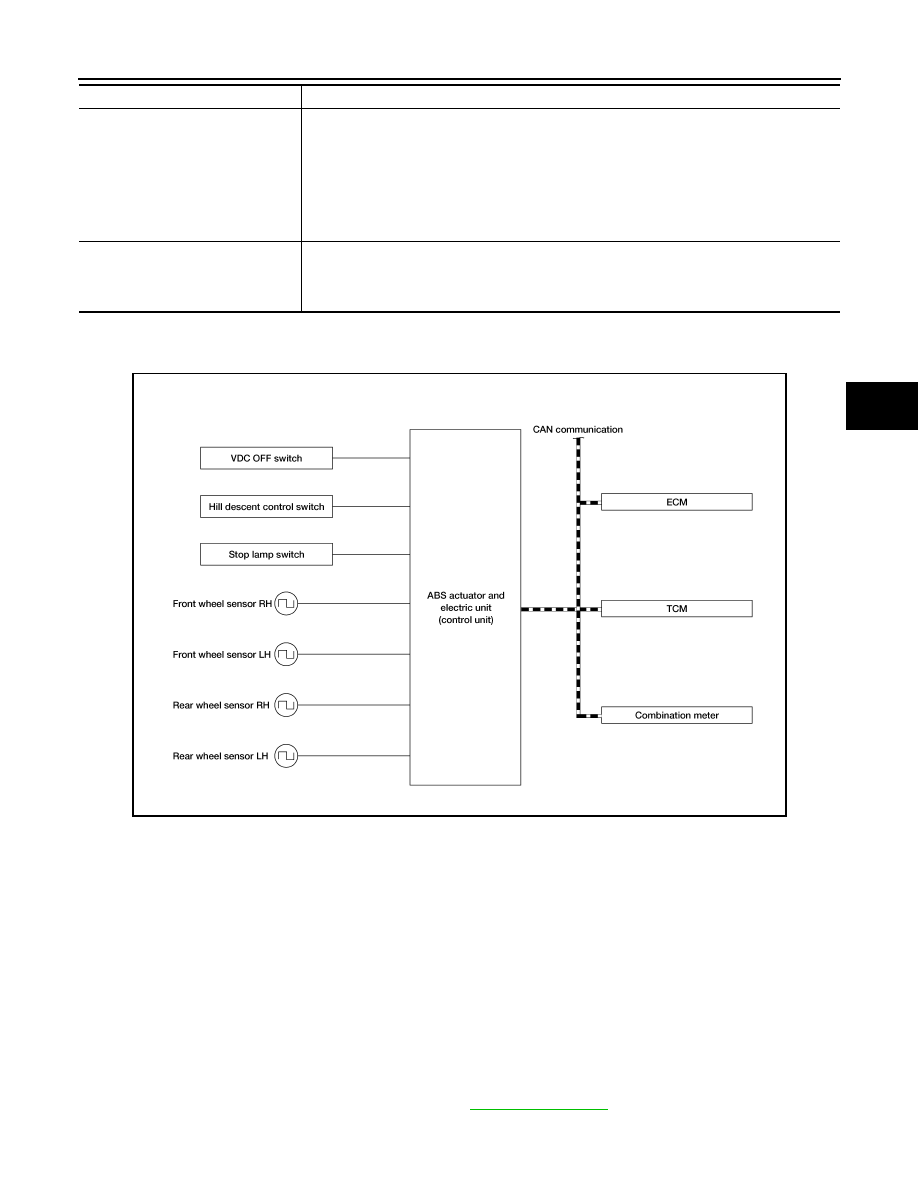

hill descent control (Downhill Drive Support) FUNCTION : System Diagram

INFOID:0000000011280577

hill descent control (Downhill Drive Support) FUNCTION : System Description

INFOID:0000000011280578

• The hill descent control system will help maintain vehicle speed when driving on steeper downhill grades.

Hill descent control will provide braking allowing the driver to concentrate on steering while reducing the bur-

den of brake and accelerator operation.

• To operate the system, push the hill descent control switch. the hill descent control indicator in the combina-

tion meter will turn on

• Hill start assist function is only for the start aid. It maintains the brake fluid pressure for approx. 2 seconds

after releasing the brake pedal, and then decreases the pressure gradually. If the vehicle starts by the accel-

erator operation, the brake is released automatically and a smooth start can be performed.

• Fail-safe function is adopted. When a malfunction occurs in hill start assist function, the control is suspended

for VDC function, TCS function, hill start assist function, Brake force distribution function and Active trace

control function. The vehicle status becomes the same as models without VDC function, TCS function, hill

start assist function, Brake force distribution function and Active trace control function. However, ABS func-

tion and EBD function are operated normally. Refer to

BRC-49, "Fail-Safe"

INPUT SIGNAL AND OUTPUT SIGNAL

Combination meter

Steering angle sensor

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication:
• Steering angle sensor signal
• Steering angle sensor malfunction signal

Component

Signal description

ALFIA0435GB

BRC-34

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

SYSTEM

Major signal transmission between each unit via communication lines is shown in the following table.

*: Communication line between yaw rate/side/decel G sensor and ABS actuator and electric unit (control unit)

hill start assist FUNCTION
hill start assist FUNCTION : System Description

INFOID:0000000011280579

• This function maintains brake fluid pressure so that the vehicle does not move backwards even if brake

pedal is released to depress accelerator pedal to start the vehicle while it is stopped on an uphill slope by

depressing brake pedal.

• This function operates when the vehicle is in stop status on a uphill slope of slope ratio 10% or more and

selector lever is in the position other than P or N.

• hill start assist function is only for the start aid. It maintains the brake fluid pressure for approx. 2 seconds

after releasing the brake pedal, and then decreases the pressure gradually. If the vehicle can start by the

accelerator operation, the brake is released automatically and a smooth start can be performed.

• Fail-safe function is adopted. When a malfunction occurs in hill start assist function, the control is suspended

for VDC function, TCS function, Brake limited slip differential (BLSD) function, Brake assist function, hill start

assist function and Brake force distribution function. The vehicle status becomes the same as models with-

out VDC function, TCS function, Brake limited slip differential (BLSD) function, Brake assist function, hill

start assist function and Brake force distribution function. However, ABS function and EBD function are oper-

ated normally. Refer to

BRC-20, "Fail-Safe"

Component

Signal description

Yaw rate/side/decel G sensor

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via com-
munication line *:
• Yaw rate signal
• Side G sensor signal
• Decel G sensor signal

ECM

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication:
• Accelerator pedal position signal
• Engine speed signal
Mainly receives the following signal from ABS actuator and electric unit (control unit) via CAN
communication:
• Target throttle position signal

TCM

Mainly transmits the following signal to ABS actuator and electric unit (control unit) via CAN
communication:
• Shift position signal

Combination meter

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication:
• Brake fluid level switch signal
• Parking brake switch signal
Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN
communication:
• VDC warning lamp signal
• VDC OFF indicator lamp signal
