ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000011280386

ECU

Reference

BCM (with Intelligent Key system)

BCS-28, "Reference Value"

BCS-46, "Fail Safe"

BCS-46, "DTC Inspection Priority Chart"

BCS-47, "DTC Index"

BCM (without Intelligent Key system)

BCS-96, "Reference Value"

BCS-107, "Fail Safe"

BCS-107, "DTC Inspection Priority Chart"

BCS-108, "DTC Index"

WW-20

< WIRING DIAGRAM >

FRONT WIPER AND WASHER SYSTEM

WIRING DIAGRAM

FRONT WIPER AND WASHER SYSTEM

Wiring Diagram

INFOID:0000000011280387

AALWA1022GB

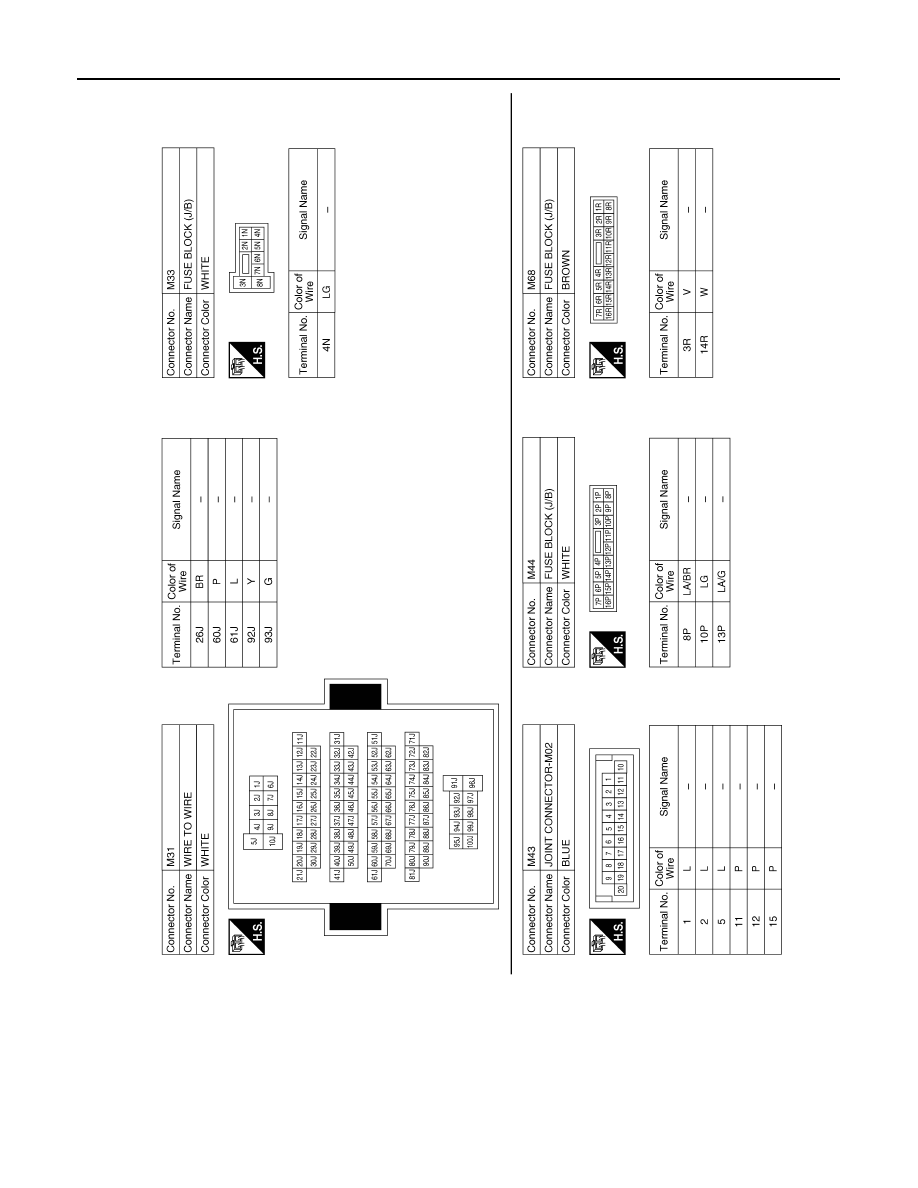

FRONT WIPER AND WASHER SYSTEM

WW-21

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

AALIA2179GB

WW-22

< WIRING DIAGRAM >

FRONT WIPER AND WASHER SYSTEM

AALIA2920GB
