Nissan Rogue. Manual - part 1248





WT-68

< REMOVAL AND INSTALLATION >

TIRE PRESSURE SENSOR

TIRE PRESSURE SENSOR

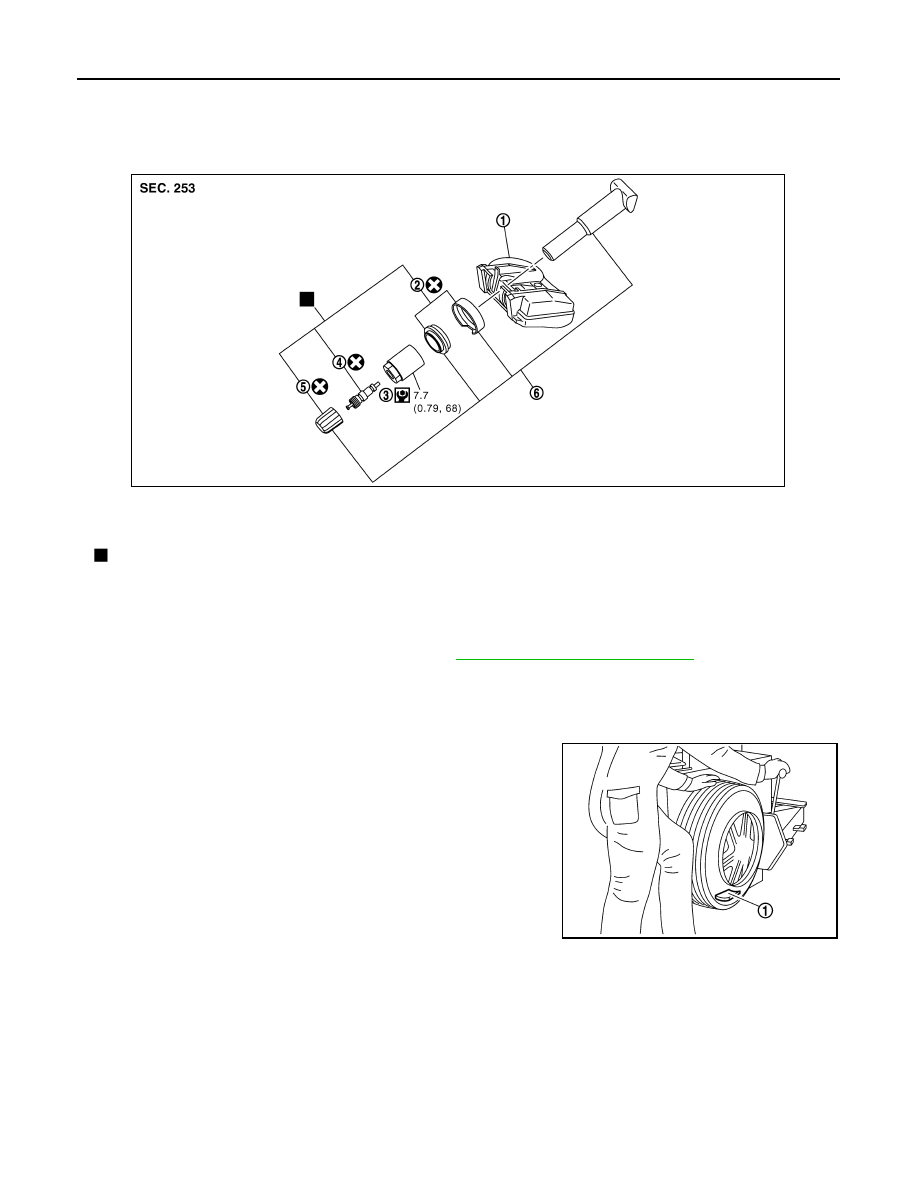

Exploded View

INFOID:0000000011280547

Removal and Installation

INFOID:0000000011280548

REMOVAL

1. Remove wheel and tire using power tool. Refer to

WT-67, "Removal and Installation"

.

2. Remove valve cap and valve core to deflate the tire.

NOTE:

If the tire is to be reused, apply a matching mark on the tire in line with the position of the valve stem

assembly for the purpose of wheel and tire balance adjustment after installation.

3. Remove the valve stem nut and allow tire pressure sensor (1) to

fall into tire.

4. Lubricate the tire outside bead well with a suitable non-silicone

lubricant, and remove outside of tire from the wheel.

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will

deteriorate the tire and wheel.

• Be sure not to damage the wheel or tire pressure sensor.

• Do not allow lubricant to make contact with tire pressure

sensor.

• Verify that the tire pressure sensor (1) is at the bottom of

the tire while performing the above.

5. Lubricate the tire inside bead well with a suitable non-silicone lubricant, and remove inside of tire from the

wheel.

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and wheel.

• Be sure not to damage the wheel.

6. Set tire onto the tire changer turntable so that the tire pressure sensor inside the tire is located close to the

valve stem hole in the wheel.

1.

Tire pressure sensor

2.

Washer/ Grommet seal

3.

Valve stem nut

4.

Valve core

5.

Valve cap

6.

Valve stem assembly

:

Parts that are replaced as a set when the tire is replaced.

JMEIA0210GB

JPEIC0104ZZ

TIRE PRESSURE SENSOR

WT-69

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

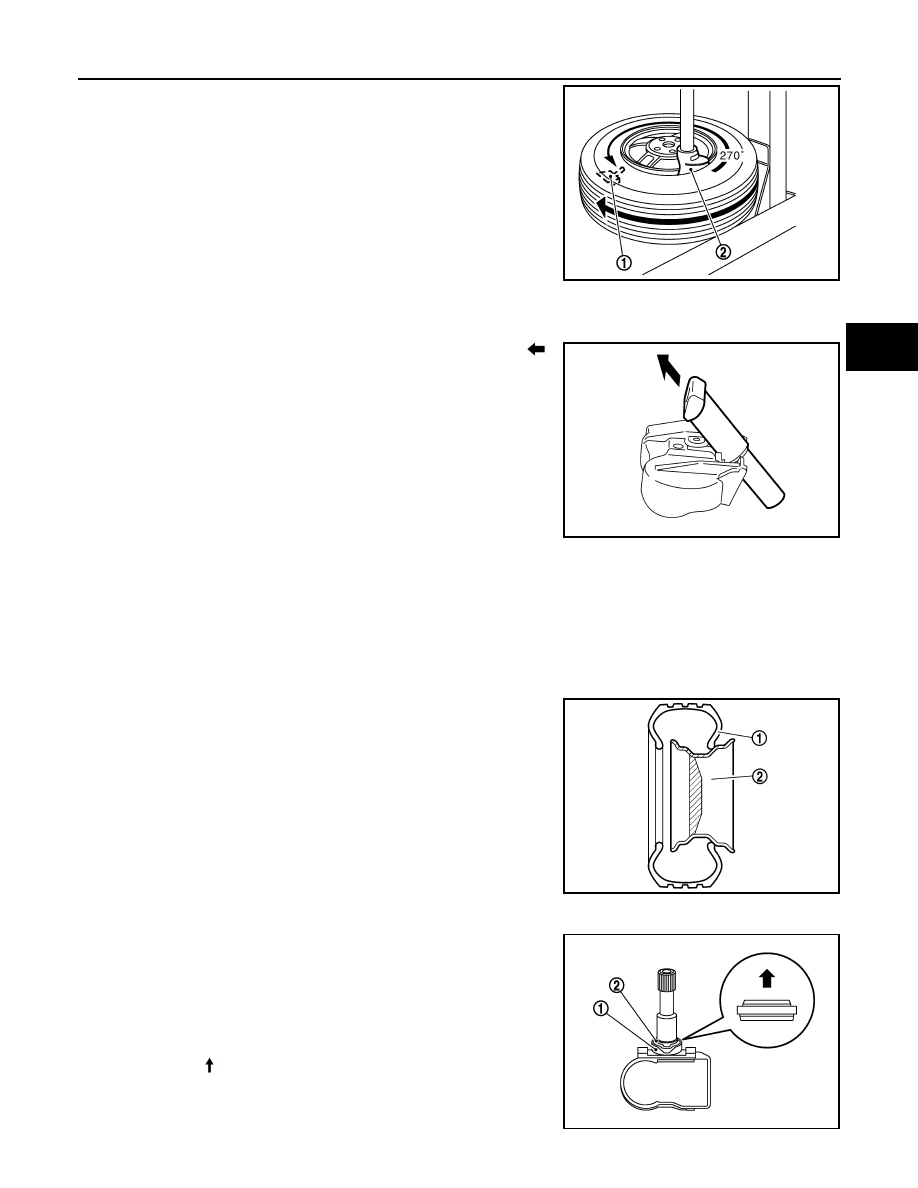

7. Turn tire so that the valve stem hole in the wheel is at the bottom

and bounce so that the tire pressure sensor (1) inside the tire is

near the valve stem hole in the wheel. Carefully lift tire onto turn

table and position the valve stem hole in the wheel (and tire

pressure sensor) 270 degrees from mounting/dismounting head

(2).

CAUTION:

Do not damage the wheel or tire pressure sensor.

8. Remove the tire pressure sensor from the tire.
9. Remove the grommet seal and washer.
10. Remove the valve stem in the direction shown by the arrow (

).

INSTALLATION

1. Apply a suitable non-silicone lubricant to the tire inside bead.

CAUTION:

• Replace the valve stem assembly if the valve stem has deformations, cracks, damage, or corro-

sion.

• Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and wheel.

• Do not drop or strike the tire pressure sensor. Replace the tire pressure sensor if it has been

dropped from higher than one meter.

2. Install the tire inside bead (1) onto the wheel (2) in the position

shown.

3. Install the valve stem to the tire pressure sensor.
4. Install the washer (1) onto the valve stem, and then install the

grommet seal (2) onto the valve stem.

CAUTION:

• Do not reuse grommet seal or washer.

• Check the direction of the grommet seal.

• Insert the grommet seal all the way to the base.

JPEIC0014GB

JSEIA0378ZZ

JPEIC0105ZZ

: Outside

JMEIA0211ZZ

WT-70

< REMOVAL AND INSTALLATION >

TIRE PRESSURE SENSOR

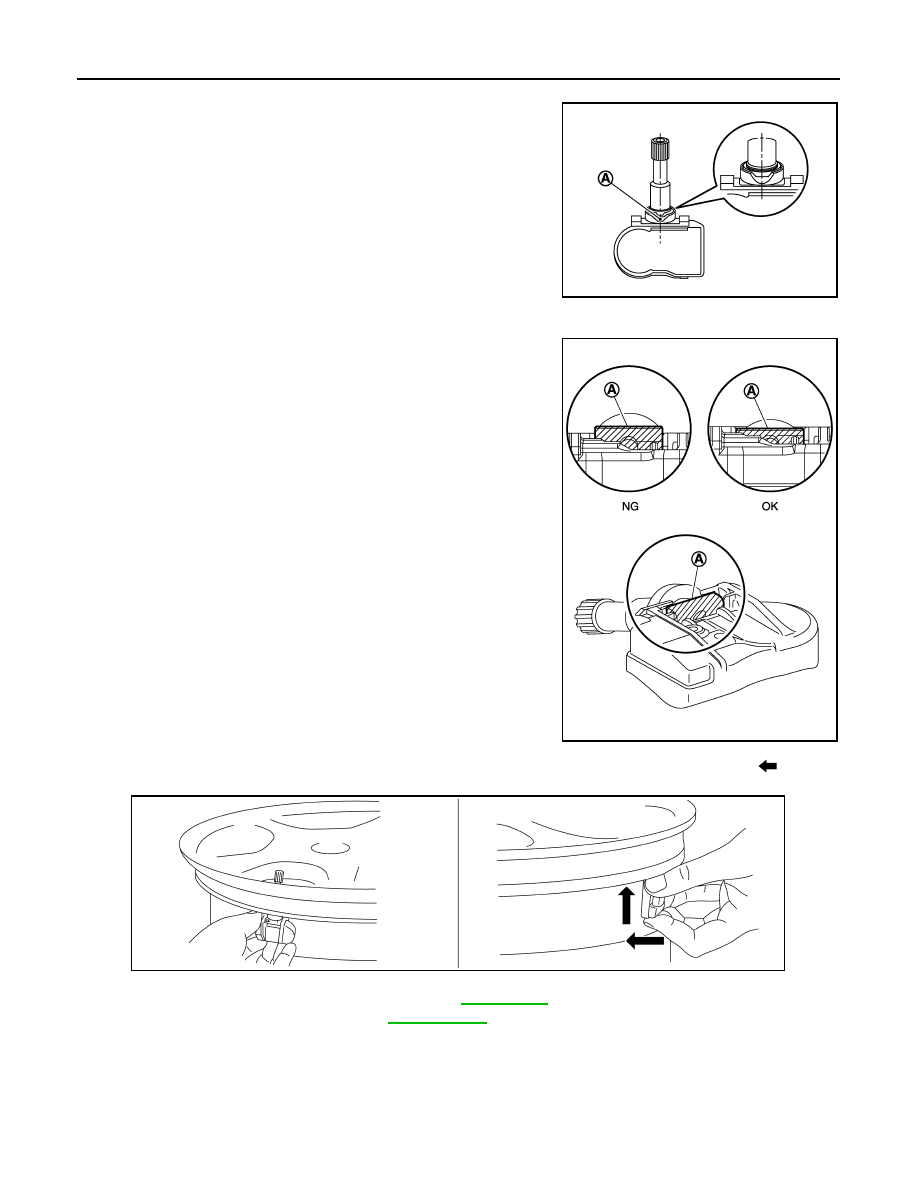

CAUTION:

Direct the cut part (A) of the washer to the center of the

valve stem as shown.

5. Follow the procedure below and install the tire pressure sensor to the wheel.
a. Check the position of the valve stem before installing tire pres-

sure sensor to the wheel.

CAUTION:

The base of the valve stem (A) must be positioned in the

groove of the metal plate as shown.

b. Hold tire pressure sensor as shown and press the sensor in the direction shown by the arrow (

) to bring

into absolute contact with the wheel. Tighten the valve stem nut to the specified torque.

CAUTION:

• Do not reuse valve core and valve cap.

• Check that grommet seal is free of foreign matter.

• Check that grommet seal contacts horizontally with wheel.

• Check again that the base of valve stem is positioned in the groove of the metal plate.

JMEIA0212ZZ

JSEIA0376GB

Valve stem nut tightening torque

: Refer to

WT-68, "Ex-

ploded View"

.

JSEIA0465GB

TIRE PRESSURE SENSOR

WT-71

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

• Manually tighten valve stem nut all the way to the wheel. (Do not use a power tool to avoid

impact.)

• Do not tighten valve stem nut to more than the specified torque. It may cause grommet seal dam-

age.

• Do not tighten valve stem nut to less than the specified torque. It may cause an air leak.

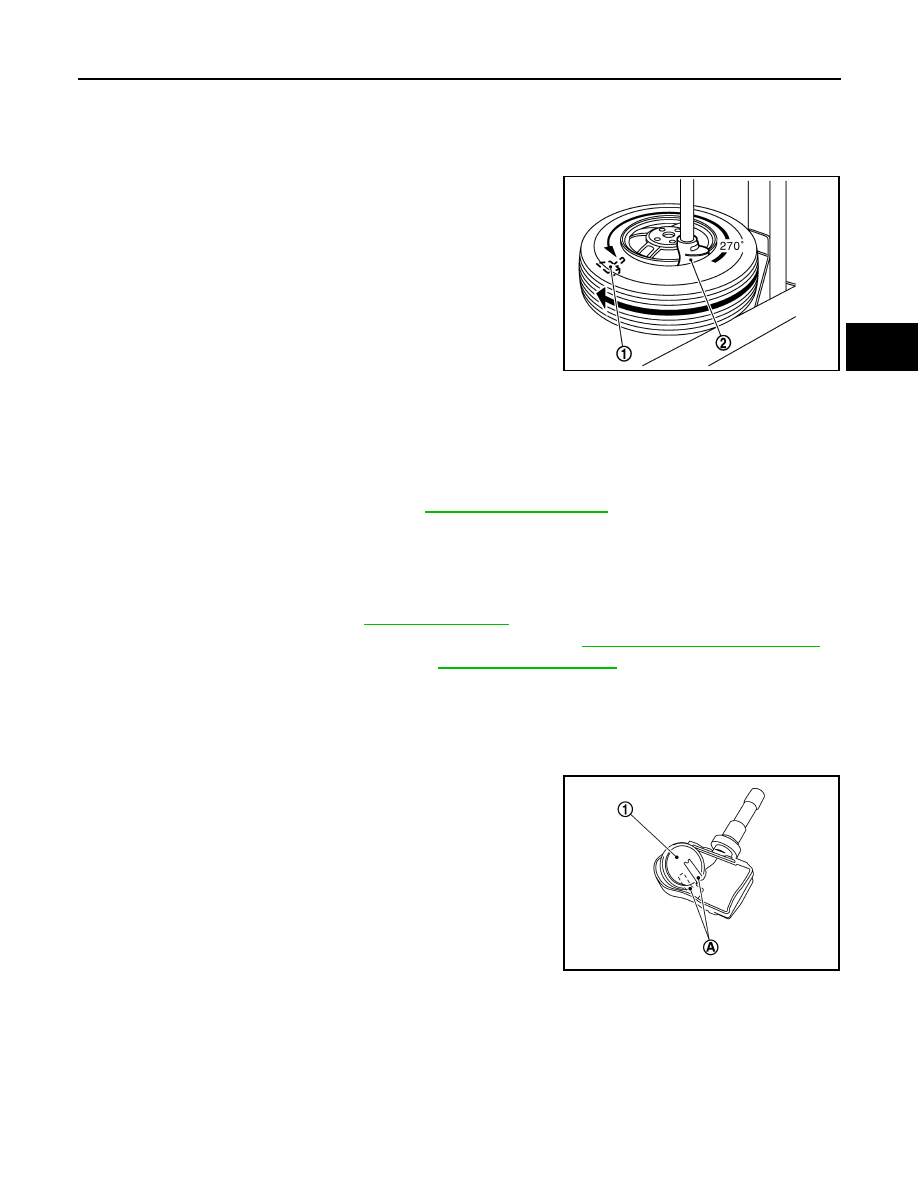

6. Place wheel on turntable of tire machine. Ensure that tire pres-

sure sensor (1) is 270 degrees from mounting/dismounting head

(2).

CAUTION:

Do not touch tire pressure sensor with mounting head.

7. Apply a suitable non-silicone lubricant to the tire outside bead.

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will

deteriorate the tire and wheel.

• Do not allow lubricant to make contact with tire pressure

sensor.

• When installing, check that the tire does not turn together

with the wheel.

8. Install the tire outside bead onto the wheel as normal.

NOTE:

If the tire is being reused, align the matching mark applied on the tire with the position of the valve stem

assembly for the purpose of wheel and tire balance adjustment after installation. Make sure that the tire

does not rotate relative to wheel.

9. Install the valve core and inflate tire. Refer to

WT-73, "Tire Air Pressure"

.

CAUTION:

Do not reuse valve core.

10. Install the valve cap.

CAUTION:

Do not reuse valve cap.

11. Balance the wheel and tire. Refer to

WT-64, "Adjustment"

.

12. Install wheel and tire in the appropriate position on vehicle. Refer to

WT-67, "Removal and Installation"

.

13. Perform the ID registration procedure. Refer to

WT-26, "Work Procedure"

.

NOTE:

If replacing the tire pressure sensor, then the ID registration procedure must be performed.

Disposal

INFOID:0000000011372148

CAUTION:

• When discarding tire pressure sensor, remove battery (1)

from tire pressure sensor.

• Dispose of battery according to the law and local regulations.
1. Remove battery from tire pressure sensor.

NOTE:

The battery is sealed to the tire pressure sensor with urethane.

a. Remove urethane from tire pressure sensor.
b. Using a suitable tool cut battery terminal (A), then remove bat-

tery from tire pressure sensor.

JPEIC0014GB

JSEIA0729ZZ
