Nissan Rogue. Manual - part 1205

TM-192

< PERIODIC MAINTENANCE >

[CVT: RE0F10D]

CVT FLUID

Never reuse O-ring.

14. Lift down the vehicle.
15. Stop the engine.

CVT SHIFT SELECTOR

TM-193

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

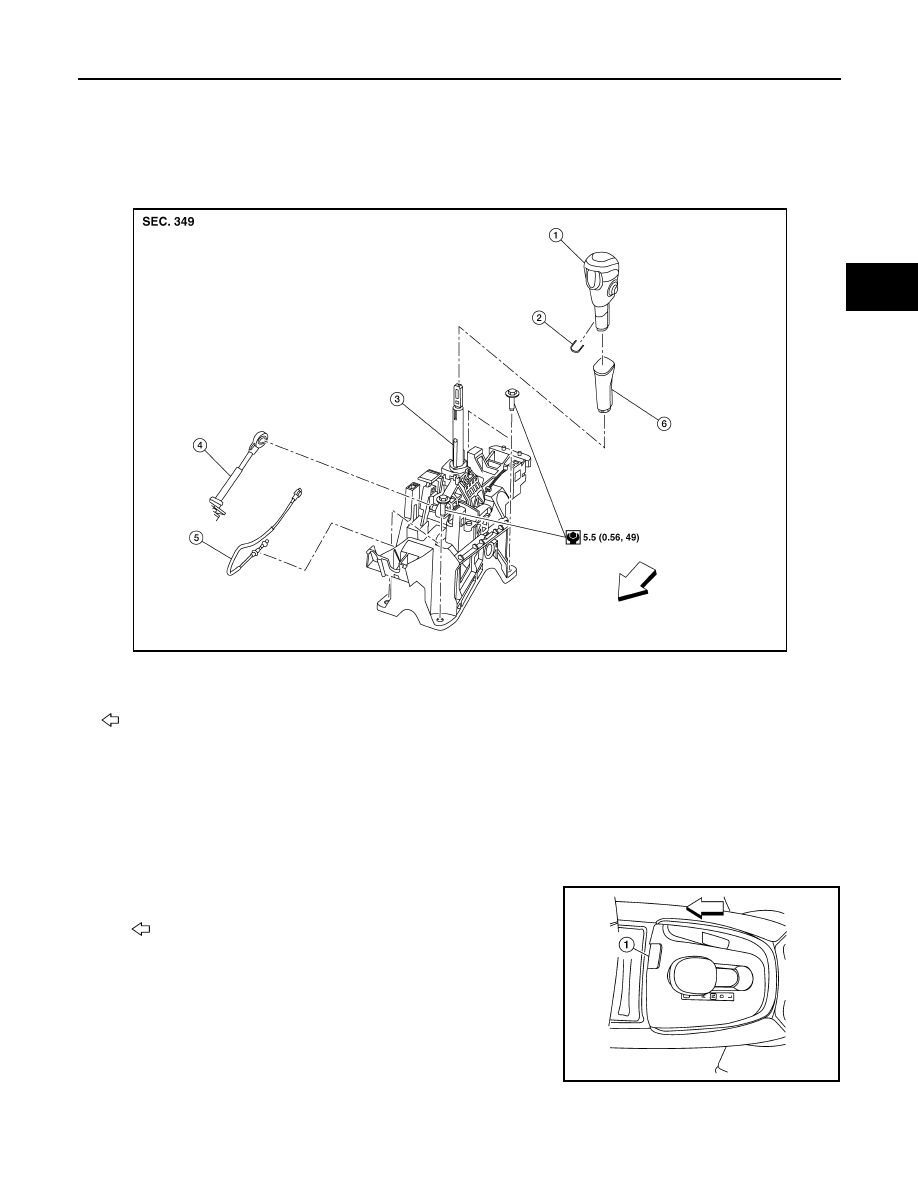

REMOVAL AND INSTALLATION

CVT SHIFT SELECTOR

Exploded View

INFOID:0000000011279411

Removal and Installation

INFOID:0000000011279412

REMOVAL

1. Apply the parking brake.

CAUTION:

Make sure the vehicle cannot move with the parking brake applied.

2. Move the shift selector with the following procedure.

• Remove shift lock override button cover (1) using suitable tool.

1.

Shift selector handle

2.

Lock pin

3.

Shift selector assembly

4.

Control cable

5.

Key interlock cable

6.

Shift selector handle cover

Front

AWDIA1214ZZ

: Front

ALDIA0499ZZ

TM-194

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

CVT SHIFT SELECTOR

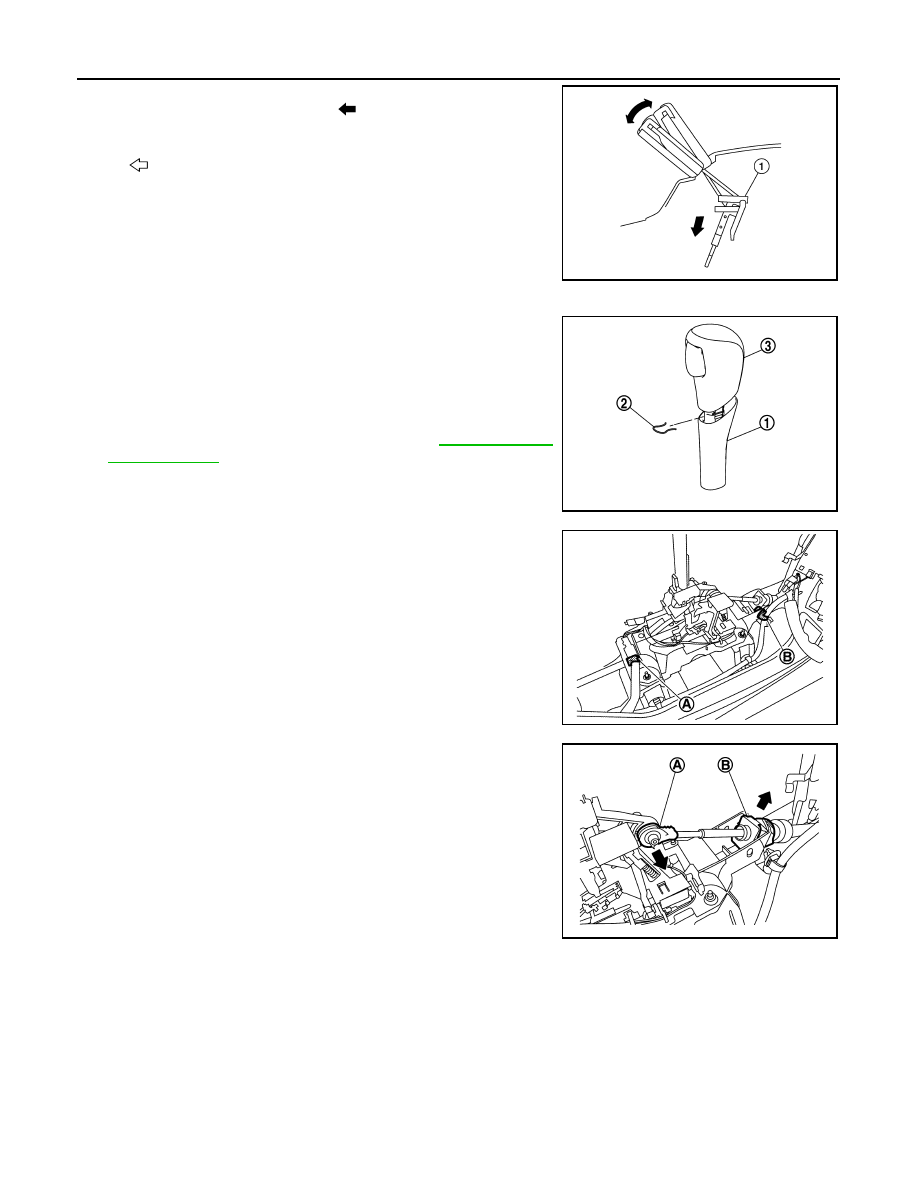

• Insert suitable tool into opening to depress the shift lock over-

ride button (1) in the direction (

) shown. Move shift selector

to “N” position while depressing shift lock override button.

3. Remove the shift selector handle with the following procedure.
a. Slide the selector lever handle cover (1) down.

CAUTION:

Do not damage the knob cover.

b. Pull out the lock pin (2) from the selector lever handle (3).
c.

Pull the selector lever handle and the selector lever handle

cover upwards to remove them.

4. Remove the center console assembly. Refer to

IP-19, "Removal

and Installation"

.

5. Shift the selector lever to “P” position.

6. Disconnect the shift selector connector (A) and remove harness

clip (B).

7. Disconnect the tip (A) of control cable and remove socket (B)

from the shift selector assembly.

: Front

ALDIA0530ZZ

JSDIA3654ZZ

JSDIA4144ZZ

JSDIA4145ZZ

CVT SHIFT SELECTOR

TM-195

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

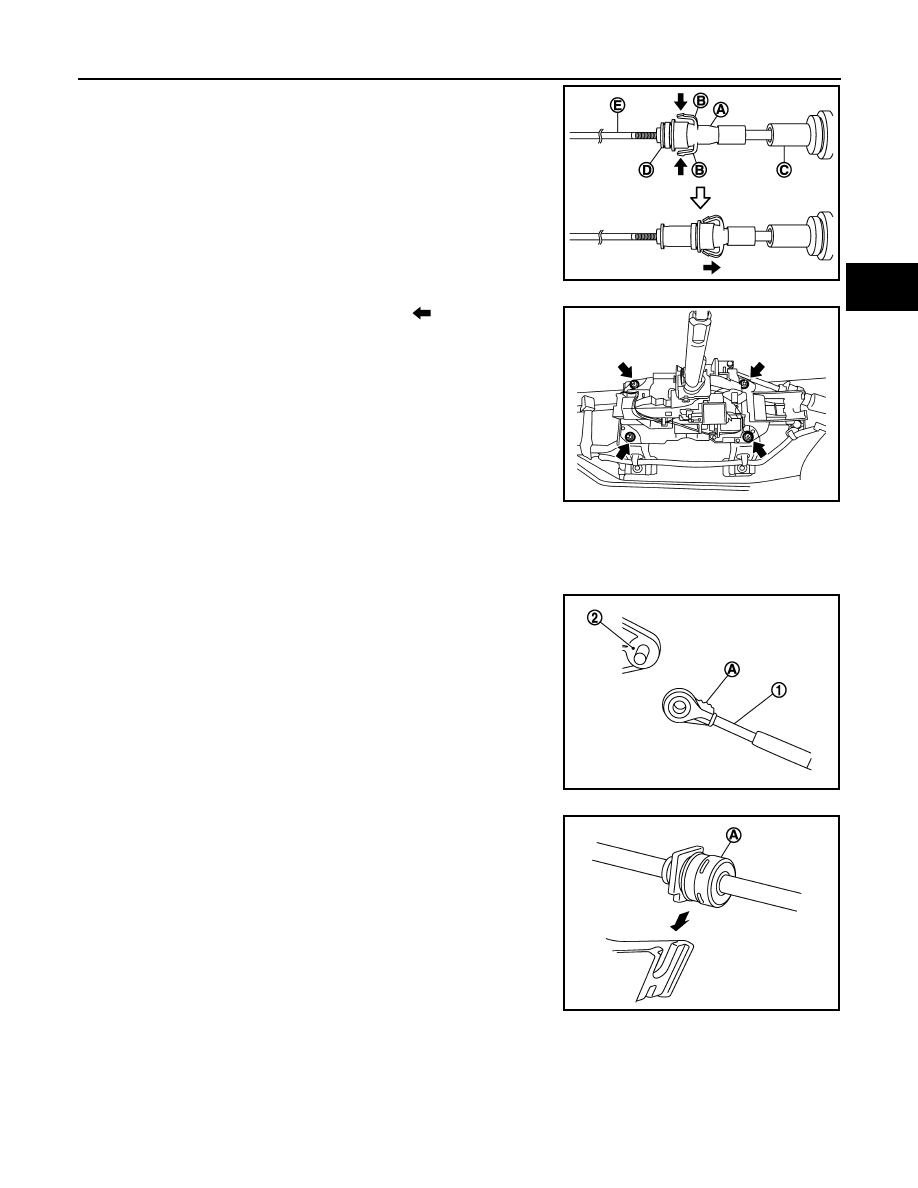

8. Press the pawls (B) of the key interlock cable slider (A) while

sliding it in the direction of the casing cap (C), and separate the

adjusting holder (D) and slider (A) (if equipped).

9. Remove the key interlock cable from the shift selector (if

equipped).

10. Remove the shift selector assembly nuts (

) and remove the

shift selector assembly from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

Shift Selector

• Pay attention to the following when connecting the control cable to the shift selector assembly.

1. When connecting the control cable (1) to the shift selector

assembly (2), face the grooved surface of the rib (A) up and

insert the control cable until it stops.

NOTE:

Apply multi-purpose grease to control cable eye before installa-

tion.

2. Install the socket (A) onto the shift selector assembly.

CAUTION:

• Place the socket onto the shift selector assembly, then

fasten it in place from above.

• Check that the pulling on the socket does not disconnect

it.

Shift Selector Handle

• Follow the procedure below and place the shift selector handle onto the shift selector assembly.

(E)

:Key interlock rod

JSDIA1797ZZ

JSDIA4146ZZ

JSDIA1624ZZ

JSDIA1810ZZ
