STR-6

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

System Description

INFOID:0000000011279734

The starter motor plunger closes and provides a closed circuit between the battery and the starter motor. The

starter motor is grounded to the cylinder block. With power and ground supplied, the starter motor operates.

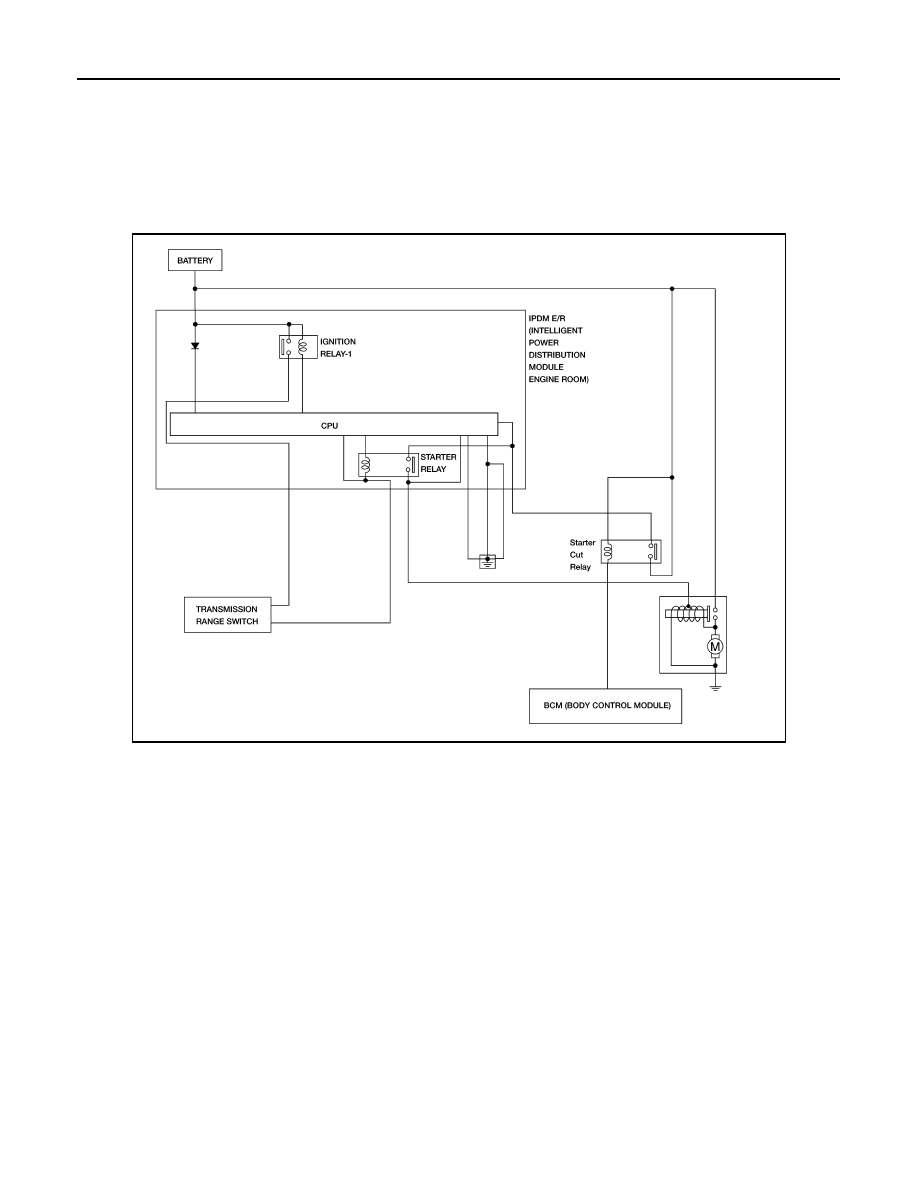

SYSTEM DIAGRAM

AWBIA2280GB

STARTING SYSTEM

STR-7

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

WIRING DIAGRAM

STARTING SYSTEM

Wiring Diagram

INFOID:0000000011279735

AABWA0952GB

STR-8

< WIRING DIAGRAM >

STARTING SYSTEM

AABIA1218GB

STARTING SYSTEM

STR-9

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

AABIA1219GB
