DIAGNOSIS SENSOR UNIT

How to read flash codes

1. Put the vehicle in Diagnosis Mode. Refer to

SRC-14, "On Board Diagnosis Function"

.

2. All codes are followed by a seven second “holding” flash.
3. Identify how many primary flashes are displayed as well as the length of each primary flash.
4. Refer to the tables and examples below to determine which SRS subsystem the code belongs to.
5. Count the short secondary flashes that follow the primary flashes.
6. Match the correct flashing pattern to the malfunctioning component and perform the Diagnosis Procedure.

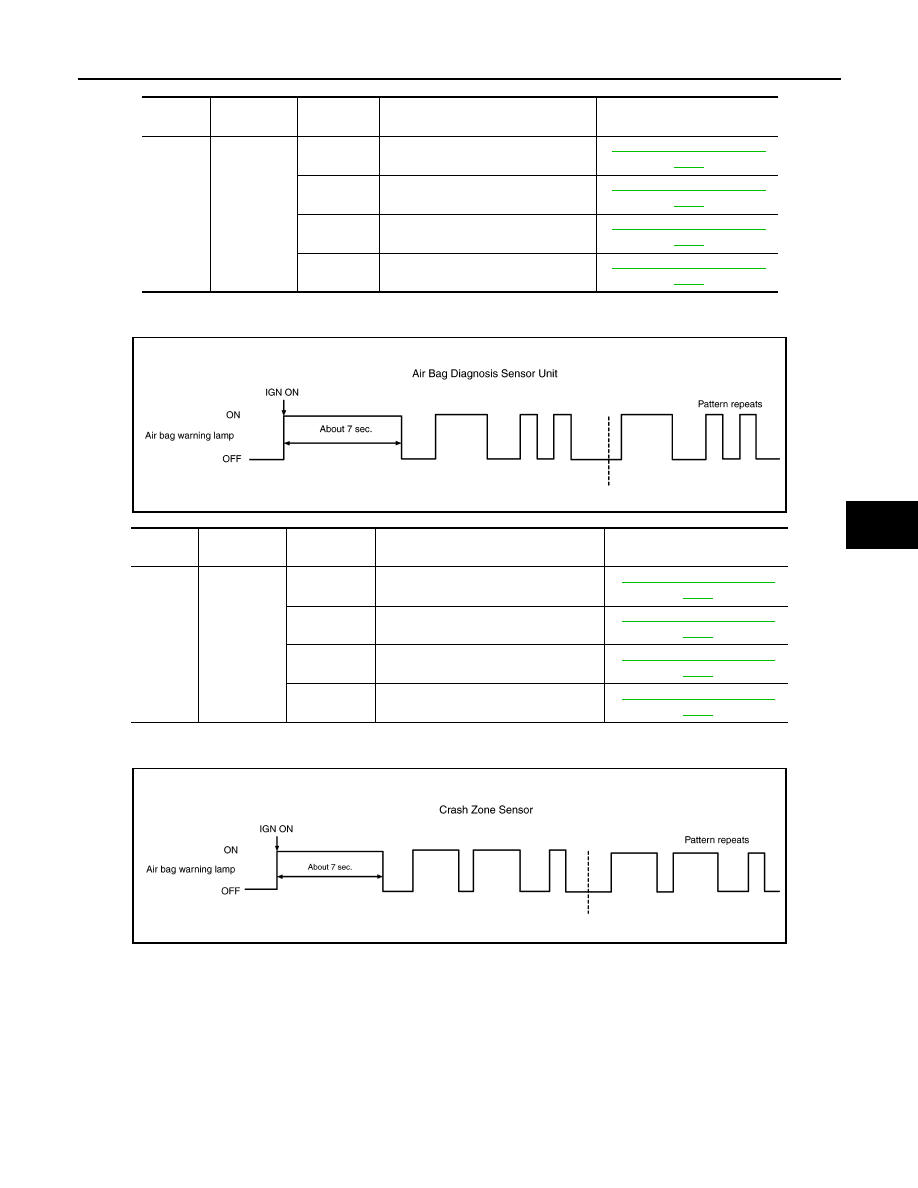

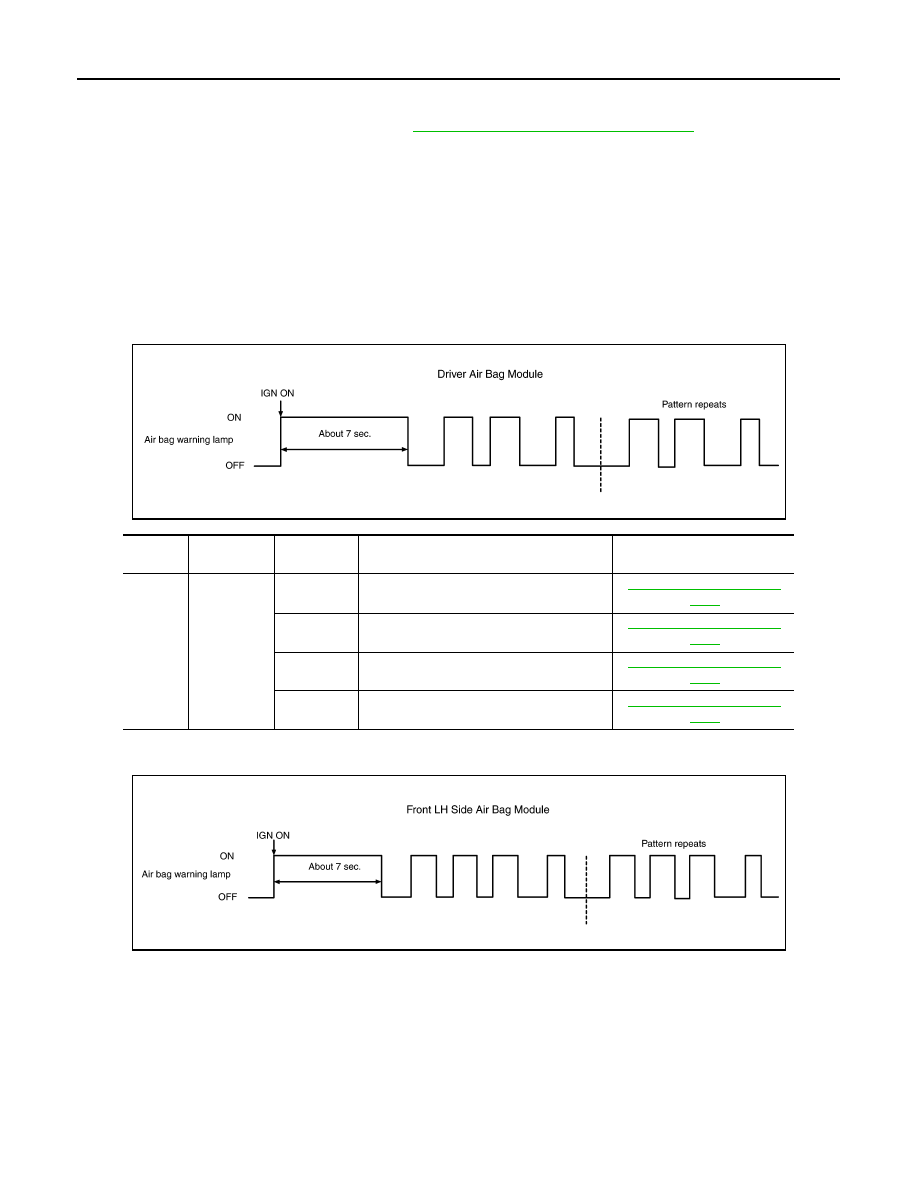

Refer to the illustrations below for an example of each flashing pattern.

Front subsystem

Side subsystem

AWHIA0430GB

Flashes

(Primary)

Flash Length

(seconds)

Flashes

(Secondary)

Malfunctioning Component or Circuit

Reference

2

1.5

1

Driver air bag module

SRC-46, "Diagnosis Proce-

dure"

2

Passenger air bag module

SRC-48, "Diagnosis Proce-

dure"

3

Front LH seat belt pre-tensioner

SRC-58, "Diagnosis Proce-

dure"

4

Front RH seat belt pre-tensioner

SRC-60, "Diagnosis Proce-

dure"

AWHIA0431GB

DIAGNOSIS SENSOR UNIT

SRC-23

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

Air bag subsystem

Sensor subsystem

Flashes

(Primary)

Flash Length

(seconds)

Flashes

(Secondary)

Malfunctioning Component or Circuit

Reference

3

1.5

1

Front LH side air bag module

SRC-50, "Diagnosis Proce-

dure"

2

Front RH side air bag module

SRC-52, "Diagnosis Proce-

dure"

3

LH side curtain air bag module

SRC-54, "Diagnosis Proce-

dure"

4

RH side curtain air bag module

SRC-56, "Diagnosis Proce-

dure"

AWHIA0432GB

Flashes

(Primary)

Flash Length

(seconds)

Flashes

(Secondary)

Malfunctioning Component or Circuit

Reference

1

3

1

Collision detection

SRC-97, "Diagnosis Proce-

dure"

2

Air bag diagnosis sensor unit

SRC-88, "Diagnosis Proce-

dure"

3

Passenger air bag OFF indicator

SRC-90, "Diagnosis Proce-

dure"

4

Occupant classification system

SRC-86, "Diagnosis Proce-

dure"

AWHIA0433GB

SRC-24

< ECU DIAGNOSIS INFORMATION >

DIAGNOSIS SENSOR UNIT

Flashes

(Primary)

Flash Length

(seconds)

Flashes

(Secondary)

Malfunctioning Component or Circuit

Reference

2

3

1

Crash zone sensor

SRC-67, "Diagnosis Proce-

dure"

2

Front side air bag satellite sensor LH

SRC-74, "Diagnosis Proce-

dure"

3

Front side air bag satellite sensor RH

SRC-77, "Diagnosis Proce-

dure"

4

Rear side satellite sensor LH

SRC-80, "Diagnosis Proce-

dure"

5

Rear side satellite sensor RH

SRC-83, "Diagnosis Proce-

dure"

6

Front door satellite sensor LH

SRC-69, "Diagnosis Proce-

dure"

7

Front door satellite sensor RH

SRC-71, "Diagnosis Proce-

dure"

8

Seat belt buckle switch LH

SRC-62, "Diagnosis Proce-

dure"

9

Seat belt buckle switch RH

SRC-65, "Diagnosis Proce-

dure"

SRS AIR BAG SYSTEM

SRC-25

< WIRING DIAGRAM >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

WIRING DIAGRAM

SRS AIR BAG SYSTEM

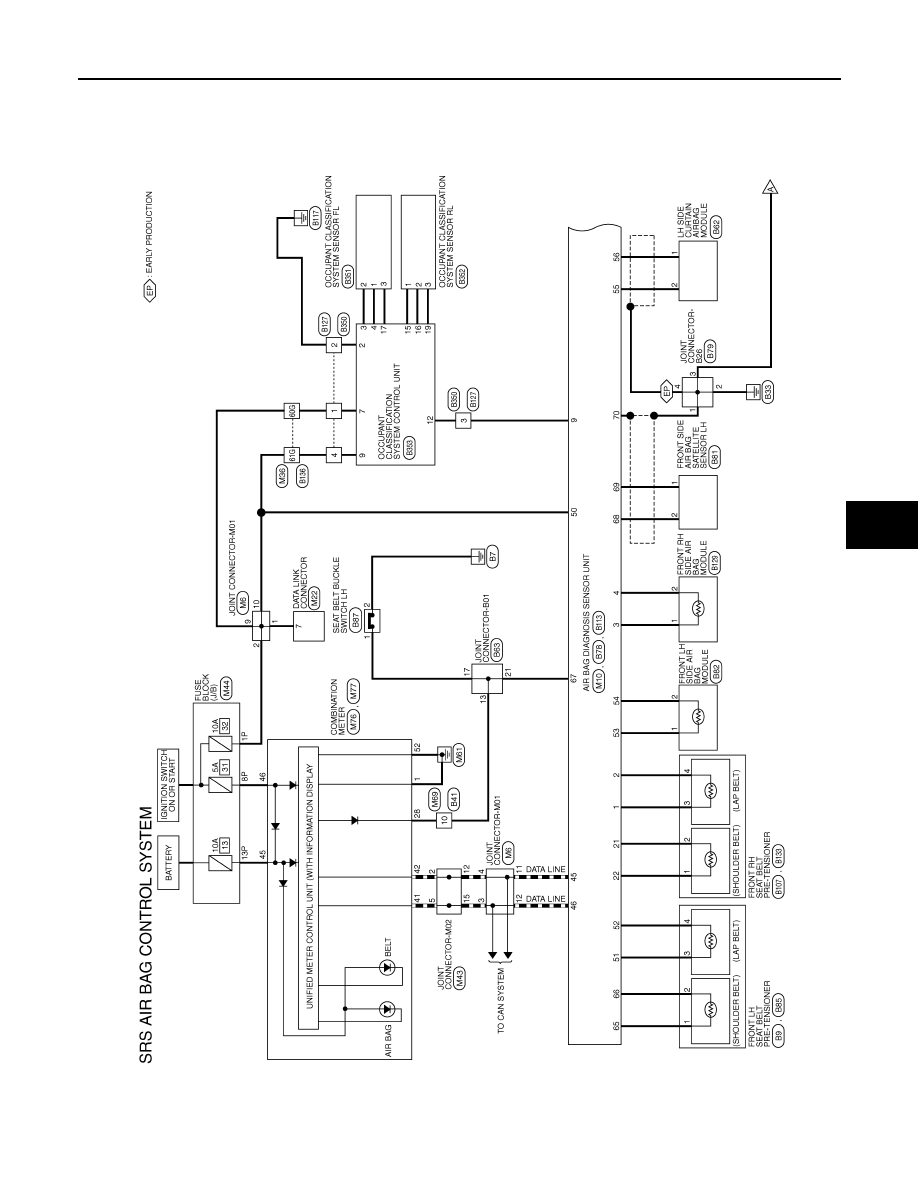

Wiring Diagram
