VEHICLE SECURITY SYSTEM

SEC-147

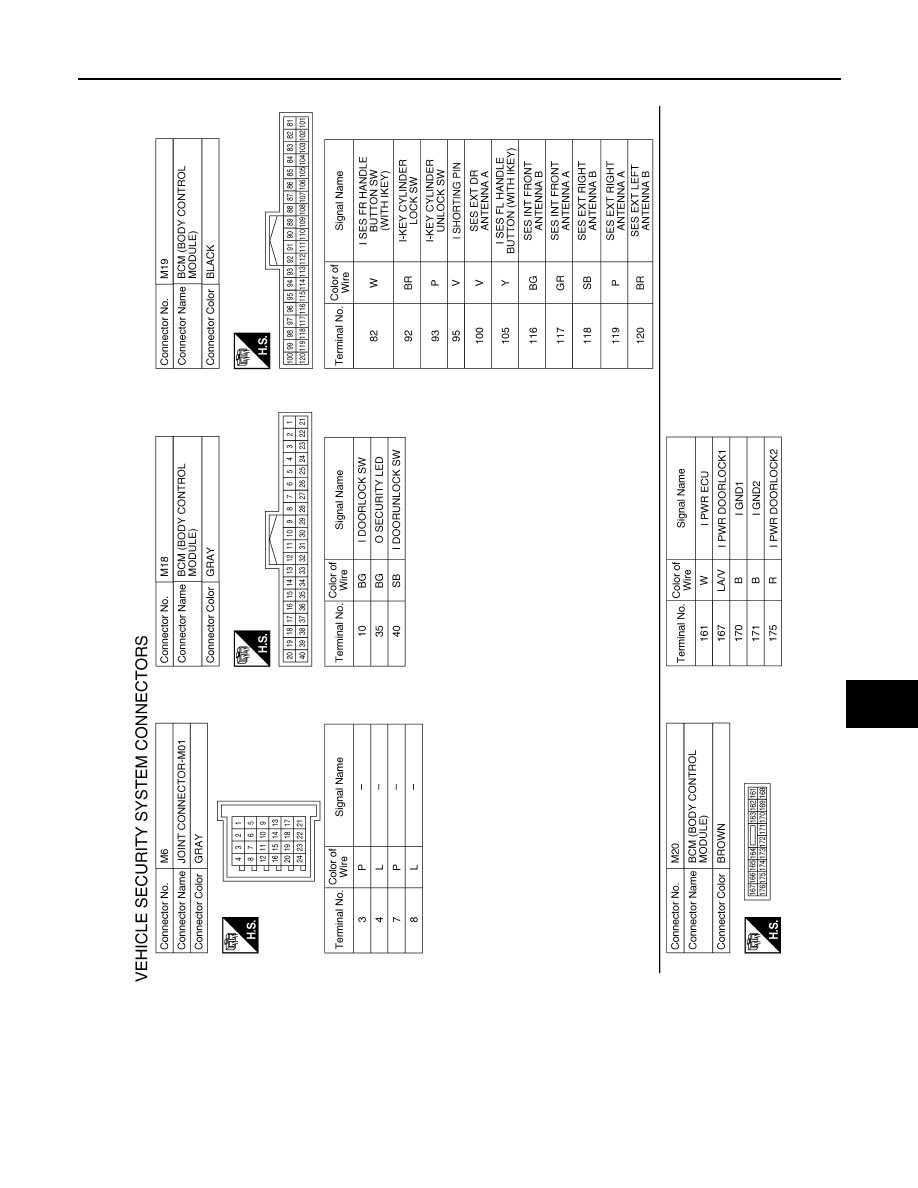

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKIA2336GB

2015 Rogue NAM

SEC-148

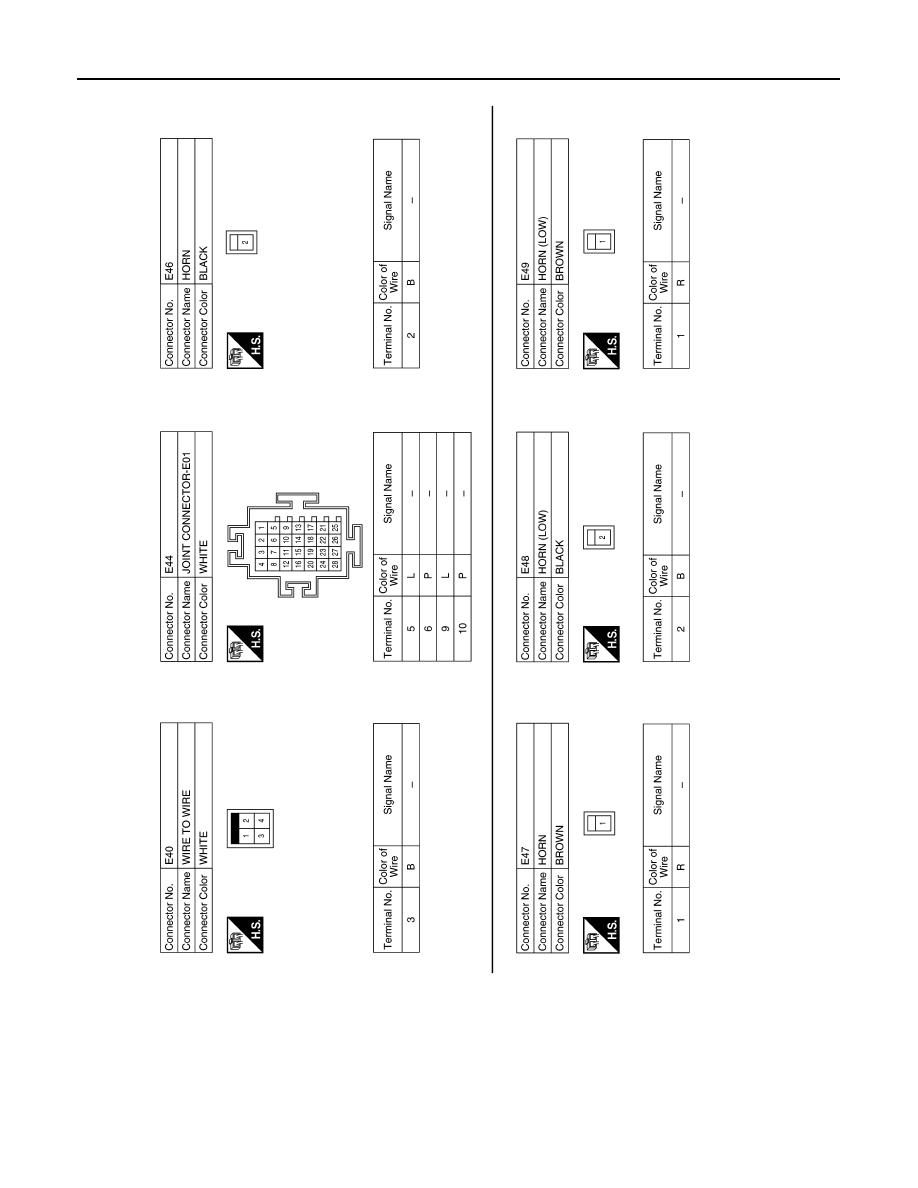

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

AAKIA2337GB

2015 Rogue NAM

VEHICLE SECURITY SYSTEM

SEC-149

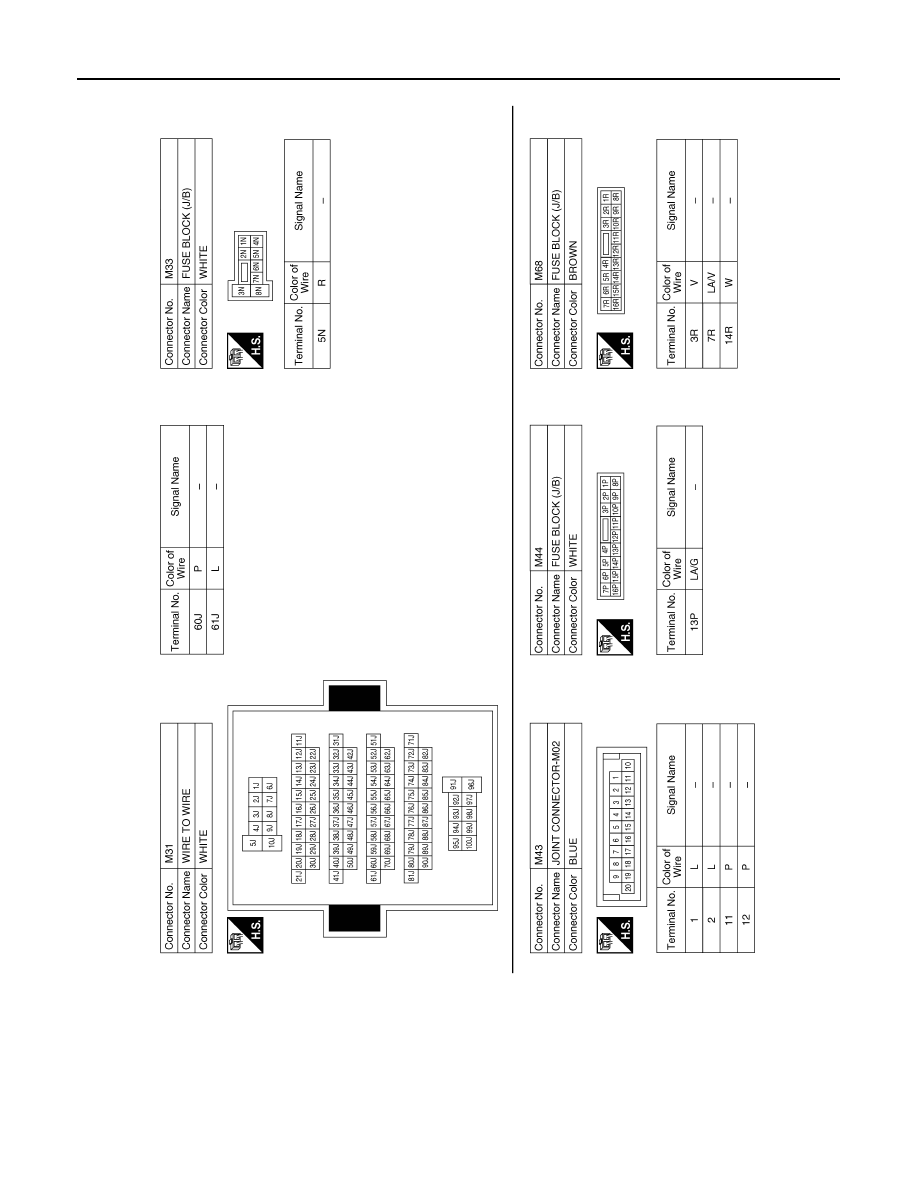

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKIA1807GB

2015 Rogue NAM

SEC-150

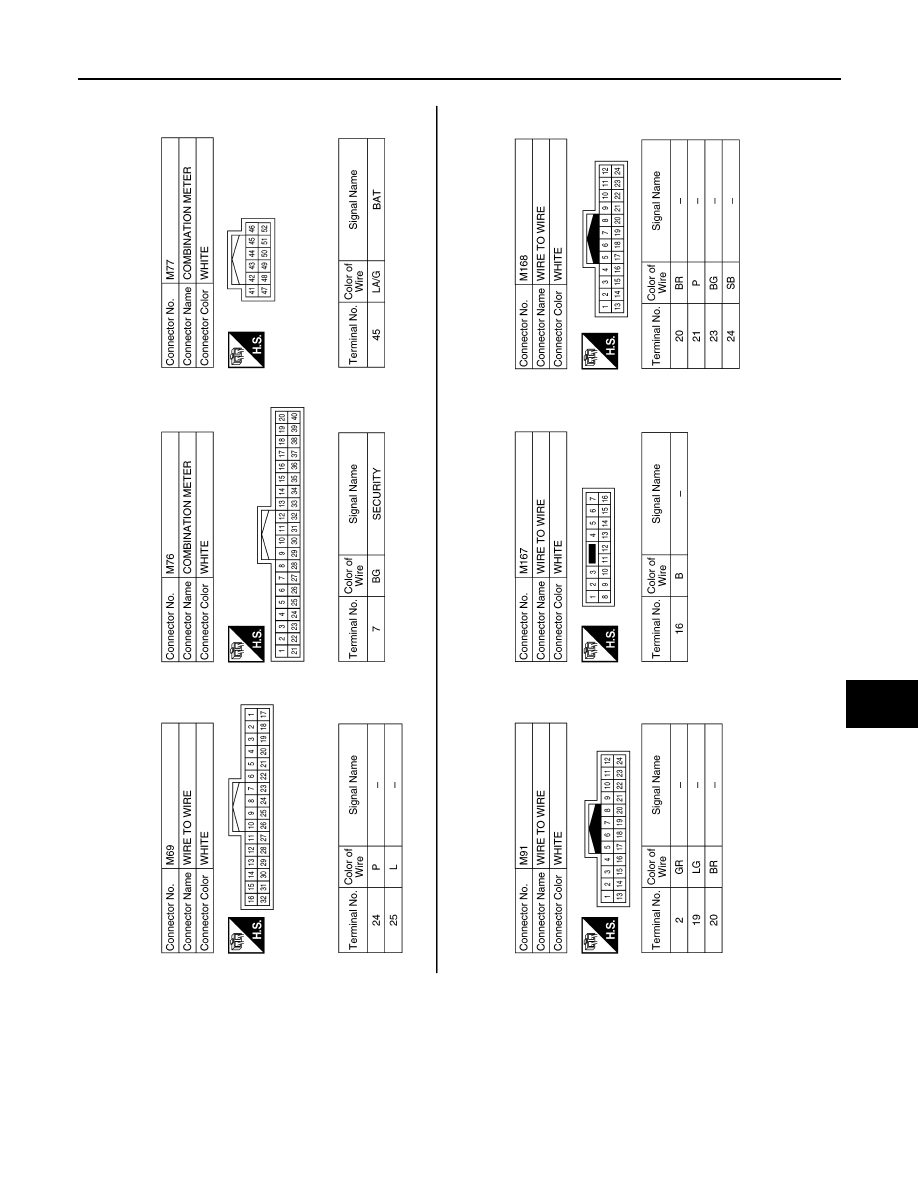

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

AAKIA1808GB

2015 Rogue NAM
