SYSTEM

SEC-15

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SEC

Vehicle speed: 4 km/h (2.5 MPH) or more

Emergency stop operation
• Press and hold the push-button ignition switch for 2 seconds or more.
• Press the push-button ignition switch 3 times or more within 1.5 seconds.

VEHICLE SECURITY SYSTEM

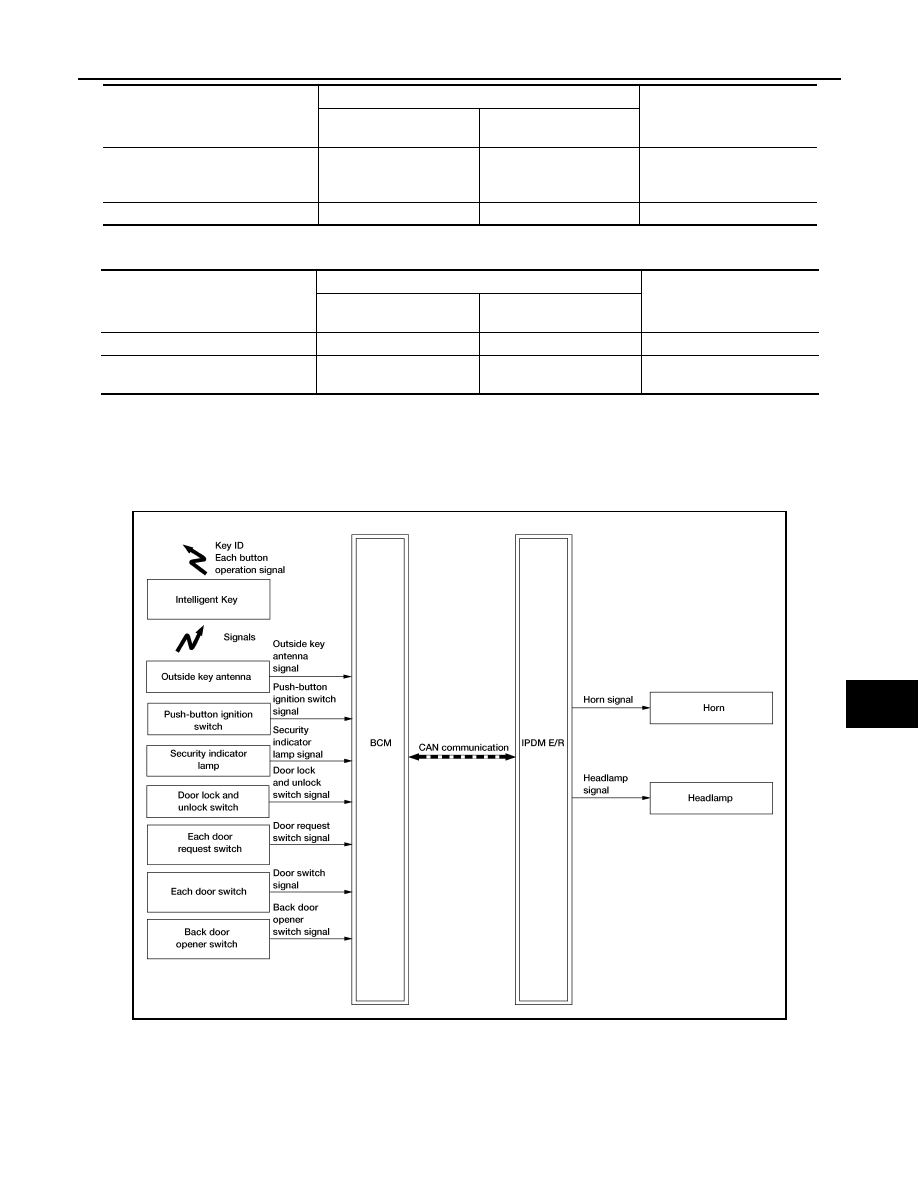

VEHICLE SECURITY SYSTEM : System Diagram

INFOID:0000000011278445

VEHICLE SECURITY SYSTEM : System Description

INFOID:0000000011278446

• The vehicle security system has two alarm functions (theft warning alarm and panic alarm) and reduces the

possibility of a theft or mischief by activating horns and headlamps intermittently.

LOCK

→ START

ACC

→ START

P (Park) or N (Neutral) po-

sition

Depressed

Engine is running

→ OFF

—

Power supply position

Engine start/stop condition

Push-button ignition switch

operation frequency

Selector lever

Brake pedal operation

condition

Power supply position

Engine start/stop condition

Push-button ignition switch

operation frequency

Selector lever

Brake pedal operation

condition

Engine is running

→ ACC

—

Emergency stop operation

Engine stall return operation while
driving

N (Neutral) position

Not depressed

ALKIA3684GB

2015 Rogue NAM

SEC-16

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM

• The panic alarm does not start when the theft warning alarm is activating and the panic alarm stops when

the theft warning alarm is activated.

The priority of the functions are as per the following:

THEFT WARNING ALARM

• The theft warning alarm function activates horns and headlamps intermittently when BCM detects that any

door is opened by unauthorized means while the system is in the ARMED state.

• Security indicator lamp on combination meter always blinks when power supply position is any position other

than ON. Security indicator lamp blinking warns that the vehicle is equipped with a vehicle security system.

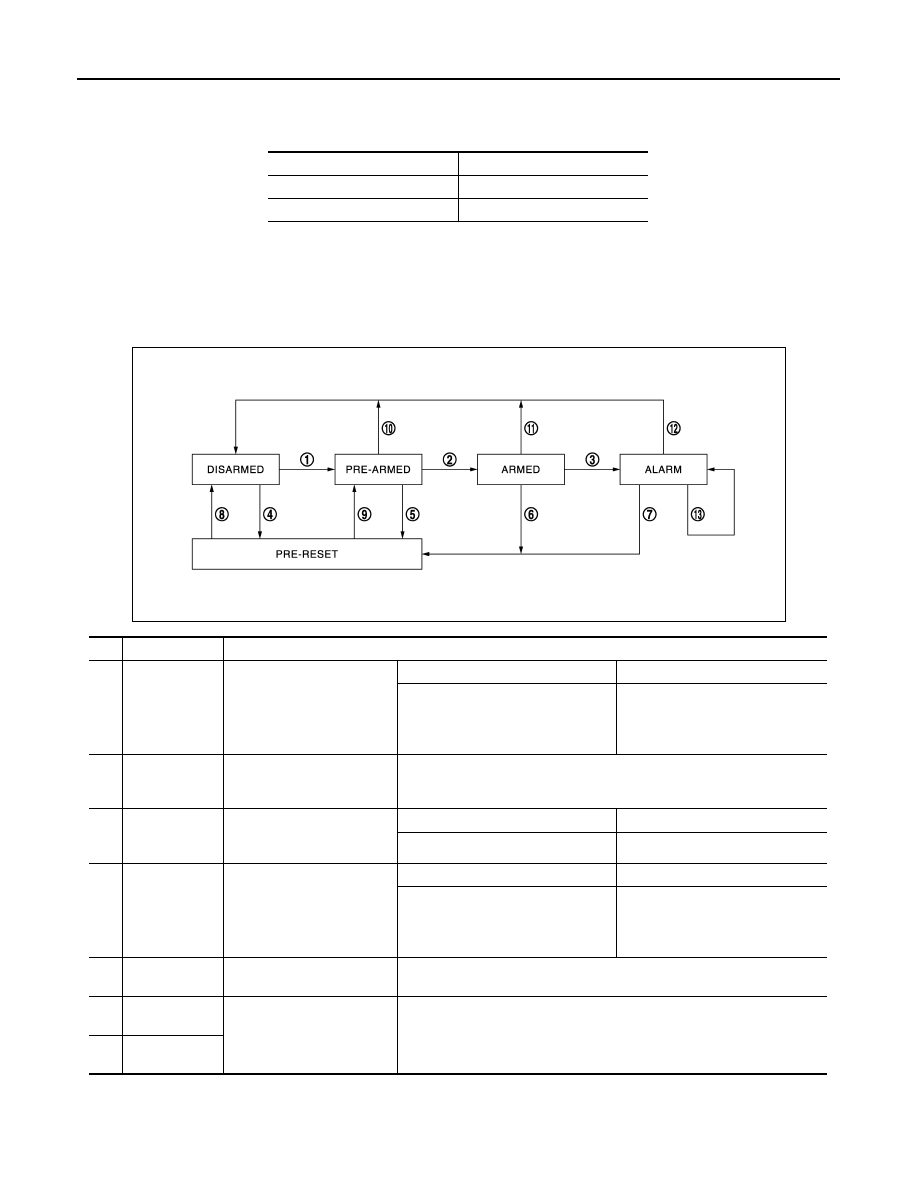

Operation Flow

Priority

Function

Theft warning alarm

Panic alarm

JMKIA5416GB

No.

System state

Switching condition

DISARMED to
PRE-ARMED

When all conditions of A and
one condition of B is satis-
fied.

• Power supply position: OFF/LOCK
• All doors: Closed

All doors are locked by:
• Door key cylinder LOCK switch
• LOCK button of Intelligent Key
• Door request switch

PRE-ARMED
to ARMED

When all of the following
conditions are satisfied for
30 seconds.

• Power supply position: OFF/LOCK
• All doors: Locked

ARMED to
ALARM

When one condition of A and
one condition of B are satis-
fied.

Intelligent Key: Not used

• Any door: Open

DISARMED to
PRE-RESET

When all conditions of A and
one condition of B is satis-
fied.

• Power supply position: OFF/LOCK
• All doors: Closed

All doors are locked by:
• Door key cylinder LOCK switch
• LOCK button of Intelligent Key
• Door request switch

PRE-ARMED
to PRE-RESET

No conditions.

ARMED to
PRE-RESET

No conditions.

ALARM to
PRE-RESET

2015 Rogue NAM

SYSTEM

SEC-17

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SEC

NOTE:
• BCM ignores the door key cylinder UNLOCK switch signal input for 1 second after the door key cylinder LOCK switch signal input.
• To lock/unlock all doors by operating remote controller button of Intelligent Key or door request switch, Intelligent Key must be within

the detection area of outside key antenna. For details, refer to

SEC-10, "INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION :

System Description"

• To open back door by operating back door opener switch, Intelligent Key must be within the detection area of outside key antenna. For

details, refer to

SEC-10, "INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION : System Description"

DISARMED Phase

The vehicle security system is not set in the DISARMED phase. The vehicle security system stays in this

phase while any door is open because it is assumed that the owner is inside or nearby the vehicle. Security

indicator lamp blinks every 2.4 seconds.

When the vehicle security system is reset, each phase switches to the DISARMED phase directly.

PRE-ARMED Phase

The PRE-ARMED phase is the transient state between the DISARMED phase and the ARMED phase. This

phase is maintained for 30 seconds so that the owner can reset the setting due to a mis-operation. This phase

switches to the ARMED phase when vehicle conditions are not changed for 30 seconds. Security indicator

lamp illuminates while being in this phase.

To reset the PRE-ARMED phase, refer to the switching condition of No. 10 in the table above.

ARMED Phase

The vehicle security system is set and BCM monitors all necessary inputs. If any door is opened without using

Intelligent Key, vehicle security system switches to the ALARM phase. Security indicator lamp blinks every 2.4

seconds.

To reset the ARMED phase, refer to the switching condition of No. 11 in the table above.

ALARM Phase

BCM transmits “Theft Warning Horn Request” signal and “High Beam Request” signal intermittently to IPDM

E/R via CAN communication. In this phase, horns and headlamps are activated intermittently for approxi-

mately 50 seconds to warn that the vehicle is accessed by unauthorized means. ON/OFF timing of horns and

headlamps are synchronized. After 50 seconds, the vehicle security system returns to the ARMED phase. At

this time, if BCM still detects unauthorized access to the vehicle, the system is switched to the ALARM phase

again. This RE-ALARM operation is carried out a maximum of 2 times.

To cancel the ALARM operation, refer to the switching condition of No. 12 in the table above.

PRE-RESET to
DISARMED

When one of the following
conditions is satisfied.

• Power supply position: ACC/ON/CRANKING/RUN
• Door key cylinder UNLOCK switch: ON
• UNLOCK button of Intelligent Key: ON
• Door request switch: ON
• Back door opener switch: ON
• UNLOCK switch of door lock and unlock switch: ON
• Any door: Open

PRE-RESET to
PRE-ARMED

When all of the following
conditions are satisfied.

• Power supply position: OFF/LOCK
• All doors: Closed

PRE-ARMED
to DISARMED

When one of the following
conditions is satisfied.

• Power supply position: ACC/ON/CRANKING/RUN
• Door key cylinder UNLOCK switch: ON
• UNLOCK button of Intelligent Key: ON
• AUTO BACK DOOR button of Intelligent Key: ON
• Door request switch: ON
• Back door opener switch: ON
• Any door: Open

ARMED to
DISARMED

When one of the following
conditions is satisfied.

ALARM to
DISARMED

RE-ALARM

When one of the following
conditions is satisfied after
the ALARM operation is fin-
ished.

• Any door: Open

No.

System state

Switching condition

2015 Rogue NAM

SEC-18

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM

NOTE:

If a battery terminal is disconnected during the ALARM phase, theft warning alarm stops. But when the battery

terminal is reconnected, theft warning alarm is activated again.

PANIC ALARM

• The panic alarm function activates horns and headlamps intermittently when the owner presses the PANIC

ALARM button of Intelligent Key outside the vehicle while the power supply position is OFF or LOCK.

• When BCM receives panic alarm signal from Intelligent Key, BCM transmits “Theft Warning Horn Request”

signal and “High Beam Request” signal intermittently to IPDM E/R via CAN communication. To prevent the

activation due to mis-operation of Intelligent Key by owner, the panic alarm function is activated when BCM

receives the signal for 0.4 - 0.6 seconds.

• Panic alarm operation is maintained for 25 seconds.

• Panic alarm operation is cancelled when BCM receives one of the following signals:

- LOCK button of Intelligent Key: ON

- UNLOCK button of Intelligent Key: ON

- PANIC ALARM button of Intelligent Key: Long pressed

- Any door request switch: ON

2015 Rogue NAM
