Nissan Rogue. Manual - part 1038

SE-18

< WIRING DIAGRAM >

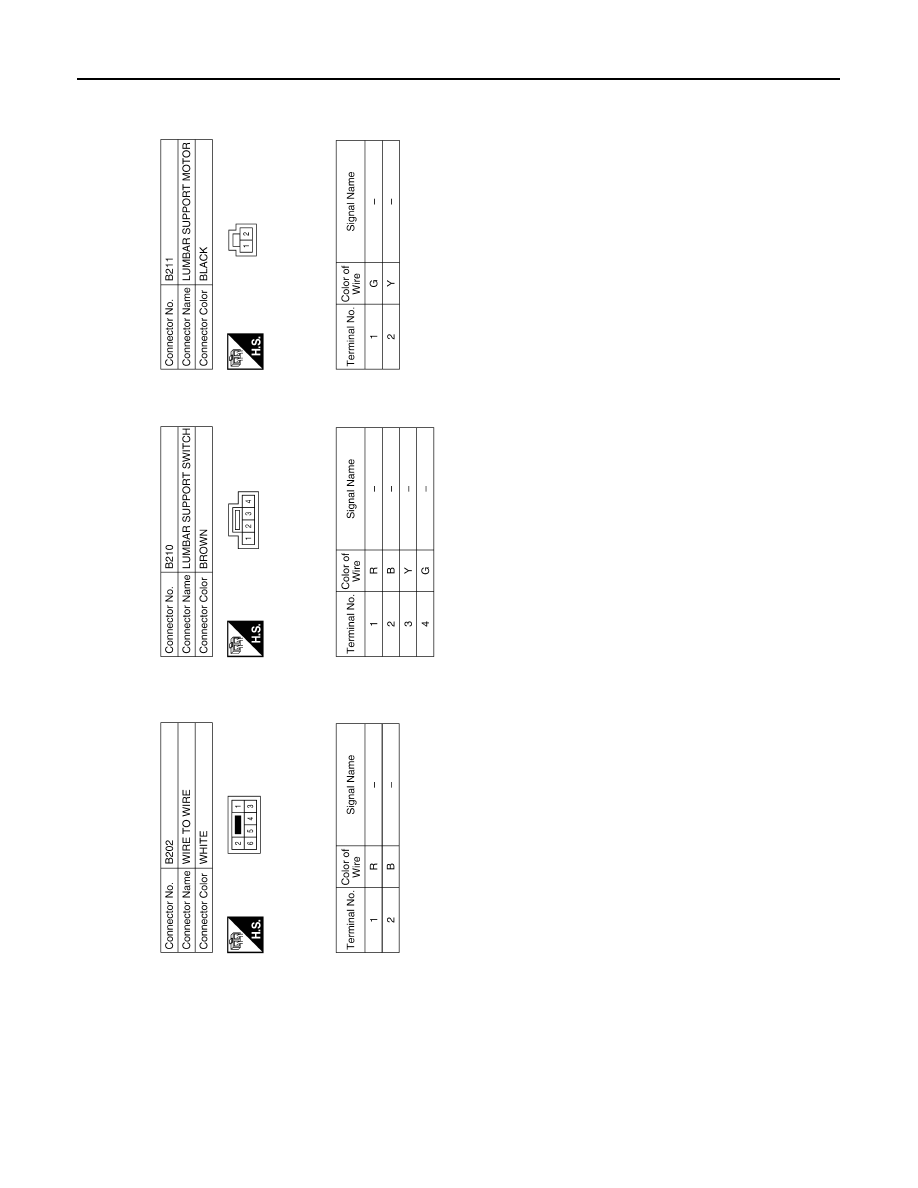

LUMBAR SUPPORT SYSTEM

AAJIA0585GB

HEATED SEAT SYSTEM

SE-19

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

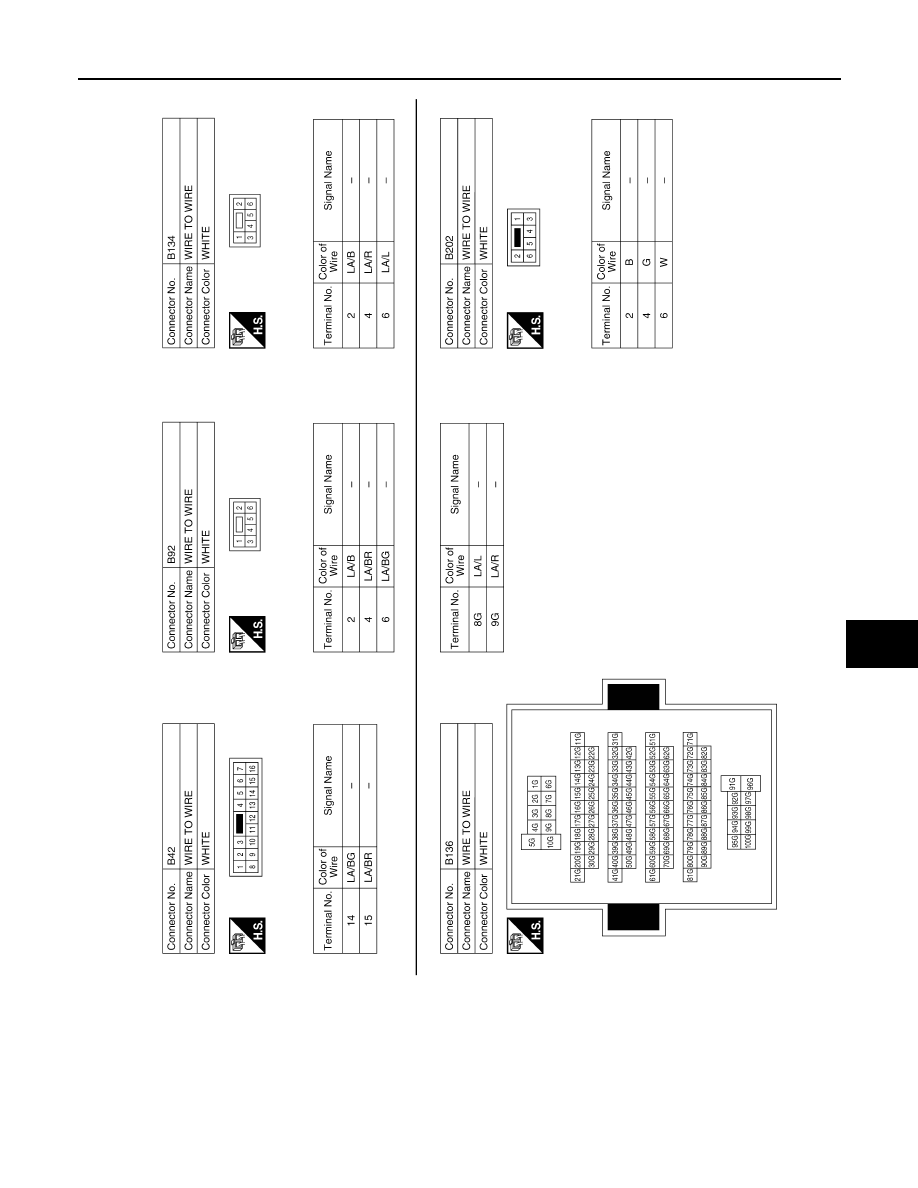

HEATED SEAT SYSTEM

Wiring Diagram

INFOID:0000000011280447

AAJWA0237GB

SE-20

< WIRING DIAGRAM >

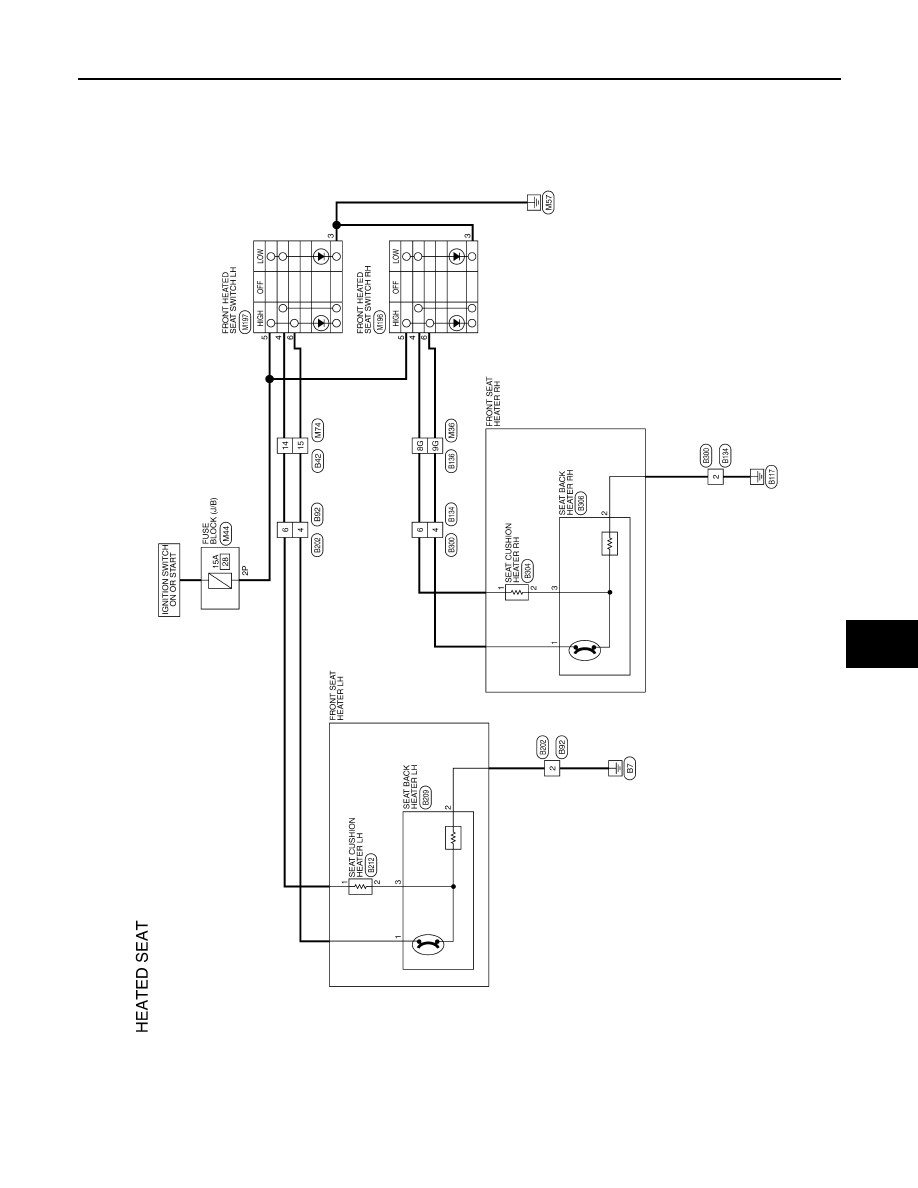

HEATED SEAT SYSTEM

AAJIA0450GB

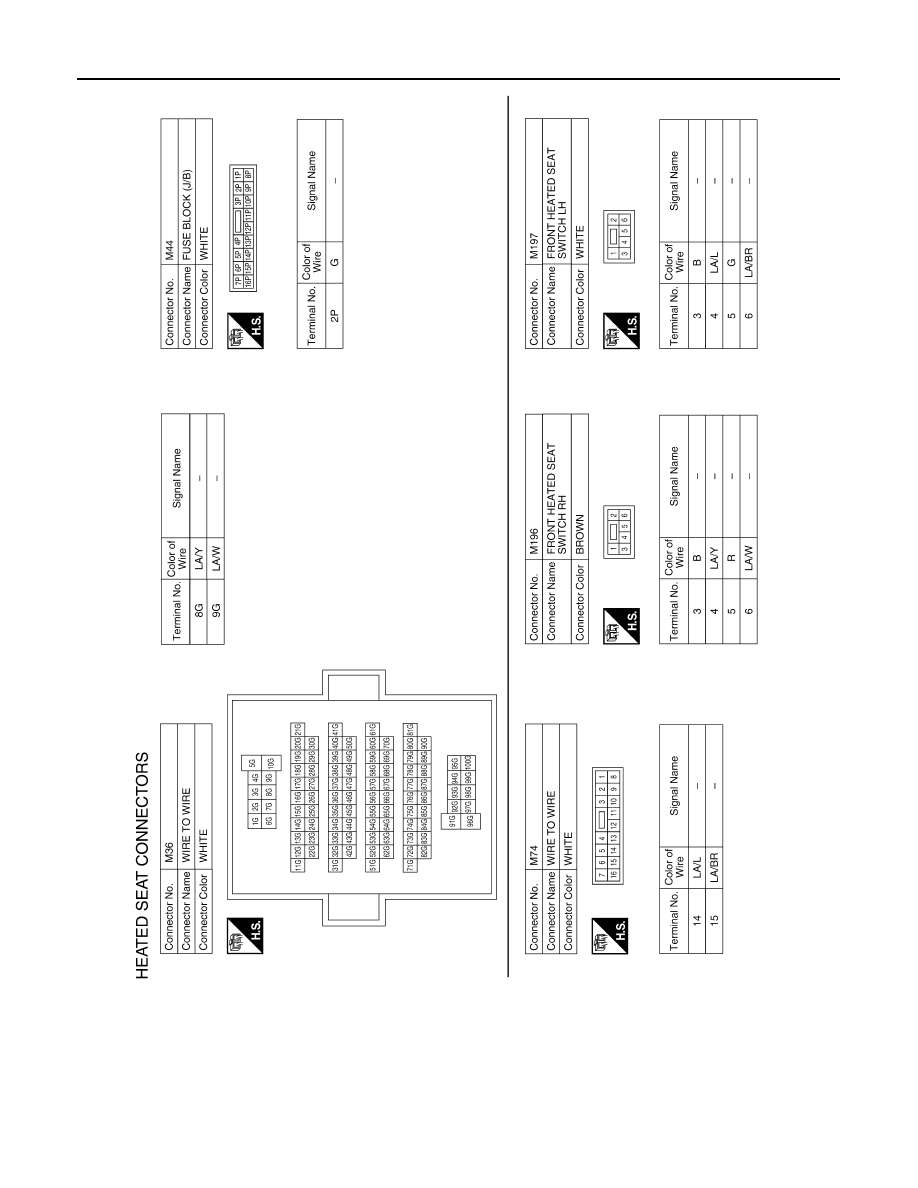

HEATED SEAT SYSTEM

SE-21

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

AAJIA0583GB
