REMOVAL AND INSTALLATION

REAR WHEEL HUB

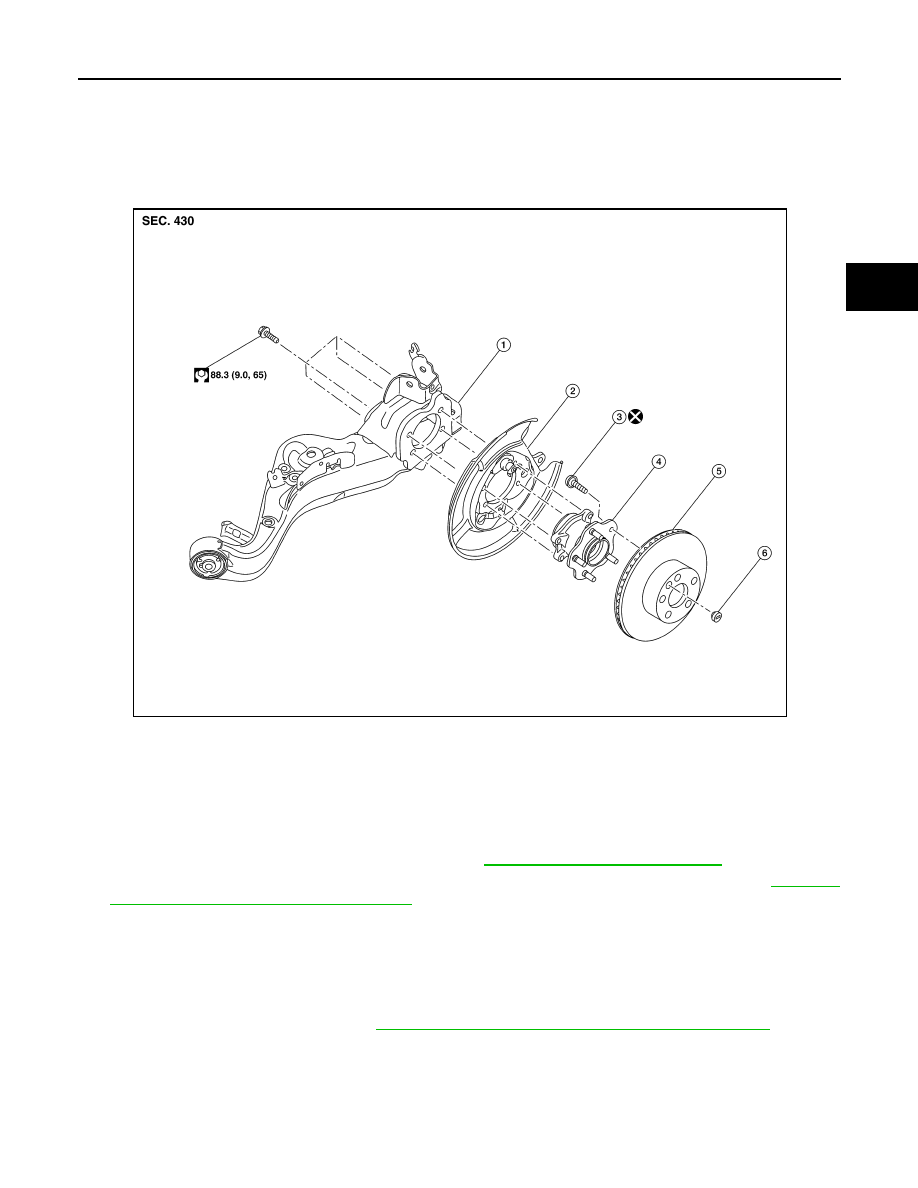

Exploded View

INFOID:0000000011280314

Removal and Installation

INFOID:0000000011280315

REMOVAL

1. Remove the wheel and tire using power tool. Refer to

WT-67, "Removal and Installation"

.

2. Remove the bolt and separate the rear wheel sensor from the wheel hub and bearing. Refer to

BRC-131,

"REAR WHEEL SENSOR : Exploded View"

.

CAUTION:

• Failure to separate the rear wheel sensor from the wheel hub and bearing may result in damage

to the rear wheel sensor.

• Pull out the rear wheel sensor, being careful to turn it as little as possible. Do not pull on wheel

sensor harness.

3. Remove brake caliper torque member bolts using power tool, leaving the brake hose attached. Position

brake caliper aside with wire. Refer to

BR-47, "BRAKE CALIPER ASSEMBLY : Exploded View"

.

CAUTION:

Do not depress brake pedal while brake caliper is removed.

4. Put alignment marks on the disc brake rotor and on the wheel hub and bearing. Remove the disc brake

rotor.

CAUTION:

Do not drop disc brake rotor.

1.

Suspension arm

2.

Back plate

3.

Wheel stud

4.

Wheel hub and bearing

5.

Disc brake rotor

6.

Plug

ALDIA0524ZZ

RAX-8

< REMOVAL AND INSTALLATION >

[FWD]

REAR WHEEL HUB

5. Remove the hub bolts and the wheel hub and bearing. Support the back plate and parking brake compo-

nents with wire.

CAUTION:

Do not drop the back plate or the parking brake components.

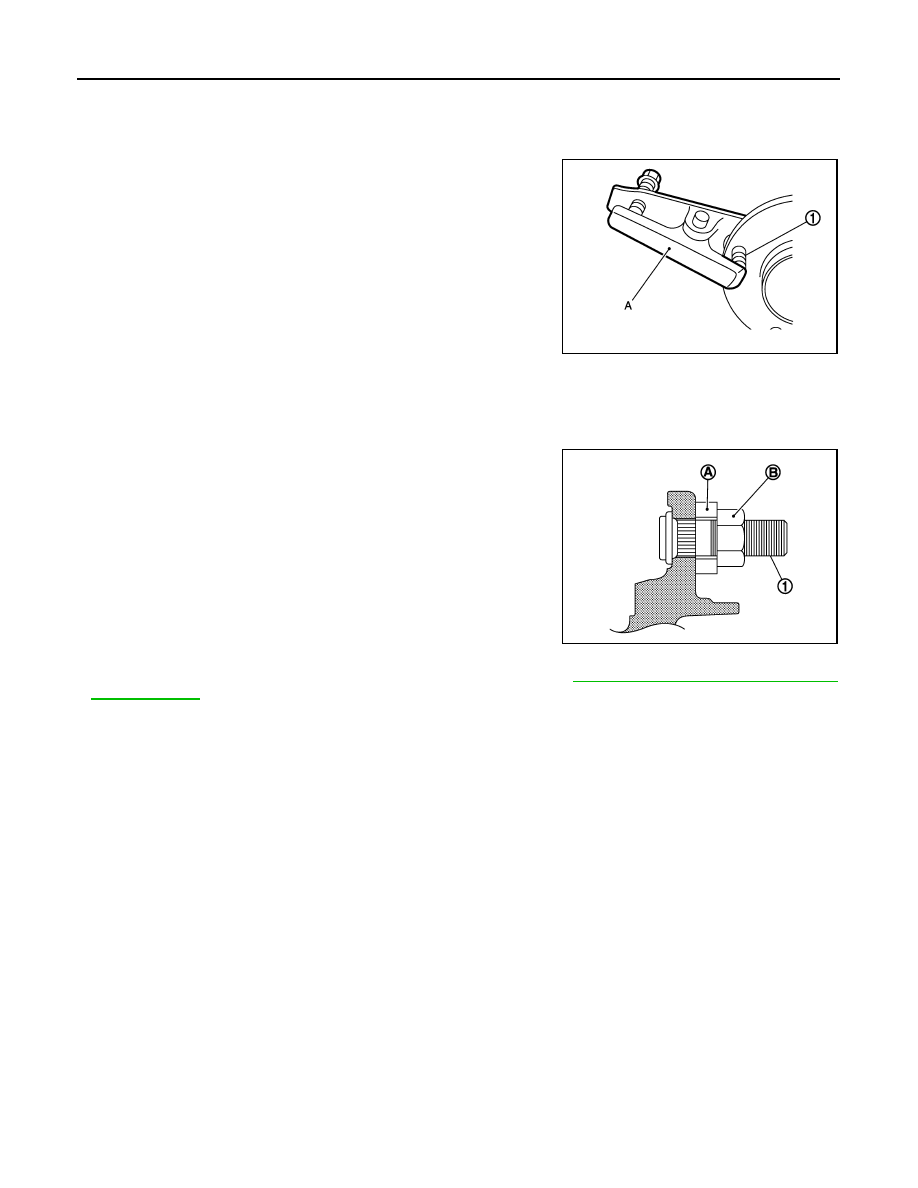

6. If necessary, remove the wheel studs (1) from the wheel hub

and bearing using a suitable tool (A).

CAUTION:

• Remove the wheel studs only when necessary.

• Do not hammer the wheel studs or damage to the wheel

hub and bearing may occur.

• Pull out the wheel studs in a direction perpendicular to

the wheel hub and bearing.

INSPECTION AFTER REMOVAL

Check wheel hub and bearing for wear, cracks, and damage. Replace if necessary.

INSTALLATION

Installation is in the reverse order of removal.

• Place a washer (A) as shown to install the wheel studs (1) by using

the tightening force of the nut (B).

CAUTION:

• Do not reuse the wheel stud.

• Check that there is no clearance between the wheel stud

and the wheel hub and bearing.

• Install the rear wheel sensor to the wheel hub and bearing. Refer to

BRC-131, "REAR WHEEL SENSOR :

Exploded View"

.

CAUTION:

• Before installing, make sure there is no foreign material such as iron fragments adhered to the

pick-up part of the rear wheel sensor.

• When installing, make sure there is no foreign material such as iron fragments on and in the hole in

the wheel hub and bearing for the rear wheel sensor. Make sure no foreign material has been

caught in the sensor rotor. Remove any foreign material and clean the mount.

• Align the matching marks made during removal when reusing the disc brake rotor.

• Check that the wheel hub and bearing operates smoothly.

JPDIF0299ZZ

JPDIF0300ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

RAX-9

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FWD]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000011280317

Item

Standard

Axial end play

0.05 mm (0.002 in) or less
