AV-176

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITHOUT BOSE]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Diagnosis Procedure

INFOID:0000000011276874

Regarding Wiring Diagram information, refer to

AV-107, "Wiring Diagram"

.

1.

CONNECTOR CHECK

Check the AV control unit and speaker connectors for the following:

•  Proper connection

•  Damage

•  Disconnected or loose terminals
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminals or connectors.

2.

CHECK FRONT DOOR SPEAKER SIGNAL CIRCUIT CONTINUITY

1. Disconnect AV control unit connector M101 and suspect front door speaker connector.

2. Check continuity between AV control unit connector M101 and suspect front door speaker connector.

3. Check continuity between AV control unit connector M101 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

CHECK FRONT DOOR SPEAKER SIGNAL

1. Connect AV control unit connector M101 and suspect front door speaker connector.

2. Turn ignition switch to ON.

3. Push AV control unit POWER switch.

4. Check signal between the terminals of AV control unit connector M101.

AV control unit

Front door speaker

Continuity

Connector

Terminal

Connector

Terminal

M101

2

D7 (LH)

1

Yes

3

2

11

D104 (RH)

1

12

2

AV control unit

Ground

Continuity

Connector

Terminal

M101

2

—

No

3

11

12

AV control unit connector M101

Condition

Reference value

(+)

(

−)

Terminal

Terminal

AV

FRONT DOOR SPEAKER

AV-177

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

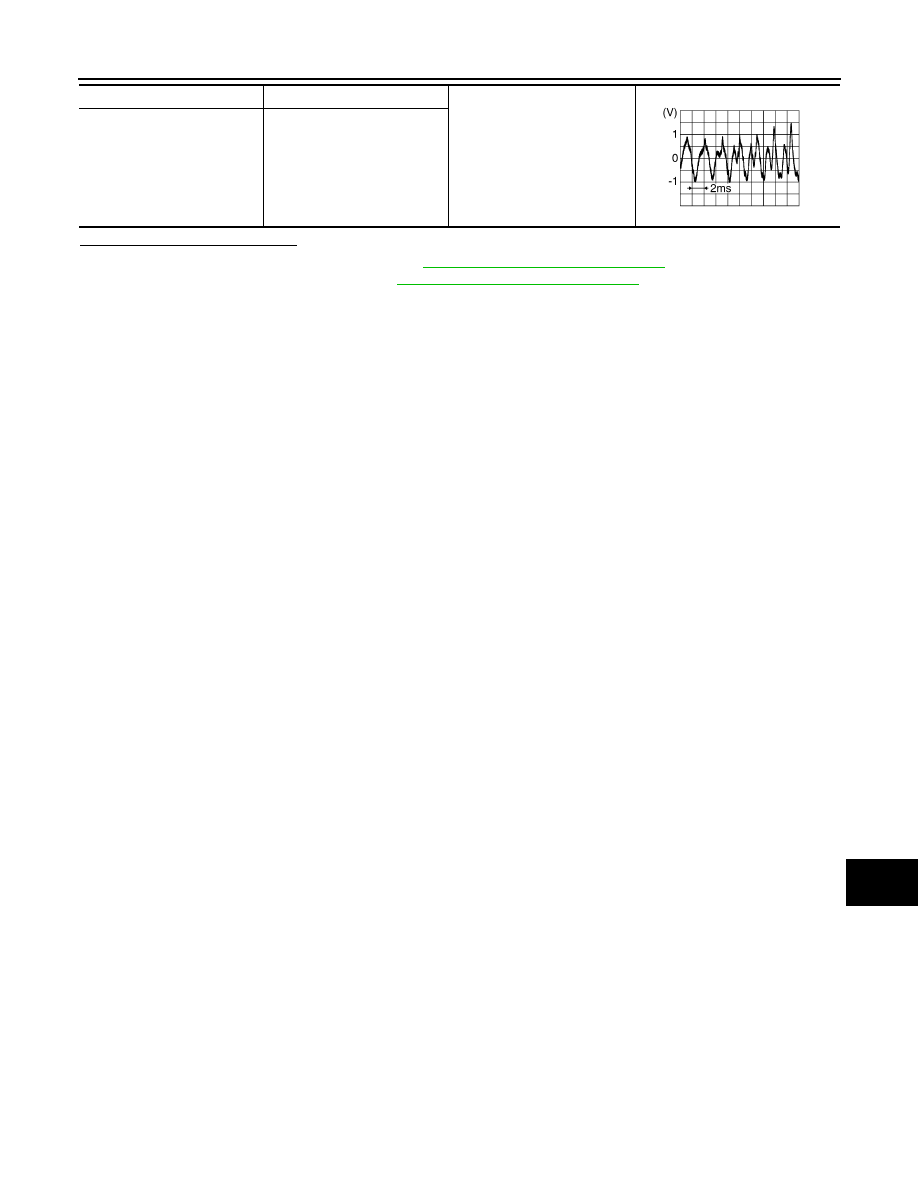

Is the inspection result normal?

YES

>> Replace front door speaker. Refer to

AV-204, "Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-200, "Removal and Installation"

.

2

3

Audio signal output

11

12

SKIB3609E

AV-178

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITHOUT BOSE]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Diagnosis Procedure

INFOID:0000000011276875

Regarding Wiring Diagram information, refer to

AV-107, "Wiring Diagram"

.

1.

CONNECTOR CHECK

Check the AV control unit and speaker connectors for the following:

•  Proper connection

•  Damage

•  Disconnected or loose terminals
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminals or connectors.

2.

CHECK REAR DOOR SPEAKER SIGNAL CIRCUIT CONTINUITY

1. Disconnect AV control unit connector M101 and suspect rear door speaker connector.

2. Check continuity between AV control unit connector M101 and suspect rear door speaker connector.

3. Check continuity between AV control unit connector M101 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

CHECK REAR DOOR SPEAKER SIGNAL

1. Connect AV control unit connector M101 and suspect rear door speaker connector.

2. Turn ignition switch to ON.

3. Push AV control unit POWER switch.

4. Check signal between the terminals of AV control unit connector M101.

AV control unit

Rear door speaker

Continuity

Connector

Terminal

Connector

Terminal

M101

4

D203 (LH)

1

Yes

5

2

13

D303 (RH)

1

14

2

AV control unit

Ground

Continuity

Connector

Terminal

M101

4

—

No

5

13

14

AV control unit connector M101

Condition

Reference value

(+)

(

−)

Terminal

Terminal

AV

REAR DOOR SPEAKER

AV-179

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is the inspection result normal?

YES

>> Replace rear door speaker. Refer to

AV-205, "Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-200, "Removal and Installation"

.

4

5

Audio signal output

13

14

SKIB3609E
